- Page 1 D01205220A UH-7000 HDIA Mic Preamp / USB Audio Interface OWNER'S MANUAL Before connecting this unit to a computer, you must download and install a dedicated driver.
-
Page 2: Important Safety Precautions
CET APPAREIL NUMERIQUE DE LA CLASSE B EST CONFORME A LA NORME NMB-003 DU CANADA. DECLARATION OF CONFORMITY We, TEAC EUROPE GmbH. Bahnstrasse 12, 65205 Wiesbaden-Erbenheim, Germany declare in own responsibility, the TEAC product described in this manual is in compliance with the corresponding technical standards. TASCAM UH-7000... -
Page 3: Important Safety Instructions
• The mains plug is used as the disconnect device, the For China disconnect device shall remain readily operable. 产品有毒有害物质或元素的名称及含量 • Caution should be taken when using earphones or 机种 : UH-7000 有毒有害物质或元素 headphones with the product because excessive sound 铅 汞 镉... -
Page 4: Table Of Contents
Note about restrictions on the use of built-in effects ................20 Dynamics effects ............20 Send effect ..............22 Mixer Panel menu .............23 Resetting the effect settings ........23 Resetting the mixer settings ........24 Using the unit as an A/D converter .....24 TASCAM UH-7000... -
Page 5: Introduction
1 – Introduction Note about computer operation Thank you for purchasing the TASCAM UH-7000 HDIA Mic Preamp/USB Audio Interface. If you are unsure about anything related to the basic operation Before connecting and using this unit, please take time to... -
Page 6: Trademarks
1 – Introduction Trademarks Power supply • TASCAM is a trademark of TEAC Corporation, registered in • Insert the included power cord all the way into the AC IN the U.S. and other countries. connector. • Microsoft, Windows, Windows XP, Windows 7, Windows 8 •... -

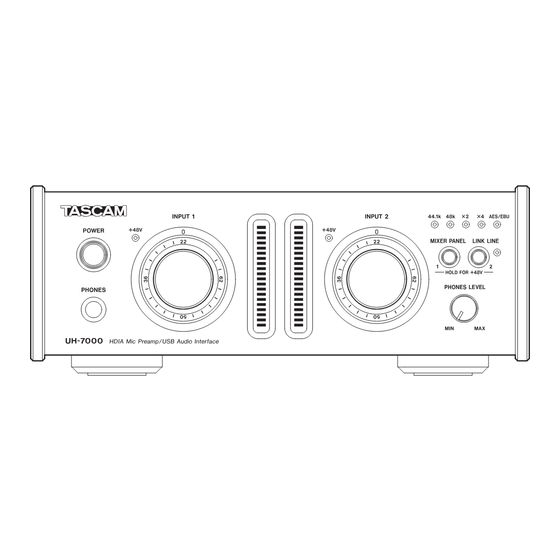

Page 7: Names And Functions Of Parts
LINK LINE button to turn CAUTION the feature OFF. Before connecting headphones, minimize the volume with the PHONES knob. Failure to do so might cause sudden loud noises, which could harm your hearing or result in other trouble. TASCAM UH-7000... -
Page 8: Rear Panel
This digital audio input connector supports the IEC 60958 professional (AES/EBU) and consumer (S/PDIF) standards. DIGITAL (AES/EBU) OUT jack This digital audio output connector supports the IEC 60958 professional (AES/EBU) and consumer (S/PDIF) standards. AC IN connector Plug the included power cord in here. TASCAM UH-7000... -
Page 9: Installation
“OK” button. (The Memory screens and button names used in the following instructions are for when English is selected.) 2 GB or more 5. Click the “Install the driver” button when the screen below appears. TASCAM UH-7000... -
Page 10: Installing The Driver For Mac Os X
• During driver installation a warning message such as “'TASCAM UH-7000 X.XX' can't be opened because it was not downloaded from the Mac App Store.” might appear. If a message like this appears, follow the instructions in “Working with Gatekeeper”... - Page 11 The Gatekeeper setting can be changed using the “Allow applications downloaded from:” item on the “General” page “'TASCAM UH-7000 X.XX' can't be opened because it was of the “Security & Privacy” pane of the System Preferences. not downloaded from the Mac App Store. ” might appear as a security warning message.
-
Page 12: Uninstalling The Driver
Uninstalling the driver 1. Double-click the “TASCAM_UH-7000_driver_X.XX.dmg” disk Windows image file that was used during installation, and double- click “TASCAM UH-7000 remover” inside the folder. There are two ways to uninstall the driver. Uninstalling from the “setup.cmd” file used during installation 1. -
Page 13: Connections
4 – Connections Headphones Guitar through an effect, etc. Digital recorder, etc. Computer Powered monitor speakers or amplifier and speaker system with balanced connections, etc. Vocal mics, etc. Examples of connections using one UH-7000 TASCAM UH-7000... -
Page 14: Usb Connection
Connect headphones to the PHONES jack (standard stereo) on ribbon mic. the front of the unit. • Turning this unit off resets the phantom power setting, so phantom power will be off when the unit is turned on again. TASCAM UH-7000... -
Page 15: Mixer Panel Settings
To save settings in the memory of No valid digital signal is being input. the unit, select “Save” from the File (Windows) or TASCAM Confirm that the digital output format of UH-7000 Mixer Panel (Mac) menu. (See “Mixer Panel menu”... - Page 16 POWER button once, wait at least eight seconds Highest latency: maximum buffer size and then press the POWER button again. High latency: large buffer size Normal latency: medium buffer size (default) Low latency: small buffer size Lowest latency: minimum buffer size TASCAM UH-7000...
-
Page 17: Mixer Page
(The one exception is the combination of the limiter While dragging the mouse, the value being adjusted is and low-cut filter effects.) shown beneath its SEND knob. Options Off (default): Effect name unlit On: Effect name lit TASCAM UH-7000... - Page 18 The value being adjusted is shown in the fader level display IN 1/2 jacks or MIC IN 1/2 jacks are output directly. area ( Digital in 1 and 2 button: Signals input through the DIGITAL (AES/EBU) IN jack are output directly. TASCAM UH-7000...
- Page 19 Analog in 1 and 2 button: Signals input through the ANALOG (BALANCED) LINE IN 1/2 jacks or MIC IN 1/2 jacks are output directly. Digital in 1 and 2 button: Signals input through the DIGITAL (AES/EBU) IN jack are output directly. TASCAM UH-7000...
-
Page 20: Effects Page
Click the name or indicator of the send effect (reverb) that is exceeds the threshold. currently being shown to turn it on or off. Range: 2 ms–200 ms (default: 20 ms) When the send effect is on, its name lights. TASCAM UH-7000... - Page 21 Range: 0 ms–4000 ms (default: 320 ms) NOTE If the input is a stereo signal (stereo-linked channel or master), noise suppression will start when both the left and right input channels go below the threshold level. TASCAM UH-7000...
-
Page 22: Send Effect
The larger the value, the longer they continue. only be used on the analog inputs. Range: 0.1–10 s (default: 2.7 s) The LOW-CUT filter reduces the sounds of air-conditioning and wind and other low-frequency noises that are easily picked up by microphones. TASCAM UH-7000... -
Page 23: Mixer Panel Menu
Follow these procedures to reset all the settings on the EFFECTS To reset the mixer settings to their original values, use the page. Windows File menu or the Mac TASCAM UH-7000 Mixer Panel CAUTION menu. After resetting, you cannot restore the previous settings. -
Page 24: Resetting The Mixer Settings
A/D converter. 1. In the menu bar, Click “File” on a Windows PC or click CAUTION “TASCAM UH-7000 Mixer Panel” on a Mac to open a After resetting, you cannot restore the previous settings. pulldown menu, and click “ADC Preset”. -
Page 25: Tascam Uh-
1. In the menu bar, Click “File” on a Windows PC or click used in standalone mode. “TASCAM UH-7000 Mixer Panel” on a Mac to open a 1. In the menu bar, Click “File” on a Windows PC or click pulldown menu, and click “ADC/DAC Preset”. -
Page 26: Standalone Mode
Channel faders (Digital 1/2): 0 dB o LINK buttons (all channels): off o Master fader: 0 dB o SEND knob: 127 o RETURN knob: 64 o MON MIX slider: Input o LINE OUTPUTS SELECT button: Master L and R TASCAM UH-7000... -
Page 27: Application Guide
1. Quit all applications and open Control Panel from the Start 3. On the Playback page, right-click “Speakers TASCAM menu. UH-7000”, and click “Set as Default Device” in the pop-up 2. Open the “Sounds and Audio devices Properties” screen. menu that appears. -
Page 28: Windows 8 And Windows Media Player
MIXER page of the Mixer Panel, select the Computer 1 and 2 button in the • When you can select “UH-7000 (Bit Accurate)” in a DAW or DIGITAL OUTPUTS SELECT section. other application, it will enable recording and playback that is even more stable. -
Page 29: Troubleshooting
• Wireless LAN use: 2. Open “Sound”. See the end of this document for contact information. 3. On the Output tab, select “UH-7000 output”. After completing the setting, restart the computer and Installation fails. check the sound of playback. Depending on the application... - Page 30 1. Open “System Preferences…” from the Apple menu, and select “Energy Saver”. 2. Set “Computer sleep” to “Never”. 3. Set “Display sleep” to “Never”. NOTE Depending on the Mac OS X version and Macintosh computer model, this setting might not be available. TASCAM UH-7000...
-
Page 31: Specifications
Maximum output: 45 mW + 45 mW or higher (THD+N 1% or ADC dynamic range: 123dB(A-Weight) less, into 32 Ω load) DAC dynamic range: 123dB(A-Weight) Frequency response MIC Preamp: 20Hz-80kHz, +0.005dB/−0.16dB (FS=ALL) S/N ratio 117dB (MICwAD) Distortion 0.0009% (MIC wAD) TASCAM UH-7000... -
Page 32: Computer System Requirements
Mac OS X Snow Leopard (10.6.8 or later) Computer hardware requirements Apple Macintosh computer with a USB 2.0 port CPU/processor speed 2 GHz or faster dual core processor Memory 2 GB or more Supported audio drivers ASIO 2.0, WDM (MME) Core Audio TASCAM UH-7000... -
Page 33: Dimensional Drawings
9 – Specifications Dimensional drawings • Illustrations in this manual might differ in part from the actual product. • Specifications and external appearance might be changed without notification to improve the product. TASCAM UH-7000... -
Page 34: Audio Flow Diagram
9 – Specifications Audio flow diagram Multitrack mode TASCAM UH-7000... - Page 35 9 – Specifications Stereo mix mode TASCAM UH-7000...
- Page 36 UH-7000 TEAC CORPORATION http://tascam.jp/ Phone: +81-42-356-9143 1-47 Ochiai, Tama-shi, Tokyo 206-8530 Japan TEAC AMERICA, INC. http://tascam.com/ Phone: +1-323-726-0303 7733 Telegraph Road, Montebello, California 90640 USA TEAC MEXICO, S.A. de C.V. http://teacmexico.net/ Phone: +52-55-5010-6000 Río Churubusco 364, Colonia Del Carmen, Delegación Coyoacán, CP 04100, México DF, México TEAC UK LIMITED http://tascam.eu/...
