Summary of Contents for Hotpoint HDA3520

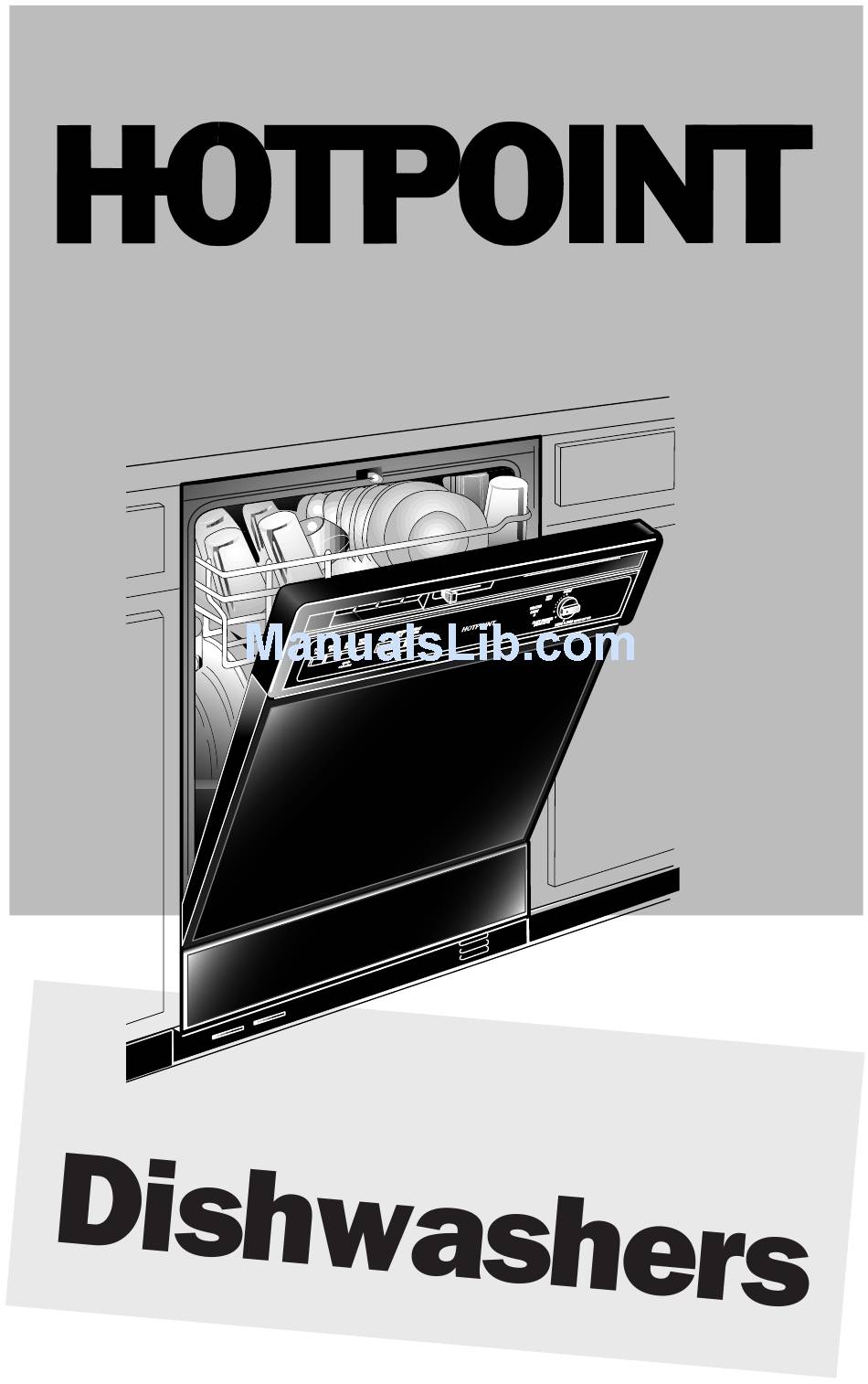

- Page 1 Owner’s Manual HDA1000 HDA1100 HDA2000 HDA2020 HDA2030 HDA2120 HDA2130 HDA2220 HDA3220 HDA3230 HDA3420 HDA3430 HDA3520 HDA3530 P a rt No. 165D4700P186 Pub. No. 39-5861-1 3-99 CG...
- Page 2 Congratulations! You Are Now Part of the Hotpoint Family. Welcome to the Hotpoint family. We’re proud of our quality products and we are committed to providing dependable service. You’ll see it in this easy-to-use Owner’s Manual and you’ll hear it in the friendly voices of our customer service department.
-
Page 3: Table Of Contents
Hotpoint & You, A Service Partnership. Ask any Hotpoint appliance owner and they will tell you we stand behind our products with unmatched quality service. However, did you know that most questions result from simple problems that you can easily fix yourself in just a few minutes? This Owner’s Manual can tell you how. -
Page 4: Water Heater Safety
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, electric shock, or to prevent property damage, personal injury, or loss of life. WATER HEATER SAFETY Under certain conditions hydrogen gas may be produced in a water heater that has not been used for two weeks or... -
Page 5: Proper Installation
This dishwasher must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet with your dishwasher, you can receive one by calling us toll-free at the GE Answer Center ®... - Page 6 Do not tamper with controls. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not discard a dishwasher without first removing the door of the washing compartment. Do not store or use...
-
Page 7: Save These Instructions
WHEN USING YOUR DISHWASHER Use only powder, tabs or liquid detergents or wetting agents recommended for use in a dishwasher and keep them out of the reach of children. Cascade® Automatic Dishwashing Detergent has been approved for use in all GE dishwashers. -
Page 8: Control Panel
Models HDA3220 and HDA3230 POTS NORMAL NORMAL HI TEMP WASH & PANS WASH WASH cycle energy saver selector options Models HDA3420, HDA3430, HDA3520 and HD3530 LIGHT WATER POTS NORMAL & PANS WASH WASH SAVER Model HDA1100 HEATED DRYING RINSE & HOLD... -
Page 9: Control Settings
Control Settings Cycles POTS & PANS/ For heavily soiled dishes or cookware with dried-on or baked-on soils. HEAVY WASH Everyday dishes may be included. This cycle will not remove burned-on foods. NORMAL WASH For loads of everyday dishes, glasses and cookware with medium soils. -
Page 10: Dial Cycles
RINSE & HOLD (HEATED DRY OFF) Rinse & Hold (HDA1100, HDA2000, HDA2020, HDA2030, HDA2120, HDA2130, HDA2220, HDA3220, HDA3230, HDA3420, HDA3430, HDA3520 and HDA3530 only) For rinsing partial loads that will be washed later. Do not use detergent. Make sure ENERGY SAVER / HEATED DRY OFF is selected. -
Page 11: Cycle Sequence
Heavy, Normal or Water Saver HDA2020, HDA2030, HDA2220, HDA3220 and HDA3230 only) HEAVY WASH NORMAL WASH WATER SAVER DRYING RINSE & HOLD (HEATED DRY OFF) Short Wash NORMAL WASH For quickly washing loads of everyday dishes with medium SHORT WASH soils that have not dried on. -
Page 12: Using The Dishwasher
150°F., for effective cleaning and to prevent dish damage. Check the water temperature with a candy or meat thermometer. Turn on the hot water faucet nearest the dishwasher, place the thermometer in a glass and let the water run continuously into the glass until the temperature stops rising. -
Page 13: Proper Use Of Detergent
. With hard water, you need extra detergent. With soft water, you need less detergent. Protect your dishes and dishwasher by contacting your water department and asking how hard your water is. Twelve or more grains is extremely hard water. A water softener is recommended. Without it, lime can build up in the water valve, which could stick while open and cause flooding. -
Page 14: Loading The Dishwasher Racks
The upper rack is for glasses, cups and saucers. Cups and glasses fit best along the sides. This is also a secure place for dishwasher-safe plastics. The upper rack is good for all kinds of odd- shaped utensils. Saucepans, mixing bowls and other items should be placed face down. -
Page 15: Silverware Basket
Lower Rack When loading the lower rack, do not load large platters or trays in the front right corner. They may prevent detergent from circulating during the wash cycle. The lower rack is best used for plates, saucers, and cookware. Large items such as broiler pans and racks should go along the sides. -
Page 16: Caring For The Dishwasher
Sump cover screws Protect Against Freezing If your dishwasher is left in an unheated place during the winter, ask a service technician to: Cut off electrical power to the dishwasher. Remove fuses or trip circuit breaker. - Page 17 An air gap protects your dishwasher against water backing up into it if a drain clogs. The air gap is not a part of the dishwasher. It is not covered by your warranty. Not all plumbing codes require air gaps, so you may not have one.
-
Page 18: Optional Accessories
1⁄4 thick decorative wood door and lower access panel: NOTE: The GPF100 dishwasher door spring kit must also be ordered and installed when the door panel weighs four lbs. or more. Trimless panel kit— This accessory contains parts and instructions for you to supply and install a 3⁄4 thick decorative wood door and... -
Page 19: Troubleshooting Tips
Dishwasher has not been • used on a regular basis. If you do not use your dishwasher often, set it to fill and pump out once every week. This will help keep the seal moist and the garbage disposer clear. - Page 20 If you have an air gap, • clean it. Check to see if your kitchen • sink is draining well. If not, you may need a plumber. If the dishwasher drains • into a disposer, run disposer clear. Use only automatic • dishwasher detergents to avoid sudsing.
- Page 21 120°F. Turn on a faucet. Is water • coming out more slowly than usual? If so, wait until pressure is normal before using your dishwasher. Clean the air gap. • Make sure large dishware • does not block the detergent dispenser or the wash arm.
- Page 22 1 Remove all metal utensils from the dishwasher. 2 Do not add detergent. 3 Select the longest cycle. 4 Start the dishwasher and allow to run for 18 to 22 minutes. Dishwasher will now be in the main wash. 5 Open the door and pour...
- Page 23 Contact a water softener company. To clean the interior, apply • dishwasher detergent to a damp sponge. Wear rubber gloves. Do not use any type of cleanser other than dishwasher detergent because it may cause foaming or sudsing.
- Page 24 Before you call for service… Troubleshooting Tips Problem Detergent cup lid won’t latch Detergent left in dispenser cups Steam Black or gray marks on dishes Possible Causes Dial is not in the OFF position Dishes are blocking the detergent cups This is normal Aluminum utensils have rubbed against dishes...
- Page 25 Notes...
- Page 26 Notes...
- Page 28 Notes...
-
Page 29: Product Registration
No questions asked. It’s that simple. Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more— any brand! Plus there’s no extra charge for emergency service and low monthly financing is available. - Page 30 Consumer Product Ownership Registration Dear Customer: Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer! Follow these three steps to protect your new appliance investment: 1 2 3 Complete and mail your Consumer...
-
Page 31: Warranty
® technician. For service, We Will Replace: Any part of the dishwasher which fails due to a defect in materials or workmanship. During this full one-year warranty, we will also provide, free of charge, all labor, and in-home service to replace the defective part . -
Page 32: Parts And Accessories
Service Telephone Numbers. GE Answer Center The GE Answer Center In-Home Repair Service Expert GE repair service is only a phone call away. Special Needs Service TDD 800-TDD-GEAC (800-833-4322) GE offers, free of charge, Braille controls for a variety of GE appliances and a brochure to assist in planning a barrier-free kitchen for persons with limited mobility.
