Hotpoint HDA3400G Dimensions

HDA3400G - Hotpoint Built-In Dishwasher

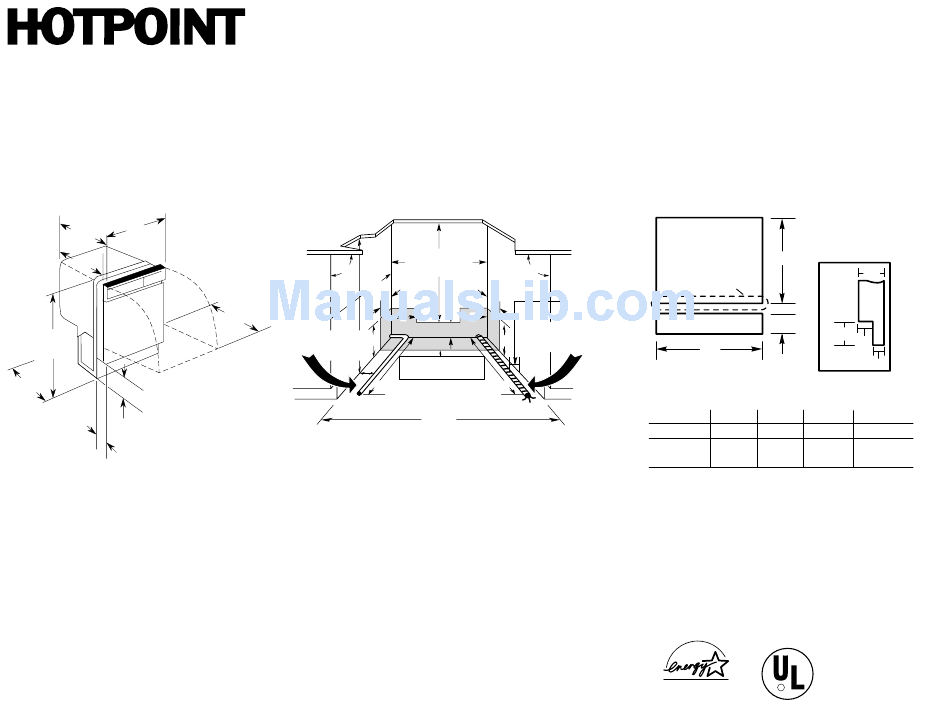

Dishwasher Dimensions (in inches)
25-3/4
24
MAX.
23-3/8*
34 MIN.
adj. to 35
21-1/2
3-1/4
4 (Adjustable)
Electrical Rating
Voltage AC.......................................................120
Hertz ..................................................................60
Total connected load amperage.......................8.6
Calrod ® heater watts.......................................500
For use on adequately wired 120-volt, 15-amp
circuit having 2-wire service with a separate
ground wire. This appliance must be grounded
for safe operation.
Specification Created 1/02

Installation Information

(in inches)
90°
24"
4
MIN.
24-3/4
5
Hot
water
34-1/2±1/4"
line on
6
Underside
left
of countertop
to floor
2
19" MIN. from wall
Note: Dishwasher must not be installed more than 10' from sink
for proper drainage. All plumbing and electrical work must be in
accordance with local codes. Dishwasher includes drain hose
and leveling legs.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
Countertop
This wall area
must be free of
90°
pipes or wires
Electrical
4
wiring is
4 3" from
cabinet
5
Electrical
wiring on
6
right
Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
Wood Insert Cut-Out
Dimensions (in inches)
Panel Thickness
A
Door insert
Detail D
Front
Panel
C
Access insert
B
Models/Kits A B C
GPF325 Kit 18-7/8" 23-9/16" 3-11/16"
3-3/4" to
GPF375 Kit 18-15/16" 23-5/8"* 4-1/4"**
*Bottom of panel must be notched 1-1/2" x 1/2" to clear
access panel. (See illustration above)
**Adjustment required to match adjcent cabinets fronts due to
leveling leg adjustment, 4" nominal.
Listed by
Underwriters
Laboratories
®
As an ENERGY STAR Partner, R
GE has determined that this product
®
meets the ENERGY STAR
guidelines for energy efficiency.
3/4
of
1-1/2
1/2
1/4
Panel
Thickness
1/4"
3/4"
