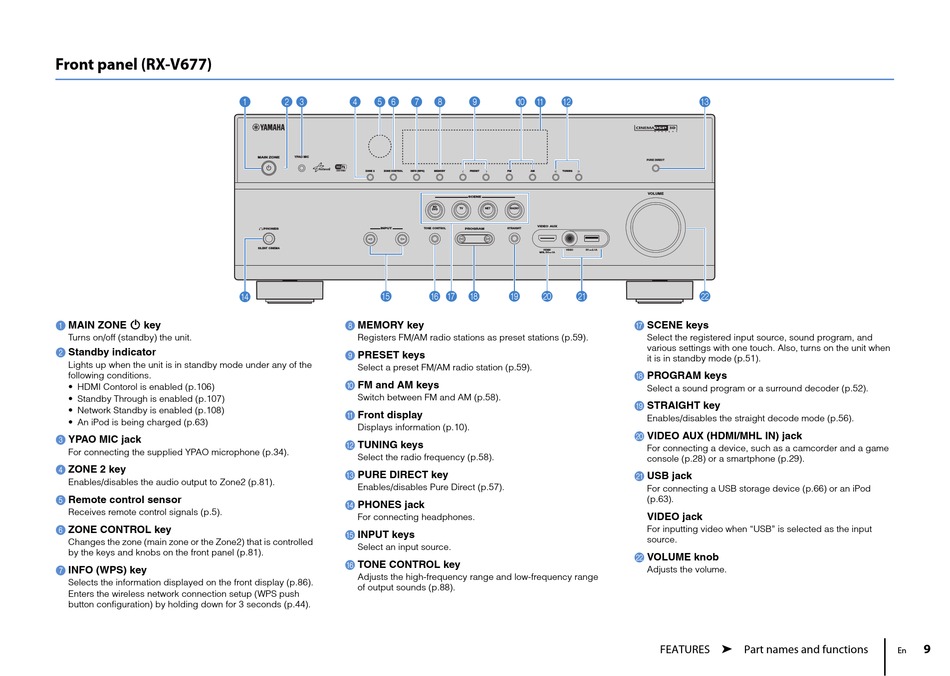

Front panel (RX-V677)

1 MAIN ZONE z key
Turns on/off (standby) the unit.
2
Standby indicator
Lights up when the unit is in standby mode under any of the
following conditions.
• HDMI Contorol is enabled (p.106)
• Standby Through is enabled (p.107)
• Network Standby is enabled (p.108)
• An iPod is being charged (p.63)
3
YPAO MIC jack
For connecting the supplied YPAO microphone (p.34).
4
ZONE 2 key
Enables/disables the audio output to Zone2 (p.81).
5
Remote control sensor
Receives remote control signals (p.5).
6
ZONE CONTROL key
Changes the zone (main zone or the Zone2) that is controlled
by the keys and knobs on the front panel (p.81).
7
INFO (WPS) key
Selects the information displayed on the front display (p.86).
Enters the wireless network connection setup (WPS push
button configuration) by holding down for 3 seconds (p.44).
1 2 3 4 5 6 7 8
MAIN ZONE YPAO MIC
ZONE 2 ZONE CONTROL INFO (WPS)
PHONES INPUT
SILENT CINEMA
D E
8
MEMORY key
Registers FM/AM radio stations as preset stations (p.59).
9
PRESET keys
Select a preset FM/AM radio station (p.59).
0
FM and AM keys
Switch between FM and AM (p.58).
A
Front display
Displays information (p.10).
B
TUNING keys
Select the radio frequency (p.58).
C
PURE DIRECT key
Enables/disables Pure Direct (p.57).
D
PHONES jack
For connecting headphones.
E
INPUT keys
Select an input source.
F
TONE CONTROL key
Adjusts the high-frequency range and low-frequency range
of output sounds (p.88).
9 : A B
MEMORY PRESET FM AM TUNING
SCENE
BD
TV NET RADIO
DVD
VIDEO AUX
TONE CONTROL PROGRAM STRAIGHT
HDMI/ VIDEO 5V 2.1A
MHL 5V 1A
F G H I J K
C
PURE DIRECT
VOLUME
L
G
SCENE keys
Select the registered input source, sound program, and
various settings with one touch. Also, turns on the unit when
it is in standby mode (p.51).
H
PROGRAM keys
Select a sound program or a surround decoder (p.52).
I
STRAIGHT key
Enables/disables the straight decode mode (p.56).
J
VIDEO AUX (HDMI/MHL IN) jack
For connecting a device, such as a camcorder and a game
console (p.28) or a smartphone (p.29).
K
USB jack
For connecting a USB storage device (p.66) or an iPod
(p.63).
VIDEO jack
For inputting video when "USB" is selected as the input
source.
L
VOLUME knob
Adjusts the volume.
