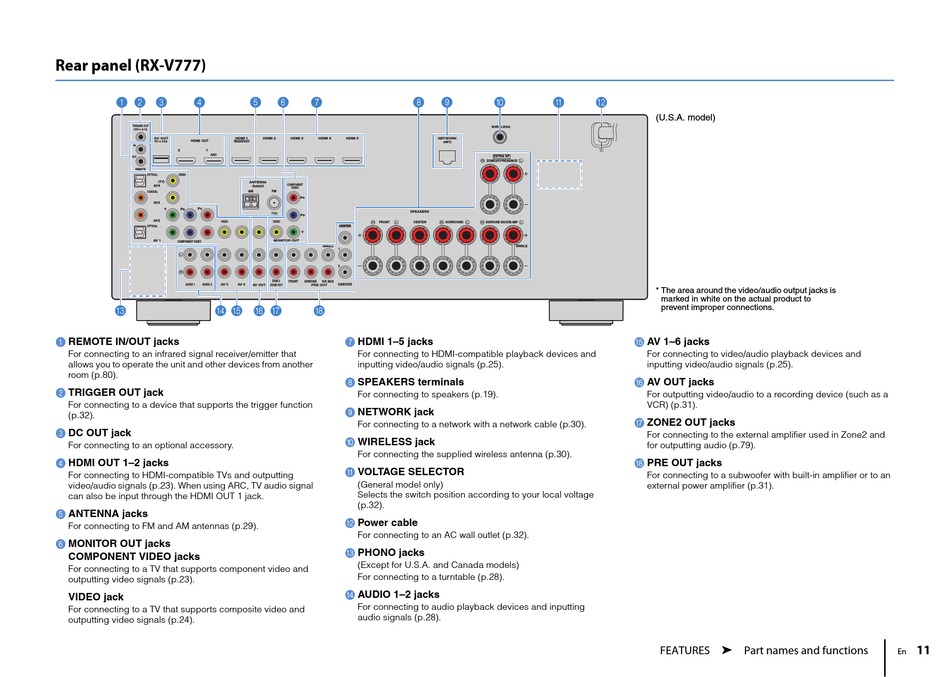

Rear panel (RX-V777)

1 2 3 4
TRIGGER OUT
12V 0.1A
DC OUT
HDMI OUT (BD/DVD)
5V 0.5A
IN
2 1
ARC
OUT
REMOTE
OPTICAL VIDEO
(TV)
AV4
COAXIAL
AV3
Y P P R
B
AV2
VIDEO
OPTICAL
AV 1 COMPONENT VIDEO
AUDIO 1 AUDIO 2 AV 5
C D E
1
REMOTE IN/OUT jacks
For connecting to an infrared signal receiver/emitter that
allows you to operate the unit and other devices from another
room (p.80).
2
TRIGGER OUT jack
For connecting to a device that supports the trigger function
(p.32).
3
DC OUT jack
For connecting to an optional accessory.
4
HDMI OUT 1–2 jacks
For connecting to HDMI-compatible TVs and outputting
video/audio signals (p.23). When using ARC, TV audio signal
can also be input through the HDMI OUT 1 jack.
5
ANTENNA jacks
For connecting to FM and AM antennas (p.29).
6
MONITOR OUT jacks
COMPONENT VIDEO jacks
For connecting to a TV that supports component video and
outputting video signals (p.23).
VIDEO jack
For connecting to a TV that supports composite video and
outputting video signals (p.24).
5 6 7 8
HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5
ANTENNA
COMPONENT
(RADIO)
VIDEO
AM FM
P R
SPEAKERS
P
B
VIDEO FRONT CENTER
CENTER CENTER
Y
MONITOR OUT
SINGLE
1
2
ZONE 2
FRONT SURROUND SUR. BACK
AV 6
AV OUT ZONE OUT PRE OUT SUBWOOFER
F G H
7
HDMI 1–5 jacks
For connecting to HDMI-compatible playback devices and
inputting video/audio signals (p.25).
8
SPEAKERS terminals
For connecting to speakers (p.19).
9
NETWORK jack
For connecting to a network with a network cable (p.30).
0
WIRELESS jack
For connecting the supplied wireless antenna (p.30).
A
VOLTAGE SELECTOR
(General model only)
Selects the switch position according to your local voltage
(p.32).
B
Power cable
For connecting to an AC wall outlet (p.32).
C
PHONO jacks
(Except for U.S.A. and Canada models)
For connecting to a turntable (p.28).
D
AUDIO 1–2 jacks
For connecting to audio playback devices and inputting
audio signals (p.28).
9 0 A B
WIRELESS
NETWORK
(NET)
EXTRA SP
ZONE2/F.PRESENCE
SURROUND
SURROUND BACK/BI-AMP
SINGLE
(U.S.A. model)
* The area around the video/audio output jacks is
marked in white on the actual product to
prevent improper connections.
E
AV 1–6 jacks
For connecting to video/audio playback devices and
inputting video/audio signals (p.25).
F
AV OUT jacks
For outputting video/audio to a recording device (such as a
VCR) (p.31).
G
ZONE2 OUT jacks
For connecting to the external amplifier used in Zone2 and
for outputting audio (p.79).
H
PRE OUT jacks
For connecting to a subwoofer with built-in amplifier or to an
external power amplifier (p.31).
FEATURES ➤ Part names and functions
11
En
