Summary of Contents for Neumann M 147 Tube
-
Page 1: Product Information

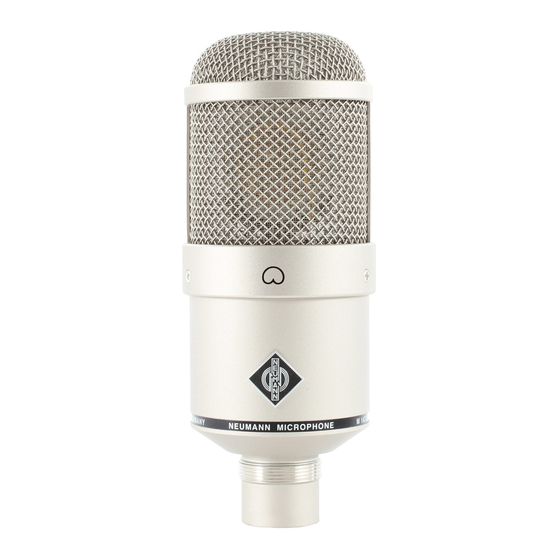

Product Information M 147 Tube Tube Microphone Georg Neumann GmbH, Berlin • Ollenhauerstr. 98 • 13403 Berlin • Germany • Tel.: +49 (30) 417724-0 • Fax: +49 (30) 417724-50 E-Mail: sales@neumann.com, engineering@neumann.com, catalog-info@neumann.com • Website: www.neumann.com... -
Page 2: Application Hints
Power supply, N 149 V (US) ..........12253.00201 Power supply, N 149 V (UK) ..........12253.00301 The M 147 Tube is addressed from the side where the Elastic suspension, EA 1 ..........ni ....08449 microphone body has the diamond-shaped Neumann com- Elastic suspension, EA 1 mt ........ -
Page 3: Electrical Features
Filter When compared to other microphones, the impedance con- The electronic circuitry of the M 147 Tube mic has a flat verter used in the M 147 Tube is distinguished by its ex- frequency response from 20 Hz to well above 20 kHz. Only... -
Page 5: Technical Data
M 147 Tube Tube Microphone Technical Data Acoustical operating principle ........ Pressure gradient transducer Maximum output voltage ..................8 dBu Directional pattern ....................Cardioid Dynamic range of the microphone amplifier: Frequency range ..................20 Hz...20 kHz DIN/IEC 651 for < 0.5% THD (for < 5% THD) ......102 (122) dB Sensitivity at 1 kHz into 1 kohm .............. - Page 6 Errors excepted, subject to changes • Printed in Germany • Publ. 11/00 77225/A03...
