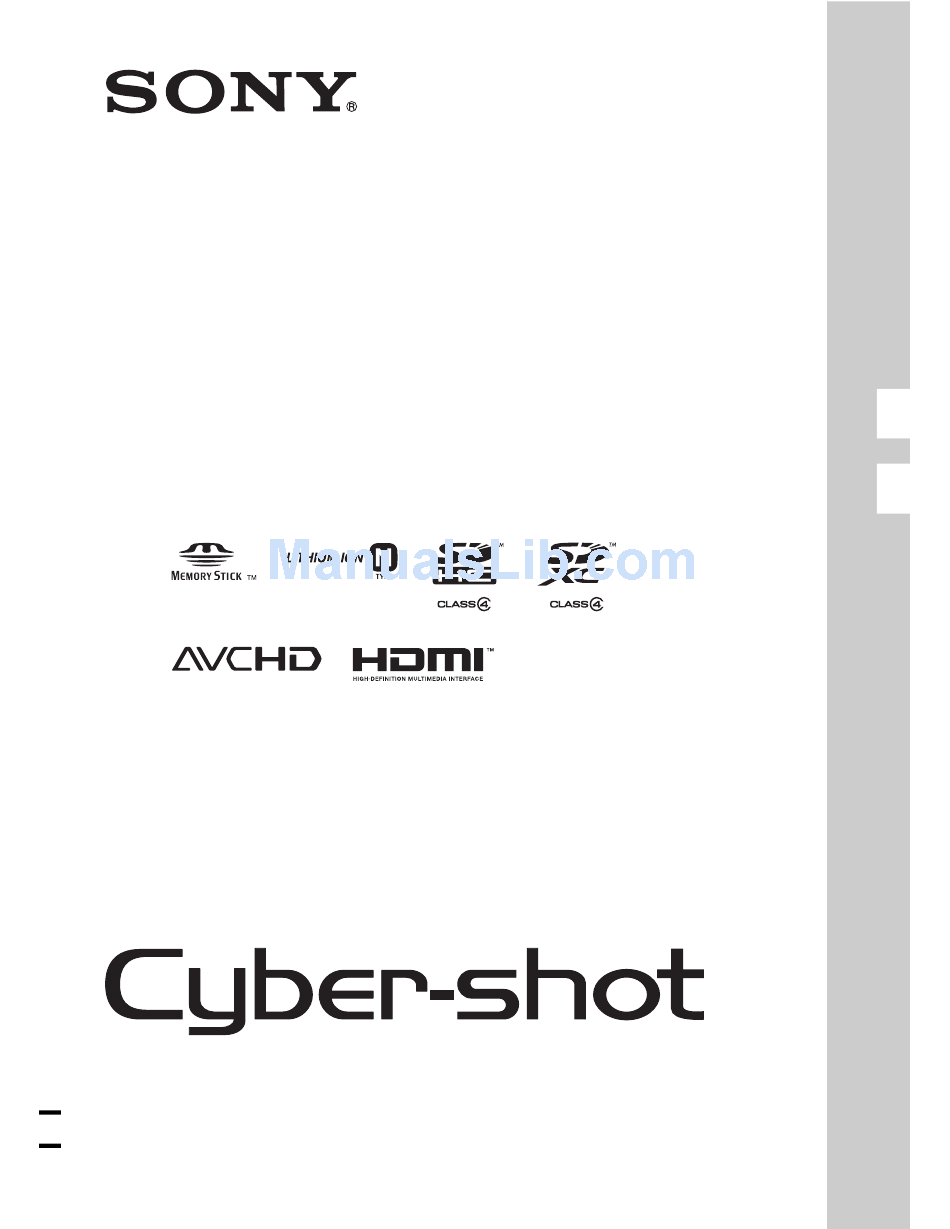

Page 1 4-194-692-21(1) DSC-WX5 GB Digital Still Camera/Instruction Manual ES Cámara fotografía digital/Manual de instrucciones © 2010 Sony Corporation...
Page 2: Battery Pack
English Owner’s Record The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product. Model No. DSC-WX5 Serial No. ______________________________...
Page 3: Battery Charger
• Do not incinerate or dispose of in fire. • Do not handle damaged or leaking lithium ion batteries. • Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.
Page 4: Regulatory Information
The number below is for the FCC related matters only. Regulatory Information Declaration of Conformity Trade Name: SONY Model No.: DSC-WX5 Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone No.: 858-942-2230 This device complies with Part15 of the FCC Rules. Operation is subject to the...
Page 5: For Customers In Europe
For Customers in Europe Notice for the customers in the countries applying EU Directives The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.
Page 6 If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.
Page 7: Table Of Contents
Table of contents Getting started Refer to “Cyber-shot Handbook” (PDF) on supplied CD- ROM ...................8 Checking the accessories supplied...........8 Notes on using the camera ............8 Identifying parts ...............12 Battery charging and the number of images/time that can be recorded ...............13 Inserting the battery pack/a memory card (sold separately)...16 Setting the date and time/display color ........19 Shooting/viewing images...
Page 8: Refer To "Cyber-Shot Handbook" (Pdf) On Supplied Cd-Rom
Refer to “Cyber-shot Handbook” (PDF) on supplied CD-ROM For details on advanced operations, please read “Cyber- shot Handbook” (PDF) on the CD-ROM (supplied) using a computer. Refer to “Cyber-shot Handbook” for in-depth instructions on shooting or viewing images and connecting the camera to your computer, printer or TV (page 24).
Page 9 Functions built into this camera • This manual describes each of the functions of TransferJet-compatible/ incompatible devices, 1080 60i-compatible devices and 1080 50i-compatible devices. To check if your camera supports the TransferJet function, and whether it is a 1080 60i-compatible device or 1080 50i-compatible device, check for the following marks on the bottom of the camera.
Page 10 JEITA (Japan Electronics and Information Technology Industries Association). • Sony does not guarantee that the camera will play back images recorded or edited with other equipment, or that other equipment will play back images recorded with the camera.
Page 11 Unauthorized recording of such materials may be contrary to the provisions of the copyright laws. No compensation for damaged content or recording failure Sony cannot compensate for failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc.
Page 12: Identifying Parts
Identifying parts D Flash Camera E ON/OFF (Power) button F Power lamp G Microphone H Self-timer lamp/Smile Shutter lamp/AF illuminator I Lens J Speaker K LCD screen L Mode dial (Playback) button N MOVIE (Movie) button O HDMI connector P Hook for wrist strap Q Control button Menu on: v/V/b/B/z Menu off: DISP/...
Page 13: Battery Charging And The Number Of Images/Time That Can Be Recorded
Battery charging and the number of images/time that can be recorded Insert the battery pack into the battery charger. • You can charge the battery even when it is partially charged. Battery pack Connect the battery For customers in the USA and Canada charger to the wall Plug outlet (wall socket).
Page 14: Charging Time
(wall socket), and remove the battery pack from the battery charger. • Be sure to use the battery pack or the battery charger of the genuine Sony brand. Battery life and number of images you can record/ view Battery life (min.)
Page 15: Using The Camera Abroad
• The battery life for movies is when shooting under the following conditions: – Recording mode: AVCHD HQ – When continuous shooting ends because of set limits (page 28), press the shutter button down again and continue shooting. Shooting functions such as the zoom do not operate.
Page 16: Inserting The Battery Pack/A Memory Card (Sold Separately)
Inserting the battery pack/a memory card (sold separately) Open the cover. Insert a memory card (sold separately). With the notched corner facing as illustrated, insert the memory card until it clicks into place. Note the notched corner facing the correct direction. Insert the battery pack.
Page 17: To Remove The Memory Card
Memory card that you can use The following memory cards are compatible with this camera: “Memory Stick PRO Duo” media, “Memory Stick PRO-HG Duo” media, “Memory Stick Duo” media, SD memory card, SDHC memory card and SDXC memory card. However, all memory cards are not guaranteed to work with this camera. MultiMediaCard cannot be used.
Page 18: To Remove The Battery Pack
When there is no memory card inserted Images are stored in the camera’s internal memory (approximately 32 MB). To copy images from the internal memory to a memory card, insert a memory card in the camera, then select MENU t (Settings) t (Memory Card Tool) t [Copy].
Page 19: Setting The Date And Time/Display Color
Setting the date and time/display color Press the ON/OFF (Power) ON/OFF (Power) button button. The camera is turned on. The power lamp lights up only when the camera starts up. • It may take time for the power to turn on and allow operation. Select a setting item with v/V on the control button, then press z.
Page 20 Superimposing the date on the images The camera does not have a feature for superimposing dates on images. By using “PMB” in the CD-ROM (supplied), you can print or save images with the date. For details, see the “PMB Help”. Setting the date and time again The date and time setup screen appears automatically only when the power is turned on the first time.
Page 21: Shooting Still Images
Shooting still images Set the mode dial to (Intelligent Auto Adjustment), then press the ON/OFF (Power) button. ON/OFF (Power) button Mode dial Hold the camera steady as illustrated. • Turn the W/T (zoom) lever to the T side to zoom in, and to the W side to zoom out.
Page 22: Shooting Movies
Shooting movies Set the mode dial to (Movie Mode), then press the ON/OFF (Power) button. ON/OFF (Power) button Mode dial Press the shutter button to Do not cover with your fingers. start recording. • You can also record movies by pressing the MOVIE (Movie) button.
Page 23: Viewing Images
Viewing images Press the (Playback) button. • When you play back images on a memory card that were recorded on other cameras, the database file (Playback) button registration screen appears. Selecting next/previous image Select an image using B (next)/b (previous) on the control button.
Page 24: Cyber-Shot Handbook" (Pdf)
Learning more about the camera (“Cyber-shot Handbook”) “Cyber-shot Handbook”, which explains how to use the camera in detail, is included on the CD-ROM (supplied). Refer to it for in-depth instructions on the many functions of the camera. For Windows users Turn on your computer, and insert the CD-ROM (supplied) into the CD-ROM drive.
Page 25: List Of Icons Displayed On The Screen
List of icons displayed on the screen You can change the screen display using DISP (Screen Display Settings) on the control button. When shooting still images Display Indication Scene Recognition icon White Balance Metering Mode 3D images Vibration warning Anti Blink When shooting movies Scene Recognition Overlay icon for...
Page 26 Display Indication Display Indication AE/AF lock Self-timer ISO400 ISO number C:32:00 Self-diagnosis display NR slow shutter Overheating warning Shutter speed Face Detection F2.4 Aperture value Database file full/ Database file error +2.0EV Exposure value warning Focus Destination Standby Recording a movie/ AF range finder frame Standby 0:12...
Page 27: Number Of Still Images And Recordable Time Of Movies
Number of still images and recordable time of movies The number of still images and recordable time may vary depending on the shooting conditions and the memory card. Still images (Units: Images) Capacity Internal Memory card formatted with this camera memory Approx.
Page 28 Movies The table below shows the approximate maximum recording times. These are the total times for all movie files. Continuous shooting is possible for approximately 29 minutes at one time. The maximum size of an MP4-format movie file is up to approximately 2GB. (Units: hour : minute : second) Capacity Internal...
Page 29: Precautions
Precautions Do not use/store the camera in the following places • In an extremely hot, cold or humid place In places such as in a car parked in the sun, the camera body may become deformed and this may cause a malfunction. •...
Page 30 On the internal rechargeable backup battery This camera has an internal rechargeable battery for maintaining the date and time and other settings regardless of whether the power is on or off. This rechargeable battery is continually charged as long as you are using the camera. However, if you use the camera for only short periods, it discharges gradually, and if you do not use the camera at all for about one month it becomes completely discharged.
Page 31: Specifications
Effective pixel number of camera: AVCHD Ver. 1.0 compliant Approx. 12.2 Megapixels Video: MPEG-4 AVC/H.264 Lens: Sony G 5× zoom lens Audio: Dolby Digital 2ch, f = 4.25 mm – 21.25 mm (24 mm – equipped with Dolby Digital Stereo...
Page 32: Specifications
BC-CSN/BC-CSNB battery [Input and Output connectors] charger HDMI connector: HDMI mini terminal Power requirements: AC 100 V to Multi use terminal: Type3 240 V, 50/60 Hz, 2 W (AV-out (SD/HD Component)/ Output voltage: DC 4.2 V, 0.25 A HDMI/USB/DC-in): Operating temperature: 0°C to 40°C Video output (32°F to 104°F) Audio output (Stereo)
Page 33 Trademarks • “PlayStation” is a registered trademark of Sony Computer • The following marks are trademarks Entertainment Inc. of Sony Corporation. • Adobe and Reader are either , “Cyber-shot,” trademarks or registered trademarks “Memory Stick,” , “Memory of Adobe Systems Incorporated in the Stick PRO,”...
Page 34 Printed in China...
Page 36: How To Use This Handbook
How to use this handbook Click on a button at upper right to jump to the corresponding page. This is convenient when searching for a function you want to view. Search for information by function. Search for information by operation. Search for information in a listing of MENU/Settings items.
Page 37: Notes On Using The Camera
Notes on using the camera Notes on the types of memory cards Functions built into this camera that you can use (sold separately) • This manual describes each of the functions of TransferJet-compatible/incompatible devices, The following memory cards are compatible 1080 60i-compatible devices and 1080 50i- with this camera: “Memory Stick PRO Duo”...
Page 38 Notes on the LCD screen and lens Note when playing movies on other devices • The LCD screen is manufactured using extremely high-precision technology so over This camera uses MPEG-4 AVC/H.264 High 99.99% of the pixels are operational for Profile for AVCHD format recording. effective use.
Page 39 Table of contents Notes on using the camera How to use this handbook····································· 2 Notes on using the camera ··································· 3 Operation Search ·················································· 9 MENU/Settings Search ······································· 12 Identifying parts··················································· 16 List of icons displayed on the screen ·················· 17 Using the internal memory ··································...
Page 40 Viewing Viewing still images············································· 42 Playback zoom···················································· 43 Image Index ························································ 44 Delete·································································· 45 Viewing burst images ·········································· 47 Viewing movies ··················································· 49 3D images 3D Functions ······················································· 51 3D Shooting ························································ 53 Viewing images shot in Sweep Multi Angle mode stereoscopically·········································...
Page 41 Viewing an image on a Standard Definition (SD) TV ····························································· 127 Viewing an image on a High Definition (HD) TV······································································ 128 Viewing an image on a “BRAVIA” Sync-compatible TV ·········································· 131 Computer Using with your computer·································· 133 Using the software ············································ 134 Connecting the camera to a computer··················136 Uploading images to a media service ···················138 Creating a disc of movies ······································140...
Page 42 Others Using the camera abroad·································· 157 Memory card ····················································· 158 Battery pack ······················································ 160 Battery charger·················································· 161 Intelligent Pantilter············································· 162 AVCHD format ·················································· 163 TransferJet standard ········································· 164 Number of still images and recordable time of movies······························································· 165 Precautions ······················································· 167 Index Index ·································································...
Page 43: Operation Search
Operation Search Leaving the settings to Intelligent Auto Adjustment ······························· 21 the camera Superior Auto Adjustment ································· 22 Scene Selection ··················································· 26 Scene Recognition ·············································· 74 Shooting movies Movie Mode ··························································· 31 MOVIE (Movie) button ······································· 41 Movie format ························································· 95 Shooting 3D images 3D Sweep Panorama ·········································...
Page 44 Shooting without blur Anti Motion Blur ···················································· 26 Hand-held Twilight ·············································· 26 High Sensitivity ····················································· 27 2-second delay self-timer ·································· 38 ··········································································· 68 Shooting with backlight Backlight Correction HDR ································· 26 Forced Flash ························································· 36 Scene Recognition ·············································· 74 Shooting in dark places Anti Motion Blur ····················································...
Page 45 Viewing 3D images Viewing images shot in Sweep Multi Angle mode stereoscopically ······································· 55 Printing images with “PMB (Picture Motion Browser)” ·················· 134 the date Changing date and Area Setting ························································ 125 time settings Date & Time Setting ·········································· 126 Initializing settings Initialize ·································································...
Page 46: Menu/Settings Search
MENU/Settings Search MENU items (Shooting) You can select the various shooting functions easily from the MENU button. 1 Press the ON/OFF (Power) button and set the ON/OFF (Power) button camera to shooting mode. 2 Press the MENU button to display the Menu screen.
Page 47: Menu Items (Viewing)
Mode dial Menu items Anti Blink — — — — — — — (Settings) Notes • [Quality] is displayed only when [Movie format] is set to [AVCHD]. • Only the items that are available for each mode are displayed on the screen. MENU items (Viewing) You can select the various viewing functions easily from the MENU button.
Page 48: Setting Items
Setting items You can change the settings on the (Settings) screen. 1 Press the MENU button to display the Menu Control button screen. 2 Select (Settings) with V on the control button, then press z on the center of the control button to display the setup screen.
Page 49: Clock Settings
Categories Items Memory Card Tool Format Create REC.Folder Change REC.Folder Delete REC.Folder Copy File Number Internal Memory Tool Format File Number Clock Settings Area Setting Date & Time Setting * [Eye-Fi] appears only when an Eye-Fi card (commercially available) is inserted in the camera. Notes •...
Page 50: Identifying Parts
Identifying parts A Shutter button Camera (Burst) button C For shooting: W/T (zoom) lever (32) For viewing: (Playback zoom) lever/ (Index) lever (43, 44) D Flash E ON/OFF (Power) button F Power lamp G Microphone H Self-timer lamp/Smile Shutter lamp/AF illuminator I Lens J Speaker...
Page 51: List Of Icons Displayed On The Screen
List of icons displayed on the screen Icons are displayed on the screen to indicate the camera status. You can change the screen display using DISP (Screen Display Settings) on the control button. When shooting still images Display Indication Battery remaining Low battery warning Image Size/Panorama image size/Quality...
Page 52 Display Indication Display Indication Smile Detection Sensitivity Red-eye reduction indicator Metering Mode Flash mode Flash charging White Balance Zoom scaling Protect ISO400 ISO number Print order (DPOF) Database file full/Database file error warning Playback zoom View mode Display Indication TransferJet settings Self-timer C:32:00 Self-diagnosis display...
Page 53: Using The Internal Memory
Using the internal memory The camera has approximately 32 MB of internal memory. This memory is not removable. Even when there is no memory card inserted in the camera, you can record images using this internal memory. When a memory card is inserted [Recording]: Images are recorded on the memory card.
Page 54: Using The Mode Dial
Using the mode dial Set the mode dial to the desired function. Mode dial (Intelligent Auto Allows you to shoot still images with the setting adjusted automatically. Adjustment) (Superior Auto Allows you to shoot still images in higher quality than with Intelligent Auto Adjustment mode.
Page 55: Intelligent Auto Adjustment
Intelligent Auto Adjustment Allows you to shoot still images with the setting adjusted automatically. 1 Set the mode dial to (Intelligent Auto Adjustment). 2 Shoot with the shutter button. Note • Flash mode is set to [Auto] or [Off]. On Scene Recognition Scene Recognition operates in Intelligent Auto Adjustment mode.
Page 56: Superior Auto Adjustment
Superior Auto Adjustment The camera combines Scene Recognition and high-quality image technology to automatically shoot the images with the optimal settings. 1 Set the mode dial to (Superior Auto Adjustment). 2 Press the shutter button. The camera shoots burst images when needed and overlays the multiple images. By overlaying the images, the camera records an image with less subject blur and noises.
Page 57 What is the difference between Superior Auto Adjustment mode and Intelligent Auto Adjustment mode? In [Superior Auto Adjustment] mode, the camera shoots burst images based on the recognized scene. After shooting, the camera creates a composite of the burst images to produce a higher- quality image.
Page 58: Background Defocus
Background Defocus The camera focuses only on the subject, leaving the background out of focus, so that the subject stands out. 1 Set the mode dial to (Background Defocus). 2 Press the shutter button. Notes • When shooting, hold the camera still to reduce camera shake. •...
Page 59: Program Auto
Program Auto Allows you to shoot with the exposure adjusted automatically (both the shutter speed and the aperture value). Also you can select various settings using the menu. 1 Set the mode dial to (Program Auto). 2 Press the shutter button.
Page 60: Scene Selection
Scene Selection Allows you to shoot with preset settings according to the scene. 1 Set the mode dial to (Scene Selection). 2 Select the desired mode t z on the control button. If you want to switch to another scene, press the MENU button. (Soft Skin) Allows you to shoot faces for smoothness.
Page 61: High Sensitivity
(High Sensitivity) Allows you to shoot images without a flash under low light conditions, reducing blur. (Gourmet) Allows you to shoot food arrangements in delicious and bright colors using Macro mode. (Pet) Allows you to shoot images of your pet with the best settings.
Page 62 Functions you can use in Scene Selection For shooting an image appropriately according to the scene condition, a combination of functions is determined by the camera. indicates settings that can be changed, while – indicates settings that cannot be changed. For “Flash”...
Page 63: Intelligent Sweep Panorama
Intelligent Sweep Panorama Allows you to create a panoramic image from composite images. The camera also automatically detects people’s faces or moving subjects. 1 Set the mode dial to (iSweep Panorama). 2 Align the camera with the end of the subject to be shot and press the shutter button.
Page 64 Changing the shooting direction or image size of a panoramic image Shooting Direction: MENU t [Shooting Direction] t select [Right], [Left], [Up] and [Down] t z Panorama Image Size: MENU t [Panorama Image Size] t select [Standard] or [Wide] t z Tips for shooting a panoramic image Pan the camera in an arc at a constant velocity in the direction indicated on the LCD screen.
Page 65: Movie Mode
Movie Mode Allows you to record movies. 1 Set the mode dial to (Movie Mode). 2 Press the shutter button. 3 To stop recording, press the shutter button again. Changing the Movie Format, Image Quality or Image Size MENU t (Settings) t (Shooting Settings) t [Movie Movie format:...
Page 66: Zoom
Zoom You can enlarge the image when shooting. The camera’s optical zoom function can enlarge images up to 5×. 1 Turn the W/T (zoom) lever. T side Turn the W/T (zoom) lever to (T) to zoom in, and to (W) to zoom out.
Page 67: Tracking Focus
Tracking focus The camera tracks the subject and adjusts focus automatically until you press the shutter button halfway down, even if the subject is moving. 1 Press z on the control button. The target frame appears. 2 Place the target frame over the subject you want to focus on, and press z.
Page 68: Disp (Screen Display Settings)
DISP (Screen Display Settings) 1 Press DISP (Screen Display Settings) on the control button. 2 Select the desired mode with the control button. (Image Only) In Movie Mode, sets screen to standard brightness and displays only images. (Bright + Sets screen brighter and displays only images. Image Only) (Bright + Sets screen brighter and displays the...
Page 69 Histogram A histogram is a graph showing the brightness of an image. The graph display indicates a bright image when skewed to the right side, and a dark image when skewed to the left side. A Number of pixels B Brightness Dark Bright 1 Press DISP (Screen Display Settings) on the control button, then select...
Page 70: Flash
Flash 1 Press (Flash) on the control button. 2 Select the desired mode with the control button. (Auto) Flash automatically operates when shooting in low light or backlit conditions. (On) Flash always operates. (Slow Flash always operates. Synchro) The shutter speed is slow in a dark place to clearly shoot the background that is out of flash light.
Page 71: Smile Shutter
Smile Shutter When the camera detects a smile, the shutter is released automatically. 1 Press (Smile) on the control button. 2 Wait for a smile to be detected. When the smile level exceeds the b point on the indicator, the camera records images automatically.
Page 72: Self-Timer
Self-Timer 1 Press (Self-Timer) on the control button. 2 Select the desired mode with the control button. (Off) Does not use the self-timer. (10sec) Sets the self-timer to a 10-second delay. When you press the shutter button, the self-timer lamp flashes and a beep sounds until the shutter operates.
Page 73 Hints for preventing blur If your hands or body moves while holding the camera and pressing the shutter button, “Camera shake” occurs. Camera shake occurs frequently under low-light or slow shutter speed conditions, such as those encountered in (Twilight Portrait) or (Twilight) mode.
Page 74: Burst Button
Burst button You can select Single (single-image) or Burst as the shooting mode. You can also select Single (single-image) or Burst in [Burst Settings] (page 65). 1 Select a desired mode with the (Burst) button. When you press the (Burst) button, the setting switches. Single The camera shoots a single image.
Page 75: Movie (Movie) Button
MOVIE (Movie) button You can quickly start shooting movies from all REC modes. 1 Press the MOVIE (Movie) button. 2 To stop recording, press the MOVIE (Movie) button again. Note • MOVIE (Movie) button is not available in the following situations: –...
Page 76: Viewing Still Images
Viewing still images 1 Press the (Playback) button to switch to playback mode. 2 Select an image with the control button. Viewing images taken with a different camera This camera creates an Image Database File on the memory card for recording and playing images.
Page 77: Playback Zoom
Playback zoom Plays back the enlarged image. 1 Turn the (Playback zoom) lever to (T) during still image playback. The image is enlarged to twice the previous size, at the center of the image. 2 Adjust the position with the control button. 3 Change the zoom scale with the (Playback zoom) Shows the displayed...
Page 78: Image Index
Image Index Displays multiple images at the same time. 1 Press the (Playback) button to switch to playback mode. 2 Turn the (Index) lever to (W) to display the image index screen. Turn the lever again to display an index screen with more images. Turn the lever yet again to view images with the Calendar while playing back in [Date View].
Page 79: Delete
Delete Allows you to select unwanted images for deletion. You can also delete images from the MENU button (page 90). 1 Press the (Playback) button to switch to playback mode. (Delete) button t desired mode t z on the control button All Images on This Date Deletes all images in the selected date range or folder, or all AVCHD movies at once.
Page 80 You can switch between index and single-image mode when selecting images Turn the lever to (T) of the W/T (zoom) lever in index mode to return to single-image mode, and turn the (Index) lever to (W) in single-image mode to return to index mode. •...
Page 81: Viewing Burst Images
Viewing burst images Plays back burst images. 1 Press the (Playback) button to switch to playback mode. 2 Select burst images using b/B on the control button. 3 Press the desired button according to the playback mode. Operation method Action Press V on the control button.
Page 82 Viewing the burst images as a movie by tilting the camera to the right or left To view the burst images smoothly as a movie, press z on the control button, then tilt the camera to the right or left, as illustrated. Tilt the camera to the right or left, with the center of the camera as the axis.
Page 83: Viewing Movies
Viewing movies 1 Press the (Playback) button to switch to playback mode. 2 Select a movie with the control button. 3 Press z. Movie playback starts. Control button Action Stop Fast forward Fast rewind Displays the control panel Note • You may not be able to play back some images shot using other cameras. To display only movies on the index screen You can view only movie thumbnails on the index screen by pressing MENU t (View...
Page 84 On the movie viewing screen Select the image you want to display using b/B on the control button, and press z. The Playback bar appears, you can check a playback position of a movie. appears on the movie viewing screen. The icon displayed may vary depending on image size and quality.
Page 85: Viewing An Image On A 3D Tv
3D Functions This camera is compatible with 3D functions. The 3D functions installed on this camera are [3D Sweep Panorama] and [Sweep Multi Angle]. 3D images shot in [3D Sweep Panorama] mode can be played back only on a 3D TV, while the images shot in [Sweep Multi Angle] mode can be played back both on this camera and on a 3D TV.
Page 86 File name of the 3D image A 3D image consists of both JPEG and MPO files. If you import images shot in [3D Sweep Panorama] and [Sweep Multi Angle] modes into a computer, the image data is stored on the computer as follows. File name on the computer Usage 3D Sweep Panorama...
Page 87: D Shooting
3D Shooting Multiple images are shot while the camera is moving, and these images are compiled into a 3D image. 1 Set the mode dial to (3D Shooting). 2 Select (Sweep Multi Angle) t z on the (3D Sweep Panorama) or control button.
Page 88 Tips for shooting a 3D image Pan the camera in an arc at a constant velocity in the direction indicated on the LCD screen. Subjects at rest are best suited for 3D shots. • Determine the scene and press the shutter button halfway, so that you can lock the focus, exposure and white balance.
Page 89: Mode Stereoscopically
Viewing images shot in Sweep Multi Angle mode stereoscopically You can view the stereoscopic images shot in [Sweep Multi Angle] mode by tilting the camera to the right or left. 1 Press the (Playback) button to switch to playback mode. 2 Select an image shot in (Sweep Multi Angle) mode using b/B on the control button.
Page 90 Viewing an image on a 3D TV You can view 3D images recorded on the camera in 3D format by connecting the camera to a 3D TV using an HDMI Cable (sold separately). Refer also to the operating instructions supplied with the TV. 1 Connect the camera to the TV using an HDMI Cable (sold separately).
Page 91 Notes • When you select (3D Viewing) mode, only 3D images are displayed. • If you play back an image shot in [3D Sweep Panorama] mode with [Shooting Direction] set to [Up] or [Down], the image is played back horizontally on the TV. •...
Page 92: Easy Mode
Easy Mode Allows you to shoot still images using the minimum necessary functions. The text size increases and indicators become easier to see. 1 Set the mode dial to (Intelligent Auto Adjustment). 2 MENU t (Easy Mode) t z on the control button. 3 [OK] t z 4 Shoot with the shutter button.
Page 93 Viewing in Easy Mode When you press the (Playback) button in Easy Mode, the playback screen text becomes larger and easier to see. In addition, only the deletion function becomes available. Delete: (Delete) button t [OK] t z on the control button You can delete the currently displayed image.
Page 94: Shooting Direction
Shooting Direction Set the direction in which the camera will be panned when shooting in Intelligent Sweep Panorama or 3D Sweep Panorama modes. 1 MENU t (Shooting Direction) t desired direction (Right) Pan from left to right. (Left) Pan from right to left. (Up) Pan from down to up.
Page 95: Defocus Effect
Defocus Effect Sets the level of background defocus effect when shooting in Background Defocus mode. 1 Set the mode dial to (Background Defocus). 2 MENU t (Defocus Effect) t desired mode Adds a slight Background Defocus effect. (Low) Adds an average Background Defocus effect. (Mid) Adds a strong Background Defocus effect.
Page 96: Image Size/Panorama Image Size Quality
Image Size/Panorama Image Size/ Quality The image size determines the size of the image file that is recorded when you take an image. The larger the image size, the more detail will be reproduced when the image is printed on large- format paper.
Page 97 When shooting in Intelligent Sweep Panorama/3D shooting modes (16:9) Shoots at 1920 × 1080 (Horizontal). [16:9] is available only for 3D shooting. (Standard) Shoots at 4912 × 1080 (Horizontal). Shoots at 3424 × 1920 (Vertical). (Wide) Shoots at 7152 × 1080 (Horizontal). Shoots at 4912 ×...
Page 98 On “image quality” and “image size” A digital image is made up of a collection of small dots called pixels. If it contains a large number of pixels, the image becomes large, it takes up more memory, and the image is displayed in fine detail. “Image size” is shown by the number of pixels. Although you cannot see the differences on the screen of the camera, the fine detail and data processing time differ when the image is printed or displayed on a computer screen.
Page 99: Burst Settings
Burst Settings You can select Single (single-image) or Burst as the shooting mode. 1 MENU t (Burst Settings) t desired mode (Single) The camera shoots a single image. (Burst) The camera shoots up to 10 continuous frames in one burst when you hold down the shutter button.
Page 100: Burst Shooting Interval
Burst Shooting Interval Selects the number of images taken per second for Burst shooting. 1 MENU t (Burst Shooting Interval) t desired mode (High) Shoots up to 10 images per second in succession. (Mid) Shoots up to 5 images per second in succession. (Low) Shoots up to 2 images per second in succession.
Page 101 You can adjust the exposure manually in 1/3 EV steps in a range of –2.0 EV to +2.0 EV. 1 MENU t (EV) t desired EV setting Note • If you shoot a subject in extremely bright or dark conditions, or when you use the flash, the exposure adjustment may not be effective.
Page 102 Sets the luminous sensitivity when the camera is in Program Auto mode. 1 MENU t (ISO) t desired mode (Auto) Sets the ISO sensitivity automatically. You can reduce image blurring in dark locations or with moving subjects by increasing the ISO sensitivity (select a larger number). Note •...
Page 103: White Balance
White Balance Adjusts color tones according to the surrounding light conditions. Use this function if image color appears unnatural. 1 MENU t (White Balance) t desired mode (Auto) Adjusts the white balance automatically so that the colors appear natural. (Daylight) Adjusts for outdoors conditions on a fine day, evening views, night scenes, neon signs, fireworks, etc.
Page 104 To capture the basic white color in [One Push Set] mode 1 Frame a white object such as a piece of paper filling the screen under the same lighting conditions as you will shoot the subject. 2 MENU t (White Balance) t [One Push Set] t z on the control button The screen momentarily turns black, and when the white balance has been adjusted and stored in the memory, the recording screen is displayed again.
Page 105: Focus
Focus You can change the focus method. Use the menu when it is difficult to get the proper focus in auto focus mode. AF stands for “Auto Focus,” a function that adjusts the focus automatically. 1 MENU t (Focus) t desired mode (Multi AF) Focuses on a subject in all ranges of the finder frame automatically.
Page 106 Focusing on subjects near the edge of the screen If the subject is out of focus, do as follows: 1Recompose the shot so that the subject is centered in the AF range finder, and press the shutter AF range finder button halfway to focus on the subject (AF lock).
Page 107: Metering Mode
Metering Mode Selects the metering mode that sets which part of the subject to measure to determine the exposure. 1 MENU t (Metering Mode) t desired mode (Multi) Divides into multiple regions and measures each region. The camera determines a well-balanced exposure (Multi-pattern metering).
Page 108: Scene Recognition
Scene Recognition The camera automatically detects shooting conditions, and then takes the shot. When a motion is detected, the ISO sensitivity is increased according to the movement to reduce subject blur (Motion Detection). Example of an image when (Backlight) is activated. Scene Recognition icon and guide The camera recognizes the following types of scenes.
Page 109 Shooting two images with different settings and selecting the one you like (Advanced mode) In [Advanced] mode, the camera shoots two images consecutively with the settings differing as follows when it recognizes (Twilight), (Twilight Portrait), (Twilight using a tripod), (Backlight) or (Backlight Portrait) scenes, which tends to blur.
Page 110: Soft Skin Effect
Soft Skin Effect When the Face Detection function is activated, sets whether to use the Soft Skin effect, and the effect level. 1 MENU t (Soft Skin Effect) t desired mode (Off) Does not use the Soft Skin Effect. (Low) Adds light Soft Skin Effect.
Page 111: Smile Detection Sensitivity
Smile Detection Sensitivity Sets the sensitivity of the Smile Shutter function for detecting smiles. 1 MENU t (Smile Detection Sensitivity) t desired mode (Big Smile) Detects a big smile. (Normal Detects a normal smile. Smile) (Slight Smile) Detects even a slight smile. Notes •...
Page 112: Face Detection
Face Detection Detects the faces of your subjects and adjusts the focus, flash, exposure, white balance and red- eye reduction settings automatically. Face Detection frame (Orange) When the camera detects more than one subject, the camera will judge which is the main subject and set focus by priority. The Face Detection frame for the main subject will change to an orange-colored .
Page 113 Registering the priority face (Selected-face Memory) Normally the camera automatically selects the face to focus on according to the [Face Detection] setting, but you can also select and register a face to be given priority. 1Press z on the control button during Face Detection. The target frame appears.
Page 114: Anti Blink
Anti Blink When Scene Selection is set to (Soft Skin) or (Soft Snap) while you are shooting an image, the camera automatically shoots two images consecutively. The camera will select, display and record the image which the eyes are not blinked automatically. 1 Set the mode dial to (Scene Selection).
Page 115: Slideshow
Slideshow Images are automatically played back in succession. 1 Press the (Playback) button to switch to playback mode. 2 MENU t (Slideshow) t desired slideshow t z on the control button (Continuous Playback) Plays back all the images in succession from the displayed image to the very last image.
Page 116: Slideshow With Music
Slideshow with music 1 MENU t (Slideshow) t [Slideshow with music] t z on the control button Displays the setting screen. 2 Select a desired setting. 3 [Start] t z 4 Press z to end the slideshow. Note • [Slideshow with music] is not available for the following images: –...
Page 117 Music Specifies the music to be played during slideshows. You can select more than one background music track. Press V on the control button to display the volume control screen, then press v/V to adjust the volume. Music1 The default setting for a [Simple] slideshow. Music2 The default setting for a [Nostalgic] slideshow.
Page 118: D Viewing
3D Viewing Select [3D Viewing] when you want to play back images shot in 3D mode on the 3D TV. Connect the camera and the 3D TV using an HDMI Cable (sold separately) (page 56). 1 Press the (Playback) button to switch to playback mode. 2 MENU t (3D Viewing) t z on the control button...
Page 119: Send By Transferjet
Send by TransferJet TransferJet is a close-up, wireless transfer technology that allows data to be transferred by closely aligning two products that you want to communicate with each other. To find out whether your camera is equipped with the TransferJet function, check for the (TransferJet) mark on the bottom of the camera.
Page 120 Receiving images using TransferJet 1 Press the (Playback) button to switch to playback mode. 2 Closely align the (TransferJet) marks on the camera and sending device to receive images. A notification sound is emitted when connection is made. Notes • Only images that can be played back on the camera can be sent or received. •...
Page 121: View Mode
View Mode Allows you to select the display format for images. 1 Press the (Playback) button to switch to playback mode. 2 MENU t (View Mode) t desired mode t z on the control button (Date View) Displays images by date. (Folder view Displays still images.
Page 122: Display Burst Group
Display Burst Group You can select to display burst images in groups or display all images during playback. 1 Press the (Playback) button to switch to playback mode. 2 MENU t (View Mode) t [Date View] t z on the control button 3 MENU t (Display Burst Group) t desired setting t z (Display Main...
Page 123: Trimming (Resize)
Retouch Retouches a recorded image and records it as a new file. The original image is retained. 1 Press the (Playback) button to switch to playback mode. 2 MENU t (Retouch) t desired mode t z on the control button 3 Perform retouching according to the operation method in each mode.
Page 124 Delete Allows you to select unwanted images for deletion. You can also delete images using the (Delete) button (page 45). 1 Press the (Playback) button to switch to playback mode. 2 MENU t (Delete) t desired mode t z on the control button 3 [OK] t z (All but This Image) Deletes burst group images other than the selected image in...
Page 125 Protect Protects recorded images against accidental erasure. mark is displayed for registered images. 1 Press the (Playback) button to switch to playback mode. 2 MENU t (Protect) t desired mode t z on the control button (This Image) Protects the currently displayed image in single-image mode. (Multiple You can select and protect multiple images.
Page 126 DPOF DPOF (Digital Print Order Format) is a function that allows you to specify the images of the memory card that you want to print out later. (Print order) mark is displayed for registered images. 1 Press the (Playback) button to switch to playback mode. 2 MENU t t desired mode t z on the control button (This Image)
Page 127 Rotate Rotates a still image. Use this function to display a horizontal orientation image in vertical orientation. 1 Press the (Playback) button to switch to playback mode. 2 MENU t (Rotate) t z on the control button 3 Rotate the image with [ / ] t b/B. 4 [OK] t z Notes •...
Page 128: Select Folder
Select Folder When multiple folders are created in a memory card, this function selects the folder containing the image you want to play back. 1 Press the (Playback) button to switch to playback mode. 2 MENU t (View Mode) t [Folder view (Still)] or [Folder view (MP4)] t z on the control button 3 MENU t (Select Folder) t z...
Page 129: Movie Format
Movie format You can set the recording method used to record movies. 1 Set the camera to shooting mode. 2 MENU t (Settings) t (Shooting Settings) t [Movie format] t desired mode t z on the control button AVCHD Sets the recording method to AVCHD, which is suitable for viewing smooth video images on a high-definition television.
Page 130: Af Illuminator
AF Illuminator The AF illuminator supplies fill light to focus more easily on a subject in dark surroundings. The AF illuminator emits red light allowing the camera to focus easily when the shutter button is pressed halfway, until the focus is locked. The indicator appears at this time.
Page 131: Grid Line
Grid Line With reference to the grid lines, you can easily set a subject in a horizontal/vertical position. 1 Set the camera to shooting mode. 2 MENU t (Settings) t (Shooting Settings) t [Grid Line] t desired mode t z on the control button Displays the grid lines.
Page 132: Digital Zoom
Digital Zoom Selects the Digital Zoom mode. The camera enlarges the image using optical zoom (up to 5×). When the zoom scale is exceeded, the camera uses either smart or precision Digital Zoom. 1 Set the camera to shooting mode. 2 MENU t (Settings) t (Shooting Settings) t [Digital Zoom] t...
Page 133: Auto Orientation
Auto Orientation When the camera is rotated to shoot a portrait (vertical) image, the camera records its position change and displays the image in the portrait position. 1 Set the camera to shooting mode. 2 MENU t (Settings) t (Shooting Settings) t [Auto Orientation] t desired mode t z on the control button Records the image with the correct orientation.
Page 134: Red Eye Reduction
Red Eye Reduction The flash strobes two or more times before shooting to reduce the red-eye phenomenon when using the flash. 1 Set the camera to shooting mode. 2 MENU t (Settings) t (Shooting Settings) t [Red Eye Reduction] t desired mode t z on the control button Auto When the Face Detection function is activated, the flash strobes automatically to reduce the red-eye phenomenon.
Page 135: Blink Alert
Blink Alert When an image with the subject’s eyes closed is recorded while Face Detection is activated, the message “Blinked eye detected” is displayed. 1 Set the camera to shooting mode. 2 MENU t (Settings) t (Shooting Settings) t [Blink Alert] t desired mode t z on the control button Auto Displays the “Blinked eye detected”...
Page 136 Beep Changes the settings of the sound produced when you operate the camera. 1 MENU t (Settings) t (Main Settings) t [Beep] t desired mode t z on the control button Shutter Turns on the shutter sound when you press the shutter button. Turns on the beep/shutter sound when you press the control/shutter High button.
Page 137: Language Setting
Language Setting Selects the language to be used in the menu items, warnings and messages. 1 MENU t (Settings) t (Main Settings) t [Language Setting] t desired mode t z on the control button...
Page 138: Function Guide
Function Guide You can select whether or not the function guide is displayed when you operate the camera. 1 MENU t (Settings) t (Main Settings) t [Function Guide] t desired mode t z on the control button Displays the function guide. Does not display the function guide.
Page 139: Display Color
Display color Sets the color of the screen display. 1 MENU t (Settings) t (Main Settings) t [Display color] t desired mode t z on the control button Black Sets the background color of the LCD screen. White Pink...
Page 140: Demo Mode
Demo Mode You can set whether to use a demonstration of Smile Shutter or AVCHD movie playback. When there is no need to view a demonstration, set to [Off]. 1 MENU t (Settings) t (Main Settings) t [Demo Mode] t desired mode t z on the control button Demo Mode1 A demonstration of the shooting functions will be performed.
Page 141: Initialize
Initialize Initializes the setting to the default setting. Even if you execute [Initialize], the images are retained. 1 MENU t (Settings) t (Main Settings) t [Initialize] t [OK] t z on the control button Note • Be sure not to turn off the camera while initializing.
Page 142: Hdmi Resolution
HDMI Resolution When you connect the camera to a High Definition (HD) TV with HDMI terminals using an HDMI Cable (sold separately), you can select HDMI Resolution to output images to the TV. 1 MENU t (Settings) t (Main Settings) t [HDMI Resolution] t desired mode t z on the control button Auto The camera automatically recognizes an HD TV and sets the output...
Page 143: Ctrl For Hdmi
CTRL FOR HDMI This setting allows (TV) remote control of a camera that is connected to a “BRAVIA” Sync TV using the HDMI Cable (sold separately). For details on “BRAVIA” Sync, see page 131. 1 MENU t (Settings) t (Main Settings) t [CTRL FOR HDMI] t desired mode t z on the control button Enables remote-controlled operation.
Page 144 COMPONENT Selects the video signal output type from either SD or HD (1080i) in accordance with the type of TV you connect to the camera using an HD Output Adaptor Cable (sold separately). Use a Type3-compliant HD Output Adaptor Cable (sold separately). 1 MENU t (Settings) t (Main Settings) t [COMPONENT] t...
Page 145: Usb Connect
USB Connect Sets the mode when the camera is connected to a computer or a USB device using the USB cable. 1 MENU t (Settings) t (Main Settings) t [USB Connect] t desired mode t z on the control button Mass Storage Establishes a Mass Storage connection between the camera and a computer or other USB device.
Page 146: Lun Settings
LUN Settings Sets the display method for the recording media displayed on a computer screen or other monitor when the camera is connected with a computer or AV component using a USB connection. 1 MENU t (Settings) t (Main Settings) t [LUN Settings] t desired mode t z on the control button Multi The images both on the memory card and in the internal memory...
Page 147: Download Music
Download Music You can use “Music Transfer” in the CD-ROM (supplied) to change background music tracks. 1 MENU t (Settings) t (Main Settings) t [Download Music] t z on the control button The message “Connect to PC” is displayed. 2 Make a USB connection between the camera and a computer, then start “Music Transfer”.
Page 148: Format Music
Format Music You can delete all the background music files stored in the camera. It can be used in cases such as when the background music files are damaged and cannot be played. 1 MENU t (Settings) t (Main Settings) t [Format Music] t [OK] t z on the control button Restoring the music preset at the factory to the camera...
Page 149: Power Save
Power Save Sets the length of time until the LCD screen goes dark and the time until the camera turns off. If you do not operate the camera for a certain period of time while the power is on using the battery pack, the screen goes dark and the camera later turns off automatically to prevent wearing down the battery pack (Auto power-off function).
Page 150 TransferJet You can select TransferJet communication settings. TransferJet is a close-up, wireless transfer technology that allows data to be transferred by closely aligning two products that you want to communicate with each other. To find out whether your camera is equipped with the TransferJet function, check for the (TransferJet) mark on the bottom of the camera.
Page 151 Eye-Fi Sets whether to use the upload function of an Eye-Fi card (commercially available), when you use the Eye-Fi card with this camera. [Eye-Fi] is displayed only when the Eye-Fi card is inserted in the camera. 1 MENU t (Settings) t (Main Settings) t [Eye-Fi] t desired mode t z on the control button Uses the upload function.
Page 152 Notes • When you use a new Eye-Fi card for the first time, copy the install file of the PC application written in the Eye-Fi card first, then format the card. • Before using the Eye-Fi card, upgrade the firmware of the Eye-Fi card to the latest version. For details on version upgrades, refer to the operating instructions supplied with the Eye-Fi card.
Page 153: Format
Format Formats the memory card or the internal memory. To ensure stable operations of the memory card, we recommend that you use this camera to format any memory card being used with this camera for the first time. Note that formatting will erase all data recorded on the memory card. This data cannot be restored.
Page 154: Create Rec.folder
Create REC.Folder Creates a folder in a memory card to store recorded images. Images are recorded in the newly created folder until you create another folder or select another recording folder. 1 MENU t (Settings) t (Memory Card Tool) t [Create REC.Folder] t [OK] t z on the control button Notes •...
Page 155: Change Rec.folder
Change REC.Folder Changes the folder in the memory card that is currently used to store recorded images. 1 MENU t (Settings) t (Memory Card Tool) t [Change REC.Folder] 2 Select a folder with b/B on the control button. 3 [OK] t z Notes •...
Page 156: Delete Rec.folder
Delete REC.Folder Deletes the folder in a memory card that is used to store recorded images. 1 MENU t (Settings) t (Memory Card Tool) t [Delete REC.Folder] 2 Select a folder with b/B on the control button. 3 [OK] t z Notes •...
Page 157 Copy Copies all images in the internal memory to a memory card. 1 Insert a memory card with sufficient free capacity into the camera. 2 MENU t (Settings) t (Memory Card Tool) t [Copy] t [OK] t z on the control button Notes •...
Page 158: File Number
File Number Selects the method used to assign file numbers to images. 1 MENU t (Settings) t (Memory Card Tool) or (Internal Memory Tool) t [File Number] t desired mode t z on the control button Series Assigns numbers to files in sequence even if the recording folder or the memory card is changed.
Page 159: Area Setting
Area Setting Adjusts the time to the local time of a selected area. 1 MENU t (Settings) t (Clock Settings) t [Area Setting] t desired setting t z on the control button Home You use the camera in your area. When the currently set area differs from your home area, you must make the Area Setting.
Page 160: Date & Time Setting
Date & Time Setting Sets the date and time again. 1 MENU t (Settings) t (Clock Settings) t [Date & Time Setting] t desired setting t z on the control button 2 Set the numeric value and desired settings with v/V/b/B. 3 [OK] t z Date &...
Page 161: Viewing An Image On A Standard Definition Sd) Tv
Viewing an image on a Standard Definition (SD) TV You can view images recorded on the camera in standard picture quality by connecting the camera to a Standard Definition (SD) TV. Refer also to the operating instructions supplied with the TV. 1 Turn off both the camera and the TV.
Page 162: Viewing An Image On A High Definition Hd) Tv
• “PhotoTV HD” allows for a highly-detailed, photo-like expression of subtle textures and colors. • When the camera is connected to a Sony TV compatible with Video A mode using an HDMI Cable, your TV is automatically set to the picture quality suitable for still images. When the setting of the TV is set to Video, the picture quality is set to that suitable for movies.
Page 163 Viewing an image by connecting the camera to an HD TV using the HDMI Cable (sold separately) Connect the camera to the HDMI terminal of an HD TV using the HDMI Cable (sold separately). 1 Connect the camera to the TV with the HDMI Cable (sold separately). (Playback) button HDMI terminal 1 To the HDMI...
Page 164 Viewing an image by connecting the camera to an HD TV using the HD Output Adaptor Cable (sold separately) Connect the camera to an HD (High Definition) TV using the HD Output Adaptor Cable (sold separately). Use a Type3-compliant HD Output Adaptor Cable (sold separately). 1 Attach a conversion adaptor to an HD Output Adaptor Cable (sold separately) and connect the camera to a High Definition (HD) TV with the appropriate cable.
Page 165: Sync-Compatible Tv
Viewing an image on a “BRAVIA” Sync-compatible TV When you use a TV that has “BRAVIA” Sync (compatible with SYNC MENU) support, you can operate the playback functions of the camera using the remote controller supplied with the TV by connecting the camera to the TV using the HDMI Cable (sold separately). 1 Connect the camera to the TV using an HDMI Cable (sold separately).
Page 166 Notes • When the camera is connected to a TV set using an HDMI Cable, the functions that you can operate are limited. • You can perform the operation of the camera with the remote controller of your TV by connecting your camera to a “BRAVIA”...
Page 167: Using With Your Computer
Using with your computer “PMB” and other applications are contained on the CD-ROM (supplied) to allow more versatile use of images shot with your Cyber-shot camera. Recommended computer environment (Windows) The following computer environment is recommended when using the supplied software “PMB”, “Music Transfer”...
Page 168: Using The Software
• To start up “PMB,” click (PMB) on the desktop. For the detailed operation method, see the following PMB support page (English only): http://www.sony.co.jp/pmb-se/ or click (PMB Help). • To start up “PMB” from the Start menu, select [Start] t [All Programs] t (PMB).
Page 169 Installing “Music Transfer” (Macintosh) 1 Turn on your Macintosh computer, and insert the CD-ROM (supplied) into the CD-ROM drive. 2 Double-click (SONYPMB). 3 Double-click the [MusicTransfer.pkg] file in the [Mac] folder. The installation of the software starts. Notes • “PMB” is not compatible with Macintosh computers. •...
Page 170 PC, it may destroy the image file or playback may become impossible. Do not delete or copy AVCHD movies on the camera’s memory card from a PC. Sony bears no responsibility for the result of operations of this type.
Page 171: Deleting The Usb Connection
Importing images to a computer (Macintosh) 1 Connect the camera to your Macintosh computer first. Double-click the newly recognized icon on the desktop t the folder where the images you want to import are stored. 2 Drag and drop the image files to the hard disk icon. The image files are copied to the hard disk.
Page 172 Uploading images to a media service This camera has a built-in application “PMB Portable”. You can use this application to do the following: • You can easily upload images to a blog or other media service. • You can upload images from a computer connected to the Internet even when you are away from home or the office.
Page 173 • To view a website, you will be redirected to it by the Sony server. There may be times when you cannot access the website because of server maintenance or for other reasons.
Page 174: Creating A Disc Of Movies
DVDs, etc.) Notes • If you create a disc using Sony DVDirect (DVD Writer), use the memory card slot of the DVD Writer or connect the DVD Writer via USB connection to transfer the data. • If you use Sony DVDirect (DVD Writer), check that the firmware is updated to the newest version.
Page 175 Types of discs that can be used with “PMB” The following 12-cm discs can be used with “PMB”. For information on Blu-ray discs, see page 141. Disc type Characteristics DVD-R / DVD+R / DVD+R DL Cannot be re-written. DVD-RW / DVD+RW Can be re-written and used again.
Page 176 Creating standard definition image quality (STD) discs DVD discs with standard definition image quality (STD) can be created using supplied “PMB” software and selecting an AVCHD movie imported to the PC. 1 Turn on the power of the PC and insert an unused disc in the DVD drive. •...
Page 177: Printing Still Images
Printing still images You can print still images using the following methods. • Printing directly using a memory card-compliant printer For details, see the operating instructions supplied with the printer. • Printing using a computer You can import images to a computer using the supplied “PMB” software and print the images.
Page 178: Troubleshooting
3 Initialize the settings (page 107). 4 Consult your Sony dealer or local authorized Sony service facility. Be aware that by sending the camera for repair, you give consent that the contents of the internal memory, music files may be checked.
Page 179: Shooting Still Images/Movies
The remaining charge indicator is incorrect. • This is caused when you use the camera in an extremely hot or cold location. • A discrepancy arose between the remaining charge indicator and the actual remaining battery charge. Fully discharge the battery pack once, then charge it to correct the indication. Depending on conditions of use, the display may remain incorrect.
Page 180 Recording takes a long time. • When the shutter speed becomes slower than a certain speed, for example, when you shoot images in dark locations, the camera automatically reduces the image noise. This function is called NR (noise reduction) slow shutter and the shooting time takes longer. The image is out of focus.
Page 181 The date and time are not displayed on the LCD screen. • While shooting, the date and time are not displayed. They are displayed only during playback. Cannot insert dates on images. • This camera does not have a feature for superimposing dates on images. By using “PMB”, you can print or save images with the date (page 134).
Page 182 Viewing images Cannot play back images. • Make sure that the memory card is fully inserted into the camera. • The folder/file name has been changed on your computer. • No guarantees are made for playing back, on this camera, files containing images which were processed on a computer or images which were shot using other cameras.
Page 183 • Check that the computer and the “Memory Stick” media Reader/Writer support a “Memory Stick PRO Duo” media. Users of computers and the “Memory Stick” media Readers/Writers made by manufacturers other than Sony should contact those manufacturers. • If a “Memory Stick PRO Duo” media is not supported, connect the camera to the computer (page 136).
Page 184: Memory Card
Memory card Cannot insert a memory card. • Insert it in the correct direction. You have formatted a memory card by mistake. • All the data on the memory card is deleted by formatting. You cannot restore it. Data is being recorded to internal memory even though you inserted a memory card.
Page 185 Others The lens gets fogged. • Moisture condensation has occurred. Turn off the camera and leave it for about an hour before using The camera turns off with the lens portion extended. • The battery pack is discharged. Replace it with a charged battery pack, then turn the camera on again. •...
Page 186: Warning Indicators And Messages
• A camera malfunction has occurred. Initialize the camera (page 107), then turn the power on again. E:94: • There is a malfunction when writing or deleting data. Repair is required. Contact your Sony dealer or local authorized Sony service facility. Be prepared to give all numbers in the error code beginning from the E.
Page 187 System error • Turn the power off and then on again. Camera overheating Allow it to cool • The camera temperature has risen. The power may turn off automatically, or you may be unable to record movies. Leave the camera in a cool location until the temperature goes down. Internal memory error •...
Page 188 No still images • There are no 3D images that can be played back in [3D Viewing] mode. • The selected folder or date does not contain a file that can be played back in a slideshow. File found which was not recognized •...
Page 189 MP4 12M is not supported with this memory card MP4 6M is not supported with this memory card • For recording movies, it is recommended that you use a “Memory Stick PRO Duo” (Mark2) media, a “Memory Stick PRO-HG Duo” media or an SD memory card (Class 4 or faster). Recording is unavailable in this movie format •...
Page 190 Image Database File error Cannot recover • Import all of the images to the computer with “PMB”, and format the memory card or the internal memory (page 119). To view the images again with the camera, export the imported images to the camera with “PMB”. Recording function unavailable due to high internal temperature •...
Page 191: Using The Camera Abroad
Using the camera abroad You can use the battery charger (supplied), and the AC-LS5 AC Adaptor (sold separately) in any country or region where the power supply is within 100 V to 240 V AC, 50/60 Hz. Note • Do not use an electronic transformer (travel converter), as this may cause a malfunction. On TV color systems To view movies shot using this camera on a television, the camera and television must use the same color television system.
Page 192: Memory Card
Memory card The types of memory cards that can be used with the camera are “Memory Stick PRO Duo” media, “Memory Stick PRO-HG Duo” media, “Memory Stick Duo” media, SD memory card, SDHC memory card and SDXC memory card. MultiMediaCard cannot be used. Notes •...
Page 193 Notes on using a “Memory Stick Micro” media (sold separately) • This product is compatible with “Memory Stick Micro” media (“M2”). “M2” is an abbreviation for “Memory Stick Micro” media. • To use a “Memory Stick Micro” media with the camera, be sure to insert the “Memory Stick Micro” media into an “M2”...
Page 194: Battery Pack
Battery pack On charging the battery pack • We recommend charging the battery pack in an ambient temperature of between 10°C to 30°C (50°F to 86°F). The battery pack may not be fully charged in temperatures outside this range. Effective use of the battery pack •...
Page 195: Battery Charger
Battery charger • Only NP-BN1 type battery packs (and no others) can be charged in the battery charger (supplied). Batteries other than the specified kind may leak, overheat, or explode if you attempt to charge them, posing a risk of injury from electrocution and burns. •...
Page 196: Intelligent Pantilter
Intelligent Pantilter Intelligent Pantilter (sold separately) allows you to take pictures, by having the camera detect people’s faces. For details, see the operating instructions supplied with Intelligent Pantilter. Notes • DSC-WX5C digital still camera does not support the Intelligent Pantilter (IPT-DS1/IPT-DS1C). •...
Page 197: Avchd Format
AVCHD format The AVCHD format has been developed for high-definition digital video cameras when recording an HD (High-Definition) signal at the 1080i or 720p specification using high-efficiency compression coding technology. The MPEG-4 AVC/H.264 format is adopted to compress video data, and the Dolby Digital or Linear PCM system is used to compress audio data.
Page 198: Transferjet Standard
TransferJet standard TransferJet communications conform to the standard given below. TransferJet standard: Conforms to PCL Spec. Rev. 1.0 Protocol Class Name (communication type): SCSI Block Device Target OBEX Push Server OBEX Push Client • Use the “SCSI” communication protocol above when connecting to a TransferJet-compatible device (sold separately).
Page 199: Movies
Number of still images and recordable time of movies The number of still images and recordable time may vary depending on the shooting conditions and the memory card. Still images (Units: Images) Capacity Internal Memory card formatted with this camera memory Approx.
Page 200 Movies The table below shows the approximate maximum recording times. These are the total times for all movie files. Continuous shooting is possible for approximately 29 minutes at one time. The maximum size of an MP4-format movie file is up to approximately 2GB. (Units: hour : minute : second) Capacity Internal...
Page 201: Precautions
Precautions Do not use/store the camera in the following places • In an extremely hot, cold or humid place In places such as in a car parked in the sun, the camera body may become deformed and this may cause a malfunction.
Page 202: Index
Index Numerics Continuous Playback ............81 Control button ..............16 3D Functions ..............51 Copy ..................123 3D Shooting ................53 Create REC.Folder ............120 3D Sweep Panorama ............53 Creating a disc ..............140 3D Viewing .................84 CTRL FOR HDMI ............109 AF Illuminator ..............96 Date & Time Setting .............126 AF range finder frame ............71...
Page 203 Gourmet Number of still images ................27 ..........165 Grid Line ................97 Optical zoom ..............32, 98 Hand-held Twilight ............26 ..................133 HD(1080i) ................110 HDMI connector ..........56, 129, 131 Panorama HDMI Resolution ................29 ............108 Panorama Image Size High Sensitivity .............62 ..............27 ..................133 ....................27 Identifying parts Pixel ..............16 ..................64...
Page 204 Self-diagnosis display ...........152 Self-portrait .................38 Warning indicators and messages ......152 Self-Timer ................38 White Balance ..............69 Send by TransferJet ............85 Windows computer ............133 Settings ..................14 Shooting 3D images ..............53 Zoom ..................32 Movie ................31 Still Image ..............21 Shooting Direction ............60 Slideshow ................81 Slideshow with music .............82 Slow Synchro...
Page 205 GPL/LGPL. Source code is provided on the web. Use the following URL to download it. http://www.sony.net/Products/Linux/ We would prefer you do not contact us about the contents of source code. Read “license2.pdf” in the “License” folder on the CD-ROM. You will find licenses (in English) of “GPL”, and “LGPL”...
Page 206 Español Notas Consejos para tomar imágenes 3D Para tomar imágenes 3D, haga un barrido con la cámara como se muestra en la ilustración. Para tomar imágenes 3D correctamente, haga un barrido con la cámara lentamente. (Intente abarcar un semicírculo en 5 s (segundo).) Si hace el barrido muy rápida o lentamente, se visualizará...
Page 207 Português Українська Notas Примітки Sugestões para fotografar imagens 3D Поради для зйомки 3D-фотографій Para fotografar imagens 3D, mova a câmara como mostrado na ilustração. Щоб зробити 3D-фото, проведіть фотоапаратом, як показано на малюнку. Para captar correctamente imagens 3D, mova a câmara lentamente. (Tenha por Для...

Sony Cyber-shot DSC-WX5 Instruction Manual

English

Table of Contents

Getting Started

Shooting/Viewing Images

“Cyber-Shot Handbook” (PDF)

Others

Português

Quick Links

Chapters

Related Manuals for Sony Cyber-shot DSC-WX5

Summary of Contents for Sony Cyber-shot DSC-WX5

Table of Contents
