ASUS Xonar Essence STU Manual

H-fi usb dac (digital-to-analog converter).
Hide thumbs


Advertisement

E8333

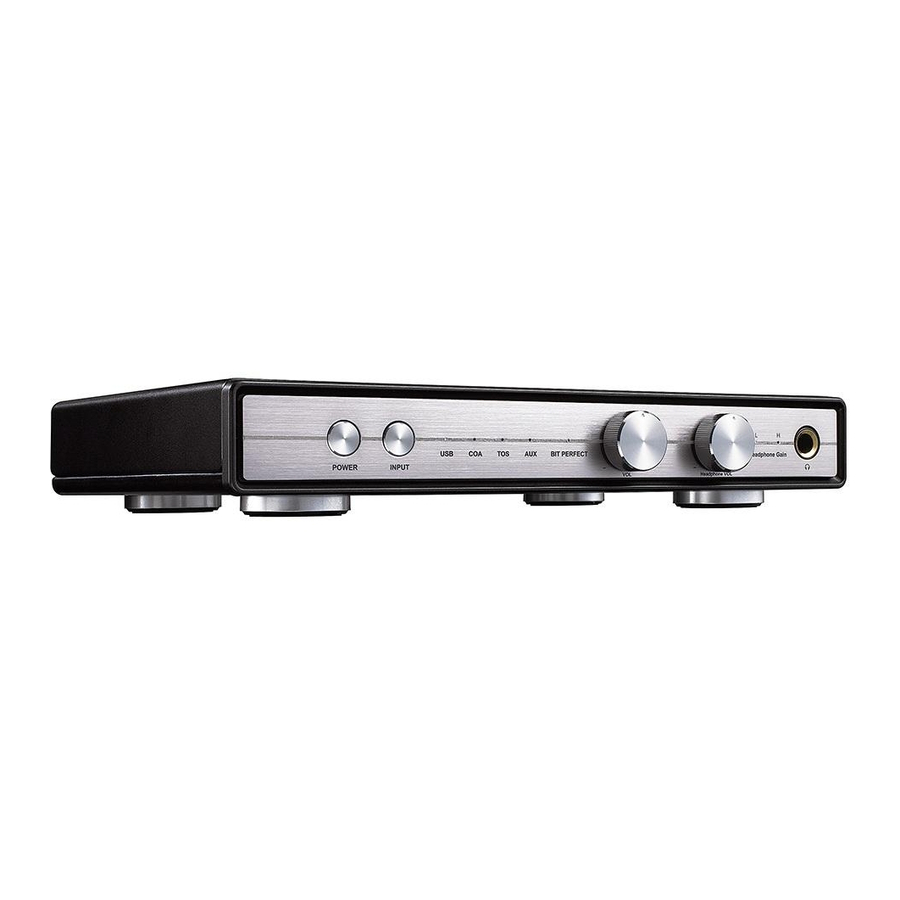

Xonar Essence STU
Hi-Fi USB DAC (Digital-to-Analog Converter)
Opamp Swap Guide
First Edition
May 2013
Copyright © 2013 ASUSTeK Computer Inc.
All Rights Reserved

Advertisement

Table of Contents

   Related Manuals for ASUS Xonar Essence STU

   Summary of Contents for ASUS Xonar Essence STU

  • Page 1 E8333 Xonar Essence STU Hi-Fi USB DAC (Digital-to-Analog Converter) Opamp Swap Guide First Edition May 2013 Copyright © 2013 ASUSTeK Computer Inc. All Rights Reserved...
  • Page 2 Serves as I/V (current to voltage convertor) that turns current from DAC into voltage for output purpose. Serves as Low Pass Filter that filters background noises. Serves as DC Servo for the headphone. Changing this will affect the headphone output. ASUS Xonar Essence STU Opamp Swap Guide...
  • Page 3 Disassembly 1. Remove the six screws on the bottom of the base. 2. Place your thumbs on top of the front panel and your other fingers on the sides. front panel ASUS Xonar Essence STU Opamp Swap Guide...
  • Page 4 3. Push the front panel with your thumbs and use your four fingers to carefully lift the top cover upward. 4. After swapping, insert the front side first then snap in the backend to replace the top cover. ASUS Xonar Essence STU Opamp Swap Guide...
  • Page 5 NS – LM4562NA NJRC – MUSE02 Powerful, punchy sound with good sound stage; less detailed present. NS – LME49720NA NJRC – MUSE02 Brighter, thinner sound and more detailed than the above combination ASUS Xonar Essence STU Opamp Swap Guide...
  • Page 6 Exclusions from this limited Warranty Service ASUS does not warrant uninterrupted or error-free operation of this Product. The warranty only covers technical hardware issues during the warranty period and under normal use conditions. It does not apply to software issues or customer...
  • Page 7 Product. The foregoing limitation shall not apply to death or personal injury claims, or any statutory liability for intentional and gross negligent acts and/or omissions by ASUS. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages; to the extent such jurisdiction is governing this Warranty the above limitations do not apply to You.
