Xonar Essence STU
Hi-Fi USB DAC (Digital-to-Analog Converter)
Quick Start Guide
Safety Information
1. Read and keep these instructions for future reference.
2. Follow all instructions and take note of all warnings.
3. Do not use this apparatus near water or expose the device to moisture.
4. Clean machine surface with a cloth. Avoid using detergent or cleaning fluid.
5. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
7. The polarized or grounding-type plug is for user safety. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement
of the outlet.
8. Protect the power cord from being stepped on or compressed particularly at the point where it exits from the
apparatus.
9. Only use attachments/accessories approved by the manufacturer.
10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When using a cart, take care to avoid tipping over the load when moving the device.
11. Unplug this apparatus during lightning storms or when not in use for a long period of time.
12. Refer all repairs to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
Package Contents
This package should contain the following:
• ASUS Xonar Essence STU Hi-Fi USB DAC x 1
• User Manual x 1
• USB cable ('B-A' type) x 1
• Installation driver CD x 1
• Power adapter x 1
• Product stand x 1
• Power cord x 1 (may contain two power cords
• 6.3mm to 3.5mm adapter x 1
depending on region/country)
U9997_Xonar_Essence_STU_QSG_V2_Euro.indd 1
System Requirements
To ensure a successful installation of the ASUS Xonar Essence STU USB DAC, your computer must meet the following
requirements:
• IBM compatible PC with one USB2.0 (or higher) compatible port for the USB audio device
®
®
• Microsoft
Windows
8 (32/64bit) / 7 / XP (32/64bit) / MCE2005
• Intel
®
Pentium
®
4 1.4GHz, AMD Athlon 1400 CPU, or faster CPU
• 256 MB DRAM system memory
• 60 MB available HDD space for driver installation
• CD-ROM drive (or DVD-ROM drive) for software installation
• High-quality headphones or powered analog speakers
Driver Installation
After connecting the ASUS Xonar Essence STU to your computer using the bundled USB cable, install the device driver
using the provided CD.
NOTES:
• Driver installation is only required if you plan to connect the ASUS Xonar Essence STU to a PC or
notebook.
• Driver version and the contents of the support CD are subject to change without notice.
To install the device driver:
1. Insert the ASUS Xonar Essence STU Support CD into your optical drive. Proceed to step 5 if Autorun is enabled
on your computer and the driver setup screen appears. If Autorun is not enabled on your computer, perform step 2.
2. On your Windows desktop, launch File Explorer.
• Windows
®
7 SP1
Click Start then Computer.
®
• Windows
8
Click
+ E
3. In File Explorer, double-click the optical drive icon.
4. Double-click Setup.exe.
5. Read through the End User License Agreement and click Accept when prompted. Follow the onscreen
instructions to complete the driver installation.
6. When driver installation is complete, you will be prompted to restart your computer.
Functionality
Standalone Digital-to-Analog Converter
- DVD Players
- AV receivers
- Home Theatre Systems
- Speakers and amplifiers
USB Digital-to-Analog Converter
- Laptops
- Desktops
iPhone / iPad / iPod
High-end Headphones
and Headsets
Hardware Features

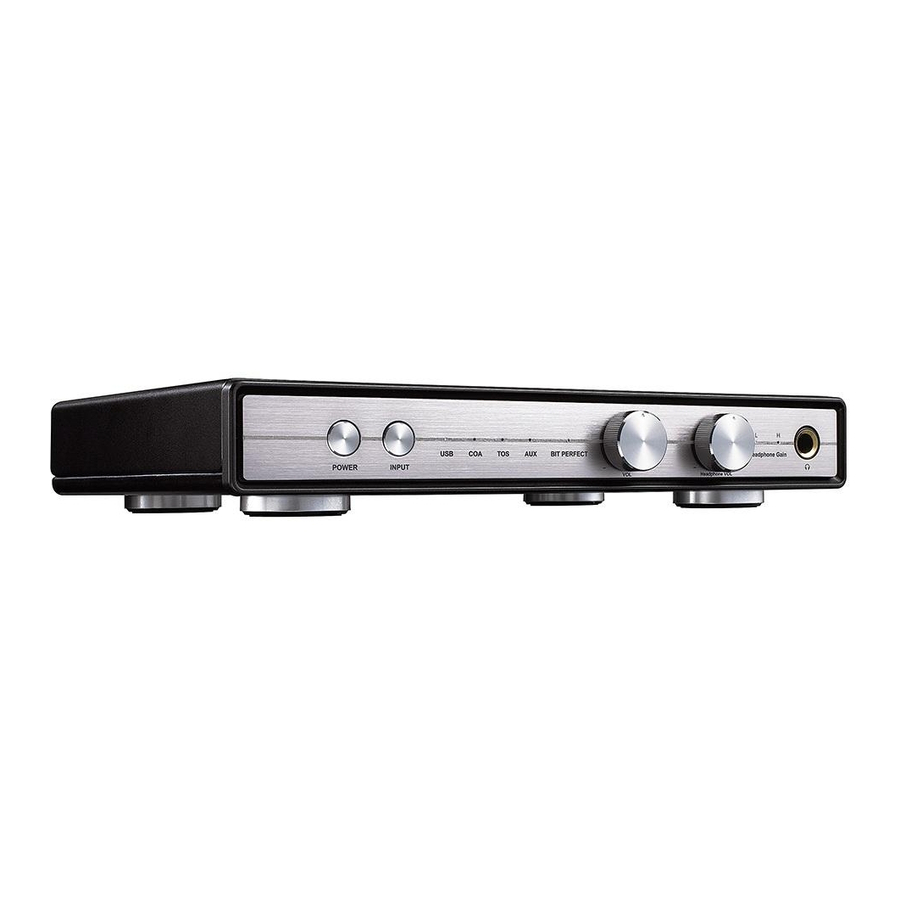

Front panel
USB
COA
TOS
AUX
BIT PERFECT
Headphone Galn
POWER
INPUT
1. Power On/Off: Press to power off/on Xonar Essence STU.
2. Input selection: Press to select audio input source: USB, TOSLINK, Coaxial (COA), or AUX audio input.
3. Input selection/Bit perfect indicator: The corresponding LED will light up to show which audio source has
been selected.
4. Speaker volume control: The volume control adjusts the output level of unbalanced RCA output.
5. Headphone volume control: The volume control adjusts the output levels of the headphone jack.
6. Headphone Gain indicator: The LED will light up based on the selected headphone gain setting.
7. Headphone output: Connect your high-quality headphones/headsets with 6.3 mm connector. Use a 6.3
mm/3.5 mm connector if your headphones/headsets have 3.5 mm ports.
FRANÇAIS
SUOMI
Panneau avant
Etupaneeli
1. Bouton Marche/Arrêt
1.
Virta Päälle/Pois
2.
Sélection d'entrée
2.
Tulon valinta
3.
Indicateur lumineux de sélection d'entrée
3.
Tulon valinta / Bit perfect -merkkivalo
4.
Contrôle du volume (haut-parleurs)
4.
Kaiuttimen äänenvoimakkuuden säätö
5.
Contrôle du volume (casque)
5.
Kuulokkeiden äänenvoimakkuuden säätö
6.
Indicateur lumineux de gain du casque
6.
Kuulokkeiden vahvistuksen merkkivalo
7.
Sortie casque
7.
Kuulokelähtö
DEUTSCH
ΕΛΛΗΝΙΚΆ
Vorderseite
Μπροστινή πλευρά
1.
Ein-/Austaste
1.
Λειτουργία On/Off (Ενεργ./Απενεργ.)
2.
Eingangswahl
2.
Επιλογή εισόδου
3.
Eingangswahl-/Bit Perfect-Anzeige
3.
Επιλογή εισόδου/Ένδειξη Bit perfect
4.
Lautsprecher-Lautstärkeregler
4.
Ρύθμιση έντασης ηχείου
5.
Kopfhörer-Lautstärkeregler
5.
Ρύθμιση έντασης ακουστικών
6.
Kopfhörer-Verstärkungsanzeige
6.
Ένδειξη ενίσχυσης ακουστικών
7.
Kopfhöreranschluss
7.
Έξοδος ακουστικών
ITALIANO
MAGYAR
Pannello frontale
Előlap
1.
Accensione/spegnimento
1.
Főkapcsoló
2.
Selezione ingresso
2.
Bemenetválasztás
3.
Indicatore selezione ingresso/Bit Perfect
3.
Bemenetválasztás/Érintetlen bitátvitel kijelző
4.
Controllo volume altoparlante
4.
Hangszóró hangerő-szabályozó
5.
Controllo volume cuffie
5.
Fejhallgató hangerő-szabályozó
6.
Indicatore guadagno cuffie
6.
Fejhallgató-erősítésjelző
7.
Uscita cuffie
7.
Fejhallgató kimenet
ФРАНЦУЗСКИЙ
NORSK
Передняя панель
Frontpanel
1.
Включение/отключение питания
1.
Strøm på/av
2.
Выбор входа
2.
Inngangsvalg
3.
Индикатор выбранного входа
3.
Inngangsvalg / bitperfekt-indikator
4.
Регулятор громкости динамиков
4.
Volumkontroll for høyttaler
5.
Регулятор громкости наушников
5.
Volumkontroll for hodetelefon
6.
Индикатор усиления наушников
6.
Indikator for hodetelefonforsterkning
7.
выход на наушники
7.
Hodetelefonutgang
БЪЛГАРСКИ
POLSKI
Преден панел
Panel przedni
1.
Вкл./Изкл.
1.
Włączenie/wyłączenie zasilania
2.
Избор на вход
2.
Wybór wejścia
3
Избор на вход/Bit perfect индикатор
3.
Wybór wejścia/Wskaźnik zgodności bitowej
4.
Управление на силата на звука на
4.
Regulacja głośności głośnika
високоговорителя
5.
Regulacja głośności słuchawek
5.
Управление на силата на звука на слушалките
6.
Wskaźnik wzmocnienia słuchawek
6.
Индикатор за усилване на слушалките
7.
Wyjście słuchawek
Edit
7.
Изход за слушалки
PORTUGUÊS
HRVATSKI
Painel frontal
Prednja ploča
1.
Ligar/Desligar
1.
Uključivanje / isključivanje
2.
Seleção da entrada
2.
Odabir ulaza
3.
Indicador de seleção da entrada/Bit perfect
3.
Odabir ulaza / Bit perfect indikator
4.
Controlo do volume do altifalante
4.
Regulator glasnoće zvučnika
5.
Controlo do volume dos auscultadores
5.
Regulator glasnoće slušalica
6.
Indicador de ganho dos auscultadores
6.
Indikator pojačanja na slušalicama
7.
Saída dos auscultadores
7.
Izlaz za slušalice
ROMÂNĂ
ČEŠTINA
Panoul frontal
Přední panel
1.
Pornire/Oprire alimentare
1.
Vypínač
2.
Selectare intrare
2.
Výběr vstupu
3.
Indicator selectare intrare/indicator Bit Perfect
3.
Indikátor výběru vstupu/Bit Perfect
4.
Control al volumului pentru difuzoare
4.
Ovladač hlasitosti reproduktorů
5.
Control al volumului pentru căşti
5.
Ovladač hlasitosti sluchátek
6.
Indicator amplificare căşti
6.
Indikátor zesílení sluchátek
7.
Ieşire căşti
7.
Výstup pro sluchátka
SRPSKI
DANSK
Prednji panel
Forpanel
1.
Uključeno/isključeno napajanje
1.
Tænd/sluk
2.
Odabir unosa
2.
Indgangsvalg
3.
Odabir unosa/Indikator savršenog ritma
3.
Indgangsvalg/Bit-perfect-indikator
4.
Kontrola jačine tona zvučnika
4.
Lydstyrkeknap til højttaler
5.
Kontrola jačine tona slušalica
5.
Lydstyrkeknap til hovedtelefoner
6.
Indikator nivoa pojačanja slušalica
6.
Hovedtelefonernes forstærkningsindikator
7.
Izlaz za slušalice
7.
Hovedtelefonstik
SLOVENŠČINA
NEDERLANDS
Sprednja plošča
Voorpaneel
1.
Vklop/izklop
1.
In/uitschakelen
2.
Izbira vhoda
2.
Ingangsselectie
3.
Izbira vhoda/indikator Bit perfect
3.
Ingangsselectie/bit perfect-indicator
4.
Nadzor glasnosti zvočnika
4.
Volumeregeling luidspreker
5.
Nadzor glasnosti slušalk
5.
Volumeregeling hoofdtelefoon
6.
Indikator ojačitve za slušalke
6.
Indicator hoofdtelefoonversterking
7.
Izhod slušalk
7.
Hoofdtelefoonuitgang
Hardware Features
ESPAÑOL
TÜRKÇE
Panel frontal
Ön panel
1.
Encendido y apagado
1.
Güç Açık/Kapalı
2.
Selección de entrada
2.
Giriş seçimi
3.
Selección de entrada/Indicador bit perfect
3.
Giriş seçimi/İdeal bit göstergesi
4.
Control de volumen del altavoz
4.
Hoparlör ses denetimi
5.
Control de volumen de los auriculares
5.
Kulaklık ses denetimi
6.
Indicador de ganancia de los auriculares
6.
Kulaklık Kazanım göstergesi
7.
Salida de auriculares
7.
Kulaklık çıkışı
SVENSKA
УКРАЇНСЬКА
Frontpanel
Передня панель
1.
Ström På/Av
1.
Увімкнути/вимкнути живлення
2.
Inmatningsval
2.
Вибір входу
3.
Inmatningsval/bit perfekt indikator
3.
Вибір входу/ Індикатор Bit-perfect
4.
Kontroll högtalarvolym
4.
Контроль гучності динаміків
5.
Kontroll hörlursvolym
5.
Контроль гучності навушників
6.
Hörlurar ökningsindikator
6.
Індикатор рівня гарнітури
7.
Hörlursuttag
7.
Вихід навушників
Rear panel
HP GAIN
R
L
AUX IN
TOSLINK
COAXIAL
DIGITAL INFUT
NOTE: If you have a low impedance headset/headphone, please do not switch to high gain setting.
When switching between high and low gain settings, please remove headset/headphones
connected before proceeding.
1. Gain Selection: Toggle the switch to change between low or high headphone gain settings.
2. Unbalanced RCA Output (line-out): Conventional stereo outputs for connection to the line-level phono/RCA
inputs of a speaker.
3. Aux In: Connect iDevices such as iPhone, iPod, or iPad into this port.
4. Coaxial S/PDIF Input: Connect your digital source, such as CD/DVD players or computer with S/PDIF output, to
digital input. Use either S/PDIF coaxial or Toslink optical type, each being of equal quality.
5. Toslink Optical Input: This port is for Toslink Optical Input.
6. USB port: Connect a PC via a Type B to Type A USB lead.
7. Power port (DC in): Plug the supplied power adapter into the Xonar Essence STU once you have completed all
connections.
FRENCH
РУССКИЙ
Panneau arrière
Задняя панель
REMARQUE : si votre casque ou vos écouteurs pos-
ПРИМЕЧАНИЕ: Пожалуйста, не используйте высокое
sède(nt) une faible impédance, n'utilisez pas de haut
усиление с низкоомными наушниками/гарнитурой.
gain. Débranchez votre casque ou vos écouteurs avant
Пожалуйста, отключите гарнитуру/наушники при
de modifier les réglages de gain.
переключении усиления.
1.
Sélection du gain
1.
Выбор усиления
2
Sortie RCA dissymétrique
2.
Несимметричный выход RCA (линейный выход)
3 Entrée auxiliaire (AUX)
3.
Аудиовход
4
Entrée optique TOSLINK
4.
Оптический вход Toslink
5
Entrée S/PDIF coaxiale
5.
Коаксиальный S/PDIF-вход
6
Port USB
6.
Порт USB
7
Connecteur d'alimentation
7.
Разъем питания (пост. ток)
DEUTSCH
БЪЛГАРСКИ
Rückseite
Заден панел
HINWEIS: Wenn Sie einen Kopfhörer/ein Headset mit
ЗАБЕЛЕЖКА: Ако имате слушалки с нисък импеданс,
geringer Impedanz verwenden, schalten Sie bitte nicht
не превключвайте на висок. Когато превключвате
auf hohe Verstärkung um. Trennen Sie den Kopfhörer/
настройките за високо и слабо усилване, отстранете
das Headset vom Anschluss, bevor Sie zwischen hoher
свързаните слушалки преди да продължите.
und niedriger Verstärkung umschalten.
1.
Verstärkungsumschalter
1.
Избор на усилване
2.
Unsymmetrischer Cinchausgang (Line-Ausgang)
2.
Небалансиран RCA изход (Line-Out)
3.
Aux-Eingang
3. AUX изход
4.
Optischer TOSLINK-Eingang
4.
TOSLINK оптичен вход
5.
Koaxialer S/PDIF-Eingang
5.
Коаксиален S/PDIF вход
6.
USB-Port
6.
USB порт
7.
Netzteilanschluss
7.
Порт на захранване (DC вход)
ITALIANO
HRVATSKI
Pannello posteriore
Stražnja ploča
NOTA: Se disponete di cuffie/auricolari a bassa impe-
NAPOMENA: Ako imate naglavni komplet/slušalice
denza vi consigliamo di non usare la modalità ad alto
niske impedancije, nemojte prebacivati preklopku
guadagno. Prima di passare da alto guadagno a basso
na visoko pojačanje. Prebacivanjem između postavki
guadagno rimuovete le cuffie o gli auricolari collegati.
visokog i niskog pojačanja, prije nastavka odvojite
naglavni komplet/slušalice ako su bile spojene.
1.
Selezione guadagno
1.
Odabir pojačanja
2.
Uscita RCA non bilanciata (uscita linea)
2.
Neuravnoteženi RCA izlaz (linijski izlaz)
3.
Ingresso Aux
3. AUX ulaz
4.
Ingresso ottico TOSLINK
4.
TOSLINK optički ulaz
5.
Ingresso S/PDIF coassiale
5.
Koaksijalni S/PDIF ulaz
6.
Porta USB
6.
USB priključak
7.
Porta di alimentazione (ingresso CC)
7.
Priključak za napajanje (DC ulaz)
U9997 / Revised Edition V2 / December 2014
USB
DC IN
2014/12/4 17:47:29

Advertisement

   Also See for Asus Xonar Essence STU

   Related Manuals for Asus Xonar Essence STU

   Summary of Contents for Asus Xonar Essence STU

  • Page 1

    Főkapcsoló 1. Insert the ASUS Xonar Essence STU Support CD into your optical drive. Proceed to step 5 if Autorun is enabled on your computer and the driver setup screen appears. If Autorun is not enabled on your computer, perform step 2.

  • Page 2

    Hardware Features Connectivity Options ČEŠTINA PORTUGUÊS NORSK TÜRKÇE Connecting an iPhone / iPad / iPod Connecting Amplifier and Passive Speaker System Zadní panel Painel traseiro Bakpanelet Arka panel POZNÁMKA: Máte-li k dispozici sluchátka/sluchátka OBS: Hvis du har et hodesett/hodetelefoner med lav NOTA: Se possuir auscultadores/auriculares de baixa NOT: Eğer düşük empedanslı...

Comments to this Manuals

Symbols: 0
Latest comments:
