Instruction booklet
GB
English
TCL770
! Keep this instruction booklet on hand in order to refer to it when necessary. Take it with you when you move, and
should you sell this appliance or pass it on to another party, make sure that this booklet is supplied along with the
dryer so that the new owner may be informed about warnings and suggestions on how the appliance works.
! Read these instructions carefully; the following pages contain important information on installation and suggestions
on how the appliance works.
Contents
Installation, 4
Start and programmes, 6-8
Laundry, 9-10
Troubleshooting, 13
Service, 14

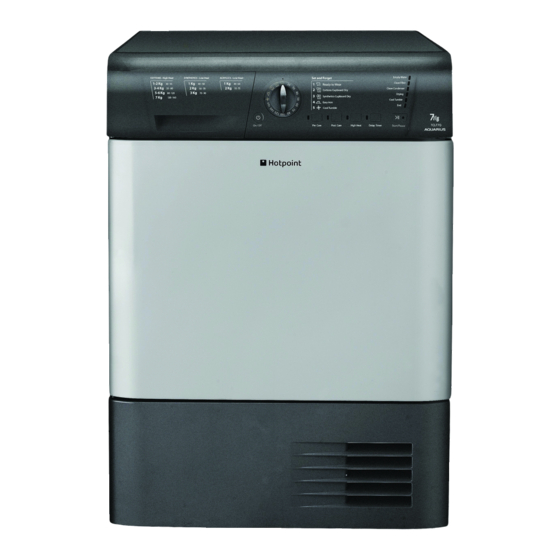

TUMBLE DRYER
1
GB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hotpoint TCL770
Summary of Contents for Hotpoint TCL770
-
Page 1: Table Of Contents
Instruction booklet English TCL770 ! Keep this instruction booklet on hand in order to refer to it when necessary. Take it with you when you move, and should you sell this appliance or pass it on to another party, make sure that this booklet is supplied along with the dryer so that the new owner may be informed about warnings and suggestions on how the appliance works. -
Page 2: Water Container
Important Information For your Condenser dryer to operate efficiently, you must follow the regular maintenance schedule shown below: Fluff Filter... ! You MUST clean the fluff filter after EVERY drying cycle. STEP 1. Open the door of your dryer. ! Failure to clean the filter after EVERY drying cycle will affect the drying performance of your machine. It will take longer to dry and as a result will use more electricity during drying. - Page 3 Important Information Condenser Unit... ! You MUST clean the fluff from the condenser EVERY month. STEP 1. STEP 2. Open the condenser cover Remove the condenser by - hold the handle and rotating the 3 clips then pull towards you. pulling the condenser towards you.
-
Page 4: Installation
Installation Where to put your dryer Place your dryer at a distance from gas ranges, stoves, heaters, or cook tops because flames can damage the appliance. If you are going to install Minimum gap 10mm the appliance under a work counter, be sure to leave a 10mm space between the top and any other objects... -
Page 5: Dryer Description
Dryer Description To open the door Press and release the front panel in position shown Condenser unit (Cover open) Control panel Drying Guide The ON/OFF button : If the dryer is running and this button is pressed, the dryer stops. Press again, the dryer restarts. -
Page 6: Start And Programmes
Start and Programmes Choosing a programme 1. Plug the dryer into the electrical socket. 2. Sort your laundry according to fabric type (see Laundry). 3. Open the door and make sure the filter is clean and in place and the water container is empty and in place (see Maintenance). - Page 7 Start and Programmes Programmes ! If none of the lights are lit; Press the ON/OFF button Programme What it does... Dries your clothes on High Heat setting, ready for wearing. Cottons Extra dry Dries your clothes on High Heat setting, ready for putting away. Cottons Cupboard dry Dries your clothes on Low Heat...
-
Page 8: Door Opening
Start and Programmes The Controls PROGRAMMES knob ! Warning, if after pressing the Start/Pause button , the programmes knob position has changed, the new position will NOT change the programme selected. To change a selected programme, press the Start/Pause button , the light flashes Amber to indicate the programme is paused. -
Page 9: Laundry
Laundry Sorting your laundry Check symbols on clothing labels to make sure that the articles can be tumble dried. Sort laundry by fabric type. Empty pockets and check buttons. Close zippers and hooks and tie loose belts and strings. Wring out each item in order to eliminate as much excess water as possible. -
Page 10: Special Clothing Items
Laundry Special clothing items Blankets and Bedspreads: acrylic items (Acilan, Courtelle, Orion, Dralon) must be dried with special care on LOW heat setting. Avoid drying for a long period of time. Pleated or creased garments: read the manufacturer’s drying instructions on the garment. Starched articles: do not dry these with non-starched items. -
Page 11: Disposal
Warnings and Suggestions ! The appliance has been designed and built according to international safety standards. These warnings are given for safety reasons and must be followed carefully. General safety This tumble dryer is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the... -
Page 12: Maintenance And Care
Maintenance and Care Switching off the electricity ! Unplug your dryer when not using it, when cleaning it and during all maintenance operations. Clean the filter after each cycle The filter is an important part of your dryer: it accumulates lint and fluff that is formed while drying. When finished drying, clean the filter by rinsing it under running water or with your vacuum cleaner. -
Page 13: Troubleshooting
Troubleshooting One day your dryer seems not to be working. Before you call your Service Centre (see Service), go through the following troubleshooting suggestions: Problem: Possible causes / Solution: The tumble dryer won’t start. Drying cycle will not begin. Its taking a long time to dry. Empty water light is flashing but the dryer has only been running for a short period. -
Page 14: Service
Service Before calling the Service Centre: Use the troubleshooting guide to see if you can solve the problem yourself (see Troubleshooting). If not, turn off the dryer and call the Service Centre closest to you. What to tell the Service Centre: name, address and post code. -
Page 16: After Sales Service
UK: 08709 077 077 Monday to Friday, 8.30am to 5pm Saturday, 8.30am to 12noon www.hotpointservice.co.uk Republic of Ireland: 0818 313 413 www.hotpoint.co.uk 1 9 5 0 6 7 2 6 0 . 0 0 W 01/2008 - SIMLEX . Four Ashes, Wolverhampton...
