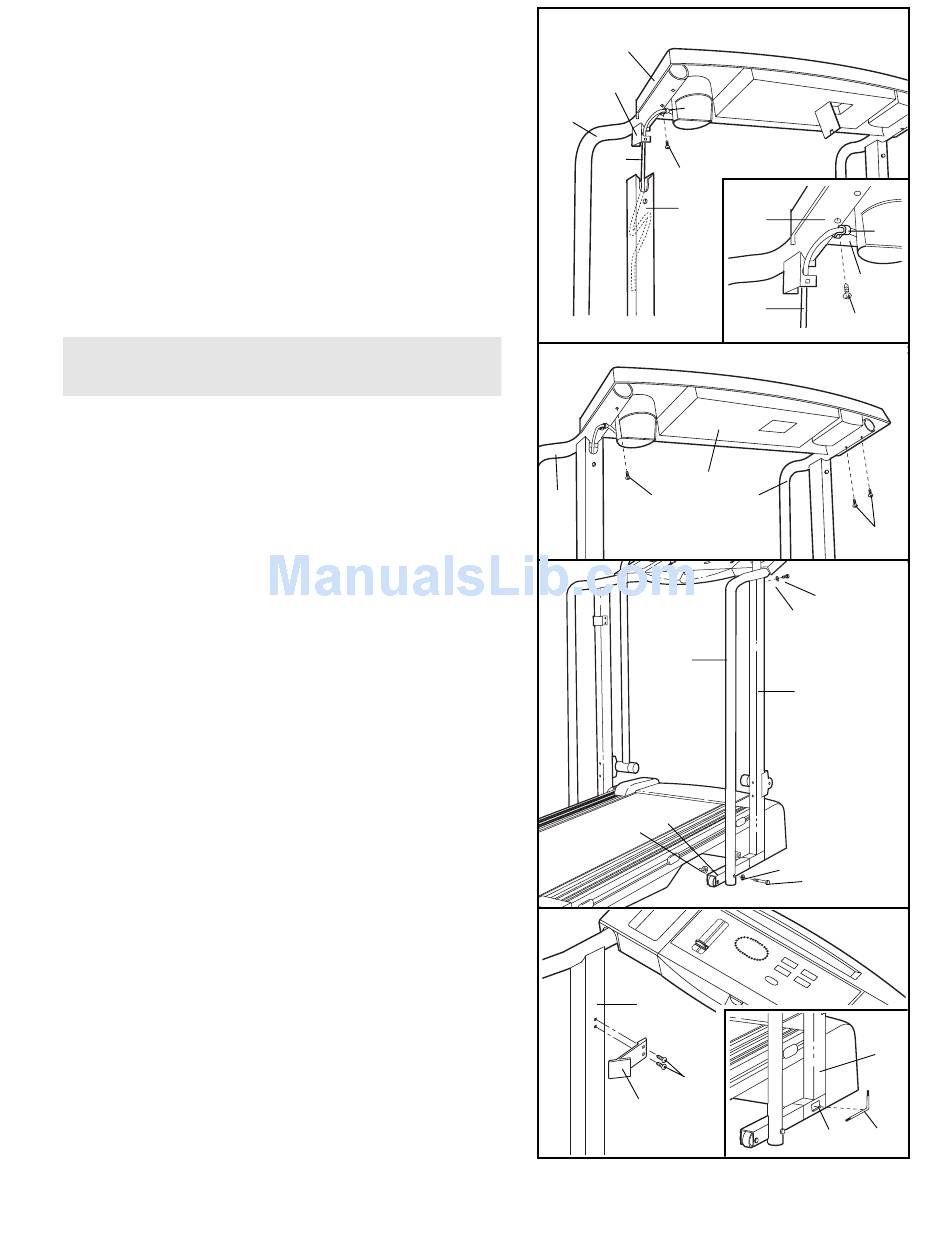

3. With the help of a second person, hold the Console Base
(6) and the Right Handrail (32) near the right Upright (14).
Feed all excess Wire Harness (26) down into the right
Upright; if necessary, bend the Wire Harness as shown.
Route the Wire Harness (26) through the bracket on the
Right Handrail (32) as shown. Insert the bracket into the right
Upright (14). Be careful not to pinch the Wire Harness.
Refer to the inset drawing. Push the Strain Relief Clip (88)
onto the Wire Harness (26). Insert a 3/4Ó Screw (30) into
the Strain Relief Clip and into the indicated hole in the
Right Handrail (32). Make sure that there is no slack Wire
Harness between the Strain Relief Clip and the Console
Base (6). Tighten the Screw into the Console Base.
IMPORTANT: The Strain Relief Clip (88) must be
attached as instructed.
Feed all excess Wire Harness (26) down into the right
Upright (14)
4. Attach the Console Base (6) to the Left and Right
Handrails (2, 32) with three 3/4Ó Screws (30).
5. Thread a Handrail Bolt (15) with a Handrail Washer (16)
into the right Upright (14) and the Right Handrail (32). Do
not tighten the Handrail Bolt yet.
Attach the lower end of the Right Handrail (32) to the
Extension Leg (41) with a 3 1/2Ó Handrail Bolt (89), a 3/8Ó
Washer (99), and a Flange Nut (57).
Tighten all parts used in this step and in step 2.
6. Attach the Storage Latch (12) to the left Upright (14) with
two 1/2Ó Screws (13). Be careful not to overtighten the
Screws.
Refer to the inset drawing. Remove the backing from the
Adhesive Clip (74). Press the Adhesive Clip onto the
base of the Uprights (14) in the indicated location. Press
the Allen Wrench (73) into the Adhesive Clip.
7. Make sure that all parts are tightened before you use the treadmill. To protect the floor or carpet, place
a mat under the treadmill.
