Attach The Feet To The Base - Tectrix ClimbMax 1000 Owner's Manual

Page 4
The Hardware Kit for the CM1000 (part# 71100) contains:
Description
5/16" x 2" Screw
5/16" x 2.25" Screw
5/16" Split Washer
5/16" Nyloc Nut
5/16" x 2.5" Button Cap Screw
Bracket, Handrail Clamp
#10 x 3/4" Phillips-head Screw
The console and related materials for the ClimbMax 1000 are packed in the Configuration Kit
included with the unit. This box contains:
Description
Warranty Card
Owner's Manual
Service Manual
Power Cord
ClimbMax Display Console
Assembling the ClimbMax 1000

Attach the Feet to the Base

Carefully turn the base (1) upside down. Attach the left (2) and right (3) feet using three of the
5/16" by 2.25" screws (9) and washers (10), and one 5/16" nut (11). Attach the front foot using
two of the 5/16" by 2" screws (8) and washers (10). See Figure 1. Roll the base onto its feet.
Qty Part Number
4 41011
3 41050
7 43042
3 42033
2 41138
1 52078
9 41009
Qty Part Number
1 03006
1 03070
1 03071
1 Varies with country (14007 for USA)
1 Varies with language

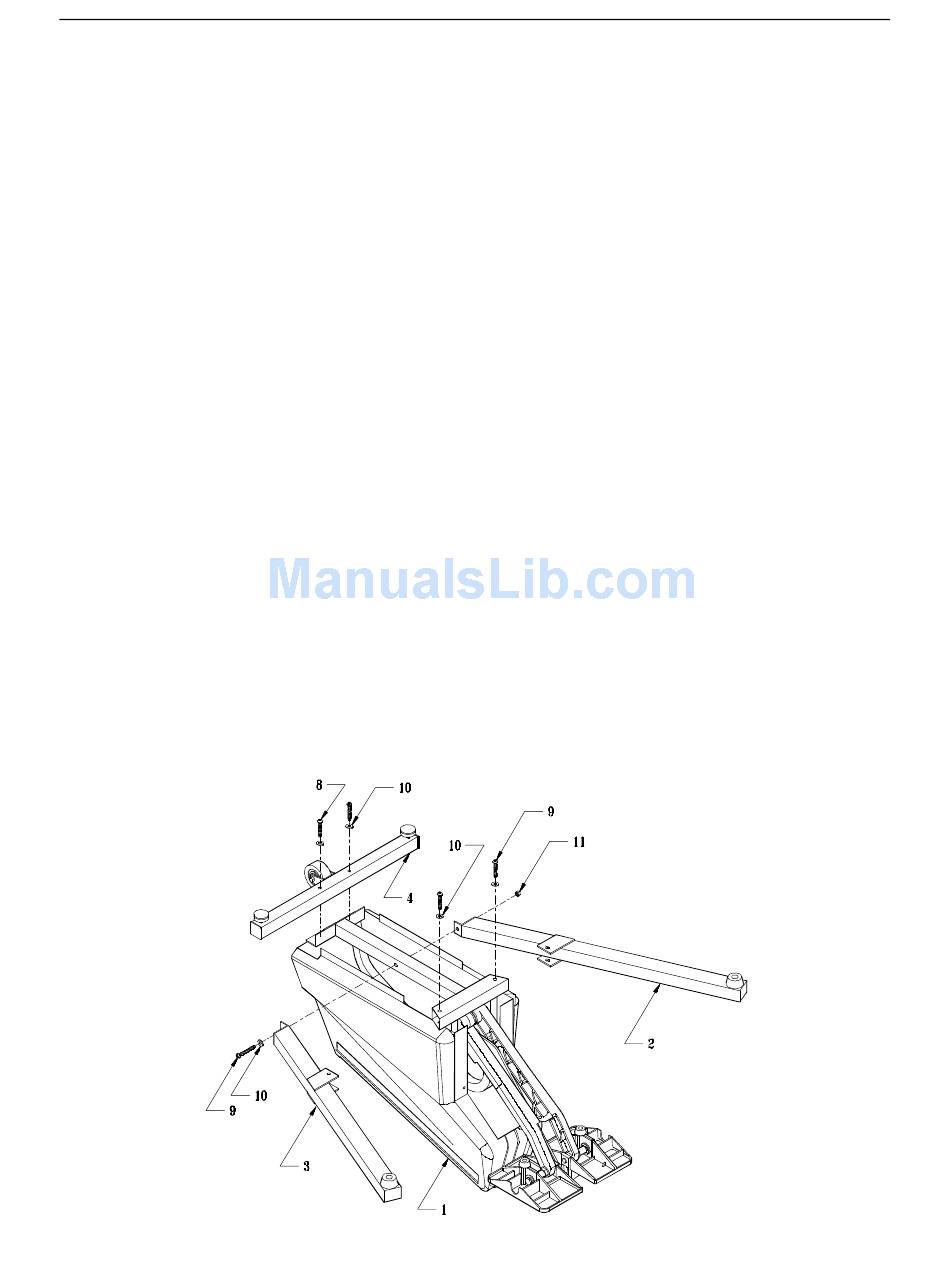

Figure 1 - Attaching the Feet
Chapter 2 - Assembly and Setup
Item #
8
9
10
11
--
12
--
