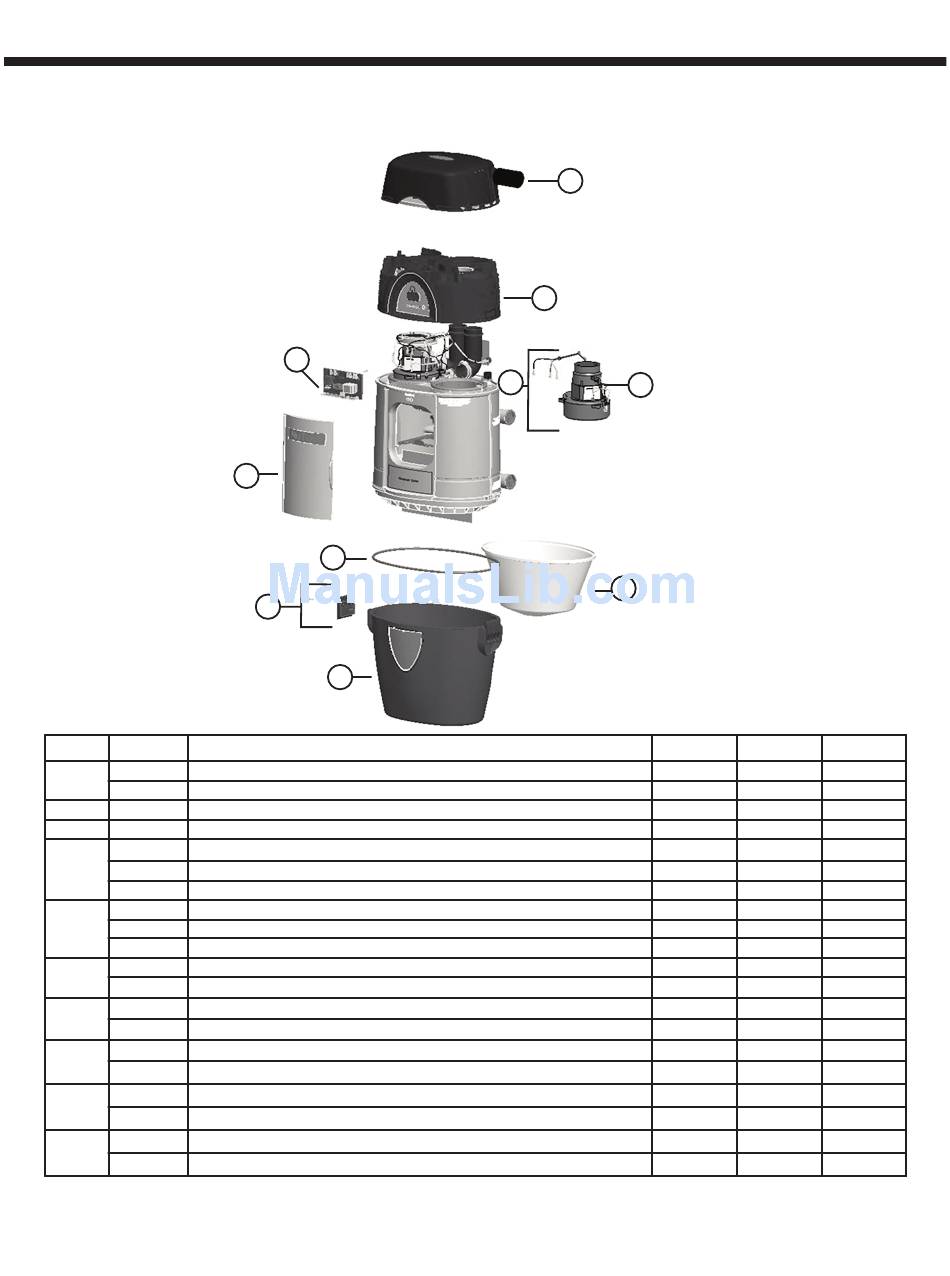

SERVICE PARTS LIST

Key No. Part No.
10941189 Pail assembly VS
1
10941191 Pail assembly TS
2 10941192 Door assembly
3 10941199 Latch kit (with screws)
10941232 VS PCB's assembly (including mother, daughter and screws)*
4
10941233 TS1 PCB's assembly (including mother, daughter and screws)*
10941195 TS2 Motherboard/Daughterboard S/A incl. screws*
10941235 VS motor with motor harness, fuse with fuse harness, circuit breaker*
5 10941236 TS1 motor with motor harness, fuse with fuse harness, circuit breaker*
10941231 TS2 motor with motor harness, fuse harness, circuit breaker*
30100528 Pail gasket TS
6
30100527 Pail gasket VS
30010272 Cyclonic filter VS
7
30010270 Cyclonic filter TS
10941217 Motor Chamber VS with foam and logo*
8
10941218 Motor Chamber TS with foam and logo*
10941211 Top cap VS with logo
9
10941213 Top cap TS with logo
10941201 Motor brush 120V + installation document*
10
10941202 Motor brush 240V + installation document*
NOTE: Order service parts by "Part No." - not by "Key No."
*This part MUST be removed and installed by a qualified technician.
(BROAN MODELS VX3000C, VX6000C & VX12000C)
4
2
6
3
1
Description
9
8
5
10
7
VX3000C VX6000C VX12000C
X
X X
X X X
X X X
X
X
X
X
X
X
X X
X
X
X X
X
X X
X
X X
X X
X
page 7
