ISHIDA BC-4000TEC User Manual

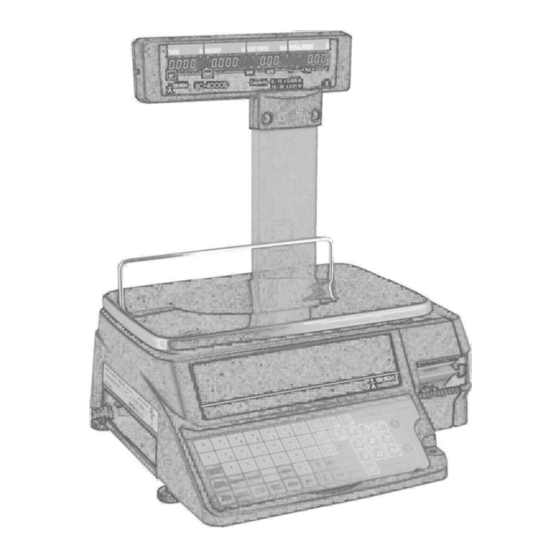

System scale printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

IMPORTANT
• Do not carry out installation, operation, service, or
maintenance until thoroughly understanding the
contents of this manual.
• Keep this manual available at all times for installation,
operation , service, and maintenance.
BC-4000TEC User's Manual No. JBAW07EBC-4000TEC
System Scale Printer
BC-4000TEC
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC-4000TEC and is the answer not in the manual?

Questions and answers

Related Manuals for ISHIDA BC-4000TEC

Summary of Contents for ISHIDA BC-4000TEC

  • Page 1 User’s Manual IMPORTANT • Do not carry out installation, operation, service, or maintenance until thoroughly understanding the contents of this manual. • Keep this manual available at all times for installation, operation , service, and maintenance. BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC...
  • Page 2 Copyright © 2005 by Ishida Co., Ltd. All Rights Reserved. No part of this manual may be reproduced in any form, by mimeograph or any other means, without written permission of the publisher. BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC...
  • Page 3 To ensure your personal safety, disconnect the power supply before servicing. Take precaution against residual electrical charge hazard Capacitors inside the machine may still hold an electrical charge even after power is disconnected. BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC page i...
  • Page 4 A power supply that generates voltage variation may cause a malfunction. • Do not stand on the power cord, and do not place anything heavy on the cord. Doing so may damage the cord, resulting in accident or trouble. page ii BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC...
  • Page 5 Do not drop or apply a strong shock to the When cleaning the machine, only use a machine. soft dry cloth or a cloth wetted with a neutral cleanser. Never use thinner or other volatile liquids. BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC page iii...
  • Page 6 Indicates information that, if not heeded, could possibly result in loss of life or serious injury. Indicates information that, if not heeded, could result in relatively serious or minor injury, damage to the machine, or faulty operation. page iv BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC...

  • Page 7: Table Of Contents

    4.7 PERIODICAL TOTAL (F06)..............4-14 4.8 ERROR TOTAL (F07) ................4-15 4.9 TOTAL CLEAR (F08) ................4-16 4.10 ERROR TOTAL CLEAR (F09) ..............4-18 4.11 PAPER MODE (F10)................4-19 4.12 BATCH REPORT (F11)................4-20 BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC page v...
  • Page 8 7-SEGMENT CHARACTERS............6-4 6.1.5 CHARACTER FONTS..............6-5 6.2 TEXT CREATE/EDIT ................. 6-6 6.3 INSERT/OVERWRITE CHARACTERS ............. 6-8 6.4 CHARACTER DELETE................6-9 APPENDIX ..................... A-1 A.1 ERROR CODE & MESSAGES ..............A-2 A.2 COMMUNICATION PROBLEMS ...............A-3 page vi BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC...

  • Page 9: Chapter 1 Product Overview

    Chapter 1 PRODUCT OVERVIEW PRODUCT OVERVIEW CONTENTS APPEARANCE & DISPLAY..........1-2 KEYSHEETS ................ 1-3 BASIC OPERATION KEYS ..........1-4 PROGRAM KEYS ..............1-5 PRESET KEYS..............1-6 SPECIFICATIONS..............1-8 CLEANING ................1-9 BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC...

  • Page 10: Appearance & Display

    ZERO : Lights when weight value is true zero or temporary zero. SAVE : Lights when the SAVE mode is used. AUTO : Lights when the Automatic Print (Pre-pack) mode is used. : Lights when PLU number is entered. BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC...

  • Page 11: Keysheets

    Chapter 1 PRODUCT OVERVIEW 1.2 KEYSHEETS 1.2.1 OPERATION KEY SHEET These keys are assigned for preset keys. 1.2.2 PROGRAM KEY SHEET BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC...

  • Page 12: Basic Operation Keys

    PACK COUNT ZERO Used to issue a label that shows Used to adjust the scale to zero when the number of labels (packs), total nothing is loaded on the weigh platter. weight and amount. BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC...

  • Page 13: Program Keys

    1. Key in the desired PLU number. ARROW key to scroll through 2. Press this key to copy text data character sizes. from other PLU. 3. Use the RIGHT ARROW key to select between left-justification and centering functions. BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC...

  • Page 14: Preset Keys

    Used to access an operator data Used to call up a coupon message. simply by pressing the preset 1. Call up a PLU. operator key. 2. Key in a coupon text number. 3. Press this key. BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC...
  • Page 15 3. Press either this key or [MODE] key to release. Note 1: Subtotal data will be cleared by pressing the [SUBTOTAL] key. Note 2: The data will be saved by pressing the [MODE] key to return to Normal Mode. BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC...

  • Page 16: Specifications

    Outer diameter: 100 mm (3.9”) Interface Ethernet (TCP/IP 10/100 Base T) Keyboard 64 keys total, (44 preset keys store up to 88 preset items) Memory capacity 1 MB Power supply AC 100 V ~ 120 V / 60 Hz BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC...

  • Page 17: Cleaning

    Keep the machine free of spills, dust and dirt. When cleaning the machine, only use a soft dry cloth or a cloth wetted with a neutral cleanser. Never use thinner or other volatile liquids. CAUTION BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC...

  • Page 18: Cleaning

    In order to maintain good printing quality, clean the thermal head at least once a week with a cotton swab dipped in cleaning fluid. Do not use metal tools to clean the thermal head as they may damage the head surface. CAUTION 1-10 BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC...
  • Page 19 Chapter 1 PRODUCT OVERVIEW BC-4000TEC User’s Manual No. JBAW07EBC-4000TEC 1-11...

  • Page 21: Chapter 2 Daily Operation

    Chapter 2 DAILY OPERATION DAILY OPERATION CONTENTS LABEL SETTING..............2-2 WEIGHING ITEMS ............... 2-6 FIXED PRICE ITEMS ............2-8 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 22: Label Setting

    Pull the release lever of the bobbin outwards to loosen the paper from the bobbin. Set the stopper lever straight, and remove the remaining roll label roll and paper from the roll holder, path, and bobbin. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 23 Note: Before loading the label roll, remove the first 30 cm (12 inches) of backing paper. Slide the stopper lever in inner or outer direction to fit the roll width and turn the stopper 90 degrees to fix the roll. Open the thermal head by pulling up the lock lever. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 24 Note: Check that the label printing position is properly set. If not properly set, press the [FEED] key until it reaches the proper printing position. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 25 Chapter 2 DAILY OPERATION Close the side cover. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 26: Weighing Items

    Skip this step if the tare weight is already registered in the PLU or the PLU is a fixed price item. Note: The registered tare weight can be overridden by placing an actual tare on the weigh platter, and pressing the [TARE] key. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 27 Note: To eliminate the AUTO indicator, press the [PREPACK] key. [Manual Label Issue] When the machine is in MANUAL mode, press the [PRINT] key to issue a label. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 28: Fixed Price Items

    Note2: To eliminate the AUTO indicator, press the [PREPACK] key. [Manual Label Issue] When the machine is in MANUAL mode, press the [PRINT] key to issue a label. Note: In MANUAL mode, only one label is issued. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 29: Chapter 3 Subtraction Mode

    Chapter 3 SUBTRACTION MODE SUBTRACTION MODE CONTENTS ITEM SUBTRACTION (D01) ..........3-2 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 30: Item Subtraction (D01)

    Press the [FEED] key to proceed to D01-03 screen. Key in the weight to be subtracted and press the [FEED] key. Note: Fields cannot be skipped. A value other than zero has to be entered. Weight BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 31 [OPERATOR] key instead of [PRINT] key. [Repetition] Repeat steps 2 through 6 above to execute subtraction for other PLU’s. [Subtraction Mode Exit] Press the [MODE] key to exit Subtraction Mode. Then, the initial display appears. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 32 Chapter 3 SUBTRACTION MODE BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 33: Chapter 4 Total Mode

    OPERATOR TOTAL (F05) ..........4-13 PERIODICAL TOTAL (F06) ..........4-14 ERROR TOTAL (F07)............4-15 TOTAL CLEAR (F08)............4-16 4.10 ERROR TOTAL CLEAR (F09)..........4-18 4.11 PAPER MODE (F10) ............4-19 4.12 BATCH REPORT (F11) ............4-20 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 34: Total Mode Entry/Exit (F00)

    Or, key in the menu number and press the [ ↓ ] key to access directly to the desired menu. 4.1.2 TOTAL MODE EXIT [Total Mode Exit] Press the [MODE] key to exit Total Mode. The initial display will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 35: Daily Total (F01)

    Press the [PRINT] key to issue a daily item total label. [Daily Department Item] Press the [ ↓ ] key to proceed to “Daily Department Item” screen (F01-03). Press the [PRINT] key to issue a daily department item total label. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 36 Press the [PRINT] key to issue a daily department total label. [Daily Group] Press the [ ↓ ] key to proceed to “Daily Group” screen (F01-08). Press the [PRINT] key to issue a daily group total label. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 37 Chapter 4 TOTAL MODE [F01 Screen] Press the [END] key to return to the F01 screen. [Total Mode Exit] To exit Total Mode, press the [MODE] key. The initial display will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 38: Weekly Total (F02)

    Allow labels to remain on backing paper. [Weekly Item] Press the [ ↓ ] key to proceed to “Weekly Item” screen (F02-02). Press the [PRINT] key to issue an weekly item total label. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 39 Press the [PRINT] key to issue an weekly profit total label. [Weekly Department] Press the [ ↓ ] key to proceed to “Weekly Department” screen (F02-07). Press the [PRINT] key to issue an weekly department total label. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 40 Press the [PRINT] key to issue an weekly group total label. [F01 Screen] Press the [END] key to return to the F01 screen. [Total Mode Exit] To exit Total Mode, press the [MODE] key. The initial display will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 41: Monthly Total (F03)

    Allow labels to remain on backing paper. [Monthly Item] Press the [ ↓ ] key to proceed to “Monthly Item” screen (F03-02). Press the [PRINT] key to issue a monthly item total label. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 42 Press the [PRINT] key to issue a monthly profit total label. [Monthly Department] Press the [ ↓ ] key to proceed to “Monthly Department” screen (F03-07). Press the [PRINT] key to issue a monthly department total label. 4-10 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 43 Press the [PRINT] key to issue a monthly group total label. [F01 Screen] Press the [END] key to return to the F01 screen. [Total Mode Exit] To exit Total Mode, press the [MODE] key. The initial display will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 4-11...

  • Page 44: Hourly Total (F04)

    Allow labels to remain on backing paper. [F01 Screen] Press the [END] key to return to the F01 screen. [Total Mode Exit] To exit Total Mode, press the [MODE] key. The initial display will appear. 4-12 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 45: Operator Total (F05)

    Allow labels to remain on backing paper. [F01 Screen] Press the [END] key to return to the F01 screen. [Total Mode Exit] To exit Total Mode, press the [MODE] key. The initial display will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 4-13...

  • Page 46: Periodical Total (F06)

    Allow labels to remain on backing paper. [F01 Screen] Press the [END] key to return to the F01 screen. [Total Mode Exit] To exit Total Mode, press the [MODE] key. The initial display will appear. 4-14 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 47: Error Total (F07)

    Allow labels to remain on backing paper. [F01 Screen] Press the [END] key to return to the F01 screen. [Total Mode Exit] To exit Total Mode, press the [MODE] key. The initial display will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 4-15...

  • Page 48: Total Clear (F08)

    Total Clear” screen (F08-02). Press the [ZERO] key twice to clear weekly totals. [Monthly Total] Press the[ ↓ ] key to proceed to “Monthly Total Clear” screen (F08-03). Press the [ZERO] key twice to clear monthly totals. 4-16 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 49 Press the [ZERO] key twice to clear all totals. [F01 Screen] Press the [END] key to return to the F01 screen. [Total Mode Exit] To exit Total Mode, press the [MODE] key. The initial display will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 4-17...

  • Page 50: Error Total Clear (F09)

    Press the [ZERO] key twice to clear error totals. [F01 Screen] Press the [END] key to return to the F01 screen. [Total Mode Exit] To exit Total Mode, press the [MODE] key. The initial display will appear. 4-18 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 51: Paper Mode (F10)

    0: Label paper Selection data 1: Roll paper [F01 Screen] Press the [END] key to return to the F01 screen. [Total Mode Exit] To exit Total Mode, press the [MODE] key. The initial display will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 4-19...

  • Page 52: Batch Report (F11)

    Allow labels to remain on backing paper. [F01 Screen] Press the [END] key to return to the F01 screen. [Total Mode Exit] To exit Total Mode, press the [MODE] key. The initial display will appear. 4-20 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 53: Chapter 5 Registration Mode

    OPERATOR NAME (P24) ........... 5-44 5.18 TITLE DATA (P25) ............... 5-46 5.19 ADVERTISEMENT MESSAGE (P26) ......... 5-47 5.20 DEPARTMENT CODE/NAME (P27)........5-49 5.21 GROUP CODE/NAME (P28)..........5-50 5.22 CAMPAIGN ITEM (P29) ............5-51 NUTRITION (P40) ……………………...………………………………. 5-56 5.23 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 54: Registration Mode Entry/Exit

    Or, key in the menu number and press the [ ↓ ] key to access a desired menu directly. 5.1.2 MODE EXIT [Registration Mode Exit] Press the [MODE] key to exit Registration Mode. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 55: Plu File (P01)

    2: Weighing / Fixed price item Note 1: When “0” or “2” is selected, steps P01-06: FIXED WEIGHT and P01-07: PACK QUANTITY will be skipped. 2: When “1” is selected, step P01-08:TARE will be skipped. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 56 [Fixed Weight] Press the [ ↓ ] key to proceed to “Fixed Weight” screen (P01-06). Key in a weight (5digits) and press the [ENTER] key. Note: For weighing items, this step will be Weight skipped. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 57 4 : Print both dates Note: "Reference" uses the default value specified in step B04-01: Data Print Flag in Setup Mode when the PLU is called. The default value is "4" at ex-factory for printing both dates. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 58 [ENTER] key. Selection data 0: Reference 1: Prohibition Selection data 2: Installed (Clock) 3: Designated Note: When “0” is set in Step 14 above, B04-03: Pack Time Flag in Setup Mode is referred BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 59 Press the [ ↓ ] key to proceed to “Item Code” screen (P01-18). Key in a item code (8 digits) and press the [ENTER] key. Note: When a new PLU is programmed, the Item code barcode default is to be PLU number. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 60 16: FFCCCCCWWWWW(CD) M : Manufacturer code F : Flag code Q : Quantity C : Item code (CP) : Check price P : Price (CD) : Check digit W : Weight I : PLU number BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 61 1” screen (P01-24). Key in a Message 1 number (8 digits) and press the [ENTER] key. Message 1 number Note1: “0” means “Not specified”. Note2: Message 1 must be programmed at P07. Message 1 in Registration Menu. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 62 Press the [ ↓ ] key to proceed to “Logo Image 1” screen (P01-28). Key in a image number (0 to 999) and press the [ENTER] key. Note: “0” means “Not specified”. Logo Image 1 number 5-10 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 63 P40 mode. [Proportion Tare] Press the [ ↓ ] key to proceed to “Proportion Tare” screen (P01-32). Key in a Proportion Tare percentage, Maximum = 50% (50.0) and press the [ENTER] key. Tare Percentage BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-11...
  • Page 64 15: BOTTLE 16: LB 17: None [Department Code] Press the [ ↓ ] key to proceed to “Department Code” screen (P01-36). Key in a department code (0 to 9) and press the [ENTER] key. Department code 5-12 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 65 [Forced Tare] Press the [ ↓ ] key to proceed to “Forced Tare” screen (P01-40). Key in desired selection data (see below) and press the [ENTER] key. Selection data Selection data 0: No 1: Yes BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-13...
  • Page 66 [Safe Handling] Press the [ ↓ ] key to proceed to “Safe Handling” screen (P01-44). Key in desired selection data (see below) and press the [ENTER] key. Selection data Selection data 0: No 1: Yes 5-14 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 67 Note: “0” means “Not specified”. SH Image number [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-15...

  • Page 68: Commodity Name (P02)

    Refer to Chapter 6 for editing a text. [Return to P01] Press the [END] key to return to P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. 5-16 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 69: Plu Delete (P02-03)

    Press the [CHARACTER DELETE] key again to execute deletion. To delete item press [DELETE] A short beep will be heard indicating deletion. Note: In order to cancel the deletion, press the [ENTER] key before pressing the [DELETE] key. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-17...
  • Page 70 Chapter 5 REGISTRATION MODE [Return to P01] Press the [END] key to return to P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. 5-18 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 71: Price Change (P03)

    Example: New price $8.88 for PLU “1” New price [Return to P01] Press the [END] key to return to P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-19...

  • Page 72: Preset Key (P04)

    15: Subtotal print 32: Second print 16: Coupon message 33: Cassette number 17: Ingredients message Note: The type of preset key flag may differ depending on the country. Contact Toshiba TEC America’s dealer for more information. 5-20 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 73 Example: Key position “026” for Fixed Price [Repeat] Repeat steps 3 and 4 above for allocating other preset keys. [Exit P04 Mode] To exit Preset Key Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-21...
  • Page 74 A buzzer will sound. [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. 5-22 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 75: Store Name/Address (P05)

    Press the [ENTER] key to access “Name Edit” screen (P05-01). Refer to Chapter 6 for editing a text. [Store Address Edit] Press [ ↓ ] key to access “Address Edit” screen (P05-02). Refer to Chapter 6 for editing a text. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-23...
  • Page 76 P05-00 screen. [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. 5-24 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 77: Date/Time (P06)

    [ENTER] key. Time (HHMMSS) [Julian Date] Press the [ ↓ ] key to proceed to “Julian Date” screen (P06-03). Key in a desired Julian Date (XXXX) and press the [ENTER] key. Julian Date (XXXX) BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-25...
  • Page 78 Start time (HHMM) [End Date] Press the [ ↓ ] key to proceed to “End Date” screen (P06-07) for daylight saving. Key in a desired date (MMDDYYYY) and press the [ENTER] key. End date (MMDDYYYY) 5-26 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 79 [ENTER] key. End time (HHMM) [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-27...

  • Page 80: Extra Message (P07)

    Refer to Chapter 6 for editing a text. [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. 5-28 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 81: Default Plu (P08)

    To exit Registration Mode, press the [MODE] key. The default PLU data that has been set in step 2 above will appear on the display for a few seconds. Then, the initial screen appears. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-29...

  • Page 82: Item List Mode (P09)

    3: Campaign [Start No.] Press the [ ↓ ] key to proceed to “Start Number” screen (P09-03) for PLU item list printing. Key in a desired start number and press the [ENTER] key. Start number 5-30 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 83 Note: Pressing the [ZERO] key will stop printing. [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-31...

  • Page 84: Rs232C Mode (P10)

    Chapter 5 REGISTRATION MODE 5.12 RS232C MODE (P10) RS232C MODE NOT APPLICABLE TO THE BC-4000TEC SCALE LOADING DATA (P10-01) ** NOT AVAILABLE ** [P10 Screen] Make sure that “RS232C Mode” screen (P10) appears on the display. Otherwise, enter this screen by referring to Section 5.1: Registration Mode Entry/Exit.
  • Page 85 Note: If an error occurs, “DATA SEND ERR” screen will be displayed. [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-33...
  • Page 86 Note: In order to exit receiving status, turn OFF and ON the power. [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. 5-34 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 87: Coupon Message (P20)

    Refer to Chapter 6 for editing a text. [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-35...

  • Page 88: Ingredients Message (P21)

    Refer to Chapter 6 for editing a text. [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. 5-36 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 89: Nip Message (P22)

    Refer to Chapter 6 for editing a text. [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-37...

  • Page 90: Tcp/Ip Mode (P23)

    File Delete” screen (P23-01-01). Press the [ENTER] key to delete the file. [Store File Delete] Press the [ ↓ ] key to proceed to “Store File Delete” screen (P23-01-02). Press the [ENTER] key to delete the file. 5-38 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 91 Press the [END] key to return to the P23-01 screen. [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-39...
  • Page 92 Otherwise, move to the next step. [Store File Send] Press the [ ↓ ] key to proceed to “Store File Send” screen (P23-02-02). Press the [ENTER] key to send the file. Otherwise, move to the next step. 5-40 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 93 Press the [END] key to return to the P23-02 screen. [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-41...
  • Page 94 Otherwise, move to the next step. [Store File Receive] Press the [ ↓ ] key to proceed to “Store File Receive” screen (P23-03-02). Press the [ENTER] key to receive the file. Otherwise, move to the next step. 5-42 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 95 Press the [END] key to return to the P23-03 screen. [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-43...

  • Page 96: Operator Name (P24)

    Press the [ ↓ ] key to proceed to “Operator Logout” screen (P24-03). Operator logout is automatically executed when non-operation status time exceeds the set minutes. Key in a logout time in minutes (MM) and press the [ENTER] key. Operator logout time 5-44 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 97 5: Normal, Registration, Total, Subtraction [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-45...

  • Page 98: Title Data (P25)

    Refer to Chapter 6 for editing a text. [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. 5-46 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 99: Advertisement Message (P26)

    Chapter 5 REGISTRATION MODE 5.19 ADVERTISEMENT MESSAGE * NOT AVAILABLE ON BC4000TEC *** THIS PROCEDURE IS NOT APPLICABLE TO THE BC-4000TEC SCALE *** [P26 Screen] Make sure that “Advertisement Message” screen (P26) appears on the display. Otherwise, enter this screen by referring to Section 5.1: Registration Mode Entry/Exit.
  • Page 100 1: “YES” Changes in one display cycle. [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. 5-48 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 101: Department Code/Name (P27)

    Refer to Chapter 6 for editing a text. [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-49...

  • Page 102: Group Code/Name (P28)

    Refer to Chapter 6 for editing a text. [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. 5-50 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 103 Key in start date (MMDDYYYY) and press the [ENTER] key. Start date (MMDDYYYYY) [Start Time] Press the [ ↓ ] key to proceed to the next step. Key in start time (HHMM) and press the [ENTER] key. Start time (HHMM) BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-51...
  • Page 104 4: -$ (UP) 5: -% (UP) 6: Standard Price (No MD Indication) Key in a price or rate and press the [ENTER] key. [Return to P29-00] Press the [END] key to return to P29-00 screen. 5-52 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 105 Chapter 5 REGISTRATION MODE [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-53...
  • Page 106 Press the [DELETE] key to execute deletion, then, a buzzer will sound. Note: When canceling the deletion, press the [ENTER] key. [Return to P01] Press the [END] key to return to the P01 screen. 5-54 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 107 Chapter 5 REGISTRATION MODE [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-55...

  • Page 108: Nutrition (P40)

    [Servings Per Container] Press the [ENTER] key to move to the “Servings Per Container” screen. (P40-02) Enter the Servings per Container using alphanumeric characters (Max. 4 char.) and press [ENTER] to record setting. Servings per Container 5-56 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 109 P40-12 Sodium Percentage (Max. 3 digits) [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-57...
  • Page 110 Note: When canceling the deletion, press the [ENTER] key. [Return to Nutrition Panel Number] Key in a panel number (6 digits) and press the [PLU] key to continue with more deletions or to add additional Nutrition files. Panel number 5-58 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 111 Chapter 5 REGISTRATION MODE [Return to P01] Press the [END] key to return to the P01 screen. [Registration Mode Exit] To exit Registration Mode, press the [MODE] key. The initial screen will appear. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC 5-59...

  • Page 113: Chapter 6 Text Editing

    Chapter 6 TEXT EDITING TEXT EDITING CONTENTS TEXT EDITING..............6-2 TEXT CREATE/EDIT............6-6 INSERT/OVERWRITE CHARACTERS ........ 6-8 CHARACTER DELETE ............6-9 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 114: Text Editing

    Used to delete a character in the Used to change between inserting text field by moving the cursor or overriding characters while backwards. editing text fields. • Indicator ON: Insert (default) • Indicator OFF: Overwrite BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 115 Used to input the right lower symbol programming menu while in the of the character keys. Registration Mode. First press the SYMBOL FUNCTION key and then press the required character keys. Reset is performed each time one symbol is registered. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 116: Display Indicators

    Chapter 6 TEXT EDITING 6.1.3 DISPLAY INDICATORS 6.1.4 7-SEGMENT CHARACTERS BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 117: Character Fonts

    3: The above table may differ depending on country specification. 4: Maximum characters per line depend on the print area size. Values in the table are the reference values when the print area is 59 mm. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 118: Text Create/Edit

    [ ↑ ] or [ ↓ ] key. [Text on the First Line] Example: FILET MIGNON Key in the desired characters on the first line. [New Line] Press the [NEW LINE] key to proceed to the next line. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 119 Key in the desired characters on the new ((BEEF)) Example: line. [Completing Text Entry] To complete the text entry, press the [ENTER] key. The screen will return to the edit screen (PXX-01) of Registration Mode. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 120: Insert/Overwrite Characters

    [INSERT] key to turn off the indicator. [Inserting Character] Use [←] and [→] keys to move the cursor to the position where a character is inserted. Key in characters to be inserted. Example: “L” between “I” and “E BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 121: Character Delete

    “FILLET” instead of “FILET” was keyed-in by mistake. [Deleting Characters] Use [←] and [→] keys to move the cursor to the position where a character is deleted. Example: Delete “L” [Character Deletion] Press the [DELETE] key. BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 123: Appendix

    APPENDX APPENDIX CONTENTS ERROR CODE & MESSAGES..........A-2 COMMUNICATION PROBLEMS..........A-3 BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 124: Error Code & Messages

    Press the CLEAR key to exit the error condition. OVER THE LIMIT FOR COUPON CHAR. Memory error has occurred. Perform RAM data clear and contact your dealer. FILE MISSING BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...

  • Page 125: Communication Problems

    When using the machine in OFFLINE, this data can be neglected. However, when changing from OFFLINE to ONLINE (Re-connection to network), confirm the above values after the power is turned OFF and ON, or the RESET key is pressed BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 126 APPENDX BC-4000TEC User’s Manual No. JBAW97EBC-4000TEC...
  • Page 128 Design and specifications are subject to change without notice. 44 SANNO-CHO, SHOGOIN, SAKYO-KU KYOTO, 606-8392 JAPAN PHONE: 81-75-771-4141 FACSIMILE: 81-75-751-1634 URL: http://www.ishidajapan.com...

Table of Contents
