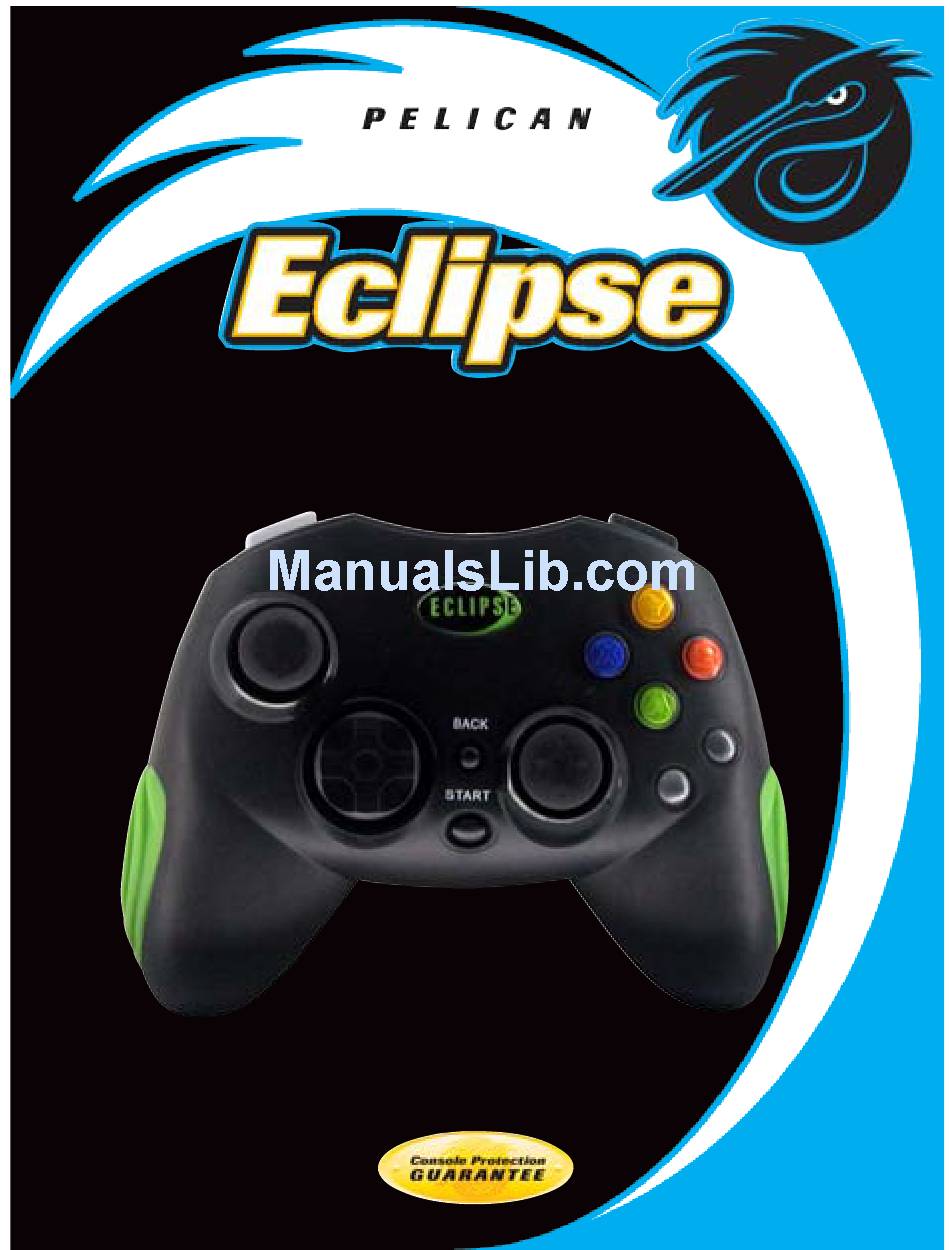

- Page 1 Xbox Xbox Eclipse PL-2023 Rev#082603...
-
Page 2: Table Of Contents
Table of Contents Console Protection Guarantee ....1 Product Layout .......... 2 Overview ........... 3 Instructions ..........5 Trouble Shooting ........7 Warranty Information ......... 9... -
Page 3: Console Protection Guarantee
This warranty will not apply if the Pelican controller is not used as directed in the product manu- al enclosed. For further information or help please contact us toll free at... -
Page 4: Product Layout

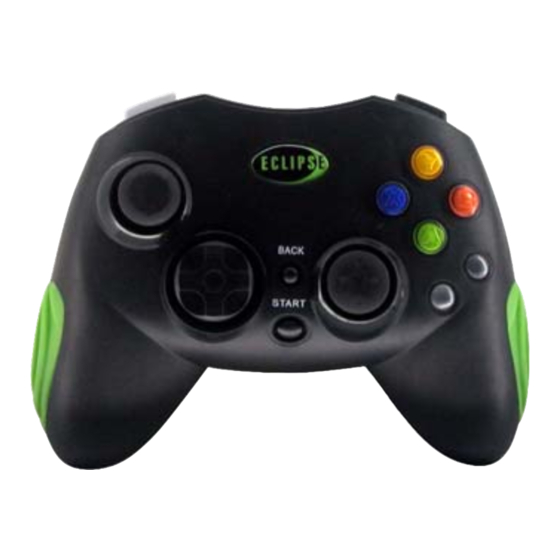

Product Layout Eclipse Controller Select & Start Buttons Quick Response Action Buttons Precision D-Pad Dual Analog (Directional Pad) Sticks Handle Grips Relocated Black/White Buttons Left & Right Triggers All Eclipse’s buttons are fully analog and pressure sensitive. -
Page 5: Product Overview
Product Overview: The Eclipse Controller omitted the gimmicks common to third party controllers, opting to focus on quality and design elements that make the difference in game play. The following will give you a run down of these design elements that are not found on other controllers. - Page 6 Relocated Start & Back Buttons: The Start and Back buttons have been relocated to give you easier and quicker access to them. Quality 10’ Cable with Breakaway: A high quality shielded 10 foot cable with a breakaway connection comes standard to pre- vent any possible data loss due to interference.
-
Page 7: Instructions
Instructions: 1. Make sure your Xbox turned off. 2. Plug your new Eclipse controller into controller port one. If you already have a controller and want to use Eclipse as a second controller, make sure you have a controller plugged into controller port one and plug Eclipse into controller port two. - Page 8 white buttons. Your middle fingers will be resting on the triggers. The picture below shows the proper fin- ger placement to maximize comfort and performance. 4. Insert a game into your Xbox 5. Turn on your Xbox 6. You are now ready to play.
-
Page 9: Trouble Shooting
Trouble Shooting If you are having difficulties with your new Eclipse Controller, please refer below: My system turns on but I don’t see any- thing on the TV. 1. Check to verify that your A/V cable is properly connected to your system. 2. - Page 10 My Eclipse does not respond while in the game. 1. Check to verify your Eclipse is firmly and properly plugged into controller port one. 2. Check to verify that the breakaway cable is firmly and properly connected. For technical questions please visit http://www.pelicanperformance.com or call us directly at 1-800-331-3844...
-
Page 11: Warranty Information
/ or workmanship for a period of 5 years from the date of purchase. If a defect covered by this warranty occurs during this period, Pelican at its option will repair or replace, at no charge, any part that Pelican determines to be defective. - Page 12 1840 East 27th Street Vernon, CA 90058 USA http://www.pelicanperformance.com Pelican and it s logo are registered trademarks. Microsof t, Xbox and the Pelican and it s logo are registered trademarks. Microsof t, Xbox and the Xbox logos are either registered trademarks of Microsof...
