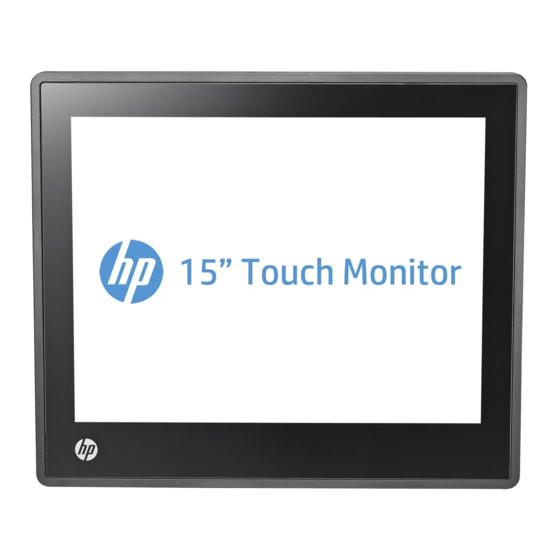

HP L6015tm and L6017tm Retail Touch
Monitors
User Guide

Advertisement

Table of Contents
loading

Related Manuals for HP L6015tm

Summary of Contents for HP L6015tm

  • Page 1 HP L6015tm and L6017tm Retail Touch Monitors User Guide...
  • Page 2 Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services . Nothing herein should be construed as constituting an additional warranty.

  • Page 3: About This Guide

    About This Guide This guide provides information on setting up and using the retail touch monitors. WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life. CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information.
  • Page 4 About This Guide...

  • Page 5: Table Of Contents

    Table of contents 1 Product Features ............................1 HP L6015tm and L6017tm Retail Touch Monitors ................1 Optional Accessories ..........................1 2 Setting Up the Monitor ........................... 3 Identifying Rear Connectors ......................... 3 Installing Optional USB Modules ......................4 Attaching an Optional Monitor Stand ....................9 Routing Cables through the Optional Monitor Stand ............
  • Page 6 Appendix B Technical Specifications ......................25 HP L6015tm Retail Touch Monitor ..................... 25 HP L6017tm Retail Touch Monitor ..................... 26 Projected Capacitive Technology ....................... 27 Recognizing Preset Display Resolutions .................... 28 L6015tm and L6017tm ....................... 28 Entering User Modes .......................... 28...

  • Page 7: Product Features

    IP54 intrusion protection for LCD display and touch screen assembly ● Compliant with the following regulated specifications (for additional certifications and regulatory notices, refer to the HP LCD Monitors Reference Guide provided on the CD included with this product): ◦...
  • Page 8 ● HP Retail Integrated Fingerprint Reader ● HP Height Adjustable Stand for Touch Monitors ● Cable lock Chapter 1 Product Features...

  • Page 9: Setting Up The Monitor

    Setting Up the Monitor To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices, then follow the instructions below. Identifying Rear Connectors Figure 2-1 Rear Connectors Table 2-1 Rear Connectors Connector Function AC Power...

  • Page 10: Installing Optional Usb Modules

    The USB modules can be installed on the top of the monitor, the bottom of the monitor, or on either side of the monitor. NOTE: If you are installing a webcam, HP recommends that you install it on top of the monitor for proper video orientation. Figure 2-3...
  • Page 11 Slide the top cover plate on the back of the monitor up approximately 12mm (1/2 inch) to access two of the rear panel screws. Remove the cable connection cover plate by pressing the two ribbed areas at the top of the cover (1) and pulling the cover straight down and off the monitor (2) to access two more of the rear panel screws.
  • Page 12 Lift the rear panel up and off the monitor. Figure 2-6 Removing the Rear Panel Remove the two screws that attach the USB cover plate to the monitor (1) then slide the cover plate off the monitor (2). Remove only the cover plate that is in the location where you want to install the USB module.
  • Page 13 Pull the plug that is inserted in the USB port out of the port. NOTE: Some models do not have plugs in the USB ports. Figure 2-8 Removing the USB Plug Slide the module screw hole cover plate back (1) and insert the USB connector on the module into the USB port (2).
  • Page 14 Install the two screws that were previously removed (1) and slide the cover plate on the module forward to cover the screws (2). Figure 2-10 Securing the USB Module Replace the rear panel and insert the eight screws that attach the panel to the monitor. Figure 2-11 Replacing the Rear Panel Chapter 2 Setting Up the Monitor...

  • Page 15: Attaching An Optional Monitor Stand

    Attaching an Optional Monitor Stand The optional monitor stand is available from HP (sold separately). The stand attaches to the 100mm VESA mounting holes on the rear panel. Place the monitor panel face down on a flat surface covered with a clean, dry cloth.
  • Page 16 Install the two large screws included with the stand into the two lower VESA mounting holes on the monitor. Figure 2-13 Installing the Lower Mounting Screws Place the stand mounting bracket on the rear of monitor so that the keyholes on the bracket align with the two large screws on the monitor then slide the mounting bracket toward the top of the monitor so that the screws heads are captured inside the keyholes.

  • Page 17: Routing Cables Through The Optional Monitor Stand

    Install the two small screws included with the stand into the upper two VESA mounting holes to secure the mounting bracket to the stand. Figure 2-15 Installing the Upper Mounting Screws Routing Cables through the Optional Monitor Stand The optional stand has a clip on the neck of the stand and a hole on the base of the stand for routing cables.
  • Page 18 Replace the clip on the neck of the stand so that it secures the cables. Figure 2-17 Replacing the Cable Routing Clip Route the cables through the hole in the center of the base. Figure 2-18 Routing Cables through the Base Chapter 2 Setting Up the Monitor...

  • Page 19: Adjusting The Optional Monitor Stand

    Adjusting the Optional Monitor Stand You can adjust the monitor stand height and tilt to a variety of positions. Choose a position that is the most ergonomically appropriate for your usage. NOTE: Tilt range is -5 degrees forward to +60 degrees backward. Figure 2-19 Adjusting the Optional Monitor Stand Mounting the Monitor...
  • Page 20 Remove the cable connection cover on the rear of the monitor by pressing the two ribbed areas at the top of the cover (1) and pulling the cover straight down and off the monitor (2). Figure 2-20 Removing the Cable Connection Cover Plate Depending on your configuration, connect either the DisplayPort, DVI, or VGA video cable between the PC and the monitor.
  • Page 21 ● Figure 2-22 Connecting the DVI Video Cable ● Figure 2-23 Connecting the VGA Video Cable Connecting the Cables...
  • Page 22 Connect the audio cable between the PC audio out port and the monitor audio in port. NOTE: The audio cable is required for the monitor speakers to function. Figure 2-24 Connecting the Audio Cable Connect the USB upstream cable between the PC and the monitor. NOTE: The USB cable is required for optional USB modules and touch screen operation.
  • Page 23 Connect the AC power cord between the monitor and an electrical wall outlet. Figure 2-26 Connecting the AC Power Cord WARNING! To reduce the risk of electric shock or damage to the equipment: Do not disable the power cord grounding plug. The grounding plug is an important safety feature.

  • Page 24: Installing The Touch Drivers For Microsoft Windows Xp

    Using the touch screen function on systems running Microsoft Windows XP requires the HP touch driver installation. The touch driver software can be downloaded from the Internet or from the HP software and documentation CD included with the monitor.

  • Page 25: Installing A Cable Lock

    The rating labels on the monitor provide the spare part number, product number, and serial number. You may need these numbers when contacting HP about the monitor model. The rating labels are located on the rear panel of the monitor display head.

  • Page 26: Operating The Monitor

    Operating the Monitor Front Panel Controls Figure 3-1 Monitor Front Panel Controls NOTE: The front panel controls are inactive unless they are illuminated. To activate the controls, tap on the area where the icons are located. All icons will become illuminated and active. The backlight for the icons will turn off upon exit from the OSD or when the OSD times out.

  • Page 27: Power Management System

    Flashing Amber = Sleep Timer mode. Off = Power is off or the LED has been suppressed in the OSD NOTE: To view an OSD menu simulator, visit the HP Customer Self Repair Services Media Library at http://www.hp.com/go/sml. Power Management System The monitor is equipped with the power management function which automatically reduces the power consumption when not in use.

  • Page 28: Touch Screen Tips

    Touch Screen Tips The HP L6015tm and L6017tm retail displays use projected capacitive technology with an all glass front surface and provides multi-touch functionality. The fast response rate enables the creation of touch applications as well as supports speed sensitive applications.

  • Page 29: Finding More Information

    The monitor user guide, reference guide, and drivers are available at http://www.hp.com/ support. If the information provided in the guide or in the HP LCD Monitors Reference Guide do not address your questions, you can contact support. For U.S. support, go to http://www.hp.com/go/contactHP. For worldwide support, go to http://welcome.hp.com/country/us/en/wwcontact_us.html.

  • Page 30: Appendix A Troubleshooting

    Either change the resolution to the native resolution (1024 x 768 for the L6015tm model, 1280 x 1024 for the L6017tm model), or access the OSD menu and select Image Control to enable Fill-to-Screen (default setting).

  • Page 31: Appendix B Technical Specifications

    NOTE: All performance specifications are provided by the component manufacturers. Performance specifications represent the highest specification of all HP's component manufacturers' typical level specifications for performance and actual performance may vary either higher or lower. HP L6015tm Retail Touch Monitor...

  • Page 32: Hp L6017Tm Retail Touch Monitor

    Table B-1 HP L6015tm Specifications (continued) Dimensions 366.0 mm 14.41 in Width 414.0 mm 16.30 in Height (with stand) 313.0 mm 12.32 in Height (without stand) 283.4 mm 11.16 in Depth (with stand) 58.0 mm 2.28 in Depth (without stand) Weight 6.8 kg...

  • Page 33: Projected Capacitive Technology

    Table B-2 HP L6017tm Specifications (continued) Operating Conditions 5°C to 40°C (41°F to 104°F) Temperature (Operating) -20°C to 60°C (-4°F to 140°F) Temperature (Storage) 20% ~ 80% (No Condensation) Humidity 0 to 5000 meters (16,400 feet) Altitude Dimensions 385.58 mm 15.18 in...

  • Page 34: Recognizing Preset Display Resolutions

    The display resolutions listed below are the most commonly used modes and are set as factory defaults. This monitor automatically recognized these preset modes and they will appear properly sized and centered on the screen. L6015tm and L6017tm Table B-4 Factory Preset Modes...
  • Page 35 By selecting the settings in the monitor's Energy Saver utility, you can also program the monitor to enter into the reduced power state at a predetermined time. When the monitor's Energy Saver utility causes the monitor to enter the reduced power state, the power light blinks amber. Energy Saver Feature...
