contact a qualified electrician and have it replaced with a properly
grounded three-pronged wall receptacle or have a grounding adapter
properly grounded and polarized. If the extension cord must be used, it
should be a 3-wire, 15 amp. or higher rated cord. Do not drape over a
countertop or table where it can be pulled on by children or tripped over
accidentally.
CAUTION: DO NOT UNDER ANY CIRCUMSTANCES CUT OR RE-
MOVE THE ROUND GROUNDING PRONG FROM THIS
PLUG.
1. Door handle
Pull to open door.
2. Auto-Touch control panel
3. Display: 99 minutes, 99 seconds
4. Oven door with see-through window
5. Safety door latch
The oven will not operate unless the door is
securely closed.
6. Door hinges
7. Door seals and sealing surface
8. Turntable motor shaft
9. Removable turntable support
Carefully place the turntable support in the center
of the oven floor.
10. Removable turntable
Place the turntable on the turntable support
cecurely. The turntable will rotate clockwise or
counterclockwise. Only remove for cleaning.
11. Ventilation openings (Rear)
12. Oven light
It will light when oven is operating or door is
opened.
13. Wave guide cover: DO NOT REMOVE.
Baked Fresh
Popcorn
Rice
Potatoes Vegetables
Reheat Ground Frozen Chicken
Sensor Meat Vegetables Breast
NOTE:
The directed features are disabled after three minutes when the oven is not in use. These features are
automatically enabled when the door is opened and closed or the STOP/ CLEAR pad is pressed.

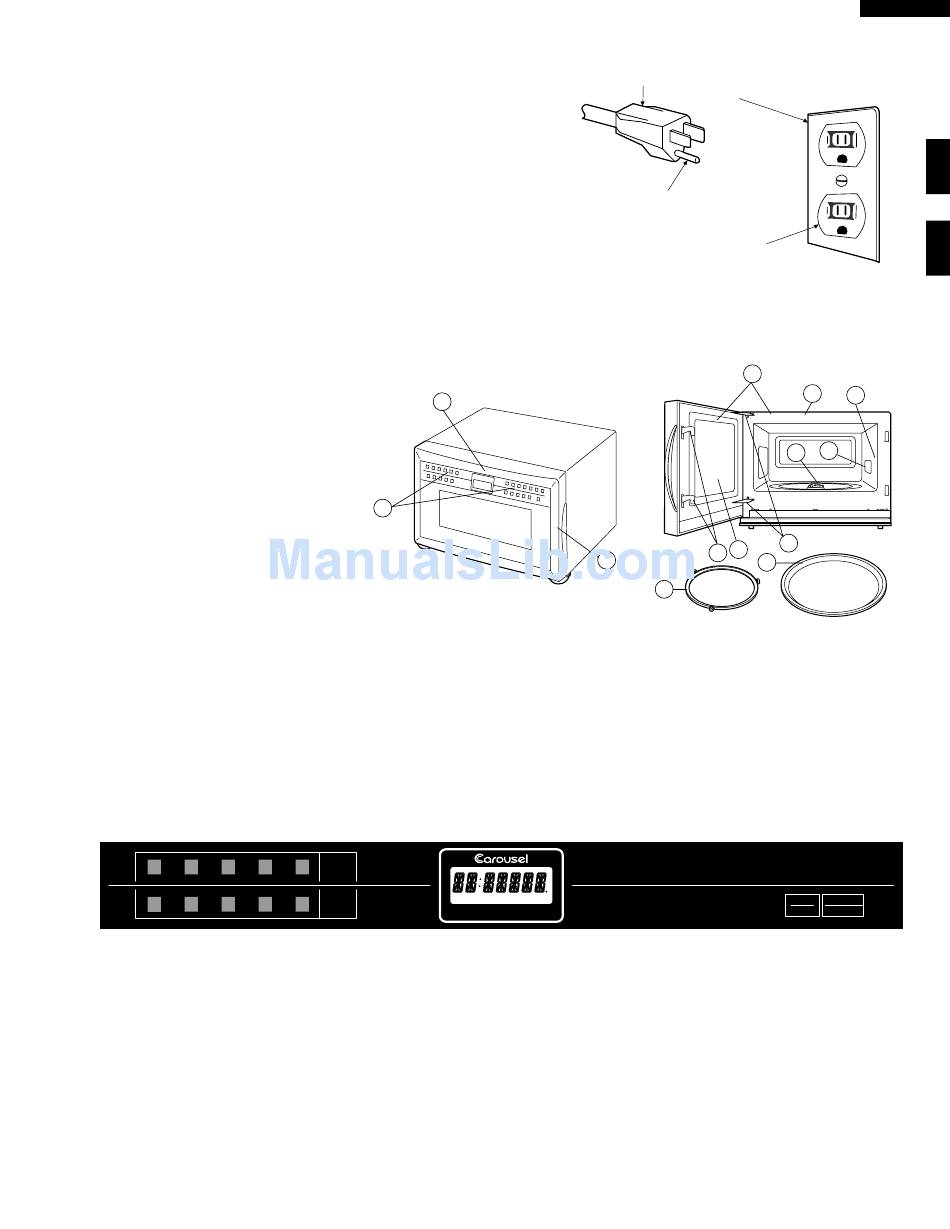

OVEN DIAGRAM

3
2
TOUCH CONTROL PANEL
Frozen Rolls &
Compu
Entree Muffins
Defrost
COOK SENSOR LBS
Fish Kitchen Timer
Beverage
Seafood Clock
3-Pronged Plug
Grounding Pin
3-Pronged Receptacle
1
9
1 2
DEF HELP
6 7
5
Grounded
Receptacle Box
7
11
12
13
8
6
4
5
10
Power
3 4 5 Custom
Level Help
STOP Minute Plus
8 9 0
Clear START
R-370EK
R-370ES
