Universal Mounting Grid
Fits hundreds of projectors
Requires no adaptor plate
Includes all mounting hardware
Superior Mounting Flexibility
Standard ceiling mount
Extended ceiling mount
Flush ceiling mount
Wall mount
Adjustable Ceiling Pipe Drop
12" – 18" extension
Integrated cable management
Accepts standard 1 ½" pipe extensions
User Friendly Adjustments
Hot swap sliding plate design
Built-in pitch/tilt controls
OmniMount Systems, Inc. • 8201 South 48
th
1-800-MOUNT-IT • www.omnimount.com

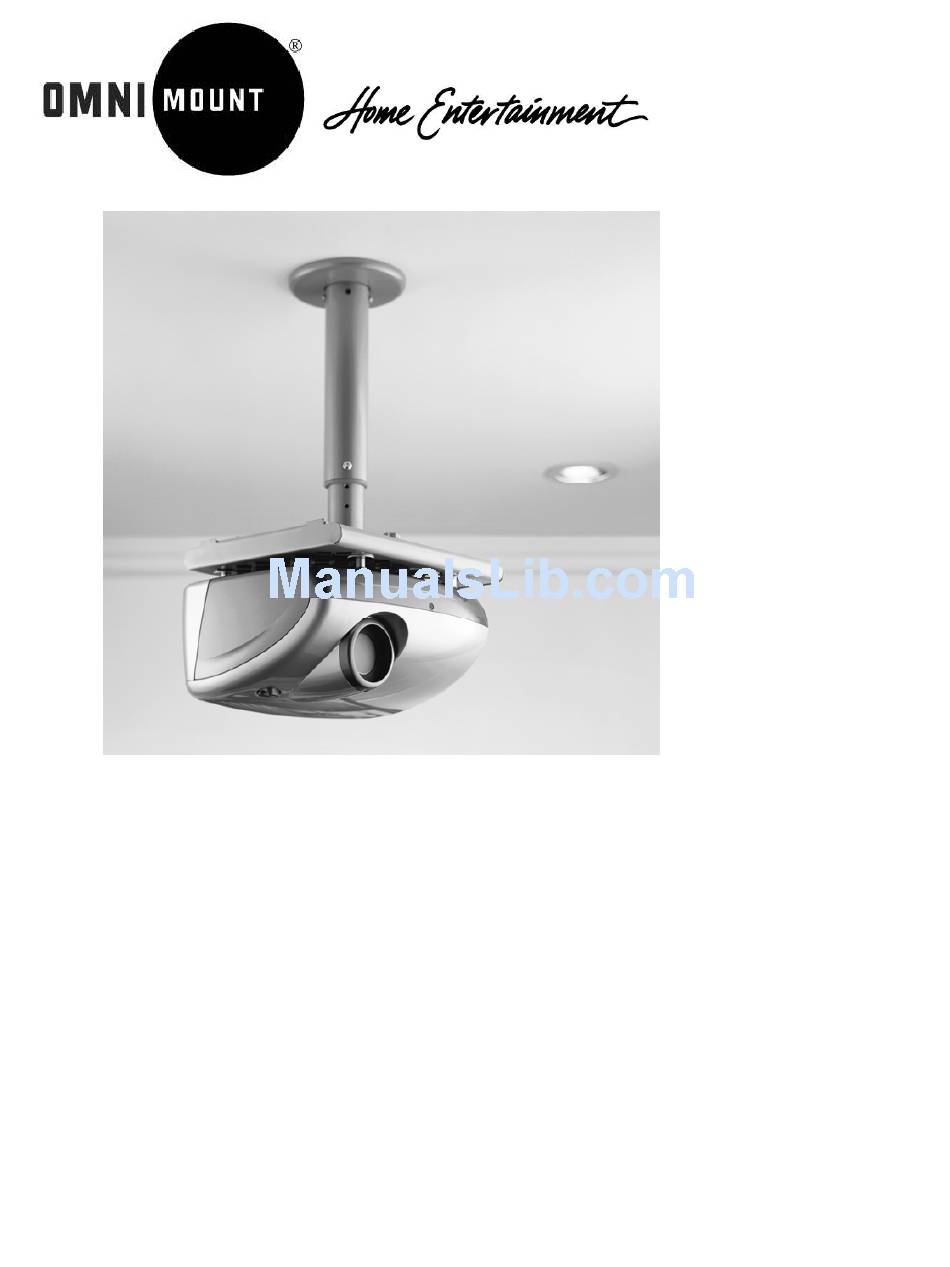

PMD Projector Mounts
Street • Phoenix, AZ 85044
P/N 1002082
REV. A 4/2/04
Advertisement
Table of Contents
Related Manuals for Omnimount PMD-1
Summary of Contents for Omnimount PMD-1
- Page 1 Integrated cable management Accepts standard 1 ½” pipe extensions User Friendly Adjustments Hot swap sliding plate design Built-in pitch/tilt controls P/N 1002082 REV. A 4/2/04 OmniMount Systems, Inc. • 8201 South 48 Street • Phoenix, AZ 85044 1-800-MOUNT-IT • www.omnimount.com...
- Page 2 Questions? 1-800-MOUNT IT Every effort has been made to provide accurate and error-free assembly and installation instructions. OmniMount Systems disclaims liability for any difficulties arising form the interpretation of information contained in these instructions. If OmniMount products are used for purposes other than their original intent, OmniMount, its distributors and retailers...
- Page 3 Secure the pipe position by installing 5/8” long hex screws (I) into adjustment screw holes. For a cleaner appearance, insert plastic plugs (K) into unused holes on extension tube. Fig. 1 OmniMount Systems, Inc. • 8201 South 48 Street • Phoenix, AZ 85044 1-800-MOUNT-IT • www.omnimount.com...
- Page 4 Note: A 1” plastic spacer (3) is included for projectors with uneven mounting surfaces. Trim the plastic spacer to the required length, and install on appropriate mounting screw. Fig. 9 Fig. 10 OmniMount Systems, Inc. • 8201 South 48 Street • Phoenix, AZ 85044 1-800-MOUNT-IT • www.omnimount.com...
- Page 5 Attach cables to the projector. Turn projector ON, and make pitch and keystone adjustments as per the projector manufacturers instructions. For additional pitch/tilt, use the three adjustment knobs on top of the PMD mount (Fig. 13). Fig. 13 OmniMount Systems, Inc. • 8201 South 48 Street • Phoenix, AZ 85044 1-800-MOUNT-IT • www.omnimount.com...
