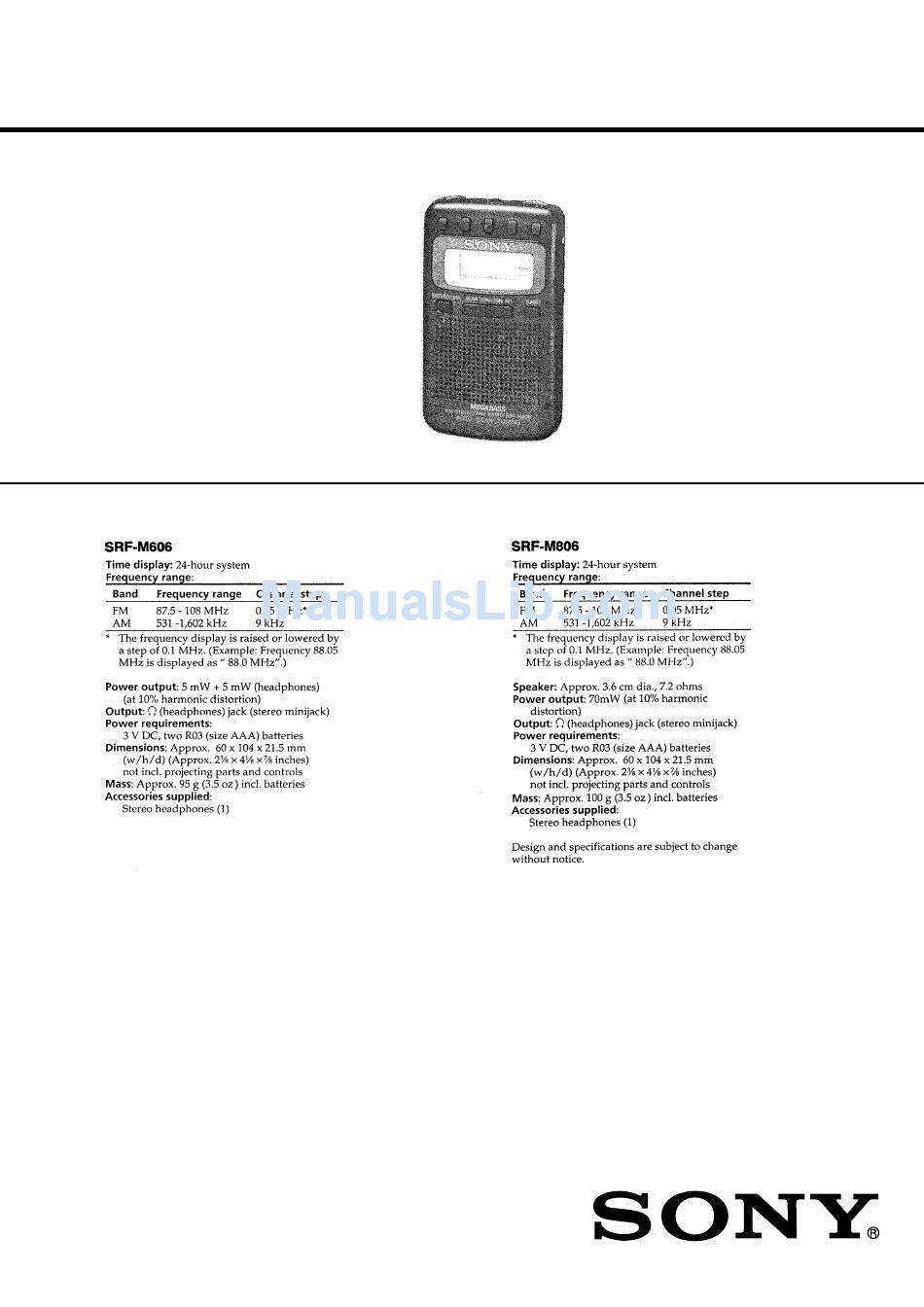

- Page 1 SRF-M606/M806 SERVICE MANUAL AEP Nodel UK Model Ver 1.1 2002.10 E Model SRF-M606/M806 Australian Model SRF-M806 Photo: SRF-M806 SPECIFICATIONS FM STEREO/ AM PLL SYNTHESIZED RADIO Sony Corporation 9-923-894-12 2002J0500-1 Personal Audio Company C 2002.10 Published by Sony Engineering Corporation...
-
Page 2: Table Of Contents
5-1. Printed Wiring Boards (Suffix-11) ......... 8 5-2. Schematic Diagram (Suffix-11) ........9 5-3. Printed Wiring Board (Suffix-12) ........10 5-4. Schematic Diagram (Suffix-12) ........11 EXPLODED VIEWS 6-1. Cabinet Section (SRF-M606) ......... 12 6-2. Cabinet Section (SRF-M806) ......... 12 ELECTRICAL PARTS LIST ....... 13... -
Page 3: Servicing Note
SRF-M606/M806 Ver 1.1 SECTION 1 SERVICING NOTE NEW/FORMER DISCRIMINATION – RADIO BOARD (Side A) – Former : 1-662-527-11 : 1-662-527-12... -
Page 4: General
SRF-M606/M806 SECTION 2 This section is extracted from instruction manual. GENERAL... - Page 5 SRF-M606/M806...
-
Page 6: Disassembly
SRF-M606/M806 SECTION 3 DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. 3-1. REAR CABINET... -
Page 7: Electrical Adjustments
SRF-M606/M806 SECTION 4 ELECTRICAL ADJUSTMENTS... -
Page 8: Diagrams
SRF-M606/M806 SECTION 5 DIAGRAMS 5-1. PRINTED WIRING BOARDS (Suffix-11) M806... -
Page 9: Schematic Diagram (Suffix-11)
SRF-M606/M806 Ver 1.1 5-2. SCHEMATIC DIAGRAM (Suffix-11) • • See page 10 for Waveform. See page 10 for IC Block Diagrams. ∗ 4.7 4V (EXCEPT M606: FR) 3.3 4V (M606: FR) LA3550M-TE-L KTC3875 KRC104S KTC3875 ∗ KTC3875 UDZSTE-1713B ∗ 6.8k... -
Page 10: Printed Wiring Board (Suffix-12)
SRF-M606/M806 Ver 1.1 • IC Block Diagrams 5-3. PRINTED WIRING BOARD (Suffix-12) – RADIO Board – (M606) (M606) (M806) (EXCEPT M806: AR) EXCEPT M806: AR R125 (M806: AR) LA3550M-TE-L (M806) (M806) • Abbreviation : Argentina model • Waveform – KEY Board –... -
Page 11: Schematic Diagram (Suffix-12)
SRF-M606/M806 Ver 1.1 5-4. SCHEMATIC DIAGRAM (Suffix-12) • See page 10 for IC Block Diagrams. ∗ 4.7 4V (EXCEPT M606: FR) (EXCEPT M806: AR) 3.3 4V (M606: FR) JC11 KTC3875 RIPPLE FILTER (M806: AR) (EXCEPT M806: AR) 220p ∗ LA3550M-TE-L... -
Page 12: Exploded Views
SRF-M606/M806 Ver 1.1 SECTION 6 EXPLODED VIEWS NOTE: 5-2. CABINET SECTION • -XX and -X mean standardized parts, so they • Items marked “*” are not stocked since they (SRF-M806) may have some difference from the original are seldom required for routine service. Some one. -
Page 13: Electrical Parts List
SRF-M606/M806 Ver 1.1 SECTION 7 ELECTRICAL PARTS LIST NOTE: When indicating parts by reference • Due to standardization, replacements in the • Items marked “*” are not stocked since they number, please include the board. parts list may be different from the parts speci- are seldom required for routine service. - Page 14 SRF-M606/M806 Ver 1.1 RADIO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R122 1-216-829-11 METAL CHIP 4.7K 1/10W R123 1-216-864-11 SHORT CHIP 1-104-912-11 TANTALUM CHIP 3.3uF R124 1-216-049-11 RES-CHIP 1/10W 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 1-164-373-11 CERAMIC CHIP 0.033uF...
- Page 15 SRF-M606/M806 Ver 1.1 RADIO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-216-296-11 SHORT CHIP 1-216-085-00 RES-CHIP 1/10W 1-216-296-11 SHORT CHIP 1-216-296-11 SHORT CHIP 1-216-805-11 METAL CHIP 1/10W 1-216-803-11 METAL CHIP 1/10W 1-216-296-11 SHORT CHIP 1-216-805-11 METAL CHIP...
- Page 16 SRF-M606/M806 Ver 1.1 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-856-645-12 MANUAL, INSTRUCTION (ENGLISH, FRENCH, GERMAN, DUTCH, ITALIAN) (M606: AEP, AUS) 3-856-645-21 MANUAL, INSTRUCTION (ENGLISH, SPANISH, SWEDISH, PORTUGUESE, CHINESE) (M606: AEP, UK, E) 3-856-645-31 MANUAL, INSTRUCTION (DANISH, FINISH)
- Page 17 SRF-M606/M806 MEMO...
- Page 18 SRF-M606/M806 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1996.08...
