M o d e l T w e l v e
C
ONNECTIONS

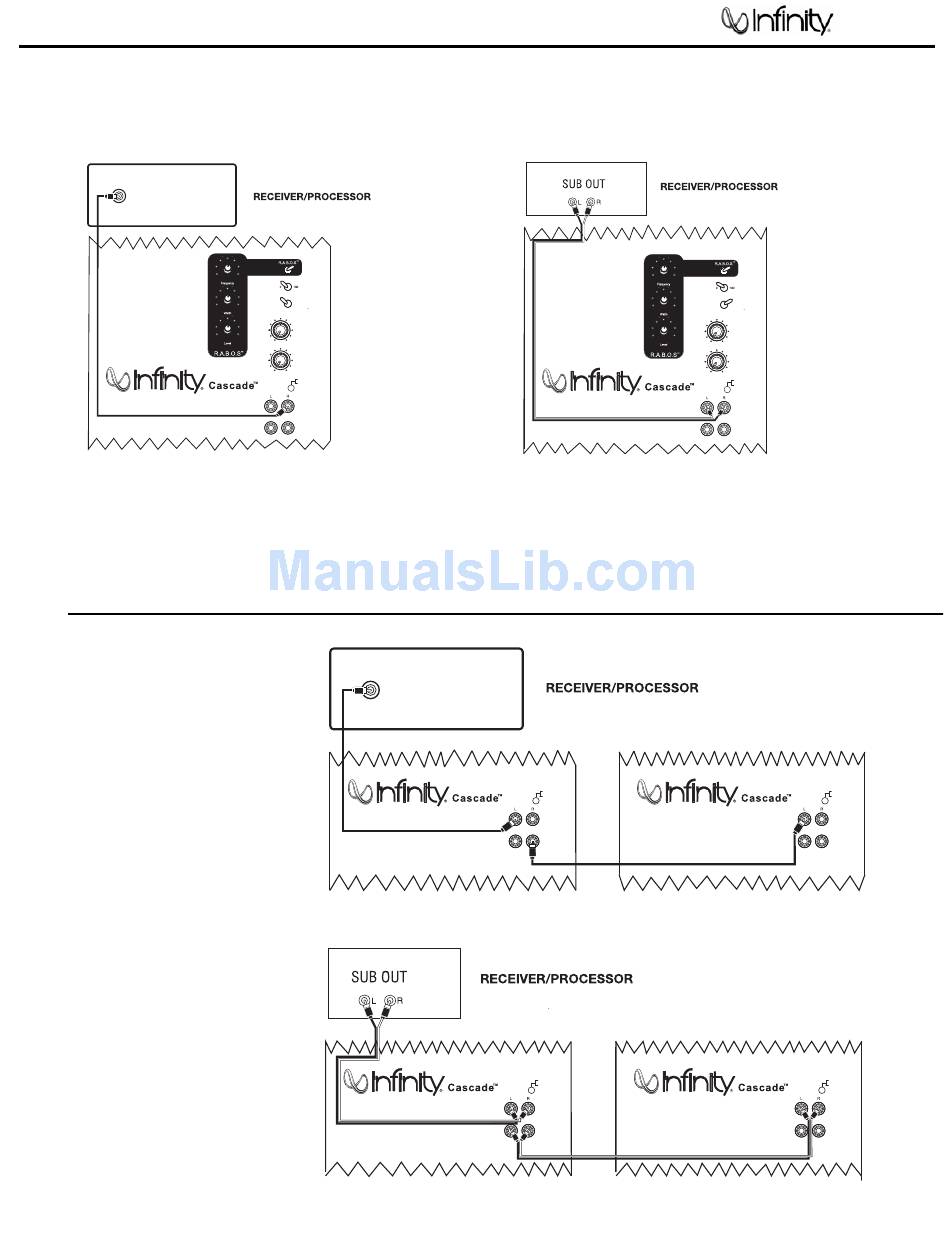

If you have a Dolby* Digital or DTS
with a low-frequency-effects (LFE) output:
SUBWOOFER OR
LFE OUTPUT
Model Twelve
• Set Normal/LFE Switch to LFE.
NOTE: In this case, you do not need to use a Y connector. Simply
connect the LFE output on your receiver/processor to either the
left or right input on the subwoofer.
The Cascade Model Twelve also
includes a set of line outputs.These
outputs allow you to "daisy-chain"
one Model Twelve to multiple Model
Twelve subwoofers. Simply connect
the first subwoofer as described
above and then run a subwoofer
cable from the line output(s) to the
line input(s) on the next sub.
NOTE:This line output is before the
R.A.B.O.S. circuit. Each subwoofer's
R.A.B.O.S. controls must be
individually adjusted during the
R.A.B.O.S. setup.
Cascade Model Twelve
® receiver/processor
On Off
Phase
LFE Normal
Level
Min Max
Crossover
[Hz]
50 150
Green:On
Red:Standby
LFE
Line In
Input
Line Out
SUBWOOFER OR
LFE OUTPUT
Model Twelve
Model Twelve
If your receiver/processor has subwoofer
outputs for the left and right channels:
Model Twelve
• Set Normal/LFE Switch to Normal.
NOTE: Some receivers have a single subwoofer output (do not
confuse this with a single LFE output as described to the left).
In that case, it is recommended that you use a Y connector (not
included) to maximize performance.
Green: On
Red: Standby
LFE
Line In
Input
Line Out
OR
Green: On
Red: Standby
LFE
Line In
Input
Line Out
6
Cascade
On Off
Phase
LFE Normal
Level
Min Max
Crossover
[Hz]
50 150
Green:On
Red:Standby
LFE
Line In
Input
Line Out
Green: On
Red: Standby
Model Twelve
LFE
Line In
Input
Line Out
Green: On
Red: Standby
Model Twelve
LFE
Line In
Input
Line Out
