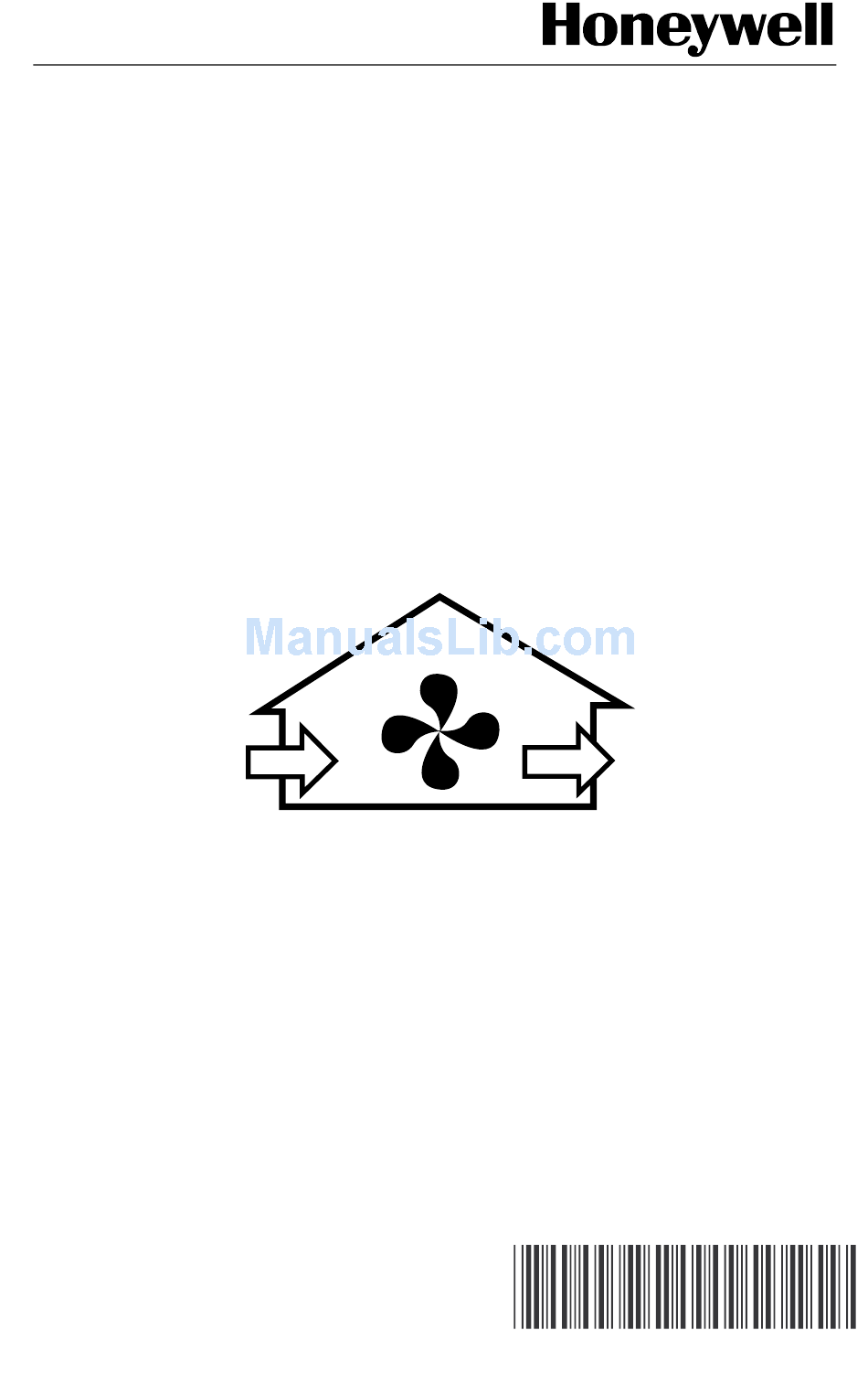

HR150 and HR200
Perfect Window™ Fresh Air
Ventilation Systems
OWNER'S MANUAL
M11706
® U.S. Registered Trademark
Copyright © 2002 Honeywell
All Rights Reserved
69-0994-4

Advertisement

Table of Contents
loading

Related Manuals for Honeywell PERFECT WINDOW HR150

Summary of Contents for Honeywell PERFECT WINDOW HR150

  • Page 1 HR150 and HR200 Perfect Window™ Fresh Air Ventilation Systems OWNER’S MANUAL M11706 ® U.S. Registered Trademark Copyright © 2002 Honeywell All Rights Reserved 69-0994-4...

  • Page 2: Table Of Contents

    HR150 AND HR200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS TABLE OF CONTENTS Introduction ............4 Feeling right at home .

  • Page 3: Introduction

    Creating a perfect indoor climate is becoming critical to feeling right at home. The Honeywell Perfect Window™ Fresh Air Ventilation System removes stale, unhealthy air and replaces it with a stream of fresh air. Its powerful centrifugal blowers bring fresh air into your home and at the same time, exhaust stale humid air in an equal amount.
  • Page 4 HR150 AND HR200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS 3. Condensate Tray and Drain Condensation normally forms on the heat exchange core during the cold weather (below 29°F or -2°C). Moisture can build up when the warm air from your home comes in contact with the cold air from outside. The tray collects the moisture and funnels it to the drain.

  • Page 5: Operating Your Fresh Air Ventilation System

    PERFECT CLIMATE COMFORT CENTER™ CONTROL The Honeywell Perfect Climate Comfort Center™ unit controls your ventilator automatically by using the programmed times or manually by pressing the Ventilate key. See the Perfect Climate Comfort Center™ users guide (form 69-0891) for complete instructions.

  • Page 6: Getting The Most From Your Fresh Air Ventilation System

    40%. TIMER For your convenience, Honeywell provides a timer control that can fit a wide variety of needs, for example, exhaust humid air from the bathroom or kitchen (see the installation guide for selection and part numbers).

  • Page 7: Maintenance Instructions For Your Fresh Air Ventilation System

    The Perfect Window™ Fresh Air Ventilation System must be maintained on a regular basis for best efficiency. Honeywell recommends that the ventilator be cleaned and checked at least twice a year, preferably at the beginning of each heating and cooling season.
  • Page 8 HR150 AND HR200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS CORE Clean the core twice each year. FILTER 1. Open the access door and carefully grip the ends of the core and pull evenly out- ward. The core can be snug, but it will slide out of the cabinet. NOTE: Do not handle the fins because damage can occur.
  • Page 9 HR150 AND HR200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS DRAIN LINE Clean the drain line once a year. 1. Inspect the drain line, drain spout and P trap for blockage, mold or kinks. 2. Flush with warm soapy water and replace if worn or bent, or if it can not be cleaned.

  • Page 10: Perfect Climate® Control

    • Honeywell Perfect Window™ Fresh Air Ventilation System. • Honeywell Perfect Climate Comfort Center™ control or Chronotherm® IV programmable thermostat. • Honeywell F35 media air cleaner or F50 electronic air cleaner. • Honeywell humidistat and humidifier. • Honeywell digital electronic timer.

  • Page 11: Troubleshooting

    HR150 AND HR200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS Troubleshooting Lack of power to the ventilator: • power failure of electrical box. • loose or unplugged power cord. • faulty breaker or fuse in home’s electrical panel. • call your installation contractor. Power to the ventilator, but no fan operation: •...

  • Page 12: Limited Warranty

    Limited Warranty Honeywell warrants this product to be free from defects in the workmanship or materials, under normal use and service, for a period of one (1) year from the date of purchase by the consumer. If, at any time during the warranty period, the product is defective or malfunctions, Honeywell shall repair or replace it (at Honeywell’s option) within a reasonable period of time.

This manual is also suitable for:

Perfect window hr200
