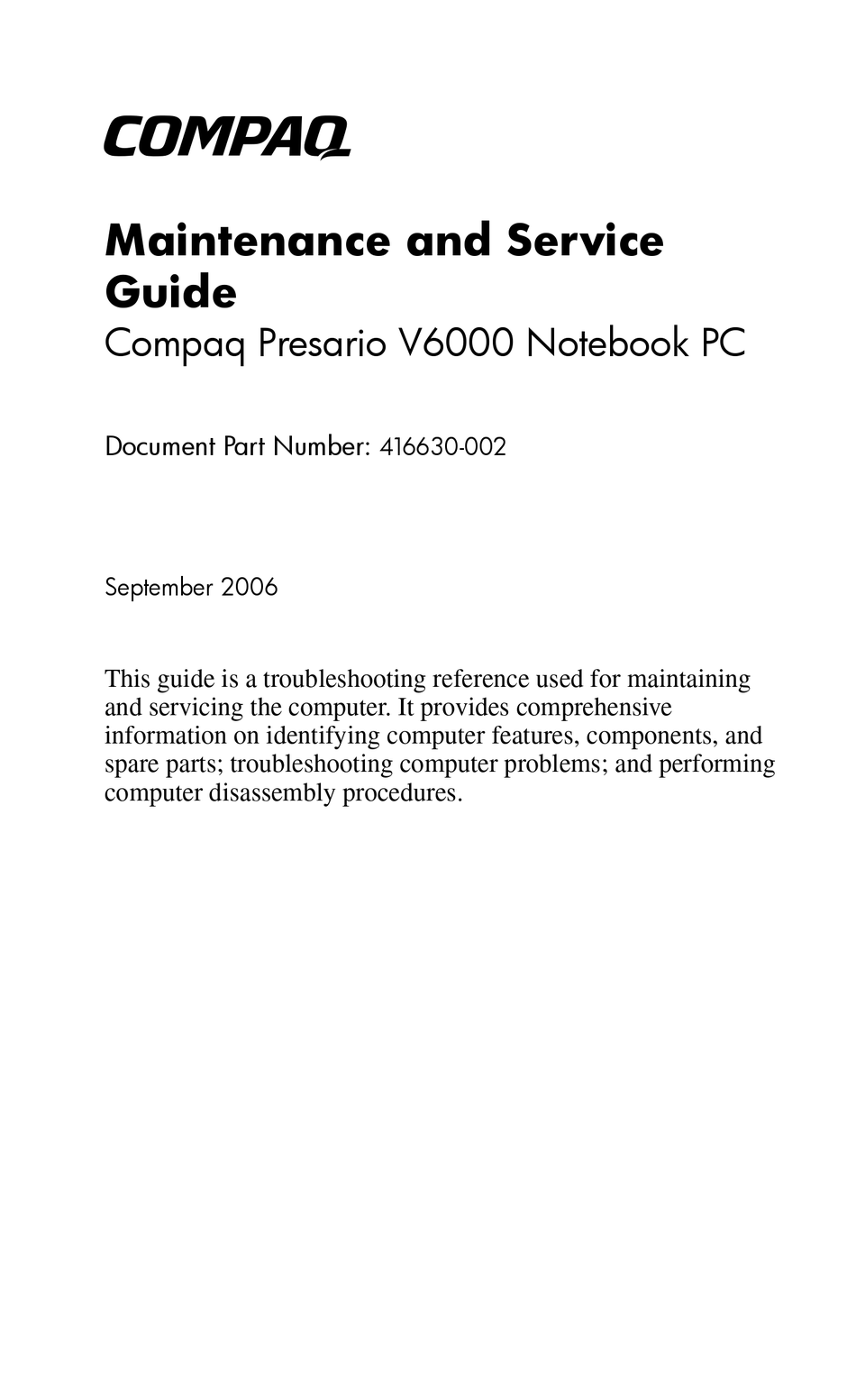

Page 1 Maintenance and Service Guide Compaq Presario V6000 Notebook PC Document Part Number: 416630-002 September 2006 This guide is a troubleshooting reference used for maintaining and servicing the computer. It provides comprehensive information on identifying computer features, components, and spare parts; troubleshooting computer problems; and performing...
Page 2 HP shall not be liable for technical or editorial errors or omissions contained herein. Maintenance and Service Guide Compaq Presario V6000 Notebook PC Second Edition: September 2006 First Edition: August 2006...
Page 3: Table Of Contents
Contents 1 Product Description 1.1 Features ........1–2 1.2 Resetting the Computer.
Page 4 Contents 3 Illustrated Parts Catalog 3.1 Serial Number Location ..... . 3–1 3.2 Computer Major Components....3–2 3.3 Display Assembly Components .
Page 5 Contents 5 Removal and Replacement Procedures 5.1 Serial Number ......5–2 5.2 Disassembly Sequence Chart .
Page 6: Specifications
Contents 6 Specifications A Screw Listing B Backup and Recovery C Display Component Recycling D Connector Pin Assignments E Power Cord Set Requirements Index Maintenance and Service Guide...
Page 7: Product Description
Product Description The Compaq Presario V6000 Notebook PC offers advanced modularity, Intel Core™ Duo and Celeron™ and AMD Turion™ 64 Mobile Technology and Mobile AMD Sempron™ processors, and extensive multimedia support. Compaq Presario V6000 Notebook PC Maintenance and Service Guide...
Page 8: Features
Product Description 1.1 Features ■ The following processors are available, varying by computer model: ■ Intel Core Duo T7200 (2.00-GHz) ■ Intel Core Duo T1350 (1.86-GHz) ■ Intel Core Duo T5600 (1.83-GHz) ■ Intel Core Duo T2250 (1.73-GHz) ■ Intel Core Duo T5500 (1.66-GHz) ■...
Page 9 Product Description ■ Integrated 10/100 BASE-T Ethernet local area network (LAN) network interface card (NIC) with RJ-45 jack ■ Integrated high-speed 56K modem with RJ-11 jack ■ Integrated wireless support for Mini Card IEEE 802.11b and 802.11b/g WLAN device ■ Support for ExpressCard ■...
Page 10: Resetting The Computer
Product Description 1.2 Resetting the Computer If the computer you are servicing has an unknown password, follow these steps to clear the password. These steps also clear CMOS: 1. Prepare the computer for disassembly (refer to Section 5.3, “Preparing the Computer For Disassembly,” for more information).
Page 11: Power Management
Product Description 1.3 Power management The computer comes with power management features that extend battery operating time and conserve power. The computer supports the following power management features: ■ Standby ■ Hibernation ■ Setting customization by the user ■ Hotkeys for setting the level of performance ■...
Page 12: External Components
Product Description 1.4 External Components The external components on the front of the computer are shown below and described in Table 1-1. Front Components Table 1-1 Front Components Item Component Function Power light On: The computer is on. Blinking: The computer is in standby. Off: The computer is off or in hibernation.
Page 13 Product Description Table 1-1 Front Components (Continued) Item Component Function Drive light Blinks when the hard drive or optical drive is being accessed. Wireless switch Turns the wireless feature on or off, but does not create a wireless connection. ✎ A wireless network must be set up to establish a wireless connection.
Page 14: Left-Side Components
Product Description The external components on the left side of the computer are shown below and described in Table 1-2. Left-Side Components Table 1-2 Left-Side Components Item Component Function S-Video-out jack Connects an optional S-Video device such as a television, VCR, camcorder, overhead projector, or video capture card.
Page 15 Product Description Table 1-2 Left-Side Components (Continued) Item Component Function RJ-45 (network) jack Connects a network cable. RJ-11 (modem) jack Connects a modem cable. HDMI port (select Connects an optional audio or video device, models only) such as a high definition television, set-top box, DVD player, or any compatible digital or audio device.
Page 16 Product Description The external components on the right side of the computer are shown below and described in Table 1-3. Right-Side Components 1–10 Maintenance and Service Guide...
Page 17: Right-Side Components
Product Description Table 1-3 Right-Side Components Item Component Function ExpressCard slot Supports optional ExpressCard/54 cards. Optical drive Reads an optical disc. USB port (select Connects an optional USB device. models only) Power connector Connects an AC adapter. Security cable slot Attaches an optional security cable to the computer.
Page 18 Product Description The computer keyboard components are shown below and described in Table 1-4. Keyboard Components 1–12 Maintenance and Service Guide...
Page 19: Keyboard Components
Product Description Table 1-4 Keyboard Components Item Component Function Function keys Execute frequently used system functions when pressed in combination with the fn key. caps lock key Enables caps lock and turns on the caps lock light. fn key Executes frequently used system functions when pressed in combination with a function key or the esc key.
Page 20 Product Description The computer top components are shown below and described in Table 1-5. Top Components, Part 1 1–14 Maintenance and Service Guide...
Page 21 Product Description Table 1-5 Top Components, Part 1 Item Component Function Internal microphones Record sound. (2, select models only) ✎ If there is a microphone icon next to each microphone opening, your computer has internal microphones. Power button When the computer is ■...
Page 22 Product Description The computer top components are shown below and described in Table 1-6. Top Components, Part 2 1–16 Maintenance and Service Guide...
Page 23 Product Description Table 1-6 Top Components, Part 2 Item Component Function Media button If QuickPlay is not installed and the computer is ■ On, opens the music program or Media menu, which allows you to select a multimedia program. ■ Off, does not function. ■...
Page 24 Product Description The computer TouchPad components are shown below and described in Table 1-7. TouchPad Components 1–18 Maintenance and Service Guide...
Page 25: Touchpad Components
Product Description Table 1-7 Touchpad Components Item Component Function TouchPad light Blue: TouchPad is enabled. Amber: TouchPad is disabled. TouchPad Moves the pointer and selects or activates items on the screen. TouchPad horizontal Allows you to scroll left or right. scroll zone Left and right Function like the left and right buttons on an...
Page 26: Bottom Components
Product Description The external components on the bottom of the computer are shown below and described in Table 1-8. Bottom Components Table 1-8 Bottom Components Item Component Function Battery bay Holds the battery. Battery release latch Releases the battery from the battery bay.
Page 27 Product Description Table 1-8 Bottom Components (Continued) Item Component Function Memory module Contains the memory module slots, the compartment Mini Card WLAN slot, and the RTC battery. Vents (5) Enable airflow to cool internal components. Ä To prevent overheating, do not obstruct vents.
Page 28: Design Overview
Product Description 1.5 Design overview This section presents a design overview of key parts and features of the computer. Refer to Chapter 3, “Illustrated Parts Catalog,” to identify replacement parts, and Chapter 5, “Removal and Replacement Procedures,” for disassembly steps. The system board provides the following device connections: ■...
Page 29: Troubleshooting
Troubleshooting WARNING: Only authorized technicians trained by HP should repair Å this equipment. All troubleshooting and repair procedures are detailed to allow only subassembly-/module-level repair. Because of the complexity of the individual boards and subassemblies, do not attempt to make repairs at the component level or modifications to any printed wiring board.
Page 30: Using The Setup Utility
Troubleshooting 2.2 Using the Setup Utility Changing the Language of the Setup Utility The following procedure explains how to change the language of the Setup Utility. If the computer is not in the Setup Utility, begin at step 1. If the computer is in the Setup Utility, begin at step 2. 1.
Page 31: Navigating And Selecting In The Setup Utility
Troubleshooting Navigating and Selecting in the Setup Utility Because the Setup Utility is not Windows-based, it does not support the TouchPad. Navigation and selection are by keystroke. ■ To choose a menu or a menu item, use the arrow keys. ■...
Page 32: Using Advanced Setup Utility Features
Troubleshooting Restoring Default Settings in the Setup Utility The following procedure explains how to restore the Setup Utility default settings. If the computer is not in the Setup Utility, begin at step 1. If the computer is in the Setup Utility, begin at step 2. 1.
Page 33: Closing The Setup Utility
Troubleshooting The “<F12> to boot from LAN” message that is displayed in the lower-left corner of the screen each time the computer is started or restarted in Windows or restored from hibernation is the prompt for a Network Service Boot. The “Press <ESC>...
Page 34: Setup Utility Menus
Troubleshooting 2.3 Setup Utility Menus The menu tables in this section provide an overview of Setup Utility options. ✎ Some of the Setup Utility menu listed in this chapter may not be supported by your computer. Selecting from the Main Menu Table 2-1 Main Menu Select...
Page 35: System Configuration Menu
Troubleshooting Selecting from the System Configuration Menu Table 2-3 System Configuration Menu Select To Do This Language Support Change the Setup Utility language. Embedded WLAN Device Enable/disable an embedded wireless LAN Radio device. Embedded Bluetooth Enable/disable an embedded Bluetooth device Device (select models only) (select models only).
Page 36: Selecting From The Diagnostics Menu
Troubleshooting Selecting from the Diagnostics Menu Table 2-4 Diagnostics Menu Select To Do This Hard Disk Self Test Run a comprehensive self-test on the hard drive. ✎ On models with two hard drives, this menu option is called the Primary Hard Disk Self Test.
Page 37: Troubleshooting Flowcharts
Troubleshooting 2.4 Troubleshooting Flowcharts Table 2-5 Troubleshooting Flowcharts Overview Flowchart Description “Flowchart 2.1—Initial Troubleshooting” “Flowchart 2.2—No Power, Part 1” “Flowchart 2.3—No Power, Part 2” “Flowchart 2.4—No Power, Part 3” “Flowchart 2.5—No Power, Part 4” “Flowchart 2.6—No Video, Part 1” “Flowchart 2.7—No Video, Part 2” “Flowchart 2.8—Nonfunctioning Docking Device (if applicable)”...
Page 38 Troubleshooting Table 2-5 Troubleshooting Flowcharts Overview (Continued) Flowchart Description 2.14 “Flowchart 2.14—No OS Loading, Optical Drive” 2.15 “Flowchart 2.15—No Audio, Part 1” 2.16 “Flowchart 2.16—No Audio, Part 2” 2.17 “Flowchart 2.17—Nonfunctioning Device” 2.18 “Flowchart 2.18—Nonfunctioning Keyboard” 2.19 “Flowchart 2.19—Nonfunctioning Pointing Device” 2.20 “Flowchart 2.20—No Network/Modem Connection”...
Page 39: Flowchart 2.1—Initial Troubleshooting
Troubleshooting Flowchart 2.1—Initial Troubleshooting Begin troubleshooting. Go to Is there “Flowchart power? 2.2—No Power, Part 1.” Check Beeps, LED board, LEDs, or error speaker messages? connections. Go to All drives “Flowchart working? 2.17—Nonfunc- tioning Device.” Go to Is there video? “Flowchart Go to (no boot)
Page 40: Flowchart 2.2—No Power, Part
Troubleshooting Flowchart 2.2—No Power, Part 1 No power (power LED is off). Remove from docking device (if applicable). Go to Power up Power up Reset “Flowchart on battery on battery power.* 2.3—No Power, power? power? Part 2.” Go to Power up Power up Reset “Flowchart...
Page 41: Flowchart 2.3—No Power, Part
Troubleshooting Flowchart 2.3—No Power, Part 2 Continued from “Flowchart 2.2—No Power, Part 1.” Visually check for debris in battery socket and clean if necessary. Power on? Done Check battery by recharging it, moving it to another computer, or replacing it. Replace Power on? power supply...
Page 42: Flowchart 2.4—No Power, Part
Troubleshooting Flowchart 2.4—No Power, Part 3 Continued from “Flowchart 2.3—No Power, Part 2.” Plug directly into AC outlet. Power LED Done Reseat AC adapter in computer and at power source. Power on? Done External Internal or Replace external Try different Power outlet external AC AC adapter.
Page 43: Flowchart 2.5—No Power, Part
Troubleshooting Flowchart 2.5—No Power, Part 4 Continued from “Flowchart 2.4—No Power, Part 3.” Open computer. Reseat loose Loose or components and damaged boards and parts? replace damaged items. Close computer and retest. Replace the following items (if applicable). Check Power on? computer operation after each replacement: 1.
Page 44: Flowchart 2.6—No Video, Part
Troubleshooting Flowchart 2.6—No Video, Part 1 No video. Docking Device Go to *NOTE: To change from internal to Stand-alone “Flowchart external display, use the hotkey or docking 2.7—No Video, combination. device? Part 2.” Stand-alone Internal or Adjust Video OK? Done external brightness.
Page 45: Flowchart 2.7—No Video, Part
Troubleshooting Flowchart 2.7—No Video, Part 2 Continued from “Flowchart 2.6—No Video, Part 1.” Remove computer from docking device, if connected. Adjust Check brightness display of external brightness. monitor. Go to “A” in “Flowchart Video OK? Video OK? Done 2.6—No Video, Part 1.”...
Page 46 Troubleshooting Flowchart 2.8—Nonfunctioning Docking Device (if applicable) Nonfunctioning docking device. Reseat power cord in docking device and power outlet. Check voltage Reinstall setting on docking computer into device. docking device. Reset monitor cable connector at Docking docking device. Done device operating? Docking device...
Page 47 Troubleshooting Flowchart 2.9—No Operating System (OS) Loading No OS loading.* Reseat power cord in docking device and power outlet. No OS loading from hard drive, go to “Flowchart 2.10—No OS Loading, Hard Drive, Part 1.” No OS loading from diskette drive, go to “Flowchart 2.13—No OS Loading, Diskette Drive.”...
Page 48 Troubleshooting Flowchart 2.10—No OS Loading, Hard Drive, Part 1 OS not loading from hard drive. Go to “Flowchart Nonsystem 2.11—No OS disk message? Loading, Hard Drive, Part 2.” Reseat external hard drive. OS loading? Done Boot from Go to Boot “Flowchart from 2.13—No OS...
Page 49 Troubleshooting Flowchart 2.1 1—No OS Loading, Hard Drive, Part 2 Continued from “Flowchart 2.10—No OS Reseat Loading, hard drive. Hard Drive, Part 1.” 1. Replace Disc or hard drive. diskette in 2. Replace system drive? Hard drive board. Done accessible? Remove disc or diskette and Run FDISK.
Page 50 Troubleshooting Flowchart 2.12—No OS Loading, Hard Drive, Part 3 Continued from “Flowchart 2.11—No OS Loading, Hard Drive, Part 2.” System Install OS files on hard and reboot. drive? Virus loading from Clean virus. Done hard drive? hard drive? Run SCANDISK and Replace Diagnostics on check for...
Page 51: Flowchart 2.13—No Os Loading, Diskette Drive
Troubleshooting Flowchart 2.13—No OS Loading, Diskette Drive OS not loading Reseat Done from diskette drive. loading? diskette drive. Bootable Install bootable Nonsystem diskette diskette and disk message? in drive? reboot computer. Check diskette for system files. Go to Boot Try different “Flowchart from another diskette.
Page 52: Flowchart 2.14—No Os Loading, Optical Drive
Troubleshooting Flowchart 2.14—No OS Loading, Optical Drive No OS Install bootable Bootable Disc loading from disc and disc in in drive? CD-ROM or reboot drive? DVD-ROM drive. computer. Install Try another bootable disc. bootable disc. Boots from Done CD or DVD? Boots from Reseat Done...
Page 53: Flowchart 2.15—No Audio, Part
Troubleshooting Flowchart 2.15—No Audio, Part 1 Turn up audio internally or No audio. Audio? Done externally. Go to Computer in Internal “Flowchart docking device Undock audio? 2.16—No Audio, (if applicable)? Part 2.” Go to “Flowchart Replace the docking device. 2.16—No Audio, Part 2.”...
Page 54: Flowchart 2.16—No Audio, Part
Troubleshooting Flowchart 2.16—No Audio, Part 2 Continued from “Flowchart 2.15—No Audio, Part 1.” Audio Reload driver in OS audio drivers. configured? Correct Load drivers and drivers for set configuration application? in OS. Connect to external speaker. Replace audio board and speaker Audio? Audio?
Page 55: Flowchart 2.17—Nonfunctioning Device
Troubleshooting Flowchart 2.17—Nonfunctioning Device Nonfunctioning device. Reseat device. Unplug the nonfunctioning device from the computer and inspect cables and plugs for bent or broken pins or other damage. Fix or Clear Any physical replace CMOS. device detected? broken item. Go to “Flowchart Reattach device.
Page 56: Flowchart 2.18—Nonfunctioning Keyboard
Troubleshooting Flowchart 2.18—Nonfunctioning Keyboard Keyboard not operating properly. Connect computer to good external keyboard. External Replace device system works? board. Reseat internal keyboard connector (if applicable). Keyboard Replace internal operating keyboard or properly? cable. Keyboard operating Done Done properly? Replace system board.
Page 57: Flowchart 2.19—Nonfunctioning Pointing Device
Troubleshooting Flowchart 2.19—Nonfunctioning Pointing Device Pointing device not operating properly. Connect computer to good external pointing device. Replace External system device board. works? Reseat internal pointing device connector (if applicable). Replace internal Pointing device pointing device operating or cable. properly? Pointing device Done Done...
Page 58 Troubleshooting Flowchart 2.20—No Network/Modem Connection No network or modem connection. Network Replace jack or modem jack or have jack active? activated. Connect Digital to nondigital line? line. Network Reload NIC/modem or modem Done drivers and configured connection reconfigure. in OS? working? Disconnect all Replace...
Page 59: Illustrated Parts Catalog
Illustrated Parts Catalog This chapter provides an illustrated parts breakdown and a reference for spare part numbers and option part numbers. 3.1 Serial Number Location When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer.
Page 60: Computer Major Components
Illustrated Parts Catalog 3.2 Computer Major Components Computer Major Components 3–2 Maintenance and Service Guide...
Page 61 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components Spare Part Item Description Number Display assemblies (include wireless antenna transceivers and cables) For use with full-featured computer models (includes microphones) 15.4-inch, WXGA, TFT with BrightView 432304-001 15.4-inch, WXGA, TFT Antiglare 432305-001 For use with defeatured computer models (does not include microphones)
Page 62 Illustrated Parts Catalog Computer Major Components 3–4 Maintenance and Service Guide...
Page 63 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components (Continued) Spare Part Item Description Number Keyboards (Continued) For use only with computer models using Intel processors in the following countries: Latin America 431415-161 Taiwan 431415-AB1 Saudi Arabia 431415-171 Thailand 431415-281 For use only with computer models using AMD processors in the following countries:...
Page 64 Illustrated Parts Catalog Computer Major Components 3–6 Maintenance and Service Guide...
Page 65 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components (Continued) Spare Part Item Description Number Processors (include thermal pad) Intel Core Duo T7200 (2.00-GHz) 434730-001 Intel Core Duo T1350 (1.86-GHz) 430896-001 Intel Core Duo T5600 (1.83-GHz) 434731-001 Intel Core Duo T2250 (1.73-GHz) 430897-001 Intel Core Duo T5500 (1.66-GHz) 436157-001...
Page 66 Illustrated Parts Catalog Computer Major Components 3–8 Maintenance and Service Guide...
Page 67 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components (Continued) Spare Part Item Description Number USB/power connector boards (include USB/power connector board cable) For use with 90W AC adapters 431446-001 For use with 65W AC adapters 431445-001 Audio boards For use with full-featured computer models (includes 431443-001 infrared lens)
Page 68 Illustrated Parts Catalog Computer Major Components 3–10 Maintenance and Service Guide...
Page 69 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components (Continued) Spare Part Item Description Number Hard drives (all 5400-rpm, include bracket and connector) For use with all computer models: 120-GB 431407-001 100-GB 431406-001 80-GB 431405-001 60-GB 431404-001 40-GB hard drive for use only with computer models 434743-001 using Intel processors 40-GB hard drive for use only with computer models...
Page 70 Illustrated Parts Catalog Computer Major Components 3–12 Maintenance and Service Guide...
Page 71 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components (Continued) Spare Part Item Description Number Mini Card modules (Continued) 802.11a/b/g WLAN Mini Card module for use only 407674-002 with computer models using Intel processors in the countries listed below. These countries are categorized as most of the world 2 (MOW2).
Page 72 Illustrated Parts Catalog Computer Major Components 3–14 Maintenance and Service Guide...
Page 73 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components (Continued) Spare Part Item Description Number Mini Card modules (Continued) 802.11a/b/g WLAN Mini Card module for use only 407674-291 with computer models using Intel processors in Japan 802.11a/b/g WLAN Mini Card module for use only 407160-001 with computer models using AMD processors in the MOW countries listed below:...
Page 74 Illustrated Parts Catalog Computer Major Components 3–16 Maintenance and Service Guide...
Page 75 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components (Continued) Spare Part Item Description Number Mini Card modules (Continued) 802.11a/b/g WLAN Mini Card module for use only 407160-002 with computer models using AMD processors in the ROW countries listed below: China Honduras Qatar...
Page 76 Illustrated Parts Catalog Computer Major Components 3–18 Maintenance and Service Guide...
Page 77 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components (Continued) Spare Part Item Description Number Mini Card modules (Continued) 802.11b/g WLAN Mini Card module for use with all 407159-001 computer models in the MOW countries listed below: Antigua & Croatia Ireland Russia...
Page 78 Illustrated Parts Catalog Computer Major Components 3–20 Maintenance and Service Guide...
Page 79 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components (Continued) Spare Part Item Description Number Mini Card modules (Continued) 802.11b/g WLAN Mini Card module for use with all 407159-002 computer models in the ROW countries listed below: China Honduras Qatar Uruguay Ecuador...
Page 80: Display Assembly Components
Illustrated Parts Catalog 3.3 Display Assembly Components Display Assembly Components Table 3-2 Display Assembly Components Spare Part Number Information Spare Part Item Description Number Display bezels For use with full-featured computer models (includes 433283-001 microphone openings) For use with defeatured computer models (does not 433284-001 include microphone openings) Display inverter...
Page 81 Illustrated Parts Catalog Table 3-2 Display Assembly Components Spare Part Number Information (Continued) Spare Part Item Description Number Display Hinge Kit (includes left and right 433288-001 display hinges) Display panels 15.4-inch, WXGA, SVA display panel with BrightView 431386-001 15.4-inch, WXGA, SVA display panel AntiGlare 431387-001 Wireless antenna transceivers and cables 431398-001...
Page 82: Mass Storage Devices
Illustrated Parts Catalog 3.4 Mass Storage Devices Mass Storage Devices 3–24 Maintenance and Service Guide...
Page 83 Illustrated Parts Catalog Table 3-3 Mass Storage Devices Spare Part Number Information Spare Part Item Description Number Hard drives (all 5400-rpm, include bracket and connector) For use with all computer models 120-GB 431407-001 100-GB 431406-001 80-GB 431405-001 60-GB 431404-001 40-GB hard drive for use only with computer models 434743-001 using Intel processors 40-GB hard drive for use only with computer models...
Page 84: Plastics Kit
Illustrated Parts Catalog 3.5 Plastics Kit Plastics Kit Components 3–26 Maintenance and Service Guide...
Page 85 Illustrated Parts Catalog Table 3-4 Plastics Kit Spare Part Number Information Spare Part Item Description Number Plastics Kit 431429-001 Includes: ExpressCard slot bezel Hard drive cover (includes 2 captive screws, secured by C-clips) Memory module compartment cover (includes 3 captive screws, secured by C-clips) Maintenance and Service Guide 3–27...
Page 86: Miscellaneous
Illustrated Parts Catalog 3.6 Miscellaneous Table 3-5 Spare Parts: Miscellaneous Spare Part Description Number AC adapters HP 90W PFC AC Adapter 432309-001 HP 90W non-PFC AC Adapter 432310-001 HP 65W AC Adapter 402018-001 Analog TV tuner 407941-001 Composite S-Video and audio input cable 407939-001 Headset 371693-001...
Page 87 Illustrated Parts Catalog Table 3-5 Spare Parts: Miscellaneous (Continued) Spare Part Description Number Power cords For use with all computer models in the following countries: Australia and New Zealand 394279-011 Belgium, Europe, Finland, France, Germany, Greece, 394279-021 the Netherlands, Norway, Portugal, Spain, and Sweden Canada, French Canada, Latin America, Thailand, and 394279-001 the United States...
Page 88 Illustrated Parts Catalog Table 3-5 Spare Parts: Miscellaneous (Continued) Spare Part Description Number Screw Kits (include the screws listed below; refer to Appendix A, “Screw Listing,” for more information on screw specifications and usage) For use only with computer models using Intel processors 434983-001 For use only with computer models using AMD processors 431433-001...
Page 89: Sequential Part Number Listing
Illustrated Parts Catalog 3.7 Sequential Part Number Listing Table 3-6 Spare Parts: Sequential Part Number Listing Spare Part Number Description 309674-001 USB travel mouse 364727-001 USB digital drive 371693-001 Headset 394279-001 Power cord for use in Canada, French Canada, Latin America, Thailand, and the United States 394279-011 Power cord for use in Australia...
Page 90 Illustrated Parts Catalog Table 3-6 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 405527-001 HP Backpack 407159-001 802.11b/g WLAN Mini Card module for use with all computer models in the MOW countries listed below: Antigua & Croatia Italy Barbuda Cyprus...
Page 91 Illustrated Parts Catalog Table 3-6 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 407159-291 802.11b/g WLAN Mini Card module for use only with computer models using Intel processors in Japan 407160-001 802.11a/b/g WLAN Mini Card module for use only with computer models using AMD processors in the MOW countries listed below: Antigua &...
Page 92 Illustrated Parts Catalog Table 3-6 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 407160-002 802.11a/b/g WLAN Mini Card module for use only with computer models using AMD processors in the ROW countries listed below: China Honduras Qatar Ecuador Pakistan South Korea...
Page 93 Illustrated Parts Catalog Table 3-6 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 407674-002 802.11a/b/g WLAN Mini Card module for use only with computer models using Intel processors in the MOW2 countries listed below: Aruba Georgia Liechtenstein Austria Germany Lithuania...
Page 94 Illustrated Parts Catalog Table 3-6 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 407674-291 802.11a/b/g WLAN Mini Card module for use only with computer models using Intel processors in Japan 407939-001 Composite S-Video and audio input cable 407940-001 RF input adapter cable 407941-001...
Page 95 Illustrated Parts Catalog Table 3-6 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 431374-001 Mobile AMD Sempron 3200+ 1.60-GHz processor (includes thermal pad) 431375-001 Mobile AMD Sempron 3400+ 1.80-GHz processor (includes thermal pad) 431386-001 15.4-inch, WXGA, SVA display panel with BrightView for use only with computers using AMD processors 431387-001 15.4-inch, WXGA, SVA AntiGlare display panel for use only...
Page 96 Illustrated Parts Catalog Table 3-6 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 431411-001 DVD/CD-RW Combo Drive 431412-001 DVD±RW/R and CD-RW Double-Layer Combo Drive 431413-001 DVD±RW/R and CD-RW Double-Layer Combo Drive with LightScribe 431415-001 Keyboard for use in the United States 431415-031 Keyboard for use in the United Kingdom 431415-051...
Page 97 Illustrated Parts Catalog Table 3-6 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 431415-DH1 Keyboard for use only on computer models using AMD processors in Denmark, Finland, Norway, and Sweden 431417-001 Top cover for use with full-featured computer models (includes speakers, TouchPad, and TouchPad cable) 431419-001 Top cover for use with defeatured computer models (includes...
Page 98 Illustrated Parts Catalog Table 3-6 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 431446-001 USB/power connector board for use with 90W AC adapters (includes USB/power connector board cable) 431450-001 Fan/heat sink assembly for use only with computer models using AMD processors (includes thermal pads) 432302-001 15.4-inch, WXGA, TFT display assembly with BrightView for...
Page 99 Illustrated Parts Catalog Table 3-6 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 433287-001 Display Cable Kit 433288-001 Display Hinge Kit (includes left and right display hinges) 434414-001 Mobile AMD Sempron 3500+ 1.80-GHz processor (includes thermal pad) 434415-001 40-GB hard drive for use only with computer models using AMD processors (5400-rpm, includes bracket and connector)
Page 100 Illustrated Parts Catalog Table 3-6 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 435743-001 HP Remote Control Ii Plus 436156-001 Hard Drive Bracket Kit 436157-001 Intel Core Duo T5500 (1.66-GHz) processor 436159-001 Intel Celeron 430 (1.73-GHz) processor 436238-001 Wired optical mouse 436257-001...
Page 101: Removal And Replacement Preliminaries
Removal and Replacement Preliminaries This chapter provides essential information for proper and safe removal and replacement service. 4.1 Tools Required You will need the following tools to complete the removal and replacement procedures: ■ Magnetic screwdriver ■ Phillips P0 and P1 screwdrivers ■...
Page 102: Service Considerations
Removal and Replacement Preliminaries 4.2 Service Considerations The following sections include some of the considerations that you should keep in mind during disassembly and assembly procedures. ✎ As you remove each subassembly from the computer, place the subassembly (and all accompanying screws) away from the work area to prevent damage.
Page 103: Preventing Damage To Removable Drives
Removal and Replacement Preliminaries 4.3 Preventing Damage to Removable Drives Removable drives are fragile components that must be handled with care. To prevent damage to the computer, damage to a removable drive, or loss of information, observe the following precautions: ■...
Page 104: Preventing Electrostatic Damage
Removal and Replacement Preliminaries 4.4 Preventing Electrostatic Damage Many electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, the discharge contains enough power to alter device parameters or melt silicon junctions.
Page 105: Packaging And Transporting Precautions
Removal and Replacement Preliminaries 4.5 Packaging and Transporting Precautions Use the following grounding precautions when packaging and transporting equipment: ■ To avoid hand contact, transport products in static-safe containers, such as tubes, bags, or boxes. ■ Protect all electrostatic-sensitive parts and assemblies with conductive or approved containers or packaging.
Page 106: Workstation Precautions
Removal and Replacement Preliminaries 4.6 Workstation Precautions Use the following grounding precautions at workstations: ■ Cover the workstation with approved static-shielding material Table 4-2, “Static-Shielding Materials” (refer to ■ Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and equipment. ■...
Page 107: Grounding Equipment And Methods
Removal and Replacement Preliminaries 4.7 Grounding Equipment and Methods Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation. ■ When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords.
Page 108: Typical Electrostatic Voltage Levels
Removal and Replacement Preliminaries Table 4-1 shows how humidity affects the electrostatic voltage levels generated by different activities. Table 4-1 Typical Electrostatic Voltage Levels Relative Humidity Event Walking across carpet 35,000 V 15,000 V 7,500 V Walking across vinyl floor 12,000 V 5,000 V 3,000 V...
Page 109: Removal And Replacement Procedures
Removal and Replacement Procedures This chapter provides removal and replacement procedures. There are as many as 84 screws, in 9 different sizes, that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw size and location during removal and replacement.
Page 110: Serial Number
Removal and Replacement Procedures 5.1 Serial Number Report the computer serial number to HP when requesting information or ordering spare parts. The serial number is located on the bottom of the computer. Serial Number Location 5–2 Maintenance and Service Guide...
Page 111: Disassembly Sequence Chart
Removal and Replacement Procedures 5.2 Disassembly Sequence Chart Use the chart below to determine the section number to be referenced when removing computer components. Disassembly Sequence Chart Section Description # of Screws Removed Preparing the Computer For Disassembly Battery Hard Drive 2 loosened to remove the hard drive cover 6 removed to disassemble the...
Page 112: Preparing The Computer For Disassembly
Removal and Replacement Procedures Disassembly Sequence Chart (Continued) Section Description # of Screws Removed 5.12 Power Button Board 5.13 Display Assembly Display bezel Display inverter Display panel Display hinges Wireless antenna transceivers Microphones 5.14 Top Cover 5.15 Audio Board 5.16 Bluetooth Module 5.17 ExpressCard Assembly...
Page 113 Removal and Replacement Procedures Battery Spare Part Number Information 12-cell, 8.8-AHr 432307-001 6-cell, 4.0-AHr 432306-001 4. Remove the battery by following these steps: a. Turn the computer upside down with the front panel toward you. b. Slide and hold the battery release latch 1 to the left. (The front edge of the battery disengages from the computer.) c.
Page 114: Hard Drive
Removal and Replacement Procedures 5.4 Hard Drive Hard Drive Spare Part Number Information For use with all computer models 120-GB 431407-001 100-GB 431406-001 80-GB 431405-001 60-GB 431404-001 40-GB hard drive for use only with computer models 434743-001 using Intel processors 40-GB hard drive for use only with computer models 434415-001 using AMD processors...
Page 115 Removal and Replacement Procedures 1. Prepare the computer for disassembly (refer to Section 5.3). 2. Loosen the two Phillips PM2.0×5.0 screws 1 that secure the hard drive cover to the computer. 3. Lift the right side of the cover 2 and swing it to the left. 4.
Page 116 Removal and Replacement Procedures 5. Use the mylar tab 1 to lift the hard drive 2 until it disconnects from the computer. 6. Remove the hard drive from the hard drive bay. Removing the Hard Drive 5–8 Maintenance and Service Guide...
Page 117 Removal and Replacement Procedures 7. Remove the six Phillips PM3.0×3.0 screws 1 that secure the hard drive bracket to the hard drive. 8. Lift the bracket 2 straight up to remove if from the hard drive. Removing the Hard Drive Bracket Reverse the above procedure to install and reassemble the hard drive.
Page 118: Computer Feet
Removal and Replacement Procedures 5.5 Computer Feet The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Feet Kit, spare part number 431431-001. The feet attach to the base enclosure in the locations illustrated below. Computer Feet Locations 5–10 Maintenance and Service Guide...
Page 119: Memory Module
Removal and Replacement Procedures 5.6 Memory Module Memory Module Spare Part Number Information For use only with computer models using Intel processors 1024-MB 434742-001 512-MB 434741-001 256-MB 434740-001 For use only with computer models using AMD processors 1024-MB 431403-001 512-MB 431402-001 256-MB 431401-001...
Page 120 Removal and Replacement Procedures 2. Loosen the three Phillips PM2.0×5.0 screws 1 that secure the memory module compartment cover to the computer. 3. Lift the left side of the memory module compartment cover 2, and then swing it to the right. 4.
Page 121 Removal and Replacement Procedures 5. Spread the retaining tabs 1 on each side of the memory module socket to release the memory module. (The edge of the module opposite the socket rises away from the computer.) 6. Slide the module 2 away from the socket at an angle. ✎...
Page 122: Rtc Battery
Removal and Replacement Procedures 5.7 RTC Battery RTC Battery Spare Part Number Information RTC battery (includes 2-sided tape) 431436-001 1. Prepare the computer for disassembly (refer to Section 5.3). 2. Remove the memory module compartment cover (Section 5.6). 3. Disconnect the RTC battery cable 1 from the system board. 4.
Page 123: Mini Card Module
Removal and Replacement Procedures 5.8 Mini Card Module Mini Card Module Spare Part Number Information For use only with computer models using Intel processors 802.11a/b/g WLAN Mini Card module for use only with 407674-001 computer models using Intel processors in the MOW1 countries listed below: Antigua &...
Page 124 Removal and Replacement Procedures Mini Card Module Spare Part Number Information (Continued) 802.11a/b/g WLAN Mini Card module for use only with 407674-003 computer models using Intel processors in the ROW countries listed below: China Honduras Qatar Uruguay Ecuador Pakistan South Korea Venezuela Haiti Peru...
Page 125 Removal and Replacement Procedures Mini Card Module Spare Part Number Information (Continued) 802.11a/b/g WLAN Mini Card module for use only with 407160-002 computer models using AMD processors in the ROW countries listed below: China Honduras Qatar Uruguay Ecuador Pakistan South Korea Venezuela Haiti Peru...
Page 126 Removal and Replacement Procedures Mini Card Module Spare Part Number Information (Continued) 802.11b/g WLAN Mini Card module for use with all 407159-002 computer models in the ROW countries listed below: China Honduras Qatar Uruguay Ecuador Pakistan South Korea Venezuela Haiti Peru 802.11b/g WLAN Mini Card module for use only with 407159-291...
Page 127 Removal and Replacement Procedures 3. Make note of which wireless antenna cable is attached to which antenna clip on the Mini Card module before disconnecting the cables. Then disconnect the cables 1 from the module. 4. Remove the two Phillips PM2.0×3.0 screws 2 that secure the Mini Card module to the computer.
Page 128: Optical Drive
Removal and Replacement Procedures 5.9 Optical Drive Optical Drive Spare Part Number Information DVD±RW/R and CD-RW Double-Layer Combo Drive with 431413-001 LightScribe DVD±RW/R and CD-RW Double-Layer Combo Drive 431412-001 DVD/CD-RW Combo Drive 431411-001 1. Prepare the computer for disassembly (Section 5.3).
Page 129 Removal and Replacement Procedures 6. Position the optical drive with the optical drive bracket toward you. 7. Remove the two Phillips PM2.0×3.0 screws 1 that secure the optical drive bracket to the optical drive. 8. Remove the optical drive 2. Removing the Optical Drive Bracket Reverse the above procedure to reassemble and install the optical drive.
Page 130: Switch Cover
Removal and Replacement Procedures 5.10 Switch Cover Switch Cover Spare Part Number Information For use with full-featured computer models 431424-001 For use with defeatured computer models 431425-001 1. Prepare the computer for disassembly (Section 5.3). 2. Close the computer. 3. Turn the computer upside down with the front panel toward you.
Page 131 Removal and Replacement Procedures 5. Turn the computer display-side up with the front toward you. 6. Open the computer as far as possible. 7. Lift the rear edge of the switch cover and swing it forward until it rests on the keyboard. Releasing the Switch Cover Maintenance and Service Guide 5–23...
Page 132 Removal and Replacement Procedures 8. Release the zero insertion force (ZIF) connector 1 to which the LED board cable is connected and disconnect the cable 2 from the LED board. 9. If it is necessary to replace the num lock board, disconnect the num lock board cable 3 from the LED board.
Page 133: Keyboard
Removal and Replacement Procedures 5.1 1 Keyboard Keyboard Spare Part Number Information For use with all computer models in the following countries: France 431415-051 Spain 431415-071 French Canada 431415-121 The United Kingdom 431415-031 Italy 431415-061 The United States 431415-001 The Netherlands 431415-331 For use only with computer models using Intel processors in the following countries:...
Page 134 Removal and Replacement Procedures 3. Remove the three Phillips PM2.5×7.0 screws that secure the keyboard to the computer. Removing the Keyboard Screws 5–26 Maintenance and Service Guide...
Page 135 Removal and Replacement Procedures 4. Turn the computer display-side up with the front panel toward you. 5. Open the computer as far as possible. 6. Lift the rear edge of the keyboard 1 until it rests at an angle. 7. Slide the keyboard 2 back to disengage the tabs on the front edge of the keyboard from the top cover.
Page 136 Removal and Replacement Procedures 9. Release the ZIF connector 1 to which the keyboard cable is connected and disconnect the keyboard cable 2 from the system board. Disconnecting the Keyboard Cable 10. Remove the keyboard. Reverse the above procedure to install the keyboard. 5–28 Maintenance and Service Guide...
Page 137: Power Button Board
Removal and Replacement Procedures 5.12 Power Button Board Power Button Board Spare Part Number Information Power button board (includes power button board cable) 431438-001 1. Prepare the computer for disassembly (Section 5.3). 2. Remove the switch cover (Section 5.10). 3. Remove the keyboard (Section 5.11).
Page 138 Removal and Replacement Procedures 6. Disconnect the microphone cable 1 and the speaker assembly cable 2 from the power button board. 7. Release the ZIF connector 3 to which the power button board cable is connected and disconnect the cable. 8.
Page 139: Display Assembly
Removal and Replacement Procedures 5.13 Display Assembly Display Assembly Spare Part Number Information For use with full-featured computer models (includes microphones) 15.4-inch, WXGA, TFT with BrightView 432304-001 15.4-inch, WXGA, TFT Antiglare 432305-001 For use with defeatured computer models (does not include microphones) 15.4-inch, WXGA, TFT with BrightView 432302-001 15.4-inch, WXGA, TFT Antiglare...
Page 140 Removal and Replacement Procedures 5. Disconnect the display cable 1 from the system board. 6. Disconnect the microphone cable 2 from the power button board. 7. Remove the wireless antenna cables 3 from the clips in the top cover. Disconnecting the Display Cables 5–32 Maintenance and Service Guide...
Page 141 Removal and Replacement Procedures CAUTION: Support the display assembly when removing the following Ä screws. Failure to support the display assembly can result in damage to the display assembly and other computer components. 8. Remove the four Phillips PM2.5×7.0 screws 1 that secure the display assembly to the computer.
Page 142: Display Bezel
Removal and Replacement Procedures 10. Remove the eight rubber screw covers from the display bezel. ✎ There are three different sizes of rubber screw covers on the display bezel: 1 Four covers on the top edge of the bezel 2 Two covers on the lower bezel corners 3 Two covers on the lower-inside edge The display rubber screw covers are included in the Display Screw Kit, spare part number 431400-001.
Page 143 Removal and Replacement Procedures 11. Remove the eight Phillips PM2.5×7.0 screws that secure the display bezel to the display assembly. Removing the Display Bezel Screws Maintenance and Service Guide 5–35...
Page 144: Display Assembly Subcomponents
Removal and Replacement Procedures Display Assembly Subcomponents Spare Part Number Information Display bezels For use with full-featured computer models (includes 433283-001 microphone openings) For use with defeatured computer models 433284-001 12. Flex the inside edges of the left and right sides 1 and the top and bottom sides 2 of the display bezel until the bezel disengages from the display enclosure.
Page 145: Display Inverter
Removal and Replacement Procedures Display Assembly Subcomponents Spare Part Number Information Display inverter 431391-001 14. Remove the inverter 1 from the display enclosure. 15. Disconnect the display cable 2 and the backlight cable 3 from the display inverter. Removing the Display Inverter Maintenance and Service Guide 5–37...
Page 146: Display Panel
Removal and Replacement Procedures Display Assembly Subcomponents Spare Part Number Information Display panels 15.4-inch, WXGA, SVA display panel with BrightView 431386-001 15.4-inch, WXGA, SVA display panel AntiGlare 431387-001 16. Remove the four Phillips PM2.5×5.0 screws 1 that secure the display panel to the display enclosure. 17.
Page 147: Display Hinges
Removal and Replacement Procedures Display Assembly Subcomponents Spare Part Number Information Display Hinge Kit 433288-001 18. Remove the two Phillips PM2.0×3.0 screws 1 that secure each hinge to the display enclosure. 19. Remove the display hinges 2. Removing the Display Hinges Maintenance and Service Guide 5–39...
Page 148: Wireless Antenna Transceivers
Removal and Replacement Procedures Display Assembly Subcomponents Spare Part Number Information Wireless antenna transceivers and cables 431398-001 20. If it is necessary to replace the wireless transceivers and cables, remove the Phillips PM2.0×4.0 screw 1 that secures each transceiver to the display enclosure. 21.
Page 149: Microphones
Removal and Replacement Procedures Display Assembly Subcomponents Spare Part Number Information Microphone Kit (includes microphone receivers and cables) 431393-001 24. If it is necessary to replace the microphones and cables, release the retention tabs 1 built into the display enclosure that secure the microphones and cables to the display enclosure.
Page 150: Top Cover
Removal and Replacement Procedures 5.14 Top Cover Top Cover Spare Part Number Information Top covers (include speakers, TouchPad, and TouchPad cable) For use with full-featured computer models 431417-001 For use with defeatured computer models 431419-001 1. Prepare the computer for disassembly (Section 5.3) and remove the following components:...
Page 151 Removal and Replacement Procedures 2. Turn the computer upside down with the front toward you. 3. Remove the nine Phillips PM2.5×7.0 screws that secure the top cover to the computer. Removing the Top Cover Screws, Part 1 Maintenance and Service Guide 5–43...
Page 152 Removal and Replacement Procedures 4. Remove the three Phillips PM2.5×4.0 screws 1 and the six Phillips PM2.5×5.0 screws 2 that secure the top cover to the computer. Removing the Top Cover Screws, Part 2 5–44 Maintenance and Service Guide...
Page 153 Removal and Replacement Procedures 5. Turn the computer right-side up with the front toward you. 6. Release and disconnect the following ZIF cables from the system board: 1 Power button board cable 2 LED board cable 3 TouchPad cable Disconnecting the Top Cover Cables Maintenance and Service Guide 5–45...
Page 154 Removal and Replacement Procedures 7. Remove the two Phillips PM2.0×6.0 screws 1 and the two Phillips PM2.5×5.0 screws 2 that secure the top cover to the computer. Removing the Top Cover Screws, Part 3 5–46 Maintenance and Service Guide...
Page 155 Removal and Replacement Procedures 8. Lift the front edge of the top cover 1 until it disengages from the computer. 9. Remove the top cover 2. Removing the Top Cover Reverse the above procedure to install the top cover. Maintenance and Service Guide 5–47...
Page 156: Audio Board
Removal and Replacement Procedures 5.15 Audio Board Audio Board Spare Part Number Information For use with full-featured computer models (includes 431443-001 infrared lens) For use with defeatured computer models (does not include 431444-001 infrared lens) 1. Prepare the computer for disassembly (Section 5.3) and remove the following components:...
Page 157 Removal and Replacement Procedures 2. Remove the two Phillips PM2.5×5.0 screws 1 that secure the audio board to the computer. 3. Slide the audio board 2 back to disengage the audio connectors from the base enclosure. 4. Remove the audio board 3. 5.
Page 158: Bluetooth Module
Removal and Replacement Procedures 5.16 Bluetooth Module Bluetooth Module Spare Part Number Information Bluetooth module (includes Bluetooth module cable) 412766-001 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: ❏ Hard drive (Section 5.4) ❏ Memory module compartment cover (Section 5.6) ❏...
Page 159 Removal and Replacement Procedures 2. Disconnect the Bluetooth module cable 1 from the system board. 3. Remove the two Phillips PM2.0×3.0 screws 2 that secure the Bluetooth module to the system board. 4. Remove the Bluetooth module 3. Removing the Bluetooth Module Reverse the above procedure to install the Bluetooth module.
Page 160: Expresscard Assembly
Removal and Replacement Procedures 5.17 ExpressCard Assembly ExpressCard Assembly Spare Part Number Information ExpressCard assembly 431440-001 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: ❏ Hard drive (Section 5.4) ❏ Memory module compartment cover (Section 5.6) ❏...
Page 161 Removal and Replacement Procedures 2. Push in on the ExpressCard bezel 1 to release the bezel from the ExpressCard slot. 3. Remove the ExpressCard bezel 2 from the ExpressCard slot. ✎ The ExpressCard bezel is included in the Plastics Kit, spare part number 431429-001.
Page 162 Removal and Replacement Procedures 4. Remove the four Phillips PM2.5×4.0 screws 1 that secure the ExpressCard assembly to the system board. 5. Slide the ExpressCard assembly 2 to the right to disconnect it from the system board. 6. Remove the ExpressCard assembly 3. Removing the ExpressCard Assembly Reverse the above procedure to install the ExpressCard assembly.
Page 163: Usb/Power Connector Board
Removal and Replacement Procedures 5.18 USB/Power Connector Board USB/Power Connector Board Spare Part Number Information USB/power connector boards (include USB/power connector board cable) For use with 90W AC adapters 431446-001 For use with 65W AC adapters 431445-001 1. Prepare the computer for disassembly (Section 5.3) and remove the following components:...
Page 164 Removal and Replacement Procedures 2. Remove the two Phillips PM2.5×5.0 screws 1 that secure the USB/power connector board to the computer. 3. Release the USB/power connector board 2 as far as the USB/power connector board cable will allow. 4. Disconnect the USB board cable 3 and the power connector board cable 4 from the USB/power connector board.
Page 165: System Board
Removal and Replacement Procedures 5.19 System Board System Board Spare Part Number Information For use only with full-featured computer models using 434725-001 Intel processors For use only with defeatured computer models using 434726-001 Intel processors For use only with full-featured computer models using 431364-001 AMD processors For use only with defeatured computer models using...
Page 166 Removal and Replacement Procedures 2. Remove the USB/power connector board cable 1 from the clips in the base enclosure. 3. Remove the two Phillips PM2.5×4.0 screws 2 that secure the system board to the base enclosure. Removing the System Board Screws 5–58 Maintenance and Service Guide...
Page 167 Removal and Replacement Procedures 4. Use the optical drive connector 1 to lift the right side of the system board 2 until it rests at an angle. 5. Slide the system board 3 to the right until the connectors on the left side of the system board disengage from the base enclosure.
Page 168 Removal and Replacement Procedures 7. If it is necessary to replace the USB/power connector board cable or the audio board cable, turn the system board upside down with the front toward you. 8. Disconnect the USB/power connector board cable 1 and the audio board cable 2 from the system board.
Page 169: Fan/Heat Sink Assembly
Removal and Replacement Procedures 5.20 Fan/Heat Sink Assembly Fan/Heat Sink Assembly Spare Part Number Information Fan/heat sink assembly 431450-001 ✎ When replacing the fan/heat sink assembly, be sure the power button board is removed from the defective fan/heat sink assembly and installed on the replacement fan/heat sink assembly.
Page 170 Removal and Replacement Procedures 3. Disconnect the fan cable 1 from the system board. 4. Remove the four Phillips PM2.5×5.0 screws 2 that secure the fan/heat sink assembly to the system board. 5. Remove the fan/heat sink assembly 3. Removing the Fan/Heat Sink Assembly 5–62 Maintenance and Service Guide...
Page 171 Removal and Replacement Procedures ✎ The thermal pads and thermal paste should be thoroughly cleaned from the surfaces of the fan/heat sink assembly 1, 2, and 3, the system board components 4 and 6, and the processor 5 each time the fan/heat sink assembly is removed. Thermal pads and thermal paste should be installed on all surfaces before the fan/heat sink assembly is reinstalled.
Page 172: Processor
Removal and Replacement Procedures 5.21 Processor Processor Spare Part Number Information Intel Core Duo T7200 (2.00-GHz) 434730-001 Intel Core Duo T1350 (1.86-GHz) 430896-001 Intel Core Duo T5600 (1.83-GHz) 434731-001 Intel Core Duo T2250 (1.73-GHz) 430897-001 Intel Core Duo T5500 (1.66-GHz) 436157-001 Intel Core Duo T5200 (1.66-GHz) 436900-001...
Page 173 Removal and Replacement Procedures 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: ❏ Hard drive (Section 5.4) ❏ Memory module compartment cover (Section 5.6) ❏ Optical drive (Section 5.9) ❏ Switch cover (Section 5.10) ❏ Keyboard (Section 5.11)
Page 174 Removal and Replacement Procedures 2. Turn the processor locking screw 1 one-half turn counterclockwise until you hear a click. 3. Lift the processor 2 straight up and remove it. ✎ The gold triangle 3 on the processor should be aligned with the triangle icon 4 embossed on the processor socket when you install the processor.
Page 175 Specifications This chapter provides physical and performance specifications. Table 6-1 Computer Dimensions Length 35.7 cm 14.05 in Width 25.7 cm 10.12 in Height (varies front to rear) 4.1 cm 1.57 in Weight (varies by configuration) 2.7 kg 5.8 lb Stand-alone power requirements Operating voltage 18.5 V dc —19.0 V dc Operating current...
Page 176 Specifications Table 6-1 Computer (Continued) Shock Operating 125 g, 2 ms, half-sine Nonoperating 200 g, 2 ms, half-sine Random Vibration Operating 0.75 g zero-to-peak, 10 Hz to 500 Hz, 0.25 oct/min sweep rate Nonoperating 1.50 g zero-to-peak, 10 Hz to 500 Hz, 0.5 oct/min sweep rate *Applicable product safety standards specify thermal limits for plastic surfaces.
Page 177 Specifications Table 6-2 15.4-inch, WXGA, SVA Display Dimensions Height 20.7 cm 8.15 in Width 33.1 cm 13.03 in Diagonal 39.1 cm 15.39 in Number of colors Up to 16.8 million Contrast ratio 200:1 Brightness 160 nits typical Pixel resolution Pitch 0.259 ×...
Page 178: Hard Drives
Specifications Table 6-3 Hard Drives 120-GB* 100-GB* Dimensions Height 9.5 mm 9.5 mm Width 70 mm 70 mm Weight 102 g 102 g Interface type ATA-5 ATA-5 Transfer rate Synchronous (maximum) 100 MB/sec 100 MB/sec Security ATA security ATA security Seek times (typical read, including setting) Single track 3 ms...
Page 179 Specifications Table 6-3 Hard Drives (Continued) 80-GB* 60-GB* 40-GB* Dimensions Height 9.5 mm 9.5 mm 9.5 mm Width 70 mm 70 mm 70 mm Weight 99 g 99 g 99 g Interface type ATA-5 ATA-5 ATA-5 Transfer rate Synchronous 100 MB/sec 100 MB/sec 100 MB/sec (maximum)
Page 180 Specifications Table 6-4 Primary 6-cell, Li-Ion Battery Dimensions Height 2.00 cm 0.79 in Width 9.40 cm 3.70 in Depth 13.40 cm 5.28 in Weight 0.34 kg 0.75 lb Energy Voltage 11.1 V Amp-hour capacity 4.4 Ah Watt-hour capacity 48 Wh Temperature Operating 5°C to 45°C...
Page 181 Specifications Table 6-5 DVD/CD-RW Combo Drive Applicable disc Read: Write: DVD-R, DVD-RW, CD-R and CD-RW DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), CD-ROM (Mode 1 and 2) CD Digital Audio CD-XA ready (Mode 2, Form 1 and 2) CD-I ready (Mode 2, Form 1 and 2) CD-R, CD-RW Photo CD (single and...
Page 182 Specifications Table 6-5 DVD/CD-RW Combo Drive (Continued) Disc thickness 1.2 mm (0.047 in) Track pitch 0.74 µm Access time CD media DVD media Random < 110 ms < 130 ms Full stroke < 210 ms < 225 ms Audio output level Line-out, 0.7 V rms Cache buffer 2 MB...
Page 183 Specifications Table 6-6 DVD±RW/R and CD-RW Double-Layer Combo Drive Applicable disc Read: Write: DVD-R, DVD-RW, CD-R and CD-RW DVD-ROM (DVD-5, DVD-R and DVD-RW DVD-9, DVD-10, DVD-18), CD-ROM (Mode 1 and 2) CD Digital Audio CD-XA ready (Mode 2, Form 1 and 2) CD-I ready (Mode 2, Form 1 and 2) CD-R, CD-RW...
Page 184 Specifications Table 6-6 DVD±RW/R and CD-RW Double-Layer Combo Drive (Continued) Disc thickness 1.2 mm (0.047 in) Track pitch 0.74 µm Access time CD media DVD media Random < 175 ms < 230 ms Full stroke < 285 ms < 335 ms Audio output level Audio-out, 0.7 Vrms Cache buffer...
Page 185: System Dma
Specifications Table 6-7 System DMA Hardware DMA System Function DMA0 Not applicable DMA1 Not applicable DMA2 Not applicable DMA3 Not applicable DMA4 Direct memory access controller DMA5 Available for ExpressCard DMA6 Not assigned DMA7 Not assigned Maintenance and Service Guide 6–1 1...
Page 186: System Interrupts
Specifications Table 6-8 System Interrupts Hardware IRQ System Function IRQ0 System timer IRQ1 Quick Launch buttons IRQ2 Cascaded IRQ3 USB2 Enhanced Host Controller—24CD IRQ4 COM1 IRQ5* Conexant AC—Link Audio SMBus Controller—24C3 Data Fax Modem with SmartCP IRQ6 Diskette drive IRQ7* Parallel port IRQ8 System CMOS/real-time clock...
Page 187 Specifications Table 6-8 System Interrupts (Continued) Hardware IRQ System Function IRQ12 Synaptics PS/2 port pointing device IRQ13 Numeric data processor IRQ14 Primary IDE channel IRQ15 Secondary IDE channel IRQ17 Conexant AC -Link Audio IRQ17 Soft V90 Data Fax Modem with SmartCP IRQ17 ATi Mobility Radeon Xpress 200 Series IRQ19...
Page 188 Specifications Table 6-9 System I/O Addresses I/O Address (hex) System Function (shipping configuration) 0x00000000-0x00000CF7 PCI bus 0x00000000-0x00000CF7 Direct memory access controller 0x00000020-0x00000021 Programmable interrupt controller 0x0000002E-0x0000002F System board resources 0x00000040-0x00000043 System timer 0x00000060-0x00000060 Quick Launch Buttons 0x00000061-0x00000061 System speaker 0x00000062-0x00000062 Microsoft ACPI-Compliant Embedded Controller 0x00000064-0x00000064...
Page 189 Specifications Table 6-9 System I/O Addresses (Continued) I/O Address (hex) System Function (shipping configuration) 0x000001F0-0x000001F7 Primary IDE Channel 0x00000220-0x0000022F System board resources 0x00000274-0x00000277 ISAPNP Read Data Port 0x00000279-0x00000279 ISAPNP Read Data Port 0x00000280-0x00000293 System board resources 0x00000376-0x00000376 Secondary IDE Channel 0x000003B0-0x000003BB PCI standard PCI-to-PCI bridge 0x000003B0-0x000003BB...
Page 190 Specifications Table 6-9 System I/O Addresses (Continued) I/O Address (hex) System Function (shipping configuration) 0x00000C6F-0x00000C6F System board resources 0x00000CD4-0x00000CD5 System board resources 0x00000CD6-0x00000CD7 System board resources 0x00000CD8-0x00000CDF System board resources 0x00000D00-0x0000FFFF PCI bus 0x00000F40-0x00000F47 System board resources 0x00001080-0x00001080 System board resources 0x00008000-0x0000805F System board resources 0x00008100-0x000081FF...
Page 191: System Memory Map
Specifications Table 6-10 System Memory Map Memory Map Address (hex) System Function (shipping configuration) 0xD4100000-0xD41FFFFF PCI standard PCI-to-PCI bridge 0xD4100000-0xD41FFFFF ATI MOBILITY RADEON Xpress 200 Series 0xD8000000-0xDBFFFFFF PCI standard PCI-to-PCI bridge 0xD8000000-0xDBFFFFFF ATI MOBILITY RADEON Xpress 200 Series 0xFAC00000-0xFEBFFFFF PCI standard PCI-to-PCI bridge 0xF6C00000-0xFABFFFFF PCI standard PCI-to-PCI bridge 0xD4000000-0xD4000FFF...
Page 192 Specifications Table 6-10 System Memory Map (Continued) Memory Map Address (hex) System Function (shipping configuration) 0xF2C00000-0xF6BFFFFF Texas Instruments PCIxx21/x515 Cardbus Controller 0xD4206000-0xD4207FFF Texas Instruments PCIxx21 Integrated FlashMedia Controller 0xD4209000-0xD42090FF SDA Standard Compliant SD Host Controller 0xD4208C00-0xD4208CFF SDA Standard Compliant SD Host Controller 0xD4208800-0xD42088FF SDA Standard Compliant SD Host Controller 0xD4209400-0xD42094FF...
Page 193: Screw Listing
Screw Listing This appendix provides specification and reference information for the screws used in the computer. The four Phillips PM3.0×3.0 screws (Table A-1) used to secure the hard drive bracket to the hard drive are included in the Hard Drive Bracket Kit, spare part number 434106-001. The remainder of the screws listed in this appendix are available in the Screw Kits, spare part numbers 434983-001 (for use with computers using Intel processors), 431433-001 (for use with...
Page 194 Screw Listing Table A-1 Phillips PM3.0×3.0 Screw Head Color Qty. Length Thread Width Silver 3.0 mm 3.0 mm 5.0 mm Where used: 6 screws that secure the hard drive bracket to the hard drive (documented Section 5.4) Phillips PM3.0×3.0 Screw Locations A–2 Maintenance and Service Guide...
Page 195 Screw Listing Table A-2 Phillips PM2.0×5.0 Captive Screw Head Color Qty. Length Thread Width Black 5.0 mm 2.0 mm 5.0 mm Where used: Two screws that secure the hard drive cover to the computer (screws are captured on the cover by C-clips; documented in Section 5.4) Three screws that secure the memory module compartment cover to the...
Page 196 Screw Listing Table A-3 Phillips PM2.0×3.0 Screw Head Color Qty. Length Thread Width Silver 3.0 mm 2.0 mm 4.0 mm Where used: 2 screws that secure the Mini Card module to the computer (documented in Section 5.8) Phillips PM2.0×3.0 Screw Locations A–4 Maintenance and Service Guide...
Page 197 Screw Listing Table A-3 Phillips PM2.0×3.0 Screw (Continued) Head Color Qty. Length Thread Width Silver 3.0 mm 2.0 mm 4.0 mm Where used: 2 screws that secure the optical drive bracket to the optical drive (documented in Section 5.9) Phillips PM2.0×3.0 Screw Locations Maintenance and Service Guide A–5...
Page 198 Screw Listing Table A-3 Phillips PM2.0×3.0 Screw (Continued) Head Color Qty. Length Thread Width Silver 3.0 mm 2.0 mm 4.0 mm Where used: One screw that secures the num lock board to the switch cover (documented in Section 5.10) Phillips PM2.0×3.0 Screw Location A–6 Maintenance and Service Guide...
Page 199 Screw Listing Table A-3 Phillips PM2.0×3.0 Screw (Continued) Head Color Qty. Length Thread Width Silver 3.0 mm 2.0 mm 4.0 mm Where used: One screw that secures the power button board to the computer (documented in Section 5.12) Phillips PM2.0×3.0 Screw Location Maintenance and Service Guide A–7...
Page 200 Screw Listing Table A-3 Phillips PM2.0×3.0 Screw (Continued) Head Color Qty. Length Thread Width Silver 3.0 mm 2.0 mm 4.0 mm Where used: 4 screws that secure the display hinges to the display panel (documented in Section 5.13) Phillips PM2.0×3.0 Screw Location A–8 Maintenance and Service Guide...
Page 201 Screw Listing Table A-3 Phillips PM2.0×3.0 Screw (Continued) Head Color Qty. Length Thread Width Silver 3.0 mm 2.0 mm 4.0 mm Where used: 2 screws that secure the Bluetooth module to the system board (documented in Section 5.16) Phillips PM2.0×3.0 Screw Locations Maintenance and Service Guide A–9...
Page 202 Screw Listing Table A-4 Phillips PM2.5×7.0 Screw Head Color Qty. Length Thread Width Black 7.0 mm 2.5 mm 5.0 mm Where used: One screw that secures the optical drive to the computer (documented in Section 5.9) Three screws that secure the keyboard to the computer (documented in Section 5.11) Phillips PM2.5×7.0 Screw Locations...
Page 203 Screw Listing Table A-4 Phillips PM2.5×7.0 Screw (Continued) Head Color Qty. Length Thread Width Black 7.0 mm 2.5 mm 5.0 mm Where used: 4 screws that secure the display assembly to the computer (documented in Section 5.13) Phillips PM2.5×7.0 Screw Locations Maintenance and Service Guide A–1 1...
Page 204 Screw Listing Table A-4 Phillips PM2.5×7.0 Screw (Continued) Head Color Qty. Length Thread Width Black 7.0 mm 2.5 mm 5.0 mm Where used: 8 screws that secure the display bezel to the display assembly (documented in Section 5.13) Phillips PM2.5×7.0 Screw Locations A–12 Maintenance and Service Guide...
Page 205 Screw Listing Table A-4 Phillips PM2.5×7.0 Screw (Continued) Head Color Qty. Length Thread Width Black 7.0 mm 2.5 mm 5.0 mm Where used: 9 screws that secure the top cover to the computer (documented in Section 5.14) Phillips PM2.5×7.0 Screw Locations Maintenance and Service Guide A–13...
Page 206 Screw Listing Table A-5 Phillips PM2.5×10.0 Screw Head Color Qty. Length Thread Width Black 10.0 mm 2.5 mm 5.0 mm Where used: 2 screws that secure the switch cover to the computer (documented in Section 5.10) Phillips PM2.5×10.0 Screw Locations A–14 Maintenance and Service Guide...
Page 207 Screw Listing Table A-6 Phillips PM2.5×5.0 Screw Head Color Qty. Length Thread Width Silver 5.0 mm 2.5 mm 5.0 mm Where used: 4 screws that secure the display panel to the display enclosure (documented in Section 5.13) Phillips PM2.5×5.0 Screw Locations Maintenance and Service Guide A–15...
Page 208 Screw Listing Table A-6 Phillips PM2.5×5.0 Screw (Continued) Head Color Qty. Length Thread Width Silver 5.0 mm 2.5 mm 5.0 mm Where used: 6 screws that secure the top cover to the base enclosure (documented in Section 5.14) Phillips PM2.5×5.0 Screw Locations A–16 Maintenance and Service Guide...
Page 209 Screw Listing Table A-6 Phillips PM2.5×5.0 Screw (Continued) Head Color Qty. Length Thread Width Silver 5.0 mm 2.5 mm 5.0 mm Where used: 2 screws that secure the top cover to the base enclosure (documented in Section 5.14) Phillips PM2.5×5.0 Screw Locations Maintenance and Service Guide A–17...
Page 210 Screw Listing Table A-6 Phillips PM2.5×5.0 Screw (Continued) Head Color Qty. Length Thread Width Silver 5.0 mm 2.5 mm 5.0 mm Where used: Two screws that secure the audio board to the base enclosure (documented Section 5.15) Two screws that secure the USB/power connector board to the base enclosure (documented in Section 5.18)
Page 211 Screw Listing Table A-6 Phillips PM2.5×5.0 Screw (Continued) Head Color Qty. Length Thread Width Silver 5.0 mm 2.5 mm 5.0 mm Where used: 4 screws that secure the fan/heat sink assembly to the system board (documented in Section 5.20) Phillips PM2.5×5.0 Screw Locations Maintenance and Service Guide A–19...
Page 212 Screw Listing Table A-7 Phillips PM2.0×4.0 Screw Head Color Qty. Length Thread Width Silver 4.0 mm 2.0 mm 5.0 mm Where used: 2 screws that secure the wireless antenna transceivers to the display enclosure (documented in Section 5.13) Phillips PM2.0×4.0 Screw Locations A–20 Maintenance and Service Guide...
Page 213 Screw Listing Table A-8 Phillips PM2.5×4.0 Screw Head Color Qty. Length Thread Width Silver 4.0 mm 2.5 mm 5.0 mm Where used: 3 screws that secure the top cover to the base enclosure (documented in Section 5.14) Phillips PM2.5×4.0 Screw Locations Maintenance and Service Guide A–21...
Page 214 Screw Listing Table A-8 Phillips PM2.5×4.0 Screw (Continued) Head Color Qty. Length Thread Width Silver 4.0 mm 2.5 mm 5.0 mm Where used: 4 screws that secure the ExpressCard assembly to the system board (documented in Section 5.17) 2 screws that secure the system board to the computer (documented in Section 5.19) Phillips PM2.5×4.0 Screw Locations...
Page 215 Screw Listing Table A-9 Phillips PM2.0×6.0 Screw Head Color Qty. Length Thread Width Black 6.0 mm 2.0 mm 5.0 mm Where used: 2 screws that secure the top cover to the base enclosure (documented in Section 5.14) Phillips PM2.0×6.0 Screw Locations Maintenance and Service Guide A–23...
Page 216: Backup And Recovery
Backup and Recovery Recovering System Information Tools provided by the operating system and PC Recovery software are designed to help you with the following tasks for safeguarding your information and restoring it in case of a system failure: ■ Back up your information regularly to protect your important system files.
Page 217: Backing Up Your Information
Backup and Recovery Backing Up Your Information When to Back Up ■ On a regularly scheduled basis. ✎ Set reminders to back up your information periodically. ■ Before the computer is repaired or restored. ■ Before you add or modify hardware or software. Backup Suggestions ■...
Page 218: Using System Restore Points
Backup and Recovery Using System Restore Points When you back up your system, you are creating a system restore point. A system restore point allows you to save and name a snapshot of your hard drive at a specific point in time. You can then recover back to that point if you want to reverse subsequent changes made to your system.
Page 219: Restore To A Previous Date And Time
Backup and Recovery Restore to a Previous Date and Time To revert to a restore point (created at a previous date and time), when the computer was functioning optimally: 1. Select Start > Help and Support > System Restore. The System Restore window opens. 2.
Page 220 Backup and Recovery ■ Number each disc before inserting it into the computer optical drive. ■ If necessary, you can exit the program before you have finished creating the recovery discs. The next time you open PC Recovery Disc Creator, you will be prompted to continue the disc creation process.
Page 221: Reinstalling Software Programs And Drivers
Backup and Recovery Reinstalling Software Programs and Drivers If a program or driver preinstalled at the factory is accidentally erased or is damaged, the Application and Driver Recovery tool allows you to reinstall it. ✎ Software not provided with this computer must be reinstalled from the disc provided by the manufacturer or downloaded from the manufacturer's Web site.
Page 222: Reinstalling Programs From Discs
Backup and Recovery 2. Select Start > All Programs > System Recovery > Application and Driver Recovery. The Application and Driver Recovery tool opens. 3. Select Application Installation or Driver Installation, and then click Next. 4. Follow the on-screen instructions to complete the program or driver recovery.
Page 223: Recovering From The Recovery Discs
Backup and Recovery Recovering from the Recovery Discs To restore the system from the recovery discs: 1. Back up all personal files. 2. Insert the first recovery disc into the optical drive and restart the computer. 3. Follow the on-screen instructions. Recovering from the Partition on the Hard Drive You can perform a recovery from the partition on the hard drive...
Page 224 Backup and Recovery 4. Follow the on-screen instructions to complete the system recovery. If you want to perform a destructive recovery: ✎ A destructive recovery formats the hard drive and restores the computer to its factory state. Select this option only as a last resort.
Page 225: Updating Reinstalled Software
Backup and Recovery 3. Select PC Recovery and click Next. The computer restarts and the PC Recovery tools opens. 4. Click OK. 5. At the System Recovery screen, click Advanced Options. 6. Select Delete Recovery Partition (not recommended) and follow the on-screen instructions. Updating Reinstalled Software After you perform a system recovery, connect to the Internet to update all reinstalled software.
Page 226 Display Component Recycling WARNING: The backlight contains mercury. Caution should be Å exercised when removing and handling the backlight to avoid damaging this component and causing exposure to the mercury. CAUTION: The procedures in this appendix can result in damage to Ä...
Page 227 Display Component Recycling This appendix provides disassembly instructions for the display assembly. The display assembly must be disassembled to gain access to the backlight 1 and the LCD panel 2. ✎ Disassembly procedures differ from one display assembly to another. The procedures provided in this appendix are general disassembly instructions.
Page 228 Display Component Recycling Perform the following steps to disassemble the display assembly: 1. Remove all screw covers 1 and screws 2 that secure the display bezel to the display assembly. Removing the Display Bezel Screw Covers and Screws Maintenance and Service Guide C–3...
Page 229 Display Component Recycling 2. Lift up and out on the left and right inside edges 1 and the top and bottom inside edges 2 of the display bezel until the bezel disengages from the display assembly. 3. Remove the display bezel 3. Removing the Display Bezel C–4 Maintenance and Service Guide...
Page 230 Display Component Recycling 4. Disconnect all LCD panel cables 1 from the display inverter board and remove the inverter board 2. Removing the Display Inverter Board Maintenance and Service Guide C–5...
Page 231 Display Component Recycling 5. Remove all screws 1 that secure the LCD panel to the display enclosure. 6. Remove the LCD panel 2 from the display enclosure. Removing the LCD Panel C–6 Maintenance and Service Guide...
Page 232 Display Component Recycling 7. Turn the LCD panel upside down. 8. Remove all screws that secure the LCD panel frame to the LCD panel. Removing the LCD Panel Frame Screws Maintenance and Service Guide C–7...
Page 233 Display Component Recycling 9. Use a sharp-edged tool to cut the tape 1 that secures the side of the LCD panel to the LCD panel frame. 10. Remove the LCD panel frame 2 from the display panel. Removing the LCD Panel Frame C–8 Maintenance and Service Guide...
Page 234 Display Component Recycling 11. Remove the screws 1 that secure the backlight cover to the LCD panel. 12. Lift the top edge of the backlight cover 2 and swing it forward. 13. Remove the backlight cover. Removing the Backlight Cover Maintenance and Service Guide C–9...
Page 235 Display Component Recycling 14. Turn the LCD panel right-side up. 15. Remove the backlight cables 1 from the clip 2 in the LCD panel. Releasing the Backlight Cables C–10 Maintenance and Service Guide...
Page 236 Display Component Recycling 16. Turn the LCD panel upside down. 17. Remove the backlight frame from the LCD panel. Removing the Backlight Frame Maintenance and Service Guide C–1 1...
Page 237 Display Component Recycling WARNING: The backlight contains mercury. Caution should be Å exercised when removing and handling the backlight to avoid damaging this component and causing exposure to the mercury. 18. Slide the backlight out of the backlight frame. Removing the Backlight C–12 Maintenance and Service Guide...
Page 238 Display Component Recycling 19. Disconnect the display cable 1 from the LCD panel. 20. Remove the screws 2 that secure the LCD panel to the LCD rear panel. 21. Release the LCD panel 3 from the LCD rear panel. 22. Release the tape 4 that secures the LCD panel to the LCD rear panel.
Page 239 Display Component Recycling 23. Remove the LCD panel. Removing the LCD Panel 24. Recycle the backlight and LCD panel. C–14 Maintenance and Service Guide...
Page 240: Connector Pin Assignments
Connector Pin Assignments Table D-1 Universal Serial Bus Signal Signal +5 VDC Data + Data – Ground Maintenance and Service Guide D–1...
Page 241 Connector Pin Assignments Table D-2 RJ-45 (Network) Signal Signal Transmit + Unused Transmit – Receive – Receive + Unused Unused Unused D–2 Maintenance and Service Guide...
Page 242 Connector Pin Assignments Table D-3 S-Video-Out Signal Signal TV-Ground TV-CD TV-CVBS TV-Ground TV-Ground TV-YD TV-Ground Maintenance and Service Guide D–3...
Page 243: External Monitor
Connector Pin Assignments Table D-4 External Monitor Signal Signal Red analog +5 VDC Green analog Ground Blue analog Monitor detect Not connected DDC 2B data Ground Horizontal sync Ground analog Vertical sync Ground analog DDC 2B clock Ground analog D–4 Maintenance and Service Guide...
Page 244 Connector Pin Assignments Table D-5 RJ-11 (Modem) Signal Signal Unused Unused Unused Ring Unused Maintenance and Service Guide D–5...
Page 245 Connector Pin Assignments Table D-6 Audio-In (Microphone) Signal Signal Audio signal in Ground Audio signal in Table D-7 Audio-Out (Headphone) Signal Signal Audio out, left channel Ground Audio out, right channel D–6 Maintenance and Service Guide...
Page 246: Power Cord Set Requirements
Power Cord Set Requirements 3-Conductor Power Cord Set The wide range input feature of the computer permits it to operate from any line voltage from 100 to 120 or 220 to 240 volts AC. The power cord set included with the computer meets the requirements for use in the country where the equipment is purchased.
Page 247: General Requirements
Power Cord Set Requirements General Requirements The requirements listed below are applicable to all countries. ■ The length of the power cord set must be at least 1.5 m (5.0 ft) and a maximum of 2.0 m (6.5 ft). ■ All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country where the power cord set will be used.
Page 248 Power Cord Set Requirements Country-Specific Requirements 3-Conductor Power Cord Set Requirements Country/Region Accredited Agency Applicable Note Number Australia EANSW Austria Belgium CEBC Canada Denmark DEMKO Finland FIMKO France Germany Italy Japan METI ✎ NOTES: 1. The flexible cord must be <HAR> Type HO5VV-F, 3-conductor, 1.0 mm² conductor size.
Page 249 Power Cord Set Requirements 3-Conductor Power Cord Set Requirements (Continued) Country/Region Accredited Agency Applicable Note Number Korea The Netherlands keMa Norway NEMKO People’s Republic of China Sweden SEMKO Switzerland Taiwan bsmi United Kingdom United States ✎ NOTES: 1. The flexible cord must be <HAR> Type HO5VV-F, 3-conductor, 1.0 mm² conductor size.
Page 250 Index 1394 port 1–9 battery removal 5–5 spare part numbers 3–9 AC adapter, spare part 3–40 5–5 numbers 3–28 3–31 3–40 specifications 6–6 analog TV tuner, spare part battery bay 1–20 number 3–28 3–36 battery light 1–6 arrow keys 1–13 battery release latch 1–20 audio board Bluetooth module...
Page 251 Index keyboard 1–12 display assembly removal 5–31 left-side 1–8 spare part numbers 3–3 rear 1–8 3–40 5–31 right-side 1–10 specifications 6–3 top 1–14 1–16 1–18 display bezel composite S-Video and audio removal 5–34 5–36 input cable, spare part number 3–28 3–36 spare part numbers 3–22 computer feet, locations 5–10...
Page 252 Index DVD±RW/R and CD-RW no OS loading from Combo Drive diskette drive 2–23 OS loading problems 2–24 no OS loading from hard precautions 4–3 drive 2–20 2–21 2–22 removal 5–20 no OS loading from optical spare part numbers 3–9 drive 2–24 3–25 3–38 5–20...
Page 253 Index hard drive bracket, removal 5–9 left-side components 1–8 hard drive cover Logo Kit, spare part number illustrated 3–26 3–28 3–39 removal 5–7 HDMI port 1–9 mass storage devices, spare headphone jack part numbers 3–24 location 1–7 media button 1–17 pin assignments D–6 memory module headset, spare part number...
Page 254 Index modem jack Plastics Kit location 1–9 contents 3–27 pin assignments D–5 spare part number 3–5 modem, troubleshooting 2–30 3–27 3–39 monitor port pointing device, location 1–8 troubleshooting 2–29 pin assignments D–4 power button 1–15 power button board mouse, spare part number removal 5–29 3–28 3–31...
Page 255 Index RF cable, spare part number I/O addresses 6–14 3–28 3–36 interrupts 6–12 RF input adapter cable, spare optical drive 6–7 part number 3–28 3–36 system DMA 6–11 right-side components 1–10 static shielding materials 4–8 RJ-11 (modem) jack S-Video-out jack location 1–9 location 1–8 pin assignments D–5...
Page 256 Index troubleshooting audio 2–25 vents 1–21 docking device 2–18 video troubleshooting 2–16 flowcharts 2–9 volume mute button 1–17 volume scroll zone 1–17 keyboard 2–28 modem 2–30 network 2–30 Windows applications key nonfunctioning device 1–13 2–18 2–27 Windows logo key 1–13 OS loading 2–19 wireless antenna overview 2–1...

Compaq Presario V6000 Maintenance And Service Manual

Table of Contents

1 Product Description

2 Troubleshooting

3 Illustrated Parts Catalog

4 Removal and Replacement Preliminaries

5 Removal and Replacement Procedures

Disassembly Sequence Chart (Continued)

Quick Links

Chapters

Troubleshooting

Related Manuals for Compaq Presario V6000

Summary of Contents for Compaq Presario V6000

Table of Contents
