Electromechanical Fuel Saver Thermostat and Wallplate/Subbase
Installation Instructions
CT1800 24V gas or oil heat, or 3 wire zone valves.
CT1801 24V gas or oil heat/cool.
CT1802 24V central electric heat/cool or single stage
heat pump without auxiliary heat.
Not for use on line voltage (120V) millivolt systems
Recycling Notice
This control contains mercury in a sealed tube. Do not
place control in the trash at the end of its useful life.
If this control is replacing a control that contains mercury in
a sealed tube, do not place your old control in the trash.

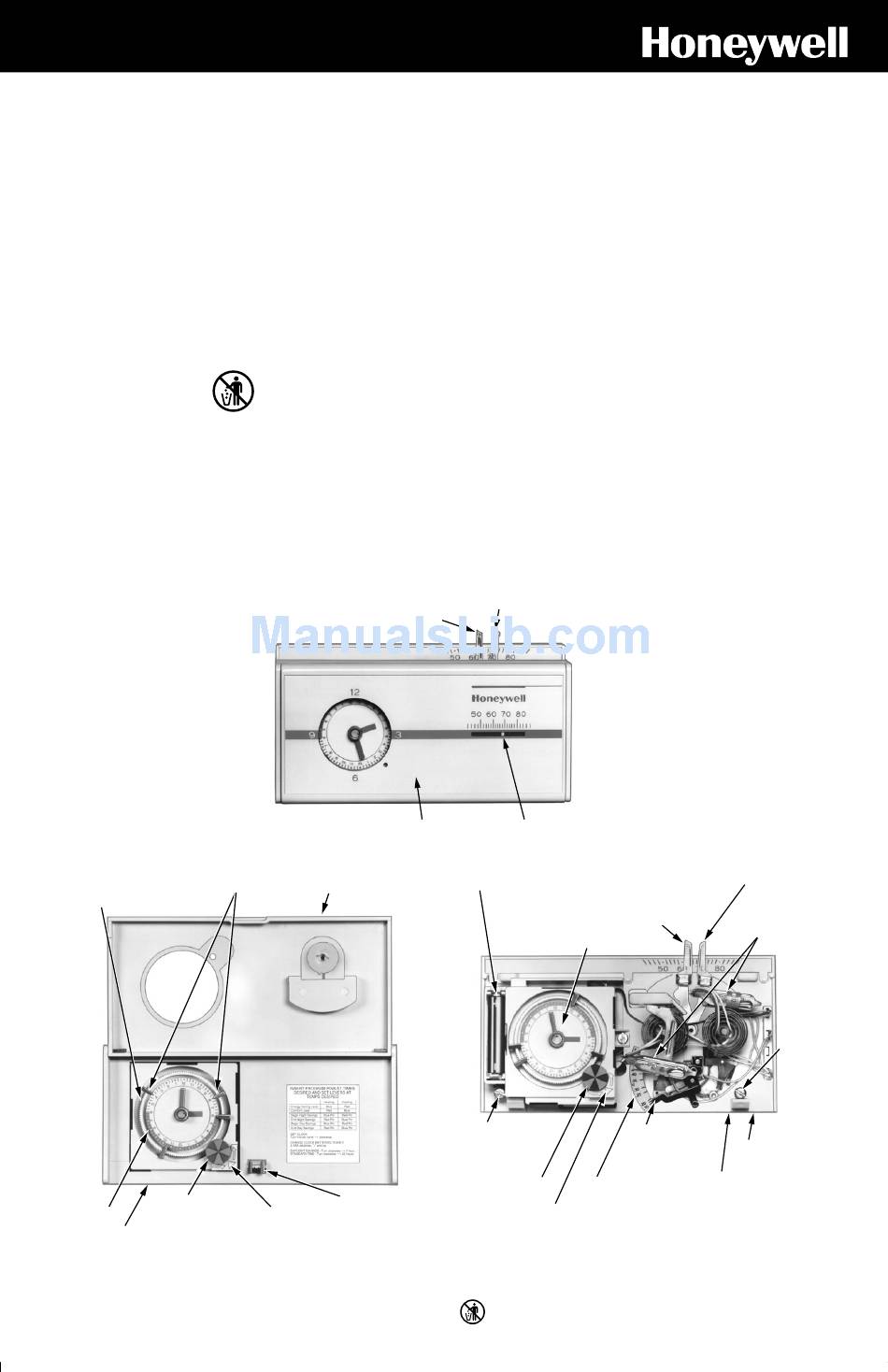

THERMOSTAT FEATURES

II—Hinged cover lifted.
24 HOUR PROGRAM DIAL
(GRAY AREA FOR NIGHT
SETTING)
PROGRAM
PROGRAM
PIN SLOT
INDEX WHEEL
THERMOSTAT COVER
D.F. • Rev. 11-96 • Printed in U.S.A. •
M3375
I—Front of thermostat.
LOW TEMPERATURE
CONTROL LEVER (BLUE)
THERMOSTAT COVER
PROGRAM PINS
FLIP-UP
COVER
PROGRAM
TIME
PIN
INDICATOR
STORAGE
ARROW
M9614
CT1800, CT1801, CT1802
.
Contact your local waste management authority for
instructions regarding recycling and the proper disposal of
this control, or of an old control containing mercury in a
sealed tube.
HIGH TEMPERATURE
CONTROL LEVER
(RED)
THERMOMETER
III—Cover removed.
AAA ALKALINE
BATTERY (2) INCLUDED
24 HOUR PROGRAM DIAL
(GRAY AREA FOR
NIGHT SETTINGS)
CAPTIVE
MOUNTING
SCREW
PROGRAM
INDEX WHEEL
TIME INDICATOR
ARROW
1
• ©Honeywell Inc. 1996 • Form Number 69-0394—3
M3375
M9613
HIGH
TEMPERATURE
LOW TEMPERATURE
CONTROL LEVER
CONTROL LEVER
(RED)
(BLUE)
HEAT
ANTICIPATOR
SETTING
LEVER
WALLPLATE (BEHIND
ADJUSTABLE HEAT
THERMOSTAT. HELD
ANTICIPATOR
ON BY TWO CAPTIVE
SCREWS.)
SWITCH
BULBS
CAPTIVE
MOUNTING
SCREW
THERMOSTAT
BASE
M9615
69-0394—3

Advertisement

loading

  Related Manuals for Honeywell CT1800

  Summary of Contents for Honeywell CT1800

  • Page 1: Thermostat Features

    Electromechanical Fuel Saver Thermostat and Wallplate/Subbase Installation Instructions CT1800 24V gas or oil heat, or 3 wire zone valves. CT1801 24V gas or oil heat/cool. CT1802 24V central electric heat/cool or single stage heat pump without auxiliary heat. Not for use on line voltage (120V) millivolt systems...
  • Page 2: Remove Old Thermostat

    PREPARATION Check thermostat and wallplate suitability for your heating or heating/cooling system. Refer to Table 1. TABLE 1—THERMOSTAT AND SUBBASE APPLICATIONS. Thermostat Subbase Wallplate Model Included CT1800 199986B Wallplate CT1801 Q682A1079 Subbase CT1802 Q682B1227 Subbase Thermostat must be mounted on wallplate or subbase included in package to assure operation.
  • Page 3 SWITCH on a system with B or O terminals. One or two extra wires? ANTICIPATOR If you are replacing a Honeywell Chronotherm SCALE you may find one or two wires that go to the clock termi- nals on the Chrontherm not allow them to touch, or you may damage your trans- former.
  • Page 4 FOR WRAPAROUND CONNECTION— STRIP 7/16 in. [11 mm] FOR CT1800 heating—only For 2-wire system, connect either wire to R terminal and the other wire to W terminal. For 3-wire system, connect W wire to W terminal, R wire to R terminal, and remaining wire to B terminal.
  • Page 5 OVERLOAD PROTECTION AS REQUIRED. IF COMPRESSOR IS CONNECTED TO OLD THERMOSTAT'S "Y" TERMINAL WITH A JUMPER TO "W", USE NEW THERMOSTAT'S "P" TERMINAL FOR COMPRESSOR. IF OLD THERMOSTAT HAS ONE WIRE TO "Y" AND ONE TO "W", USE "Y" AND "W" ON NEW THERMOSTAT;...
  • Page 6: Mount The Thermostat

    MOUNT THE THERMOSTAT Note the tabs on the top inside edge of the thermostat base. These fit the slots molded into the top of the wallplate or subbase. Hang the thermostat base on the wallplate or subbase as shown in illustration.
  • Page 7: Set Clock

    INSTALL CLOCK BATTERIES Power is supplied to the clock by two AAA alkaline batteries (included). Install clock batteries in thermostat as shown. Once a year, or when batteries are dead, replace with two new AAA alkaline batteries. We ® recommend Energizer batteries.
  • Page 8 If you have questions regarding the thermostat please If you have questions regarding the Honeywell Fuel Saver Thermostat please visit our web site at www.honeywell.com/yourhome, or call the customer information line at 1-800-468-1502.
