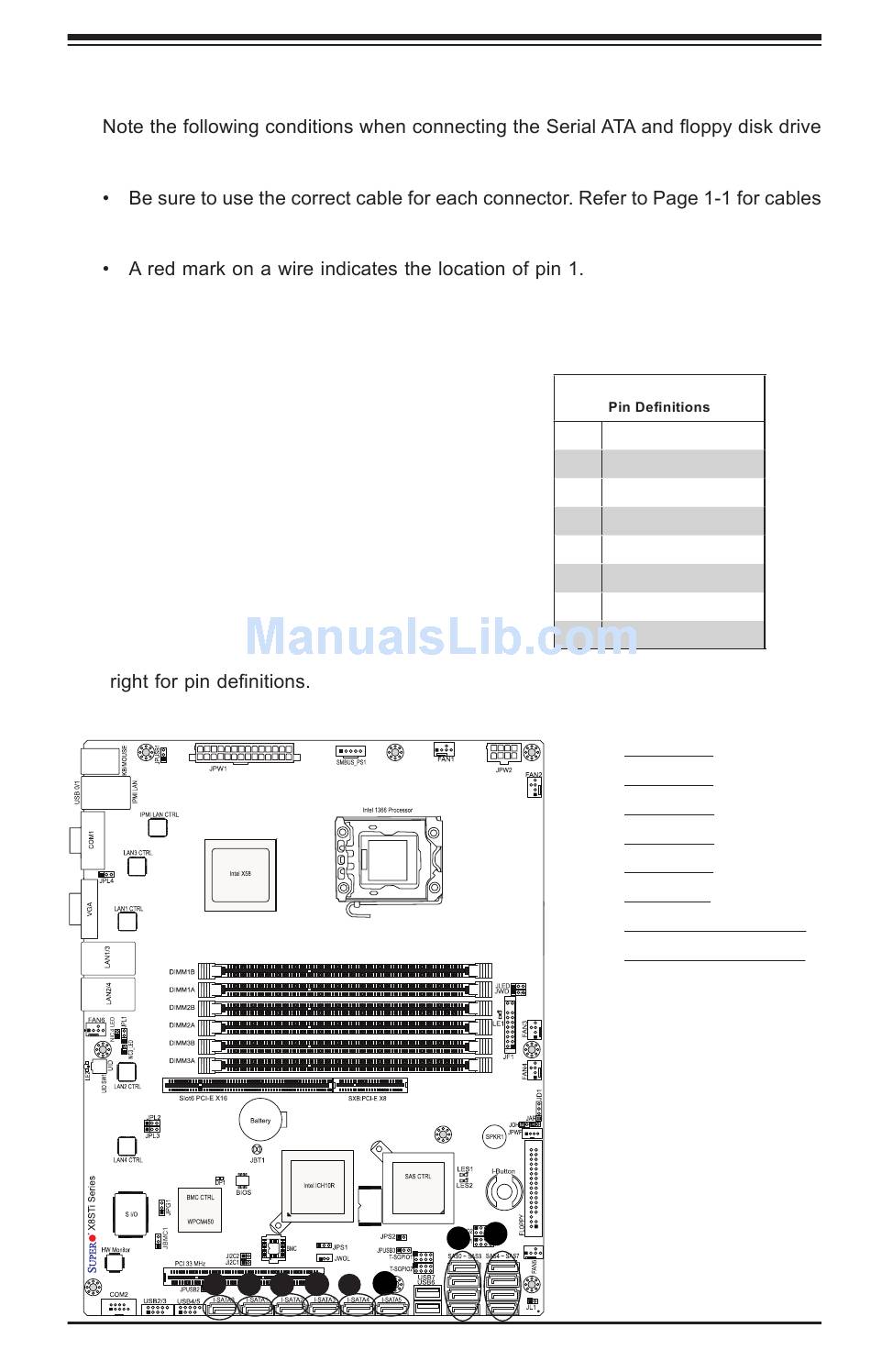

SATA/SAS and Floppy Drive Connections

cables:
that came with your shipment.
SATA/SAS Connections (SAS: for X8STi-
3F only)
Six Serial ATA (SATA) connectors (I-SATA
0~5) are located on the motherboard. In
addition to six SATA ports, eight SAS con-
nections are also located on the X8STi-3F.
These Serial Link connections provide faster
data transmission than the connections of
traditional Parallel ATA. The SATA connectors
are supported by the Intel ICH10R. The SAS
connectors on the X8STi-3F are supported by
the LSI SAS controller. See the table on the
A
LSI 1068E
F
D
B C
E
SATA/SAS Connectors
Pin#
1
2
3
4
5
6
7
H
G
2-39
Chapter 2: Installation
Signal
Ground
SATA_TXP
SATA_TXN
Ground
SATA_RXN
SATA_RXP
Ground
A. I-SATA 0
B. I-SATA 1
C. I-SATA 2
D. I-SATA 3
E. I-SATA 4
F. I-SATA 5
G. SAS 0~3 (X8STi-3F)
H. SAS 4~7 (X8STi-3F)
