X8STi/X8STi-F/X8STi-3F/X8STi-LN4 User's Manual

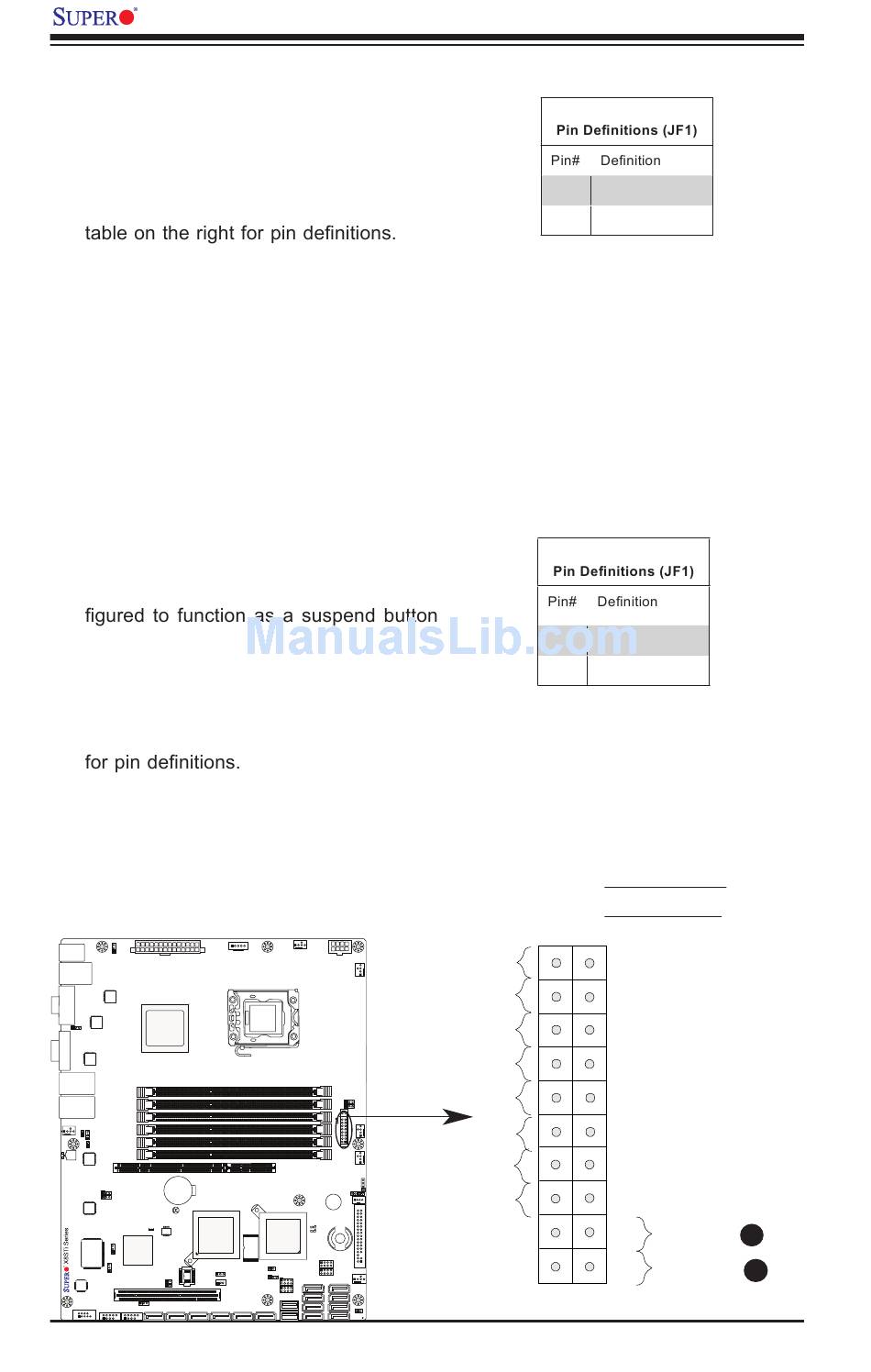

Reset Button

The Reset Button connection is located
on pins 3 and 4 of JF1. Attach it to a
hardware reset switch on the computer
case to reset the system. Refer to the

Power Button

The Power Button connection is located
on pins 1 and 2 of JF1. Momentarily
contacting both pins will power on/off
the system. This button can also be con-
(with a setting in the BIOS - see Chapter
4). To turn off the power in the suspend
mode, press the button for at least 4
seconds. Refer to the table on the right
3
4
1
2
20
Ground
X
Power LED
HDD LED
NIC1 LED
NIC2 LED
OH/Fan Fail LED
Power Fail LED
Ground
Ground
2
2-20
Reset Button
Reset
Ground
Power Button
Signal
+3V Standby
A. Reset Button
B. PWR Button
19
NMI
X
Vcc
Vcc/UID Switch
Vcc
Vcc
Vcc/Blue UID LED
Vcc
#3~4
Reset Button
Power Button
#1~2
1
A
B
