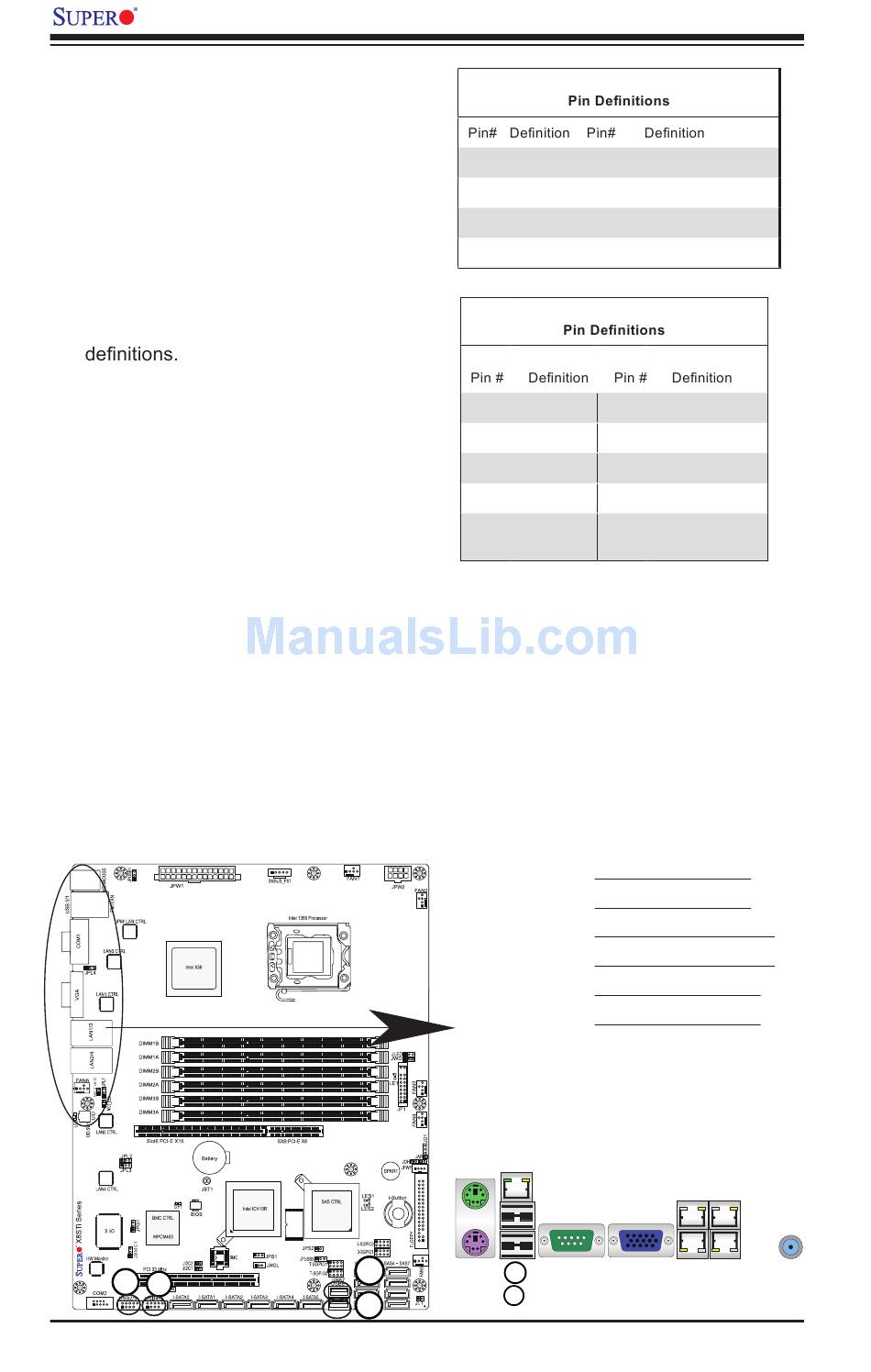

Universal Serial Bus (USB)

Two Universal Serial Bus ports (USB
0/1) are located on the I/O back panel.
Additional six USB connections (USB
2/3, USB 4/5, USB 6 and USB 7) are
used to provide front chassis access.
USB 6 and USB 7 are Type A Connec-
tors. (USB Cables are not included).
See the tables on the right for pin
3
4
1
2
3
4
1
2
3
4
5
LSI 1068E
6
5
2-12
Back Panel USB 0/1
+5V 5 +5V
USB_PN1 6 USB_PN0
USB_PP1 7 USB_PP0
Ground 8 Ground
Front Panel USB 2/3, 4/5, 6, 7
USB 2, 4, 6, 7 USB 3, 5
+5V 6 +5V
USB_PN2 7 USB_PN3
USB_PP2 8 USB_PP3
Ground 9 Ground
No Con- 10 Key
nection
1. Backplane USB 0
2. Backplane USB 1
3. Front Panel USB 2/3
4. Front Panel USB 4/5
5. Front Panel USB 6
6. Front Panel USB 7
