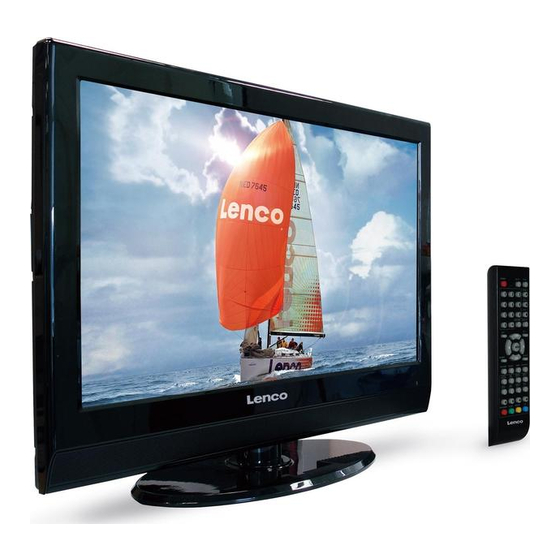

26" Wide screen LCD TV With DVD
Model No.: DVT-2621
For information and support, www.lenco.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVT-2621 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LENCO DVT-2621

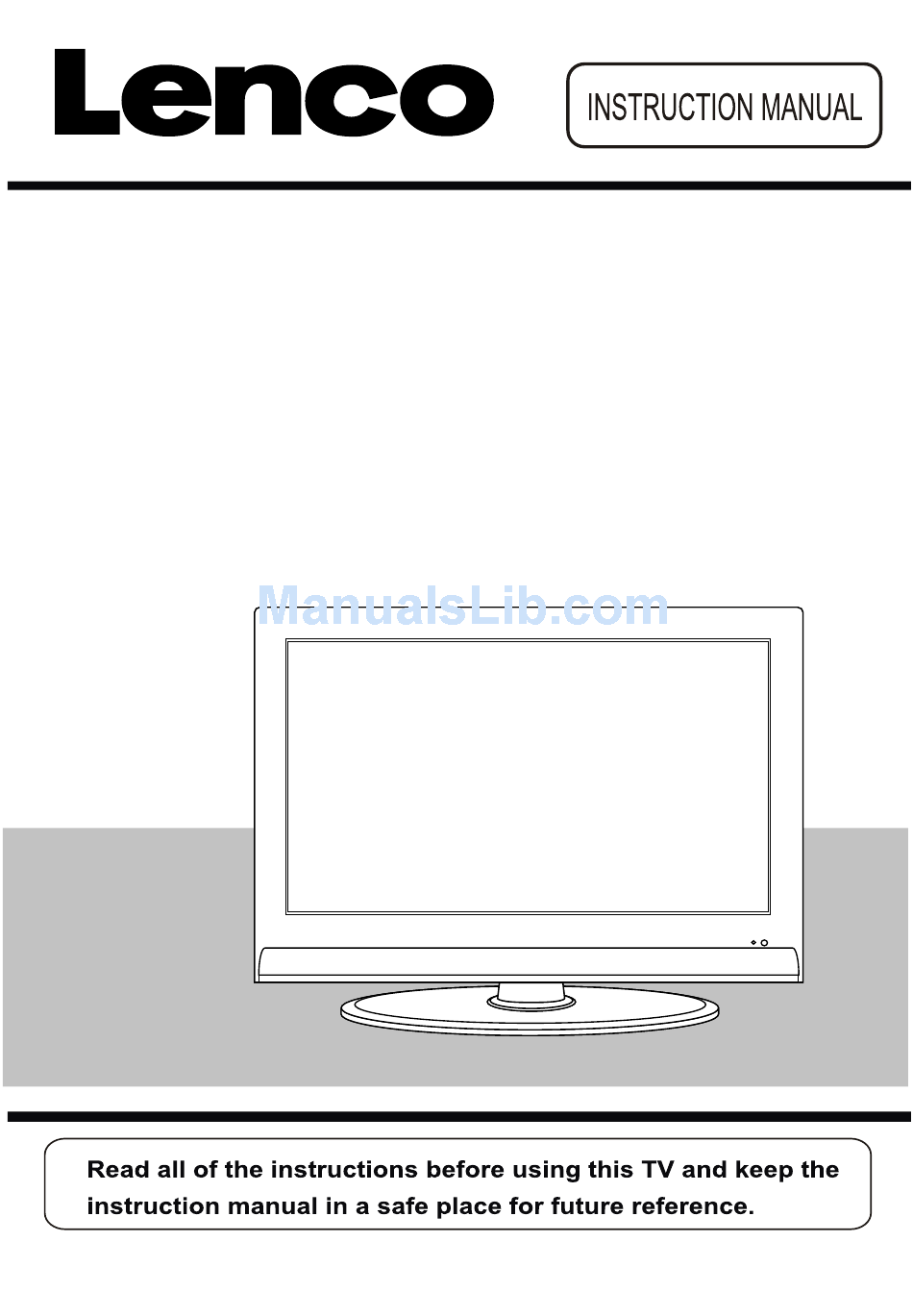

  • Page 1 26” Wide screen LCD TV With DVD Model No.: DVT-2621 For information and support, www.lenco.eu...
  • Page 3: Table Of Contents

    Contents Contents Caution Safety Information Unit and Accessories Product Feature Introduction 1. Front View 2. Rear View 3. Remote Control Basic Operation 9-10 OSD Menu 11-14 1. Video menu 2. Audio menu 3. Misc menu 4. TV menu 14-15 5. PC menu DVD operation System operation Simple Troubleshooting...
  • Page 4: Caution

    Caution Caution is intended to alert the user to the presence of un-insulated "dangerous to constitute a risk of electric shock to the persons. user to the presence of important operating and maintenance (servicing) Correct disposal of this Product electrical and electronic products. Please help us to conserve the environment we live in! directives.
  • Page 5: Safety Information

    Safety Information Safety Information Electrical safety -Do not allow water or moisture to enter the TV or mains adaptor. Do NOT use in wet apparatus. Physical safety ensure at least 5cm (2") clearance all around the unit.
  • Page 6: Unit And Accessories

    Unit and Accessories and Product Feature Unit and Accessories TV set User's manual Remote control Mains Cable Product Feature - Inputs: RF, VIDEO, S-VIDEO, VGA, YPbPr, SCART, HDMI1, HDMI2, DVD - Audio Input: Audio R/L(YPbPr/VIDEO/SVIDEO), PC Audio - Support TV mode: PAL(B/G,D/K,I), SECAM(B/G,D/K) - Support NICAM and FM Stereo - Search TV: Auto/Manual - Auto-shutting down...
  • Page 7: Introduction

    Introduction Introduction 1. Front View Led Indicator Remote Control window (Keep clear) 1. (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby)LED Indicator: Press POWER to turn on and off. Indicator on(Red) Standby mode Indicator on(Green) Power on mode The effective receiving range for the signal is 5-8 metres from the front of the remote control window, and 30 to the left or right side and 20...
  • Page 8: Rear View

    Introduction 2. Rear View AC POWER IN SWITCH USB- for uodate 1. USB: Software update. 2. HDMI1/2/: Connect it to the HDMI of DVD or other equipment. 3. VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC. 4.
  • Page 9 Introduction 1. POWER: Turn the TV on or turn it standby 2. MUTE: Silence status or cancel 3. SOURCE: Source select SOURCE 4. 0-9, -/--: Choose channel 6. DISPLAY: Display playing status 7. RETURN: Do to play the latest program OPEN 8.
  • Page 10 Connection Connection Power Cord Connection 5) lights red. POWER Antenna(RF) Connection USB- for uodate Wall jack with F-Connector External Antenna Press SOURCE to select TV ENTER...
  • Page 11: Remote Control

    Basic Operation Basic Operation Power on/off 1. Connect to the power with a power code, and turn on the switch. 2.-To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. Main: Input Source select Press SOURCE button on the TV set or remote control to display the input...
  • Page 12: Basic Operation

    Basic Operation Basic OSD Menu operation Press SYS-MENU button to display the OSD menu as below: Picture Mode Vivid Submenu Video Main menu Contrast (Video menu Video Audio for example) Brightness Audio Misc Saturation Misc Geometric Sharpness Color Temperature Normal Geometric Advance Picture Adjust Select...
  • Page 13: Osd Menu

    OSD Menu OSD Menu 1. Video menu Picture Mode Vivid Video Contrast Audio Brightness Saturation Misc Sharpness Color Temperature Normal Geometric Advance Picture Adjust Select Back Adjust /ENTER MENU Description Picture Mode: Select your desired picture mode. You may select the picture mode directly by pressing the PICTURE button on the remote control.
  • Page 14: Audio Menu

    OSD Menu 2. Audio menu Sound Mode User Video Bass Audio Treble Balance Misc Surround Geometric Select Back Adjust /ENTER MENU Description Sound Mode: Select your desired picture mode. You may select the sound mode directly by pressing the SOUND button on the remote control.
  • Page 15 OSD Menu Description OSD Language: Select OSD language. Region Language: Select Region Language. Teletext Language: Select Teletext language. SCART1/2: Select SCART mode . Picture Size: Adjust Picture Size. Blue Mute: Turn on/off the Blue Back function while no signal. Timer: Timer settings, as the picture below. Time 00:13:24 Time: Display the current time.
  • Page 16: Tv Menu

    OSD Menu 4. TV menu Region Selection Video Auto Search Audio Manual Scam Update Search Misc Program Edit Geometric Select Back Adjust /ENTER MENU Region Selection: Select Region Language. Auto Search: Start auto searching. Note: When the TV is auto tunning, you could press SYS-MENU button to stop auto tunning and return to preview menu.
  • Page 17: Pc Menu

    OSD Menu Program Edit: Select a channel to manual scan as the picture below. Program Edit Channel Freq System Name Skip - - - - - - - - - 90.75 - - - - - - - - - - - - - - - - - -...
  • Page 18: Dvd Operation

    DVD Operation...
  • Page 19 DVD Operation...
  • Page 20 DVD Operation...
  • Page 21 DVD Operation...
  • Page 22: System Operation

    DVD System Operation...
  • Page 23 DVD System Operation...
  • Page 24 Disc Care...
  • Page 25: Simple Troubleshooting

    Simple Troubleshooting Simple Troubleshooting failure. No power - Check all connections to the TV. No picture or sound - Ensure that the TV is plugged in and the power is on. - Ensure that the aerial is connected. Poor picture quality - Check the aerial connections.
  • Page 26 LCD Panel Panel Size 26 inch(diagonal) Brightness 600 cd/m Contrast 5000:1 Resolution 1366x768 Input Connector Video Audio(L/R) S-VIDEO PC Audio HDMI SCART YPbPr Power Source AC100-240V 50/60Hz 160W Power Consumption improving the performance.
