PRO 9000
(SOFTWARE
NOT INCLUDED)
NOTE: PRO 9000 MAY
ONLY BE CONNECTED
TO ONE I9000 CU AT A TIME.
MULTIPLE
OUTPUT MODULE
HALL EFFECT
DOOR SWITCH

SYSTEM FEATURES

• Adaptable for a wide range of applications.
• Multiple area controls.
• False alarm reduction minimizes costly, unnecessary
emergency calls.
• Cost effective protection.
• Easy-to-use.
• Multiple regulatory agency listings.
• Meets High Security UL Grade AA requirements.
APPLICATION
The Intelliguard 9000™ (I9000) is a protection system
designed to detect intrusions and other critical conditions
when used with the Enterprise Buildings Integrator™ (EBI).
The I9000 monitors multiple areas, receiving input and
providing localized reporting and control. A single I9000
Control Unit can simultaneously monitor many different
building areas with high security door sensors.
I9000 hardware includes:
— 8003-217 Remote Intelligent Power Supply (RIPS).
— 8003-220 Area Keypad (KID).
— 8003-238 6-Input Concentrator (BIC-6).
® U.S. Registered Trademark
Copyright © 2004 Honeywell International Inc.
All Rights Reserved
RS-232
(RS-485 WITH RRI)
EBI
AREA
KEYPAD
RS-485
BIC-2
INPUT MODULE
— 8003-242 2-Input Concentrator (BIC-2).
— 8003-277 Control Center 2 (CC2) Keypad.
— 8003-283 Hall Effect Door Switch IV (HEDS IV).
— 8003-284 2-Input Concentrator Hold-up Actuator
— 8003-286 Multiple Output Module (MOM).
— 8003-321 RS-232 to RS-485 Interface (RRI).
— 8003-332 I9000 EBI/Orbix Control Unit (CU) in casing.
— 12-volt batteries.
IMPORTANT
Other compatible detectors and output devices can be added
to the system such as motion sensors, infrared sensors,
sound detectors, lights, sirens and buzzers.
The I9000 detects an abnormal situation with one of its
detection devices such as a HEDS IV, locates the alarm and
then sends that alarm signal to the Enterprise Buildings
Integrator™ (EBI). The EBI uses that signal to take the
necessary action. The I9000 can also activate a local alarm
output such as a siren, light, or buzzer when attached to the
system.
Intelliguard 9000

SECURITY SYSTEM

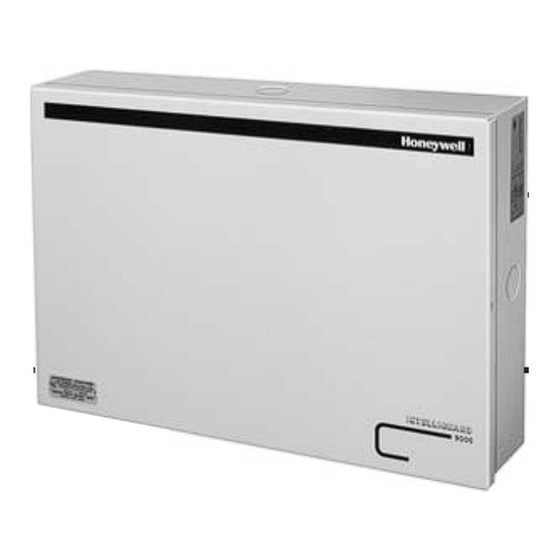

I9000 CONTROL UNIT
I9000 CONTROL UNIT
AND POWER SUPPLY
AND POWER SUPPLY
CONTROL
RS-485 TO
CENTER 2 KEYPAD
I9000 DEVICES
BIC-6
INPUT/OUTPUT MODULE
(BIC-2 HU).
The Multiple Output Module is currently not a CE
approved device. In countries requiring CE approval,
the installer should reconfigure one or more BIC-6
input/output devices as output devices.
™
SPECIFICATION DATA
M14456A
74-3035-2

Advertisement

loading

Related Manuals for Honeywell INTELLIGUARD 9000

Summary of Contents for Honeywell INTELLIGUARD 9000

  • Page 1: Security System

    • Multiple regulatory agency listings. • Meets High Security UL Grade AA requirements. APPLICATION The Intelliguard 9000™ (I9000) is a protection system designed to detect intrusions and other critical conditions when used with the Enterprise Buildings Integrator™ (EBI). The I9000 monitors multiple areas, receiving input and providing localized reporting and control.

  • Page 2: Specifications

    INTELLIGUARD 9000™ SECURITY SYSTEM All events are sorted by day and date and then recorded in an event log. The I9000 recognizes a maximum of 99 users, plus one reserved for service personnel, and five security levels with individual identification numbers (ID) and passwords.
  • Page 3 Enclosure: 0.06 in (1.52 mm) cold rolled steel. Dimensions: 14-7/16 in. (367 mm) wide x 10-5/16 in. (262 mm) high x 3-1/8 in. (79 mm) deep. Weight: 8.62 lb (3.91 kg). Approvals: UL, ULC, CE. INTELLIGUARD 9000™ SECURITY SYSTEM 74-3035—2...
  • Page 4 INTELLIGUARD 9000™ SECURITY SYSTEM Control Center 2 Keypads Each I9000 CU supports a maximum of four Control Center 2 (CC2) Keypads, two per communication channel maximum. Each CC2 displays current system status and allows local system control. The operator can perform all...
  • Page 5 Dimensions: 6-7/8 in. (174 mm) wide x 3-3/4 in. (94 mm) high x 1-1/4 in. (30 mm) deep. Weight: 0.62 lb (0.28 kg). Approvals: UL, ULC, CE. INTELLIGUARD 9000™ SECURITY SYSTEM BIC-2 Input Concentrator The BIC-2 supports a maximum of two input (detection) and one output, configured by the installer.
  • Page 6 INTELLIGUARD 9000™ SECURITY SYSTEM Communication: RS-485 receiving and transmitting signals. Enclosures: BIC-2 Input Module: Plastic polycarbonate. White with white actuators. BIC-2 HU Input Module: Plastic polycarbonate. White with red actuators. Dimensions: 5 in. (127 mm) wide x 1-3/4 in. (44 mm) high x 1 in.

  • Page 7: Multi-Drop Configurations

    — For further details on RS-485 line termination and biasing, refer to form no. 74-3047, Intelliguard 9000 Installation Instructions. Dimensions: 2-3/4 in. (70 mm) wide x 3-3/16 in. (81 mm) high x 1 in. (25 mm) deep.
  • Page 8 MS-DOS, Version 5.0 or higher, or Microsoft® Windows 95 in a DOS window, or Windows 2000 in a DOS full screen window. Refer to form no. 74-3046, Intelliguard 9000 Programmer’s Guide for more information. Automation and Control Solutions Honeywell International Inc.
