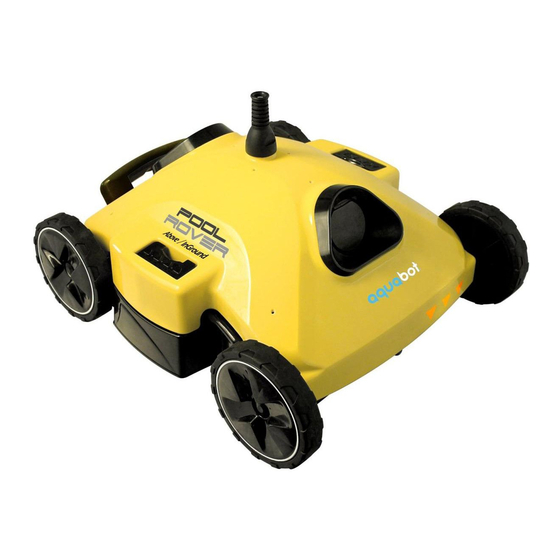

- Page 1 820406 Meijer.com POOL ROVER SERIES 2 ROBOTIC POOL CLEANER PRODUCT SETTINGS AND TROUBLESHOOTING GUIDE PLEASE READ CAREFULLY BEFORE USING YOUR POOL CLEANER Aqua Products, Inc 282 Grove Avenue Cedar Grove, NJ 07009 United States...
-
Page 2: Product Settings
product settings and troubleshooting Meijer.com WArnings WArning: Do not turn the Power Supply on, unless the pool cleaner is in the water. WArning: Do not operate your machine while people swim in the pool. WArning: The Power Supply must be placed at least 12 feet / 4 meters from the pool’s edge at all times! See diagram below. WArning: To prevent possible electric shock hazard this unit must be connected to an RCD (Residual Current Device) with a related residual operating current not exceeding 30mA. - Page 3 product settings and troubleshooting Meijer.com There are 2 possible configurations that the axle can be locked into. With the product settings cleaner flipped over and movable axle furthest away, the axle must always be set in front of the pin. See the diagram below. AXle And turning pins Your cleaner moves about your pool by way of 1 adjustable pin located on each end of the axle on the bottom side of the cleaner.
- Page 4 product settings and troubleshooting Meijer.com Top View of Inside the cleaner product settings re-instAlling Filter bAgs AFter cleAning After you have cleaned the filter bags of the collected debris, you’ll need to re-install them back into the cleaner. Make sure the elastic opening covers all the way over the opening and that the Velco®...
- Page 5 product settings and troubleshooting Meijer.com AdJusting the suction ports Your cleaner is equipped with two adjustable suction ports on the underside of the unit. Both can be lowered to maximize the suction strength for picking up smaller debris. The suction ports are set to the lowest position by default. Underside view of the cleaner showing To adjust the ports, turn the cleaner over and use a Phillips head screw driver location of adjustable suction ports...
- Page 6 product settings and troubleshooting Meijer.com WArnings WArning: Do not turn the Power Supply on, unless the pool cleaner is in the water. WArning: Do not operate your machine while people swim in the pool. / OFF WArning: The Power Supply must be placed at least 12 feet / 4 meters from the pool’s edge at all times! See diagram below.
- Page 7 Meijer.com...
- Page 8 Meijer.com Aqua Products, Inc 282 Grove Avenue Cedar Grove, NJ 07009 United States...
