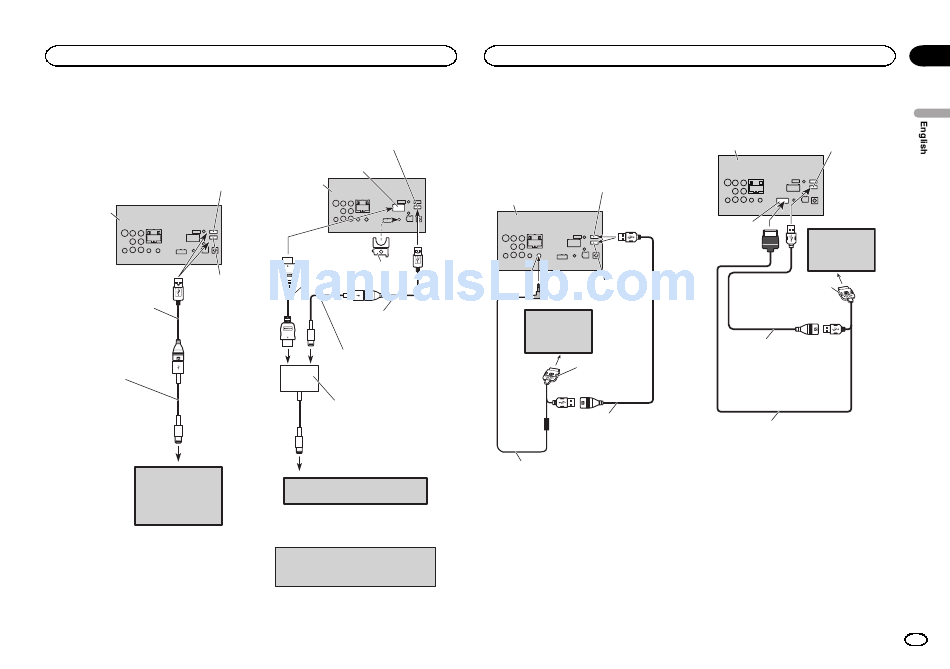

Connection

iPod with lightning connector

When connecting with
Lightning to USB Cable
USB/iPod input 2
Remove the cover before use.
refer to USB/iPod input 1 and USB/iPod input 2
This product
USB/iPod
USB cable
input 1
(Supplied with this unit)
Connect to separately sold
USB device.
Lightning to USB Cable
(Supplied with iPod/iPhone)
iPod with lightning
connector
(sold separately)
When connecting with optional
CD-IH202 cable
USB/iPod input 1
HDMI input
This product
High speed
HDMI ® cable (*1)
HDMI
(Type A - A)
cable
(sold separately)
holder
USB cable
(Supplied with this unit)
Connect to separately sold
USB device.
Lightning to USB Cable
(Supplied with iPod/iPhone)
Lightning Digital AV Adapter
(Apple Inc. products)
(sold separately)
iPod with lightning connector
(sold separately)
(*1)
For details of how to connect the separately
sold App Connectivity Kit (CD-IH202), refer to
the App Connectivity Kit manual.
Note:
· When you connect the High speed HDMI
cable, use the HDMI cable holder to fix it
securely.
Connection

iPod with 30-pin connector

When connecting with optional
CD-IU201V cable
USB/iPod input 2
Remove the cover before use.
refer to USB/iPod input 1 and USB/iPod input 2
This product
AUX input
USB/iPod input 1
(AUX)
iPod with video
capabilities
(sold separately)
Dock connector
1.5 m
USB cable
(Supplied with this unit)
Connect to separately sold
USB device.
Interface cable
(CD-IU201V) (sold separately)
When connecting with optional
CD-IU201S cable
This product
USB/iPod input 1
RGB input
iPod with video
capabilities
(sold separately)
Dock connector
1.5 m
USB cable
(Supplied with this unit)
Connect to separately sold
USB device.
Interface cable
(CD-IU201S) (sold separately)
