Quick Start Guide

Quick Start Guide – Remote Internet Monitoring
4 Channel DVR with 7" In-Dash LCD and 4 Color CCD Cameras
Model: QSDF8204C4
1 2

Set Up

Remote Internet Monitoring
AUTOMOBILE TV SYSTEM
VOL+ CH+ AV
TV
VOL- CH- CLOCK HOUR SET
OPEN VIDEO CD
3
Connect Enjoy
Power HDD Backup Net Play REC
1/ 2/abc 3/def 4/ghi 5/jkl PTZ/ /
Rec SEARCH PLAY REW FF STOP
MIN
6/mno 7/qrs 8/tuv 9/wxyz INFO/10+/ MENU/+ Focus Zoom Iris Speed A ESC
DVR with 7" In-Dash LCD, Pre-Installed Hard Drive
1
Set Up
A

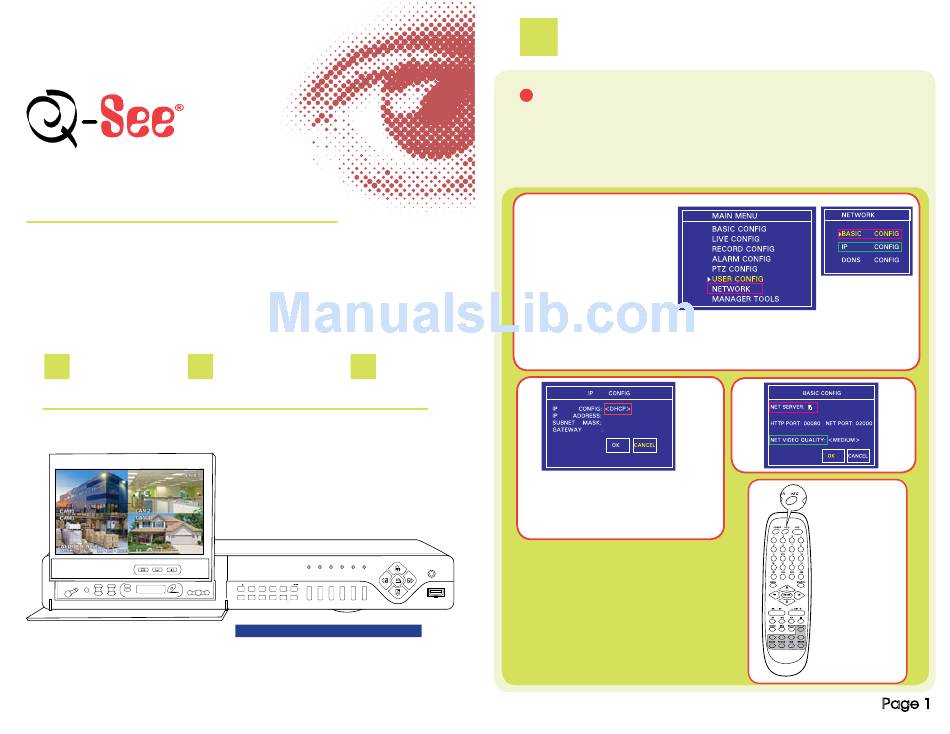

Remote Monitoring Set Up for DVR using DHCP to setup IP address

Accessing the DVR from a single router: To access the DVR from a computer that is
using the same router as the DVR, set up the network settings using either the DHCP
option or assigning a static IP address:
To Setup DHCP (Most common routers are DHCP)
1. To assign an IP address to
the DVR using DHCP, select
the Menu Key on the DVR to
access the Main Menu.
2. Use the DVR Direction Keys
to select the Network Option
(red box) and push Enter Key.
Select the IP Configuration
option (green box) and select
Enter.
3. Under IP Config:
select DHCP, select OK
and reboot the system for
settings to register.
Convert assigned DHCP IP address to
a Static IP Address: (Do this so your IP
address does not change.) Push the INFO
button on the remote or DVR front panel to
get the IP address information assigned by
the router. Then go back to the IP config
window change to static, and enter the IP
addresses from the info screen.
Push the
INFO
button on
the remote
control to
see the
newly
assigned IP
address.
Page 1
