BURY EasyTouch Manual

Hands-free car kit
Hide thumbs Also See for EasyTouch:
Table of Contents

Advertisement

Quick Links

BURY EasyTouch
Index
2
2
3
6
6
8
9
12
12
13
15
15
19
22
22
23
24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyTouch and is the answer not in the manual?

Questions and answers

Related Manuals for BURY EasyTouch

Summary of Contents for BURY EasyTouch

  • Page 1: Table Of Contents

    BURY EasyTouch Index Introductory information 1. General 2. Security guidelines Installation of the system 3. Scope of supply 4. Instructions on battery 5. Positioning and mounting First steps 6. Using the hands-free car kit for the first time 7. Establishing a Bluetooth connection Operating guidelines 8.

  • Page 2: Introductory Information

    Congratulations on purchasing a BURY hands-free car kit. You have chosen a high quality product that is extremely easy to use. Please read the operating manual carefully so that you can fully enjoy your BURY hands-free car kit. If you have any further questions concerning installation or operation of your car kit, please contact your dealer.

  • Page 3: Security Guidelines

    2. Security guidelines Installation - who and where The installation of this system can be carried out by yourself but please observe any installation requirements issued by the automotive manufacturer. During the installation, park the car at a place where the road traffic is not impaired. Power supply This hands-free car kit is designed for use in vehicles independent of the available power supply, whether 12 or 24 volts.
  • Page 4 Faults Do not commission the device if you detect or assume a defect. In this case, contact a Bury specialised dealer or our hotline. Improper repair efforts can be dangerous for you. Therefore, only skilled personnel may perform inspections.
  • Page 5 Important: The driver is ultimately responsible for the safe opera- tion and control of their vehicle at all times. You should never use a hand held phone, including sending or rea- ding text or picture messages, while driving. Research indicates that there is a risk to safety when the driver of a motor vehicle is distracted and using a mobile phone while driving can be a distraction.

  • Page 6: Installation Of The System

    Installation of the system 3. Scope of supply...

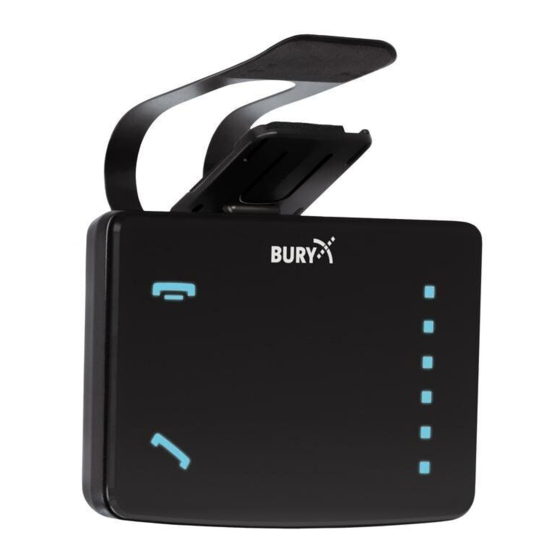

  • Page 7 The BURY EasyTouch hands-free car kit has touch keys, an integrated battery, an on-off switch on the right side, a mini USB port on the right side, a locking device for the sun visor clip and an...

  • Page 8: Instructions On Battery

    Installation of the system 4. Instructions on battery The hands-free car kit (HFCK) has an integrated rechargeable battery which remains activated for approx. 350 hours when fully loaded. The battery guarantees up to 7 hours of hands-free talking without the need for recharging. These values may differ depending on the settings and the use of the hands-free car kit.

  • Page 9: Positioning And Mounting

    5. Positioning and mounting Mounting on the sun visor Depending on how you would like to attach the HFCK to the sun visor in the vehicle, you must slide the sun visor clip onto the locking device on either side. Press the fastener on the locking device to completely slide in the sun visor clip.
  • Page 10 Installation of the system Variant B: Push the sun visor clip downwards and towards you onto the sun visor. Pulling out the microphone Now pull out the integrated microphone from the hands-free car kit for optimal speech input.
  • Page 11 Opening and shutting the sun visor Note: Flipping down the sun visor does not effect the function of the HFCK. The sun visor can sometimes not be fully opened. Depending on the type / thickness of the sun visor, you should try both installation types once. Check whether the system can be used comfortably and that it does not restrict your view of the road.

  • Page 12: First Steps

    First steps Power supply Connect the BURY EasyTouch via the USB cable to the cigarette lighter plug and plug this into the corresponding connection inside the car. Charging the BURY EasyTouch battery Option 1: Charge the BURY EasyTouch battery via the USB cable and the cigarette lighter plug inside the car.

  • Page 13: Establishing A Bluetooth Connection

    Bluetooth function of your mobile phone and search for Bluetooth devices. In this case, search for a device labelled „BURY EasyTouch“.If several devices were identi- fied, please select the HFCK and enter the PIN number „1234“. The Bluetooth connection (pai- ring) will then be established between your mobile phone and the HFCK.
  • Page 14 HFCK. If you return to your vehicle within 15 minutes, your telephone will be automatically reconnected to BURY EasyTouch. Please note that the capacity of your mobile phone‘s storage battery can quickly decrease when the Bluetooth function is active.

  • Page 15: Operating Guidelines

    Operating guidelines 8. Accepting, making, ending calls The BURY EasyTouch is operated using the key buttons on the device. The function of the buttons can vary according to the menu item. Note: Please comply with the country-specific laws concer- ning in-car telephone calls.
  • Page 16 This varies depending on your mobile phone but is usually a Pacman. Option 2: Reading out the phonetics For some mobile phones, you can open up the mobile phone directory by pressing down the BURY EasyTouch call button. The device says: Enter voicetag. The voicetag you enter (contact name) is compared with the contacts saved in the mobile phone directory using phonetic technology and selected if there is a match.
  • Page 17 In the event of incoming and outgoing calls, the music play back will be automatically interrupted. If you press the call button on the BURY EasyTouch, the device says: Enter voicetag. Some smartphones may then release a signal sound after one to three seconds. Only then can you enter the...
  • Page 18 (for two seconds). The device says: Redial. If you announce a non-saved voicetag then the device says: Voicetag is not available. BURY EasyTouch returns to standby mode. Briefly press down on the end call button to end the voicetag func- tion, the active call or the redialling.

  • Page 19: Other Operating Options

    9. Other operating options Connecting a telephone At least one telephone is listed in the BURY EasyTouch telephone list. Automatic connection is on and the last connected telephone is searched for three times, each attempt lasts 5 seconds. If this telephone is not found, the next telephone in the list is searched for (for 5 seconds).
  • Page 20 Hold down (for three seconds) the end call button to disconnect the telephone. The device says: No phone connected. Standby mode After 30 seconds the BURY EasyTouch light goes off. Press down on the aim point, to return to active status.
  • Page 21 Hold down the end call button (for five seconds) to load the factory settings. The device then turns itself off. Turning off BURY EasyTouch The device turns itself off after thirty minutes if no telephone is connected. If you would like to switch the device off beforehand,...

  • Page 22: Further Information

    In case of general or technical queries, suggestions and comments, please do not hesitate to contact our team at any time. Suggestions and feedback are always welcomed: Administration: Producer: BURY GmbH & Co. KG BURY Spółka z o.o. Robert-Koch-Straße 1-7 ul. Wojska Polskiego 4 D-32584 Löhne...

  • Page 23: Appropriate Use Of This System

    BURY GmbH & Co. KG Im Hause DPD Depot 103 Robinienweg D-03222 Lübbenau GERMANY Information on the disposal of electrical goods in the EU The crossed out wheelie bin symbol means that electrical and electronic products, batteries and accumulators must be disposed of separately in the European Union. Please do not dispose of any such products in your normal household waste.

  • Page 24: Approvals And Declaration Of Conformity

    Further Information 12. Approvals and declaration of conformity Purchase and production as well as service and sales at BURY are subject to tough quality and envi- ronmental management conditions according to ISO 9001 and ISO 14001. The system has the CE approval pursuant to the R&TTE 1999/5/EC regulation The hands-free device cigarette lighter plug has e1 type approval pursuant to guideline 2009/19/EC „Electromagnetic compatibility in vehicles“...
