PLEASE READ AND SAVE
ALL INSTRUCTIONS!
LISEZ ET CONSERVEZ
TOUTES LES INSTRUCTIONS!
¡POR FAVOR LEA Y
GUARDE TODAS
LAS INSTRUCCIONES!
Service Questions: Contact Air-O-Swiss at (800) 336-0326
Service Questions: Contact Air-O-Swiss at (800) 336-0326
Sales Inquiries: Contact Sylvane at (800) 934-9194 or visit sylvane.com
Sales Inquiries: Contact Sylvane at (800) 934-9194 or visit sylvane.com

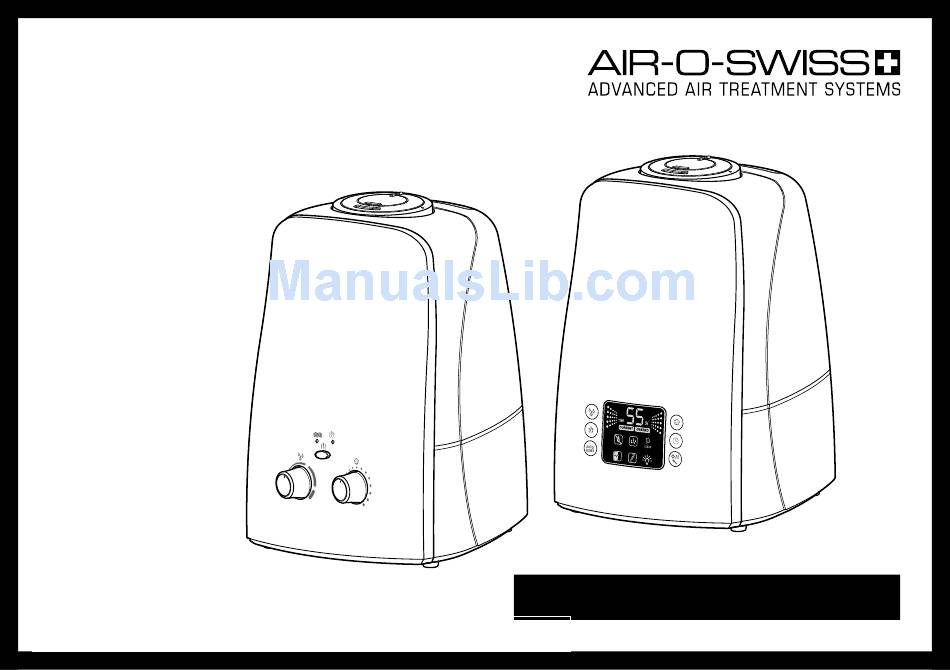

AOS U600 / U650
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Air-O-Swiss U600
Summary of Contents for Air-O-Swiss U600
- Page 1 ¡POR FAVOR LEA Y GUARDE TODAS LAS INSTRUCCIONES! AOS U600 / U650 Service Questions: Contact Air-O-Swiss at (800) 336-0326 Service Questions: Contact Air-O-Swiss at (800) 336-0326 Sales Inquiries: Contact Sylvane at (800) 934-9194 or visit sylvane.com Sales Inquiries: Contact Sylvane at (800) 934-9194 or visit sylvane.com...
-
Page 3: Instructions D'utilisation
Instructions for use (5 – 22) Instructions d’utilisation (23 – 40) Instrucciones para el uso (41 – 57) - Page 5 Instructions for use...
-
Page 6: Important Safety Instructions
PLEASE READ AND SAVE ALL THESE INSTRUCTIONS! Important safety instructions • Do not touch the water in the base during operation • To protect health safety and proper humidifier function • Prior to using the appliance, read through the because of high frequency vibrations in the water. use only clean, contamination-free, cold, fresh tap wa- in s tructions for complete use and retain in a safe • Do not run power cords under carpets, and do not ter in your humidifier. If your water source is contam- place for later reference. cover with throw rugs. Arrange cord so that it will not inated or if you are uncertain of its safety use distilled • WARNING – Only use the Ultrasonic indoors and within be tripped over. water. In addition, it is advised to clean and maintain the specified technical data. Improper use can be • Never pull the plug from the outlet by the cable or with your humidifier in a timely manner as instructed in this manual. -
Page 8: General Information
Foreword Unpacking Congratulations on choosing the Ultrasonic Humidifier • Carefully remove the humidifier from the box. Place AOS U600 / U650 from AIR-O-SWISS! your hands underneath the product to pull it out of the box (10). Did you know that dry room air: • Warning: Do not take the unit out of the box by pulling • Causes the membranes in your respiratory system to up on the tank handle - base may fall and will be dry out, and also causes chapped lips and stinging damaged (11). eyes? • Remove the plastic bag from the humidifier. • Encourages infections and illnesses of respiratory • Observe the information given on the rating plate about system? the voltage. • Causes weariness, tiredness and poor concentration? • Use the original packaging for storing the appliance if • Stresses household pets and house plants? you do not use the humidifier all year round. • Encourages the formation of dust and the electrostatic charging of textiles made of synthetic fibers, carpets and plastic flooring? • Damages furnishings made of wood and parquet? • Detunes musical instruments? -
Page 9: Description Of The Appliance
Description of the appliance Mist outlet (rotating) Water tank Evaporation chamber Brush Demineralization cartridge Hydro Stick Water tank cap Water Level Sensor Membrane Nebulizer space Control panel Power Plug Main body... - Page 10 Setting up • On average the demineralization cartridge should be Finding the ideal location for your unit: replaced every 2 – 3 months depending on your water • Do not place the humidifier directly next to a heating hardness. Some areas may need to replace the vent or on a floor with floor heating. The moisture of cartridge sooner, some may last longer. The cartridge the mist can damage the floor surface (6) (see Safety must be exchanged at the latest after 6 months or the Instructions). unit does not reach its full performance anymore. • The unit should be placed in an elevated position (7), See «Replacement of the demineralization cartridge». e.g. on a table, chest, etc. at least 3 ft off the floor. • Read the instructions under «Filling the Tank» for • The mist outlet must not be pointed directly at adding water in the humidifier (14 and 15). plants, furniture, or other objects (12). Keep distance of • Place the water tank onto the base. at least 20 inches (50cm). • Insert the plug into the socket and switch on the • Soak the demineralization cartridge in a water bath appliance using the on/off dial (18 and 19). 24 hours before using it (13). The granules have to • About 10 to 15 minutes after it is switched on the absorb water to reach maximum performance. If the device will reach its full output level. cartridge is soaked in the tank, make sure to exchange • Make sure that the cable is not pinched anywhere (9). the water and empty the water from the base before Do not operate the humidifier if the cable is damaged using the humidifier.
-
Page 11: Filling The Tank
Filling the tank Always unplug the unit before removing the water tank. Do not touch the water in the base during operation! To protect health safety and proper humidi- fier function use only clean, contamination-free, cold, fresh tap water in your humidifier. If your water source is contaminated or if you are uncertain of its safety use distilled water. Do not operate the humidifier when the water tank is empty! When the water reaches the minimum level, the unit switches off the nebulizer function automatically. The empty indicator light comes on showing tank is empty. - Page 12 Operation AOS U600 C) Operation with pre-heating (warm mist) Button C is used for switching the pre-heating on and off (symbol D lights up). As a result, the water is pre-heated to a temperature of 176 °F (80 °C) before entering the nebulizer space. It takes approx. 10 to 15 minutes for the water in the base to warm up. The mist now leaves the humidifier at a pleasant temperature of 104 °F (40 °C). The advantage of this is that the room temperature does not drop and, in addition, it significantly improves the water quality maintenance. D) Pre-heating indicator (On/Off) E) Empty indicator (red) The water level is easy to see, thanks to the transparent water tank. The appliance also alerts you when the wa- A) On/Off Dial and regulation of mist output ter tank is empty. The red empty indicator is illuminated...
- Page 13 Operation AOS U650 C) Timer G) Timer Indicator Using button C, the operation time can be set adjustable H) Mist Output Indicator between 1 and 8 hours or CO (continuous operation). Symbol G shows the operating period that has been set I) Pre-heating Indicator (1h/2h/3h/4h/5h/6h/7h/8h/CO). The display will automat- ically show the current humidity after a few seconds. J) Automatic Mode Indicator D) Mist output (regulating mist output) TIME K) Sleep Mode Indicator By repeatedly pressing button D you can control the mist...
-
Page 14: Cleaning & Maintenance
Cleaning/Maintenance Always unplug the unit before removing the water tank. Do not touch the water in the base during operation! Caution – risk of electric shock and damage of the product! • Switch off the appliance (20) and unplug it from the socket before cleaning it (21). • Clean the water tank and the base regularly. Use water only, no detergents (22). • Use AIR-O-SWISS EZCal custom cleaning and descaling agent only to remove deposits from the membrane regularly (23). There is a sample of EZCal included in the packaging of your humidifier. Instructions for using are on the packet. Only use 1 packet for 32 oz of water. Do not change the ratio. Do NOT run the unit when using EZCal. This can cause damage to the product and voids the warranty. Thoroughly rinse the base with tap water after using EZCal and make sure no EZCal residues remain in the base. EZCal from AIR-O-SWISS is the only recommen- ded cleaning and descaling solution. Do NOT use any other cleaning solutions since it can damage the product. Any use of cleaning solutions apart... - Page 15 • To remove the mist outlet (27): Twist the tabs on the ed (29). mist outlet to either the right or the left. Align the tabs and arrow on the mist outlet with the arrows on the ring around the mist outlet. Pull up on the mist outlet once the arrows are aligned. Water quality maintenance The AIR-O-SWISS Hydro Stick 7017 keeps AIR-O-SWISS humidifiers operating at their highest level between rec- ommended cleanings*. Good for one year, the Hydro Stick ensures the humidifier’s functionality while providing fresh humidification performance. It starts to work as soon as it comes in to contact with water, even if the unit is turned off. The Hydro Stick should be changed every year. Look at picture 28 for the posi-...
- Page 16 Replacement of the demineralization • Turn the plastic cup and cartridge over and shake until cartridge all granules are in the cartridge (37). Always unplug the unit before removing the • Remove the plastic cup and the pink styrofoam piece water tank. Do not touch the water in the base from the cartridge (38) and retain for future use (the during operation! refill granules consists of 3 refill bags) (39). • Close the cartridge (40). The water tank is equipped with a demineralization cart- • Soak the demineralization cartridge in a water bath ridge. This cartridge has to be replaced every 2 – 3 months. 24 hours before using it (43). The granules have to If the water is very hard, it may be necessary to replace the absorb water to reach maximum performance. If the cartridge earlier. White dust around the device is a sure sign cartridge is soaked in the tank, make sure to exchange that the cartridge needs replacing. If white residue still forms the water and empty the water from the base before around the device after a new cartridge has been inserted,...
-
Page 18: Legal Notice
Storing the appliance for extended periods Technical data Clean the appliance as described earlier and allow to dry thoroughly. Preferably store the appliance in its original box, Electrical voltage 120 V / 60 Hz in a dry place away from high temperatures. Power consumption up to 40 W / (125 W*) Legal notice Humidity output up to 3.5 gallons / 24 h* The humidifier is cUL-listed. Suitable for rooms up to 650 sq ft / 60 m Subject to technical change. The instructions for use are Dimensions (LxWxH) 11 x 9.5 x 14 in protected by copyright © PLASTON AG. 28 x 24 x 35.5 cm Accessories Weight (empty) 8.8 lbs / 4 kg Contact your local retailer or check our website Accessories AOS 7531 Demineralization cartridge www.airoswiss.net for reorder information. - Page 19 General Humidifier Questions Q. Why do I need a humidifier when I can just open Q. There is no fill-line on the water tank, how far my window? may I fill it up? Q. Why isn’t there enough moisture in my room? A. The moisture level within the outside air is not high A. There is no fill line on the water tank, and it may be A. How often do you run the unit? If the unit is only run at enough to humidify a room. The colder the air the less...
- Page 20 placed at least 3 feet off the floor, the mist will have the Q. R eset cleaning light (digital models) Q. Tank is leaking opportunity to evaporate before hitting the floor. A. The cleaning light does not automatically reset. Hold A. Check if there are any hairline cracks. Dropped units or down the power button (button A in instruction manual) water tanks that are cracked will not be covered under Q. Water does not go into the tank. until the light stops flashing. The light automatically the warranty. Please contact the retailer the unit was A. In order to fill the tank, it must be turned upside down. comes on approx. after 14 days of plugging in the unit. purchased from in case your unit arrives damaged. The cartridge is placed on the water tank cap. Do not pour water in the tube which is the mist outlet. Q. The hygrometer on unit reads a different humidity Q. Placing the face in the mist level than external hygrometer.
- Page 21 A. How long has it been since the contents of the cart- one year. ridge were replaced? If 2-3 months have passed, it is time to replace the contents of the cartridge. However Q. W hat is EZCal? the demineralization cartridge and or the granules A. There is a sample packet of EZCal included in the must be exchanged at the latest after 6 months or the packaging of your humidifier. EZCal is used for cleaning unit does not reach its full performance anymore. and descaling any of the AIR-O-SWISS humidifiers and • If the contents of the cartridge were just replaced there cleans mineral build-up. EZCal is the only recommen- are probably too many granules in the cartridge. Re- ded cleaning and descaling solution. Do NOT use any move 2 tablespoons of granules from the cartridge. other cleaning solutions since it can damage the product. Any use of cleaning solutions apart from EZCal Accessories will void the warranty. Instructions for using are on the packet. Only use 1 packet for 32oz of water. Do not Q. Do I need to keep any parts before I replace the change the ratio. It can also be used for other humidi-...
- Page 24 Please check our website www.airoswiss.net for further information. AIR-O-SWISS is a registered trademark of PLASTON Group, Switzerland Service Questions: Contact Air-O-Swiss at (800) 336-0326 Sales Inquiries: Contact Sylvane at (800) 934-9194 or visit sylvane.com...
