USER'S GUIDE
Mark 5 Nuvo
M5C5

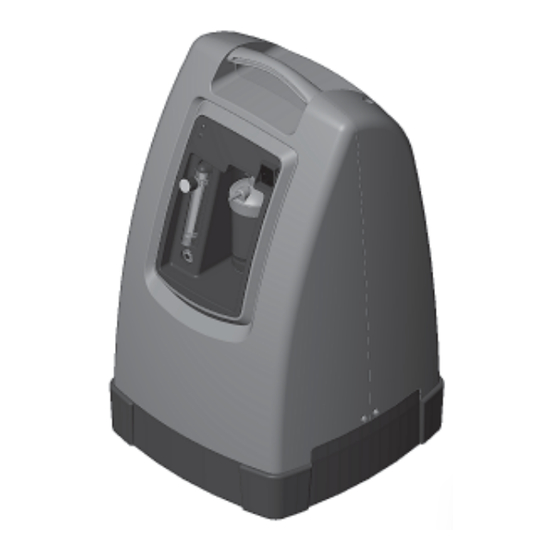

OXYGEN CONCENTRATOR

[Original language is English]
Federal Law (US) restricts this device to
sale by, or on the order of, a licensed
physician. This oxygen concentrator
should be used only under the supervi-
sion of a licensed physician.
GLOSSARY OF SYMBOLS ....................................... 1
GENERAL SAFETY GUIDELINES ......................... 2
I. DESCRIPTION ........................................................ 2
I.1.Front panel (Fig. I. 1) ............................................... 3
I.2.Rear panel (Fig. I. 2) ................................................... 3
II. STARTING-UP / INSTALLATION .................... 3
II.1.Use in direct oxygen therapy ..................................... 3
III.CLEANING-MAINTENANCE ........................... 4
III.1.Cleaning ....................................................................4
III.2.Everyday disinfection .................................................. 4
III.3.Maintenance .............................................................4
: ON (power switched on)
: Off (power switched off)
: Type B device
: Class II protection
: Do not expose to open flames
[ code
2010-2224CE Rev C ]
(OCSI)
CONTENTS
IV.USEFUL INFORMATION ..................................... 4
IV.1. Accessories and spare parts ..................................... 4
IV.3. Operating principles .................................................. 5
IV.4. Alarms - Safety devices ........................................... 5
IV.5. Oxygen Monitor (OCSI) function ............................. 5
IV.6. Technical characteristics .......................................... 5
IV.7. Standards .................................................................. 6
IV.8. Method for disposing of waste ................................. 6
IV.9. Method for disposing of device ................................. 6
IV.10.Troubleshooting ........................................................ 7

GLOSSARY OF SYMBOLS

Nov 2004
0413: Complies with the 93/42/ EEC directive
certified by the approved organization no 0413.
Danger: Do not smoke when using oxygen or
when near this device.
: Do not use oil or grease
: Technical information
: Consult the accompanying documents
: Keep in the vertical position
: Fragile - handle with care
: Oxygen concentration warning light
1
