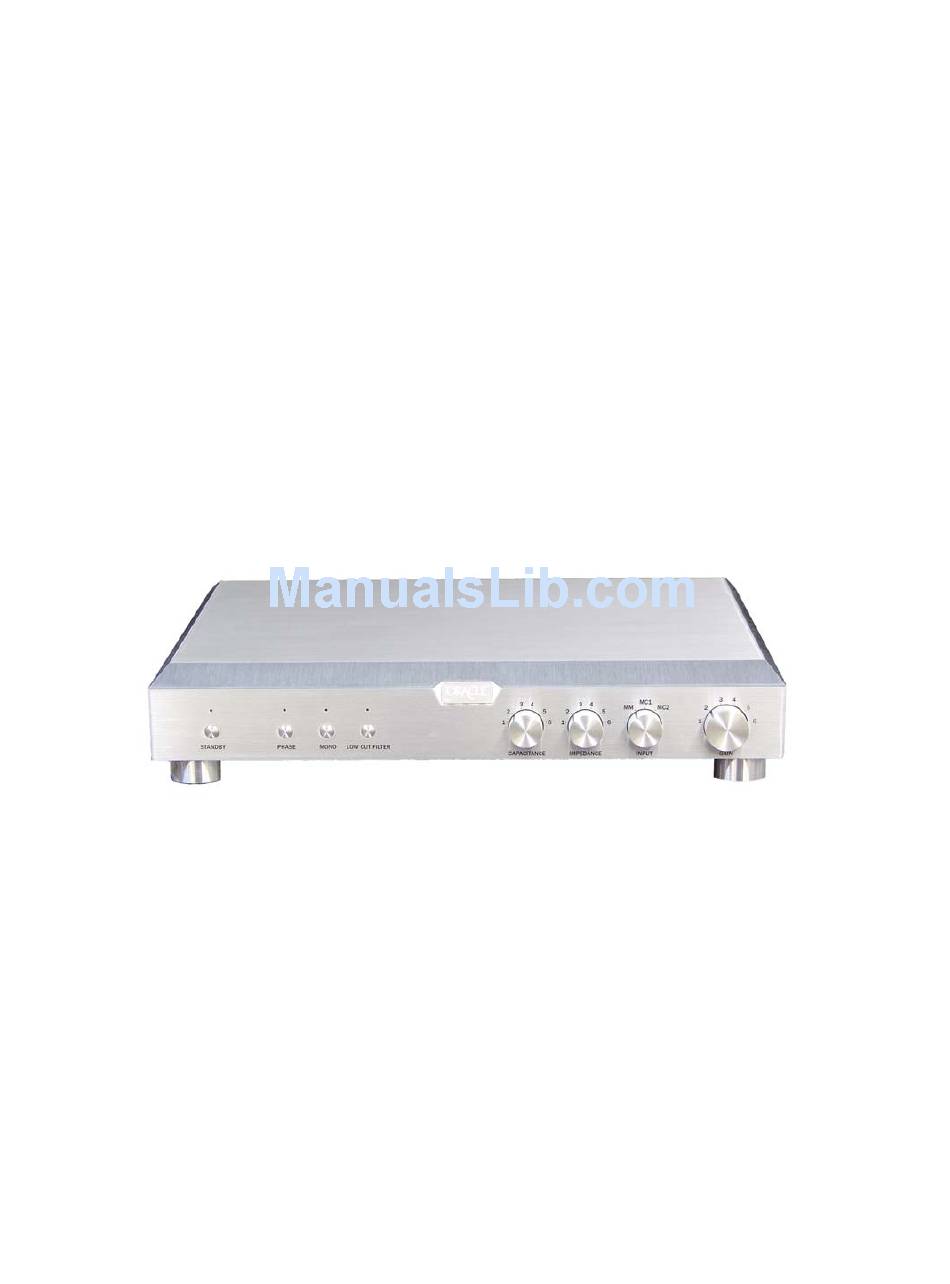

  • Page 1 ORACLE AUDIO “ TEMPLE “ PHONO STAGE Oracle Audio Technologies OWNER’S MANUAL...
  • Page 2 When we produced our first turntable back 1979, it was a solid success, combining technical innovation, top quality engineering and dazzling styling…. Today, we expand our analog line to include the Oracle Temple PH 1000 phono stage…another fabulous piece of engineering, designed by Oracle Audio.
  • Page 3 Outputs: 1 pair / RCA unbalanced, 1 pair / XLR balanced 2) Switch-selectable gain setting The Oracle Temple PH 1000 phono stage is equipped with 6 different stages gain setting, by using this knob you will be able to meet many cartridges specifications.
  • Page 4 8). Ultra-high Grade components All the components used in the Oracle Temple PH 1000 phono stage are ultra-high grade. These components are used for Higher Signal to Noise ratio and for a better musicality.
  • Page 5 9). Gain Setting Cartridge impedance and capacitance loading Gain Setting The Oracle Temple phono stage gain setting rotary switch will affect the MM and MC inputs. You can choose 6 steps of gain setting from 40 dB to 60 dB Standard 47 K Ohms MM cartridge load setting Standard 47 K Ohms impedance MM cartridge through the MM input RCA is connected internally 47 K Ohms fixed, in this case the input impedance rotary...

  • Page 6: Low Cut Filter

    STANDBY: You will notice the main power switch on the separate power supply box, when the green LED is OFF it will light indicate “STANDBY”. Whenever you push the button, the indication light turns ON and OFF to show the system status. PHASE The “ON”...
  • Page 7 IMPEDANCE The 6 steps indicate terminating (loading) the cartridge. MM input is terminating with 47 K Ohms fixed. This selection rotary switch doesn’t affect MM input. Only for MC1 and MC 2 inputs: 1: 25 2: 50 3: 100 4: 200 5: 330 6: 470 Ohms INPUT...

  • Page 8: Main Output

    Phono unbalanced RCA inputs from your turntable MAIN OUTPUT These outputs are to be connected to your preamplifier or integrated amplifier. The Oracle Temple PH 1000 phono stage is working unbalanced and balanced at the same time. DC POWER 9 DIN D-Sub connector is used in the power supply box...

  • Page 9: Specifications

    SPECIFICATIONS INPUTS: RCA 1 Pair MC1, MC2 RCA 2 Pair INPUT IMPEDANCE: MM: 47 K Ohms fixed MC1, MC2: 25, 50, 100, 200, 330, 470 Ohm Rotary switch selectable INPUT CAPACITANCE: 0, 33, 100, 220, 470, 1000 PF Rotary switch selectable OUTPUTS: 1 Pair RCA Unbalanced, 1 Pair XLR Balanced OUTPUT IMPEDANCE: 560 Ohms...
  • Page 10 Any service work or modification must be carried by an authorized Oracle Audio Service Center. Contact your local dealer or distributor. Only Oracle Temple PH 1000 phono stage purchased from an authorized Oracle Audio dealer will have service work covered under this warranty.
