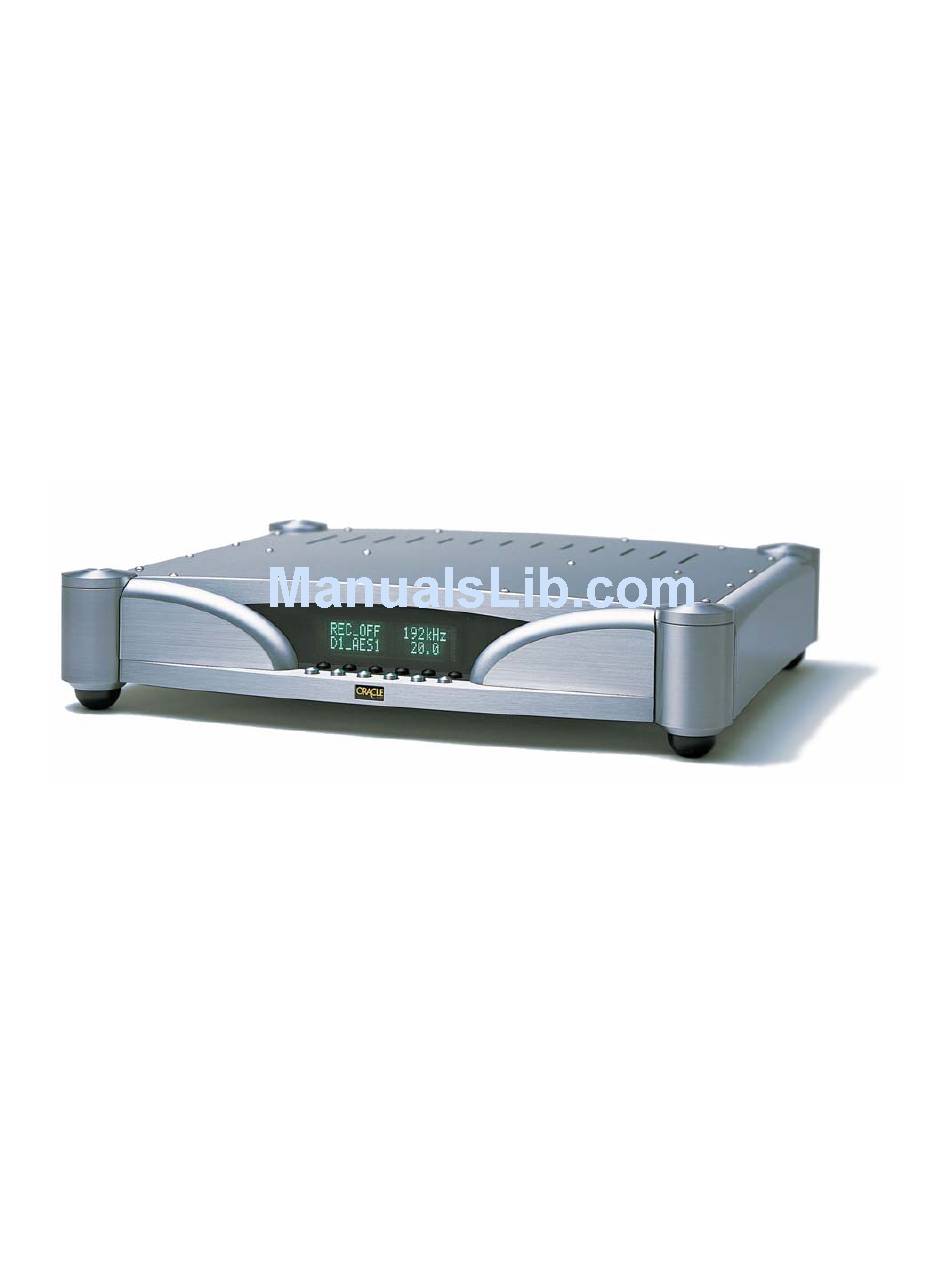

- Page 1 Oracle DAC 1000 D/A Converter + Pre-amplifier ORACLE AUDIO TECHNOLOGIES OWNER'S MANUAL...
- Page 2 2) Up to 192kHz, 24Bit Upsampling Digital to Analog Converter 3) Upsampled Recording Digital Output The Oracle DAC 1000 is designed to support various digital and analog sources like 6 Digital inputs and 2 Analog inputs. The exceptional technology combination between the pre-amplifier and the D/A converter sends the appropriate signals to the rest of your audio system leading you to experience enlightening musical emotions.
- Page 3 To reduce the risk of fire or electrical shock, do not put the DAC 1000 in water, humidity or near a heat source. Do not remove the top cover , since they are not serviceable parts.
- Page 4 High quality Digital volume control and dual monaural design provide excellent separation with pin-point imaging. Should you want to use DAC 1000 as a pure D to A Converter with a fixed output, a switch on the rear panel makes this change possible by selecting ‘fixed’ mode instead of normal ‘variable’ mode.
- Page 5 3. Upsampled (24Bit/96kHz) Digital Recording Output The DAC 1000 is equipped with 4 digital outputs for direct digital recording. You can easily make high quality recordings of your favorite digital sources by connecting the cable between DAC 1000 and your digital recorder.
-
Page 6: Input/Output Ports
1. Connection of DAC 1000 D/A converter + pre-amplifier On the rear of DAC 1000, there are 2 Analog Outputs (1 Balanced, 1 Unbalanced) , 2 Analog Inputs (1 Balanced, 1 Unbalanced), 6 Digital Inputs and 4 Digital Outputs and the analog ‘Surround’ input. - Page 7 4) Digital Output The DAC 1000 routes digital input signals to its 4 digital outputs. You can designate the specific input to be routed on 4 digital output ports by pressing ‘RECORD’ button either from the remote or from the front panel.
-
Page 8: Operation
(fig. 2 Front Buttons) (fig. 3 Front Display) STANDBY The main power switch is located on the back side. Once the main power switch is on, the display shows “ORACLE AUDIO DAC 1000” and changes to a normal display mode as follows:... -
Page 9: Fixed Mode
When you are away from home and the DAC 1000 is not in use for a long time, turn the main power ‘off’. In normal use, use the “Standby” switch to activate and deactivate the system. If you have a 12V trigger cable connected to your power amplifier, a push of ‘Standby’... -
Page 10: Bypass Mode
UPSAMPLING Upsampling of the digital signal makes a very delicate sound change. DAC 1000 enables the user to choose one from 4 different sampling rates. They are Bypass, 48kHz, 96kHz, and 192kHz. Bypass means sampling rate is just passed through as it is. -
Page 11: Remote Control Handset
2. Remote Control (fig. 2 Remote Control) 2.1. REMOTE CONTROL HANDSET The remote control handset of your Oracle Dac 1000 can control the Oracle CD 1000 or other cd player model, by using the code RC-5. 2.2 BATTERY INSTALLATION PROCEDURE Remove the back cover on the remote control handset. -
Page 12: Warranty
Oracle Audio Technologies carries a 3 year warranty on new products. Always contact your authorized Oracle Audio dealer for service. The Oracle Dac 1000 must not have been modified in any circumstances or the warranty will be voided. ORACLE AUDIO TECHNOLOGIES Made in Canada www.oracle-audio.com...
