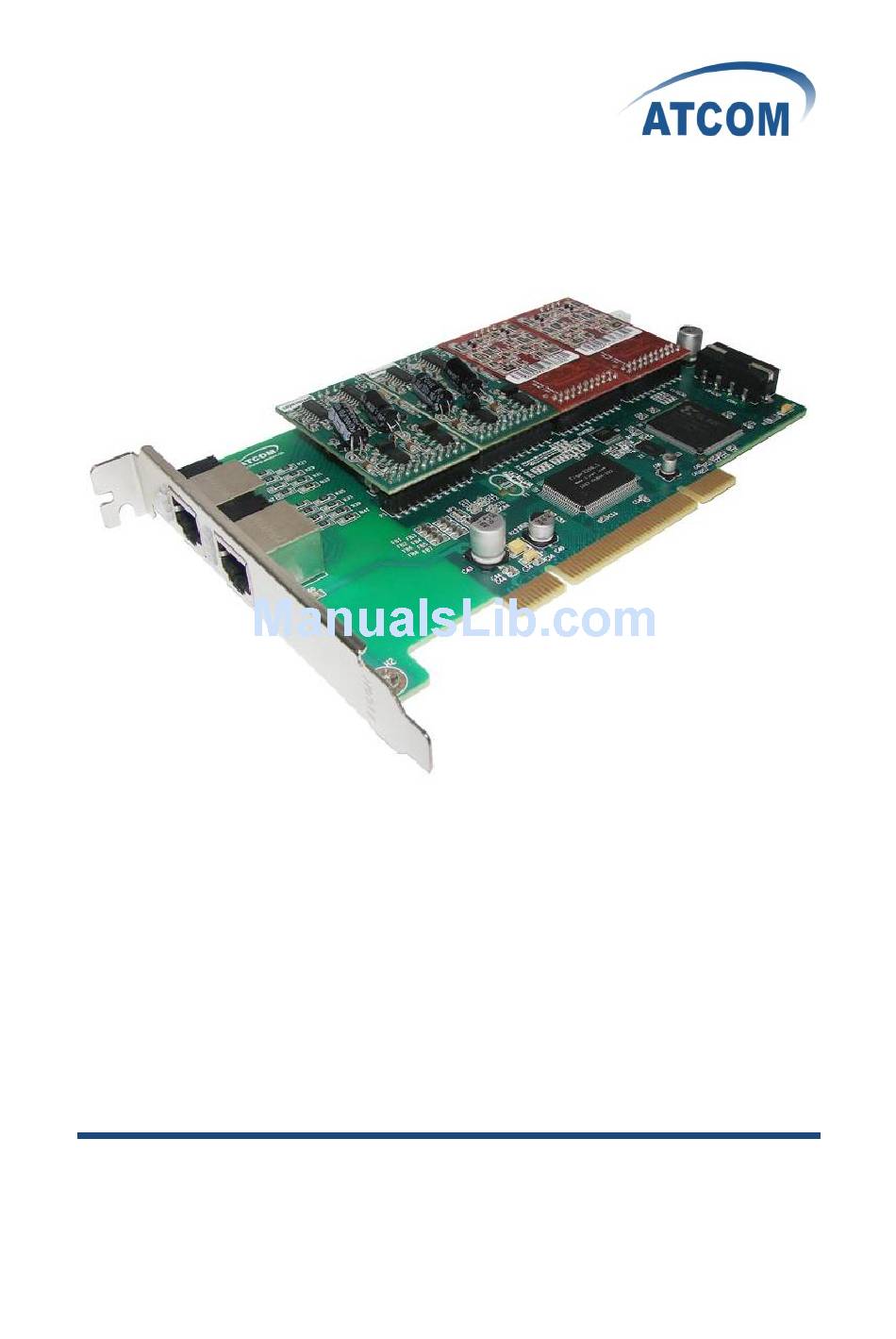

- Page 1 AX800P+2*AX210S+2*AX210X ® ATCOM Analog Card AX800P/AXE800P Product Guide Version: 1.0 2011-06-15...
-
Page 2: Table Of Contents
Content CONTACT ATCOM ..........................2 CHAPTER 1 THE INTRODUCTION OF AX-800P ..................3 CHAPTER 2 HARDWARE INTRODUCTION .................... 4 CHAPTER 3 SOFTWARE INSTALLATION....................7 CHAPTER 4 SOFTWARE CONFIGURATION ................... 9 CHAPTER 5 REFERENCE ........................14 www.atcom.cn... -
Page 3: Contact Atcom
Contact ATCOM The Introduction of ATCOM Founded in 1998, ATCOM technology has been always endeavoring in the R&D and manufacturing of the internet communication terminals. The product line of ATCOM includes IP Phone, IP PBX, VoIP gateway and Asterisk Card. -
Page 4: Chapter 1 The Introduction Of Ax800P
Chapter 1 the Introduction of AX800P Overview of the AX800P/AXE800P AX800P Asterisk card is the telephony PCI/PCI-E card that supports up to eight FXO and FXS ports. Using AX800P analog card, open source Asterisk PBX and stand alone PC, users can create their SOHO telephony solution which include all the sophisticated features of traditional PBX, and extend features such as voicemail in IP PBX. -
Page 5: Chapter 2 Hardware Introduction
One AX-210S module supports two FXS ports, one AX-210X module supports two FXO ports, One AX-210XS module supports one FXS port and one FXO port. AX800P+2*AX210S+2*AX210X Port 1 and port 2 are RJ45 interfaces, the port is connected to a splitter, the splitter supports one RJ45 port and 4 RJ11 ports. - Page 6 AXE800P AX-210S AX-210XS AX-210X www.atcom.cn...
- Page 7 SP400 www.atcom.cn...
-
Page 8: Chapter 3 Software Installation
Install asterisk,dahdi-linux and dahdi-tools Install dahdi-linux and Rectify wctdm.c [root@localhost src]# tar -xvzf dahdi-linux-2.2.0.2.tar.gz [root@localhost src]# cd dahdi-linux-2.2.0.2/drivers/dahdi/ rm –rf wctdm.c wget http://www.atcom.cn/downloads/TelephonyCard/drivers/AX-1600P/wctdm.c.v1.6 mv wctdm.c.v1.6 wctdm.c [root@localhost src]# cd dahdi-linux-2.2.0.2 [root@localhost dahdi-linux-2.2.0.2]# make [root@localhost dahdi-linux-2.2.0.2]# make install www.atcom.cn... - Page 9 4) [root@localhost dahdi-tools-2.2.0]# make 5) [root@localhost dahdi-tools-2.2.0]# make install Install asterisk 1) [root@localhost src]# tar -xvzf asterisk-1.6.1.12.tar.gz 2) [root@localhost src]# cd asterisk-1.6.1.12 3) [root@localhost asterisk-1.6.1.12]# ./configure 4) [root@localhost asterisk-1.6.1.12]# make 5) [root@localhost asterisk-1.6.1.12]# make install 6) [root@localhost asterisk-1.6.1.12]# make samples www.atcom.cn...
-
Page 10: Chapter 4 Software Configuration
# Span 1: WCTDM/16 "Wildcard TDM400P REV E/F Board 17" (MASTER) fxsks=1 echocanceller=mg2,1 fxsks=2 echocanceller=mg2,2 fxsks=3 echocanceller=mg2,3 fxsks=4 echocanceller=mg2,4 fxsks=5 echocanceller=mg2,5 fxsks=6 echocanceller=mg2,6 fxsks=7 echocanceller=mg2,7 fxsks=8 # Global data loadzone = us (According to your country) defaultzone = us (According to your country) ---------------------------------------------------------------------------------------------------------------- www.atcom.cn... -
Page 11: Fxsks
=> 2 callerid= group= context=default ;;; line="3 WCTDM/16/2 FXSKS" signalling=fxs_ks callerid=asreceived group=0 context=from-pstn channel => 3 callerid= group= context=default ;;; line="4 WCTDM/16/3 FXSKS" signalling=fxs_ks callerid=asreceived group=0 context=from-pstn channel => 4 callerid= group= context=default ;;; line="5 WCTDM/16/4 FXSKS" signalling=fxs_ks www.atcom.cn... -
Page 12: Fxsks
=> 6 callerid= group= context=default ;;; line="7 WCTDM/16/6 FXSKS" signalling=fxs_ks callerid=asreceived group=0 context=from-pstn channel => 7 callerid= group= context=default ;;; line="8 WCTDM/16/7 FXSKS (SWEC: MG2)" signalling=fxs_ks callerid=asreceived group=0 context=from-pstn channel => 8 callerid= group= context=default www.atcom.cn... -
Page 13: Fxsks
Setting echocan for channel 7 to mg2 Setting echocan for channel 8 to mg2 3. Please add the following line in the end of chan_dahdi.conf file #include dahdi-channels.conf 4. Please run asterisk with the following command: asterisk –vvgc reload www.atcom.cn... -
Page 14: Www.atcom.cn
Blocked State pseudo default default In Service from-internal default In Service from-internal default In Service from-internal default In Service from-internal default In Service from-pstn default In Service from-pstn default In Service from-pstn default In Service from-pstn default In Service www.atcom.cn... -
Page 15: Chapter 5 Reference
Chapter 5 Reference http://www.asteriskguru.com/ http://www.asterisk.org/downloads http://www.openippbx.org/index.php?title=Main_Page http://www.atcom.cn/ www.atcom.cn...
