Ga-Z97-D3H/Ga-H97-D3H Motherboard Block Diagram - Gigabyte GA-Z97-D3H User Manual

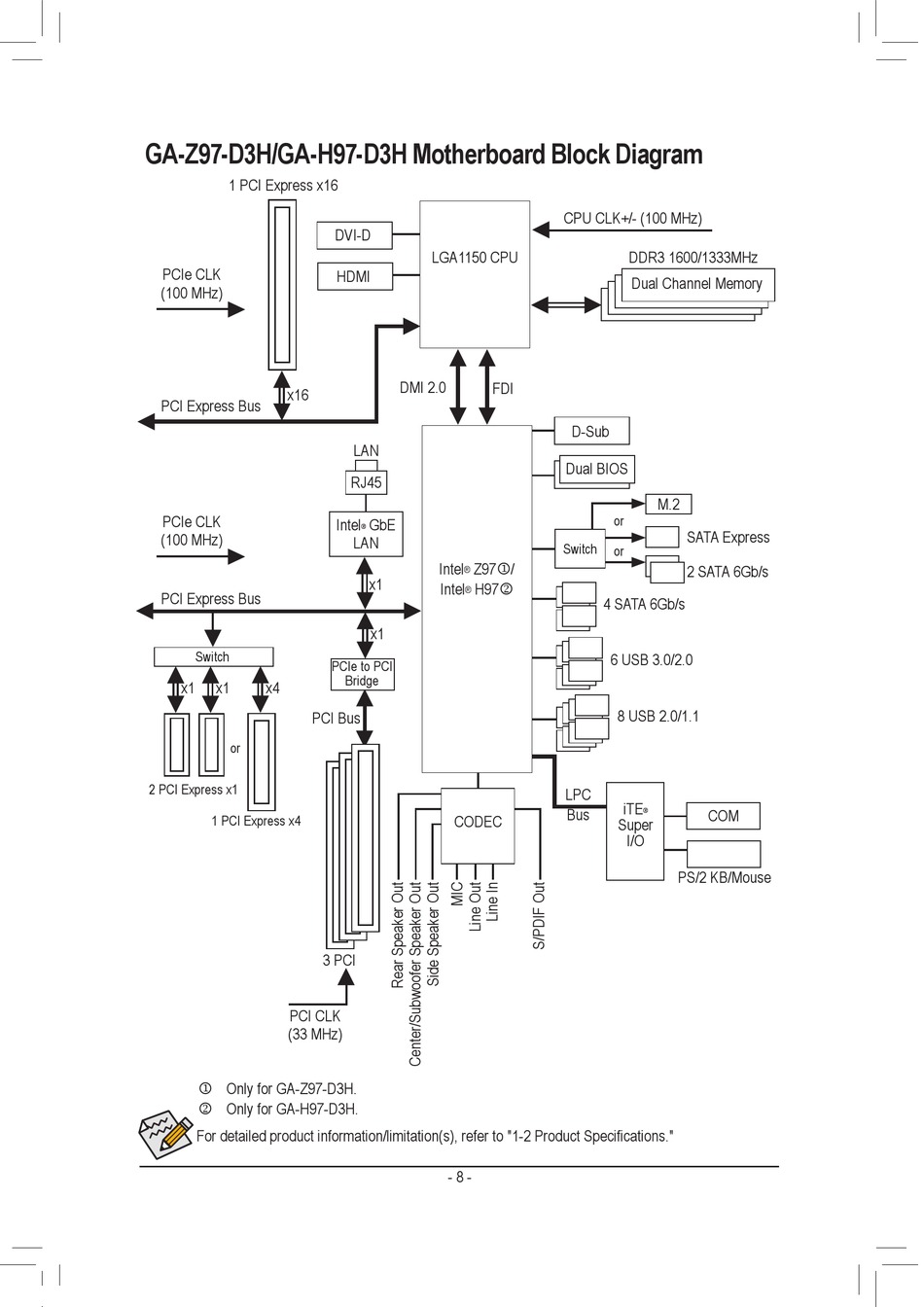

GA-Z97-D3H/GA-H97-D3H Motherboard Block Diagram

1 PCI Express x16
PCIe CLK
(100 MHz)
x16
PCI Express Bus
PCIe CLK
(100 MHz)
PCI Express Bus
Switch
x4
x1 x1
PCI Bus
or
2 PCI Express x1
1 PCI Express x4
PCI CLK
(33 MHz)
j Only for GA-Z97-D3H.
k Only for GA-H97-D3H.
For detailed product information/limitation(s), refer to "1-2 Product Specifications."
DVI-D
LGA1150 CPU
HDMI
DMI 2.0
FDI
LAN
RJ45
Intel GbE
®
LAN
Intel Z97j/
®
x1
Intel H97k
®
x1
PCIe to PCI
Bridge
CODEC
3 PCI
- 8 -
CPU CLK+/- (100 MHz)
DDR3 1600/1333MHz
Dual Channel Memory
D-Sub
Dual BIOS
M.2
or
SATA Express
Switch
or
2 SATA 6Gb/s
4 SATA 6Gb/s
6 USB 3.0/2.0
8 USB 2.0/1.1
LPC
iTE
Bus
COM
®
Super
I/O
PS/2 KB/Mouse
