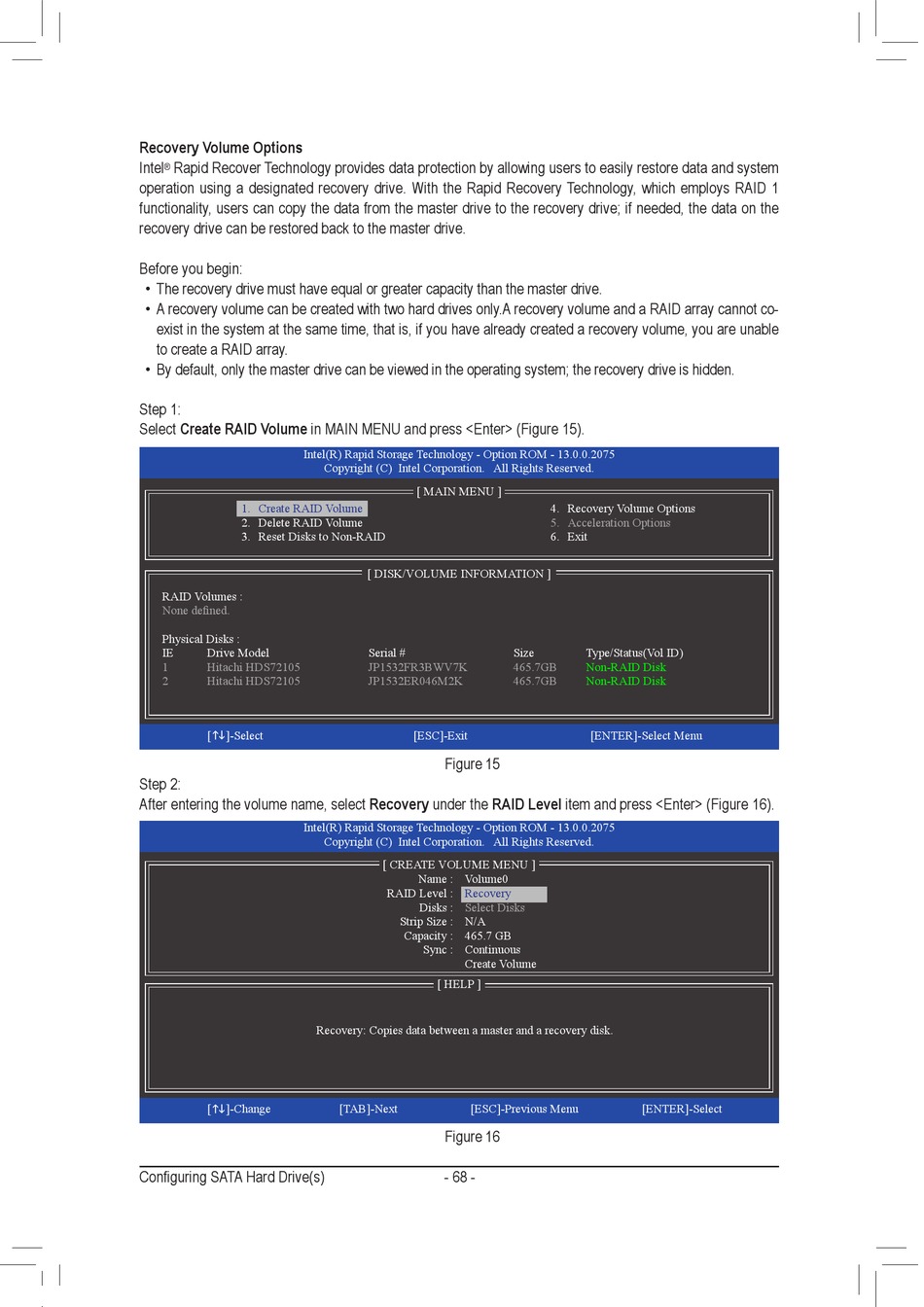

Gigabyte GA-Z97-D3H User Manual page 68

Recovery Volume Options
Intel Rapid Recover Technology provides data protection by allowing users to easily restore data and system
®
operation using a designated recovery drive. With the Rapid Recovery Technology, which employs RAID 1
functionality, users can copy the data from the master drive to the recovery drive; if needed, the data on the
recovery drive can be restored back to the master drive.
Before you begin:
• The recovery drive must have equal or greater capacity than the master drive.
• A recovery volume can be created with two hard drives only.A recovery volume and a RAID array cannot co-
exist in the system at the same time, that is, if you have already created a recovery volume, you are unable
to create a RAID array.
• By default, only the master drive can be viewed in the operating system; the recovery drive is hidden.
Step 1:
Select Create RAID Volume in MAIN MENU and press <Enter> (Figure 15).
Intel(R) Rapid Storage Technology - Option ROM - 13.0.0.2075
1. Create RAID Volume
2. Delete RAID Volume
3. Reset Disks to Non-RAID
RAID Volumes :
None defined.
Physical Disks :
IE Drive Model
1 Hitachi HDS72105
2 Hitachi HDS72105
[hi]-Select
Step 2:
After entering the volume name, select Recovery under the RAID Level item and press <Enter> (Figure 16).
Intel(R) Rapid Storage Technology - Option ROM - 13.0.0.2075
[hi]-Change
Configuring SATA Hard Drive(s)
Copyright (C) Intel Corporation. All Rights Reserved.
[ MAIN MENU ]
[ DISK/VOLUME INFORMATION ]
Serial #
JP1532FR3BWV7K
JP1532ER046M2K
[ESC]-Exit
Figure 15
Copyright (C) Intel Corporation. All Rights Reserved.
[ CREATE VOLUME MENU ]
Name : Volume0
RAID Level : Recovery
Disks : Select Disks
Strip Size : N/A
Capacity : 465.7 GB
Sync : Continuous
Create Volume
[ HELP ]
Recovery: Copies data between a master and a recovery disk.
[TAB]-Next [ESC]-Previous Menu
Figure 16
- 68 -
4. Recovery Volume Options
5. Acceleration Options
6. Exit
Size Type/Status(Vol ID)
465.7GB Non-RAID Disk
465.7GB Non-RAID Disk
[ENTER]-Select Menu
