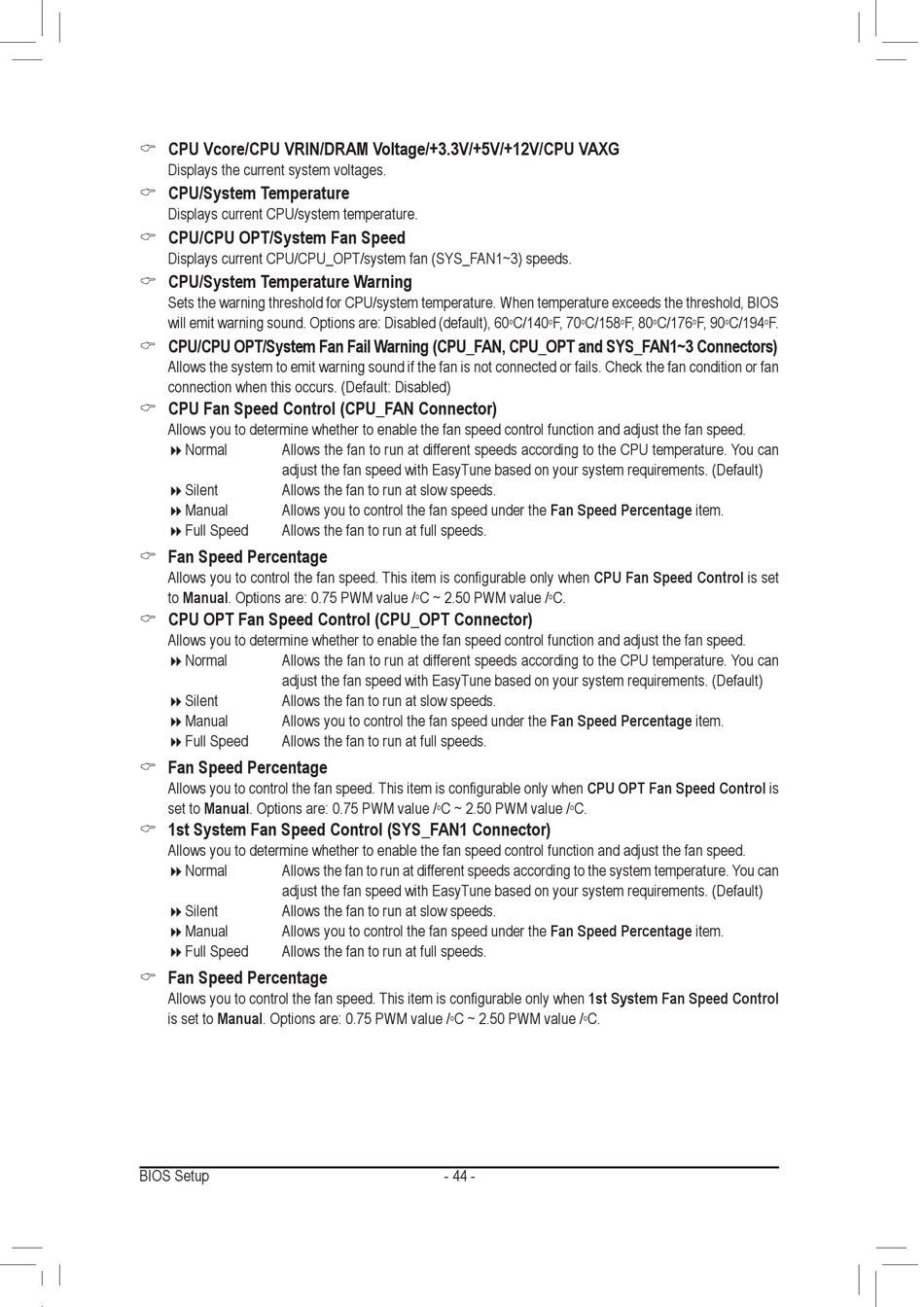

& CPU Vcore/CPU VRIN/DRAM Voltage/+3.3V/+5V/+12V/CPU VAXG
Displays the current system voltages.
& CPU/System Temperature
Displays current CPU/system temperature.
& CPU/CPU OPT/System Fan Speed
Displays current CPU/CPU_OPT/system fan (SYS_FAN1~3) speeds.
& CPU/System Temperature Warning
Sets the warning threshold for CPU/system temperature. When temperature exceeds the threshold, BIOS
will emit warning sound. Options are: Disabled (default), 60
& CPU/CPU OPT/System Fan Fail Warning (CPU_FAN, CPU_OPT and SYS_FAN1~3 Connectors)
Allows the system to emit warning sound if the fan is not connected or fails. Check the fan condition or fan
connection when this occurs. (Default: Disabled)
& CPU Fan Speed Control (CPU_FAN Connector)
Allows you to determine whether to enable the fan speed control function and adjust the fan speed.
Allows the fan to run at different speeds according to the CPU temperature. You can
Normal
adjust the fan speed with EasyTune based on your system requirements. (Default)
Allows the fan to run at slow speeds.
Silent
Allows you to control the fan speed under the Fan Speed Percentage item.
Manual
Full Speed Allows the fan to run at full speeds.
& Fan Speed Percentage
Allows you to control the fan speed. This item is configurable only when CPU Fan Speed Control is set
to Manual. Options are: 0.75 PWM value /
& CPU OPT Fan Speed Control (CPU_OPT Connector)
Allows you to determine whether to enable the fan speed control function and adjust the fan speed.
Allows the fan to run at different speeds according to the CPU temperature. You can
Normal
adjust the fan speed with EasyTune based on your system requirements. (Default)
Allows the fan to run at slow speeds.
Silent
Allows you to control the fan speed under the Fan Speed Percentage item.
Manual
Full Speed Allows the fan to run at full speeds.
& Fan Speed Percentage
Allows you to control the fan speed. This item is configurable only when CPU OPT Fan Speed Control is
set to Manual. Options are: 0.75 PWM value /
& 1st System Fan Speed Control (SYS_FAN1 Connector)
Allows you to determine whether to enable the fan speed control function and adjust the fan speed.
Allows the fan to run at different speeds according to the system temperature. You can
Normal
adjust the fan speed with EasyTune based on your system requirements. (Default)
Allows the fan to run at slow speeds.
Silent
Allows you to control the fan speed under the Fan Speed Percentage item.
Manual
Full Speed Allows the fan to run at full speeds.
& Fan Speed Percentage
Allows you to control the fan speed. This item is configurable only when 1st System Fan Speed Control
is set to Manual. Options are: 0.75 PWM value /
BIOS Setup
C/140 F, 70 C/158
o o o
C ~ 2.50 PWM value / C.
o o
C ~ 2.50 PWM value / C.
o o
C ~ 2.50 PWM value / C.
o o
