Sony HCD-DX70 Service Manual

Compact disc deck receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

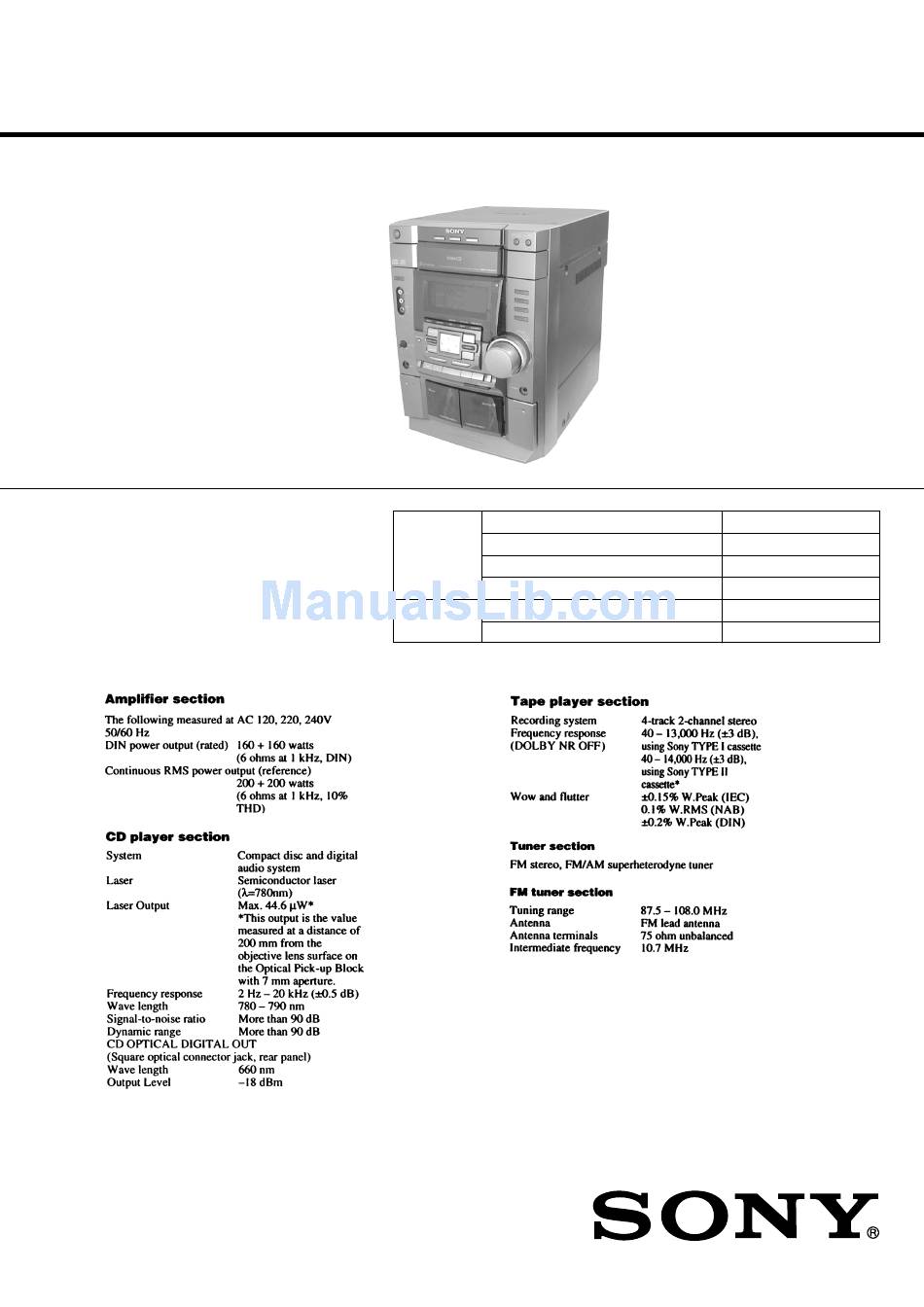

SERVICE MANUAL
Ver 1.0 2001.02
HCD-DX70 is the tuner, deck, CD and amplifier
section in MHC-DX70.
Sony Corporation
9-929-580-11
2001B0900-1
Audio Entertainment Group
© 2001.2
General Engineering Dept.
HCD-DX70
Model Name Using Similar Mechanism
CD Mechanism Type
CD
SECTION
Base Unit Type
Optical Pick-up Type
Model Name Using Similar Mechanism
TAPE DECK
SECTION
Tape Transport Mechanism Type
SPECIFICATIONS
COMPACT DISC DECK RECEIVER
E Model
NEW
CDM58E-30BD60
BU-30BD60
A-MAX.3
NEW
TCM-230AWR41/MWR41
— Continued on next page —
