Thank you for giving Home Theater Direct the chance to win your business! We are confident you will find that HTD
offers an outstanding combination of performance and value in everything we make. To ensure you get the most out
of your new amplifier, please take a moment to read this manual before you get started. Should you lose this manual,
you can always download or print a copy from www.htd.com.

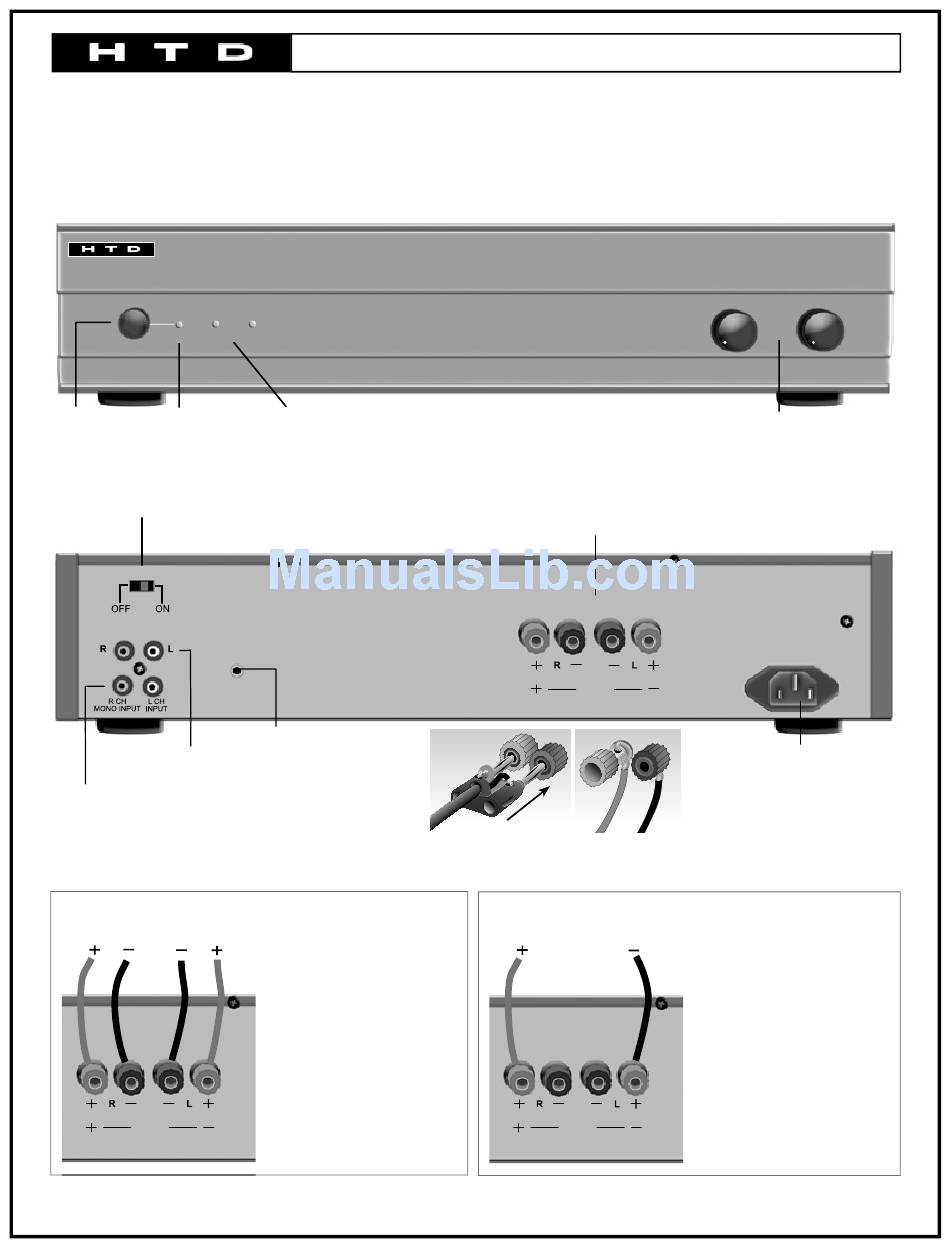

Features
L
Power
Overload
Power Button
Power Indicator
soft blue = standby mode
bright blue = power on
Auto On/Off Switch
On: amplifier powers up when input signal is sensed;
powers off several minutes after no signal.
Off: amplifier is alwalys on when power button
(front panel) is pressed in.
AUTO ON
LOOP OUT
MONO
STEREO
RCA-Type Stereo Outputs
(use to connect multiple amplifiers)
RCA-Type Stereo Inputs
(use only R CH for mono input)
Connections and Settings
Stereo
Right speaker Left speaker
SPEAKERS
Mono
R
Overload Indicator
shines red to indicate a problem
Mono/Stereo Switch
Connect stereo audio device to
RCA stereo inputs.
Set mono/stereo switch to
STEREO.
Left and Right Level Dials on front
panel control amplifier output to
each speaker.
Power to each speaker:
100 watts max. at 8 ohms.
A - 2 1 0 0 S t e r e o A m p l i f i e r
5-way binding post
speaker terminals
SPEAKERS
Mono
Banana Plug
Make sure binding posts are tightened
then push in banana plug
Mono (bridged)
Single speaker
SPEAKERS
Mono
Stereo Power Amplifier A-2100
L
Level
Variable Level Dials
determines amplifier output level
AC 120V-60HZ
Power Consumption 350W
Bare Wire
Rotate binding post counter-clockwise to reveal "eye"
Strip back 3/8" insulation from cable
Tightly twist copper wire and insert into "eye"
Rotate binding post clock-wise to tighten
Be sure to maintain polarity
(Speaker + to Amplifier + , Speaker - to Amplifier -)
Connect mono audio device to
R CH input.
Set mono/stereo switch to MONO
(this deactivates the L CH input
and Left Level Dial on front panel).
Right Level Dial on front panel
controls amplifier output to
speaker.
Power for speaker:
300 watts max. at 4ohms.
R
Power Plug
