HTD SZA-2A Owner's Manual

Thank you for giving Home Theater Direct the chance to win your business! We are confident you
will find that HTD offers an outstanding combination of performance and value in everything we
make. To ensure you get the most out of your new equipment, please take a moment to read this
manual before you get started. Should you lose this manual, you can always download or print a
copy from www.htd.com.

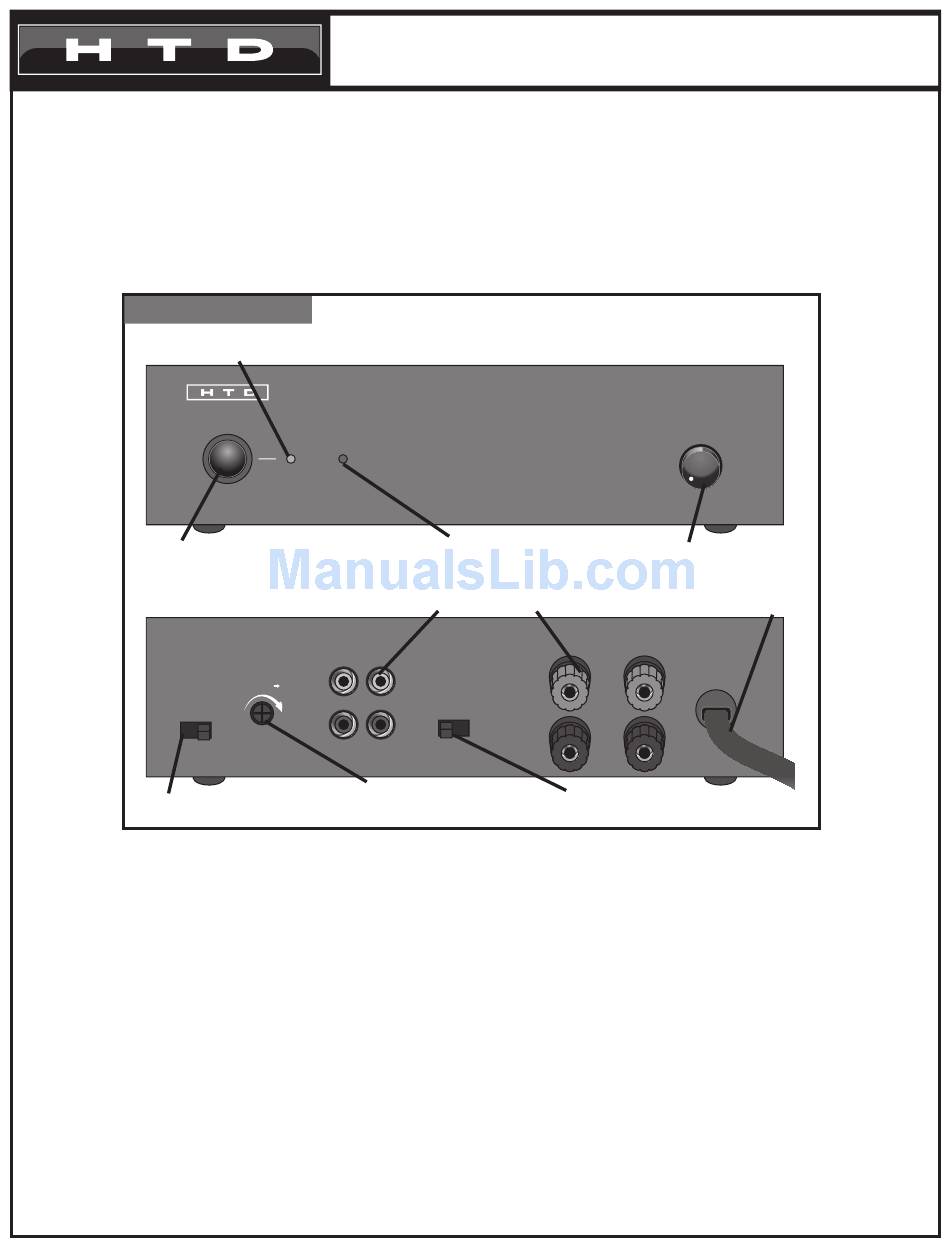

SZA-2A Features

Power Indicator Light
Power Button
Mono
Mono
Mono/Stereo Switch

Speaker Terminals

• 5-way binding post terminals provide multiple options for how you connect speaker cable to the SZA-2A. These termi-
nals accept bare wire, spade connectors, and multiple types of banana plugs. You can safely connect one pair of 4-8
ohm speakers, or two pairs of 8 ohm speakers in parallel.
Mono/Stereo Switch
• Set to Stereo when your two speakers are placed in the same room and not spread too far apart. This will cause the
speaker(s) connected to the Left Speaker Terminals to hear the signal from the Left inputs and the speaker(s) connect-
ed to the Right Speaker Terminals to hear the signal from the Right inputs. When your speakers are spread far apart
in a large room or when your speakers are placed in separate rooms, set to Mono. When set to mono, all speakers
attached to the SZA-2A will receive the same signal which is the sum of the Left and Right inputs.
V.12.22.17
Protect
POWER
Protect
POWER
INPUT
Source Input Connections
AUTO-SWITCH
INPUT 1 2
MIN MAX INPUT
DELAY
Stereo
AUTO-SWITCH 1 2
INPUT 1 2
MIN MAX
DELAY
Stereo
1 2
Delay Knob
Sub-Zone Amplifier SZA-2A
Sub-Zone Amplifier SZA-2A
Amplifier Protection Light
Speaker Terminals
L
R
ON AUTO
POWER
L
R
ON AUTO
POWER
SZA-2A Features
1
Ow ner 's M a n u a l
Front
VOLUME
Min Max
VOLUME
Volume Control
Min Max
SPEAKERS
+
6' Power Cable
SPEAKERS
_
+
AC 120V~60Hz
Power Consumption: 135W
L R
4 Ω Minimum
_
AC 120V~60Hz
Power Consumption: 135W
L R
4 Ω Minimum
Back
Power Switch
S Z A - 2 A
