American DJ LED-T-FC Quick Manual

Foot controller

Thank you for purchasing LED-T-FC by American DJ®. This foot controller is used in conjunction with

the LED Touch. It has color and chase control, along with blackout. Please read the user instructions

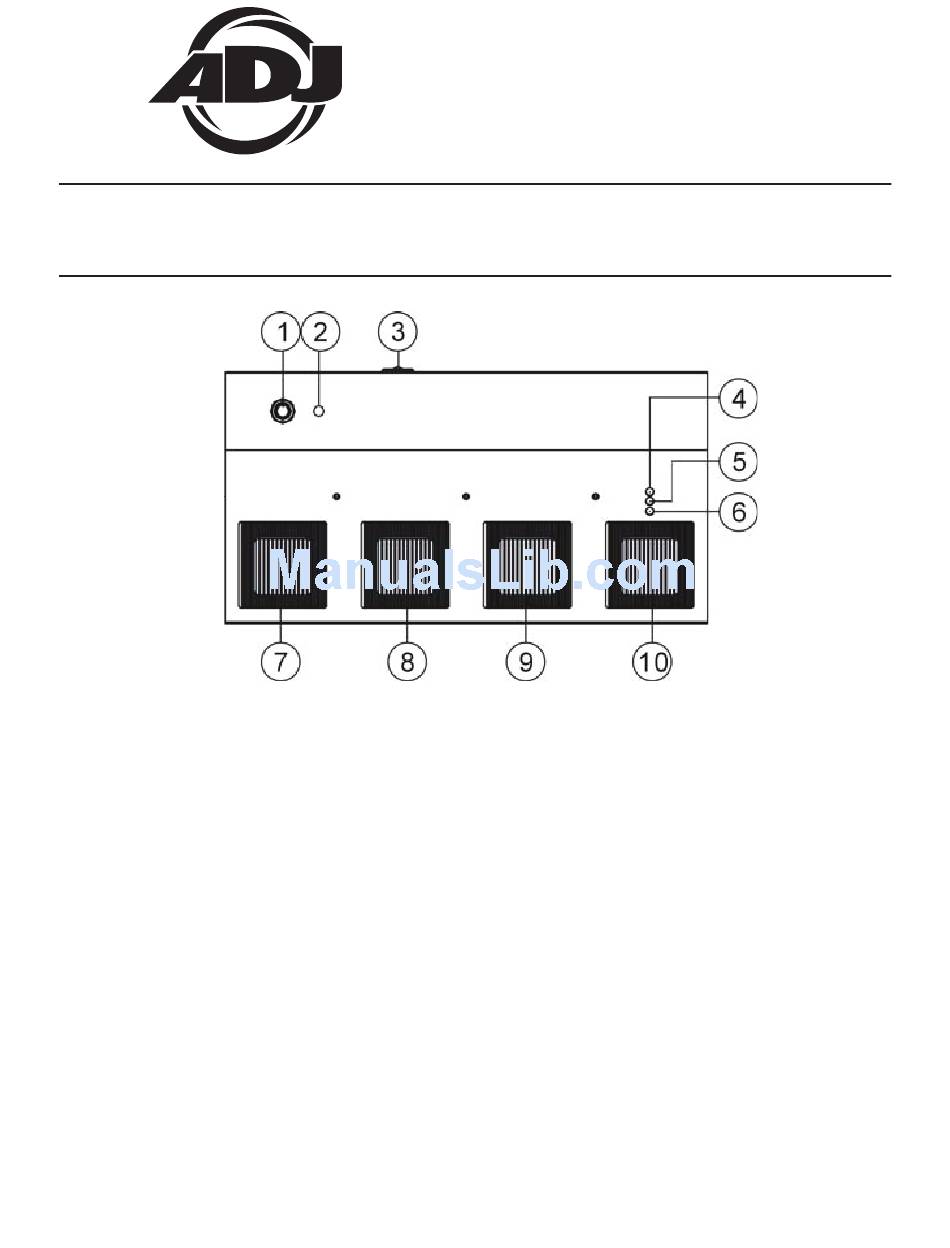

FEATURES AND FUNCTIONS:

1. BLACKOUT BUTTON - Press this button to activate Blackout mode. Hold this button for 3

seconds to enter and exit LED-T-FC control mode.

2. BLACKOUT DIRECT LED - This LED indicates the current blackout mode.

LED ON - Blackout mode is active.

LED BLINKING - This lets you know that the lights are controlled by the LED Touch.

LED OFF - Blackout mode is deactivated and lights are controlled by the LED-T-FC.

3. 5-PIN XLR CONNECTION - Used to connect to the LED Touch.

4. COLOR LED - When this LED is lit, Color mode is currently active. Use the UP or DOWN

buttons to choose one of 12 colors.

5. CHASE LED - When this LED is lit, Chase mode is currently active. Use the UP or DOWN

buttons to choose a programmed chase.

6. SPEED LED - When this LED is lit, the Hold Time/Fade Time of your chose chase can be

adjusted. For example, if you want to set the Hold Time to 4 seconds, press the hold time

button, and then press it again after 4 seconds.

7. DOWN/HOLD TIME - Use to choose a color, chase, or adjust the Hold Time.

8. UP/FADE TIME - Use to choose a color, chase, or adjust the Fade Time.

9. FULL ON - For all lights, each channel value will be 255 when you hold this button.

10. MODE - Press this button to switch between Color Mode, Chase Mode, and Speed Adjust

Mode.
