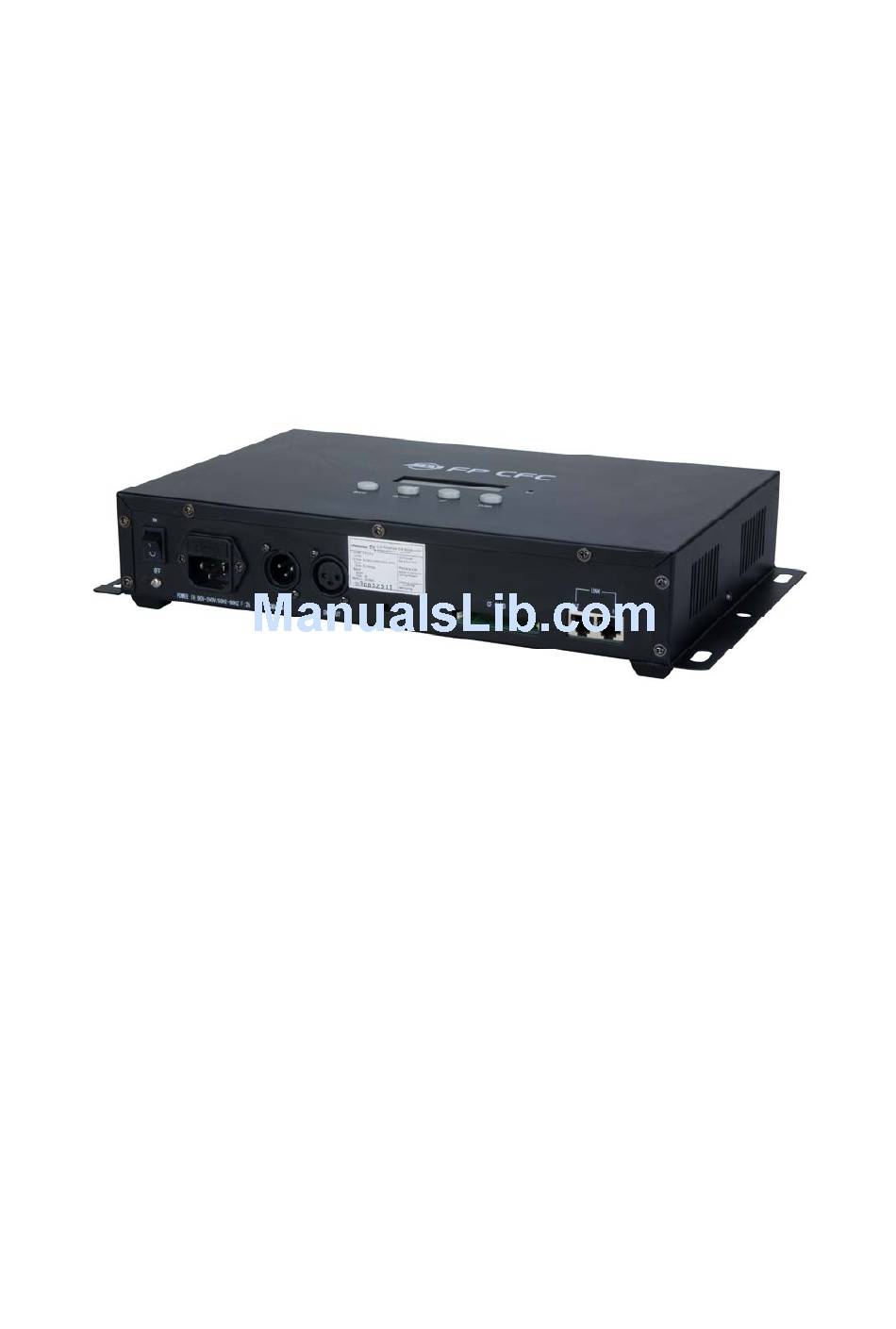

FP CFC
AMERICAN DJ
FP CFC
©American DJ Supply
Page 1 of 31
FP CFC

Advertisement

loading

Related Manuals for American DJ FP CFC

Summary of Contents for American DJ FP CFC

  • Page 1 FP CFC AMERICAN DJ FP CFC ©American DJ Supply Page 1 of 31 FP CFC...
  • Page 2 Picture 1:The link diagram for the total FP CFC control system Note: 1) Every export of the FP CFC controller can link 16pcs slim wall lights at most. So every controller can control 128pcs at the most. The signal output connector for the last light should be stopped by a Teminator (1 pc 120_ resistor inside) in order to prevent signal interruption.
  • Page 3 FP CFC Picture 2: The link picture for the back of the controller. One master controller can link 3 slave controllers at most: Note: 1) The first controller is the master controller which needs a programmed CF card, the card is inserted into the rear of the controller.
  • Page 4 The 133X high speed CF card should be better and the format of the CF card must be FAT 32.There must be at least 4 kinds of file in the CF card to make sure that the FP CFC controller can work normally.
  • Page 5 Configuration Setting file, you must order the right BIN run chart file of the CF card as the FP CFC controller's run chart. For example, if you want have link a 8x8 FP CFC, you must order the 8x8 BIN run chart file as the run chart of the FP CFC controller in the content of the Configuration Setting file.

  • Page 6: Dmx Protocol

    2.2 DMX mode 1) Addressing You also can control the FP CFC by using the master FP CFC controller to control the whole FP CFC. The control board allows you to assign the DMX address which is defined as the first channel. Set your desired address 001-512 via the UP/DOWN button’s, there are a total 512 pcs to address.
  • Page 7 FP CFC CHANNEL VALUE FUNCTION Play the DAT files of the CF card one after another in a continuous loop 10-19 Play the first DAT file of the CF card 20-29 Play the second DAT file of the CF card...
  • Page 8 FP CFC 3) Press the UP or DOWN buttons to select sound-active sensitivity grade 0-31. At 0 sound activity is off, 1 is the least sensitive, 31 is the most sensitive. Press the “SET UP” button until the display shows: 4) Press the UP or DOWN buttons to select the frame number 000-240 the video will skip when it activated by sound each time.
  • Page 9 FP CFC 3) Press the UP or DOWN buttons to increase or decrease the running speed 001-240-normal of the video. 001 is to play one frame in one second, 240 is to play 240 frames in one second, normal is to play at normal speed. Press the “SET UP” button until the display shows: 4) Press the UP or DOWN buttons to increase/decrease the intensity 000%-100% of the R/G/B LEDs.
  • Page 10 FP CFC 4) Double-click the AVI file; this will show the position of the file behind the icon , click the icon to play/pause/stop the video, click the icon make the video full screen, click the icon to capture the picture of the video, click the icon to find the parameters of the video.
  • Page 11 FP CFC on request. The size of the DAT file has to be the same size as the pixel size of the screen, so it can play the DAT file completely. It can also be translated by ratio. Click , it will automatically turn into .
  • Page 12 FP CFC 1) Install the CFVideo software. After installation, there will be a shortcut on the desktop. 2) Double-click the shortcut to open the software. This is what should be displayed: 3) Select “Turn Wizard” in the “Tool” menu, will be displayed.
  • Page 13 FP CFC 5) Click and a window will be shown. 6) Click find the location of the DAT file, name the DAT file, then click 7) Click and the AVI file will begin to translate. You can click to stop translating.
  • Page 14 FP CFC the controller can only display the 13 characters. So the display on the LCD is from the first character to the thirteenth character of the DAT file name. Before the name of the DAT file is the number of the DAT file in the CF card. For example, the fifth DAT file of the CF card is XX123.dat, the display on the LCD will be “05.XX123.dat”;...
  • Page 15 FP CFC C. How To Create The Run Chart Of CF Card And The Address Link List a. The different pixel distribution pictures of the FP CFCby the 4 fixation methods: When the address of the light is 1, the four different pixel distribution diagrams are as follows:...
  • Page 16 FP CFC As the picture shows: 1) One LED is one pixel, so every FP CFChas 16 pixels. 2) The four above fixation methods are the main fixation methods of the lights. When the fixation methods are different, the pixel distribution is different. The pixel distribution are as the diagrams above.
  • Page 17 FP CFC Link by fixation method 3: Link by fixation method 4: Note: ©American DJ Supply Page 17 of 31 FP CFC...
  • Page 18 When there are no more than 128 lights, one controller is enough. For example, if you want to link a 2x2 FP CFC, we show you how to create the run chart and the address link list using four different methods.
  • Page 19 FP CFC Note: 1) The two numbers in each grid is separated by comma. The first number is the number of the output that the light is connected to; the second number is the address number of the light. 2) The "1,2" means the light whose vertical coordinate is 1 and the horizontal coordinate is 1 connects to the first output, and its address is 2;...
  • Page 20 FP CFC Example 2: Creating the run chart and the address link list of the 2x2 FP CFC by Fixation Method 2.1 Click “Mapping File Output” under the “Tool” menu, it will automatically appear as a window named . Input a 2 in the cue, this means that there are two light modules on the vertical.
  • Page 21 FP CFC Note: 1) The two numbers in each grid is separated by comma. The first number is the number of the output that the light is connected to; the second number is the address number of the light. 2) The "1,2" means the light whose vertical coordinate is 1 and the horizontal coordinate is 1 connects to the first output, and its address is 2;...
  • Page 22 FP CFC Example 3: Create the run chart and the address link list of the 2x2 FP CFC by Fixation Method 3. 3.1 Click “Mapping File Output” under the “Tool” menu, it will automatically appear as a window named . Input a 2 in the cue, this means that there are two light modules on the vertical.
  • Page 23 FP CFC Note: 1) The two numbers in each grid is separated by comma. The first number is the number of the output that the light is connected to; the second number is the address number of the light. 2) The "1,2" means the light whose vertical coordinate is 1 and the horizontal coordinate is 1 connects to the first output, and its address is 2;...
  • Page 24 FP CFC Example 4: Create the run chart and the address link list of the 2x2 FP CFC by Fixation Method 4. 4.1 Click “Mapping File Output” under the “Tool” menu, it will automatically appear as a window named . Input a 2 in the cue, this means that there are two light modules on the vertical.
  • Page 25 FP CFC Note: 1) The two numbers in each grid is separated by comma. The first number is the number of the output that the light is connected to; the second number is the address number of the light. 2) The "1,2" means the light whose vertical coordinate is 1 and the horizontal coordinate is 1 connects to the first output, and its address is 2;...
  • Page 26 4) The method for creating the run chart and the address link list is the same as when there is just one master controller. D. How To Link The FP CFC Example 1: Link the previous 2x2 FP CFC by fixation method 1. 1.1 Open the previous address link list“2x2(mode1). bin_Prj.txt”,the picture is as follows: Note: ©American DJ Supply...
  • Page 27 FP CFC This means that the first export of the FP CFC controller connects to the light "1,1" whose vertical coordinate is 2 and the horizontal coordinate is 1 in the screen, then light "1,1" connects to the light "1,2" whose vertical coordinate is 1 and the horizontal coordinate is 1 in the screen. The link method of the second export is also the same.
  • Page 28 FP CFC Note: This means that the first export of the FP CFC controller connects to the light "1,1" whose vertical coordinate is 1 and the horizontal coordinate is 1 in the screen, then the light"1,1" connects to the light "1,2" whose vertical coordinate is 2 and the horizontal coordinate is 1 in the screen. The link method of the second export is also the same.
  • Page 29 Note: This means that the first export of the FP CFC controller connects to the light "1,1" whose vertical coordinate is 1 and the horizontal coordinate is 1 in the screen, then the light "1,1" connects to the light "1,2" whose vertical coordinate is 1 and the horizontal coordinate is 2 in the screen. The link method of the second export is also the same.
  • Page 30 Note: This means that the first export of the FP CFC controller connects to the light "1,1" whose vertical coordinate is 1 and the horizontal coordinate is 2 in the screen, then the light "1,1" connects to the light"1,2"whose vertical coordinate is 1 and the horizontal coordinate is 2 in the screen.T he link method of the second export is also the same.
  • Page 31 ", then save it. Notice: 1) The name must the same as the run chart , otherwise the FP CFC controller will not work normally. 2) Make sure that the name of the run chart has no space between the "...
