JVC KD-X80BT Instructions Manual

Digital media receiver
Hide thumbs Also See for KD-X80BT:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual , Installation Manual

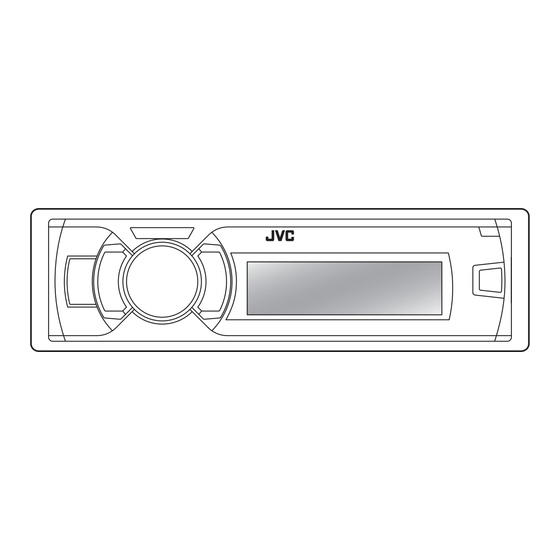

KD-X80BT
DIGITAL MEDIA RECEIVER / RECEPTOR DE MEDIOS
DIGITALES / RÉCEPTEUR MULTIMÉDIA NUMÉRIQUE
For canceling the display demonstration, see page 4. /
Para cancelar la demostración en pantalla, consulte la página 4. /
Pour annuler la démonstration des affichages, référez-vous à la page 4.
For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
Pour l'installation et les raccordements, se référer au manuel
séparé.
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
INSTRUCTIONS
ENGLISH
ESPAÑOL
FRANÇAIS
For Customer Use:
Enter below the
Model No. and Serial
No. which are located
on the top or bottom
of the cabinet. Retain
this information for
future reference.
Model No.
Serial No.
GET0804 001A
[J]

Advertisement

Table of Contents
loading

Related Manuals for JVC KD-X80BT

Summary of Contents for JVC KD-X80BT

  • Page 1 ENGLISH ESPAÑOL FRANÇAIS KD-X80BT DIGITAL MEDIA RECEIVER / RECEPTOR DE MEDIOS DIGITALES / RÉCEPTEUR MULTIMÉDIA NUMÉRIQUE For canceling the display demonstration, see page 4. / Para cancelar la demostración en pantalla, consulte la página 4. / Pour annuler la démonstration des affichages, référez-vous à la page 4.
  • Page 2 Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. For U.S.A. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    Contents Warning: Stop the car before operating the unit. Preparation ............4 Caution: Canceling the display demonstration Adjust the volume so that you can hear sounds Setting the clock outside the car. Driving with the volume too high may cause an accident. Basic operations ...........

  • Page 4: Preparation

    How to attach the control panel How to reset your unit Your preset adjustments will also be erased. How to detach the control panel Avoid touching the connectors. Preparation Canceling the display Setting the clock demonstration (Hold) The display demonstration is always turned on PUSH unless you cancel it.

  • Page 5: Basic Operations

    Basic operations Basic operations Control panel Remote controller Flips down the panel Display window Remote sensor Control dial Aim the remote controller directly at the sensor. DO NOT expose to bright sunlight. When you press or hold the following button(s)... Remote Control panel General function...

  • Page 6: Radio

    Basic operations Display information Changes the display information. (Press) Scrolls the current display information. (Hold) Source Display (Normal display pattern)*1 Radio Non-Radio Broadcast Data System station: Frequency FM Radio Broadcast Data System station: Programme type (PTY)/Frequency/Station name (PS) HD Radio Track title*2/Album title*2/Frequency Satellite Radio Category name/Channel name/Track title...

  • Page 7: Selecting A Preset Station

    Radio Auto presetting (FM) 4 Set the activation time. SSM (Strong-station Sequential Memory) You can preset up to 18 stations for FM. If an HD Radio tuner box is connected, you can also preset up to 6 stations for AM. 5 Press MENU to exit.

  • Page 8: Hd Radio™ Tuner Control

    HD Radio™ tuner control This unit can control the JVC KT-HD300 HD Radio tuner box (separately purchased). Refer to the KT-HD300 instruction manual for installation and connection details. HD Radio tuners can also tune in to conventional analog broadcasts. Many HD Radio stations offer more than one channel of programming. This service is called multicasting.

  • Page 9: Satellite Radio Tuner Control

    JVC KS-SRA100 (SIRIUS Satellite Radio interface) and Radio SCC1 (SiriusConnect Vehicle Tuner) or SCVDOC1 (SiriusConnect Vehicle Docking Kit) and SIRIUS radio XMDJVC100 (Smart Digital Adapter for JVC) and XM Universal Tuner Box XM Satellite Radio CNPJVC1 (Connection cable for JVC) and CNP2000UCA (Protocol Interface Adapter and XM Direct 2 Tuner) For details, refer also to the instructions supplied with the other components.

  • Page 10: Selecting A Channel

    Satellite Radio tuner control Selecting a channel Selecting a preset station/ category/channel from the list “List” menu appears. 2 Select <Preset>, <Category> or Select <SIRIUS> or <XM>. <Channel>. Select a category. If you want to select channels of all categories... SIRIUS: Select <ALL>.

  • Page 11: Usb

    Playing a USB device USB cable from the rear of the unit The source changes to “USB” and playback starts. This unit can play MP3/WMA/WAV files stored in USB mass storage device (such as a USB memory and Digital Audio Player). Make sure all important data has been backed up.

  • Page 12: Ipod/Iphone

    iPod/iPhone Playing an iPod/iPhone 2 Select the desired list. USB cable from the rear of the unit Playlists Artists Albums Songs Podcasts Genres Composers Audiobooks (back to the beginning) 3 Select the desired track. USB 2.0 cable (not supplied)* The source changes to “iPod-1/iPod-2” and playback starts.

  • Page 13: Pandora Internet Radio

    Creating a new station iPod/iPhone application You can create a new station based on the currently playing song or artist. You can operate JVC original application with this unit in <Application Mode>. For more details, visit JVC website: <http://www3.jvckenwood.com/ english/car/index.html> (English website only).

  • Page 14: Quick Search

    You can connect an external component to the following terminals: EXT IN: Expansion port on the rear of this unit using the following adapters (not supplied): - JVC KS-U57, Line Input Adapter - JVC KS-U58, AUX Input Adapter AUX: AUX (auxiliary) cable from the rear of the unit.

  • Page 15: Bluetooth Connection

    USB cable from the rear of the unit KS-UBT1 2 Search and select “JVC Unit” on the Bluetooth device. For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching. ENGLISH |...

  • Page 16: Connecting/Disconnecting Registered Device Manually

    Bluetooth connection 3 Perform (A) or (B) depending on what appears on the display. For some Bluetooth devices, pairing sequence may vary from the steps described below “XXXXXX” is a 6-digit passkey randomly (1) When the Bluetooth device prompts generated during each pairing. you to key in a PIN or passcode, enter the PIN code “0000”...

  • Page 17: Bluetooth Mobile Phone

    Connecting to JVC original Deleting a registered device application (Hold) JVC original application is designed to view JVC car receiver status and perform simple control operations on Android smart phones. 2 Select <Delete OK>. For JVC original application operations, visit JVC <Bluetooth>...
  • Page 18 Bluetooth mobile phone Adjustments during a call Text message notification Phone volume (00 — 50) When a text message is received, the unit rings [Volume 15]: Volume and “[Device Name]” “Received Message” adjustments made during a call appears. will not affect the other <Message Notice>...

  • Page 19: Using Voice Recognition

    Bluetooth mobile phone Using voice recognition Deleting a contact (name/ phone number) You can use the voice recognition features of the connected phone through this unit. Only when <Phonebook Select> is set to <In “Not Support” appears if the connected phone Unit>.

  • Page 20: Using The Settings Menu

    Bluetooth mobile phone Using the Settings menu 3 Repeat this step to perform the necessary 1 Enter the “Hands-Free” menu. settings. 2 Select <Settings>. To return to the previous menu, press To exit from the menu, press MENU. The following settings are applicable to the paired device. If another device is paired, perform the settings again.

  • Page 21: Bluetooth Audio Player

    Bluetooth audio player Bluetooth audio player Playing a Bluetooth audio player Select <BT-1> or <BT-2> depending on the location of the USB Bluetooth adapter KS-UBT1. Operate the Bluetooth audio player to start playback. Operations and display indications may differ according to their availability on the connected device. Random Basic operations Cancels random playback.

  • Page 22: Illumination Color Adjustments

    Illumination color adjustments Button zone All zone: Includes both Button zone and Display zone Display zone. All zone Selecting the preset color Storing your own adjustments You can select a preset color for <Button Zone>, You can store your own day and night colors for <Display Zone>, and <All Zone>...

  • Page 23: Brightness Adjustments

    Brightness adjustments Brightness adjustments You can select your preferred brightness for <Button Zone>, <Display Zone> separately. (Hold) <Dimmer> Button Zone Level 00 to 31 <Brightness> Display Zone Level 00 to 31 <Day Brightness>/ <Night Brightness> 4 Press MENU to exit. Sound adjustments This unit memorizes sound settings adjusted for each individual source.

  • Page 24: Menu Operations

    Menu operations Menu operations 3 Repeat step 2 if necessary. (Hold) To return to the previous menu, press To exit from the menu, press DISP or MENU. If no operation is done for about 60 seconds, the operation will be canceled. Menu item Selectable setting (Initial: [XX]) DEMO...
  • Page 25 If you are using a two-speaker system, set the fader level to “0”. This adjustment will not affect the subwoofer output. Displayed only when <Subwoofer On/Off> is set to <On>. Not available when JVC KT-HD300 HD Radio tuner box is connected. ENGLISH |...
  • Page 26 Information Connected Phone/Connected Audio/Connected App Mode *15: Displays connected phone/audio/application device name. My BT Name: Displays the unit name (JVC Unit). My Address: Shows address of USB Bluetooth Adapter. Ext Input *16 Show/[Hide]: Enables or disables “EXT IN” in source selection.

  • Page 27: Remote Controller

    Remote controller Remote controller Warning: Preparing Do not install any battery other than CR2025 or When you use the remote controller for the first its equivalent. time, pull out the insulation sheet. Do not leave the remote controller in places (such as dashboards) exposed to direct sunlight for a long time.

  • Page 28: Additional Information

    Additional information Additional information About audio files About USB device When connecting a USB cable, use the USB 2.0 Playable files cable. File extensions: MP3(.mp3), WMA(.wma), You cannot connect a computer or portable WAV(.wav) HDD to the USB input terminal of the unit. Bit rate: Connect only one USB device to the unit at a MP3 (MPEG-1): 32 kbps - 320 kbps...

  • Page 29: About Bluetooth

    Apple Inc., registered operations may not be performed correctly or in the U.S. and other countries. as intended. In this case, visit the following JVC PANDORA, the PANDORA logo, and the website: Pandora trade dress are trademarks or <http://www3.jvckenwood.com/english/car/...

  • Page 30: Troubleshooting

    The Unit”/“Warning Check with tape before resetting the unit. ( page 4) Wiring Reset The Unit” appears If the message does not disappear, consult your JVC car audio on the display and no operations dealer or kits supplying company. can be done.
  • Page 31 Troubleshooting Symptom Remedy/Cause New station creation: “NO STATION” There are no stations found for the current song or artist. “STATION REACH LIMIT” You may not create more than 100 stations. “CANNOT MAKE NEW There is a problem creating a new station, such as a network STATION”...
  • Page 32 “HW Error” appears on the Reset the unit and try the operation again. If “HW Error” appears display. again, consult your nearest JVC car audio dealer. “BT Device Not Found” appears The unit failed to search for the registered Bluetooth devices on the display.

  • Page 33: Specifications

    Specifications Specifications AUDIO AMPLIFIER SECTION Power Output 20 W RMS x 4 Channels at 4Ω and ≤ 1% THD+N Load Impedance 4Ω (4Ω to 8Ω allowance) Frequency Response 40 Hz to 20 000 Hz Signal-to-Noise Ratio 80 dBA (reference: 1 W into 4Ω) Line-Out, Subwoofer-Out Level/Impedance 4.8 V/20 kΩ...
  • Page 34 Having TROUBLE with operation? Please reset your unit Refer to page of How to reset your unit Still having trouble?? USA ONLY Call 1-800-252-5722 http://www.jvc.com We can help you! EN, SP, FR 0312DTSSANJEIN © 2012 JVC KENWOOD Corporation...
  • Page 35 KD-X80BT GET0804-002A 0312DTSSANJEIN EN, SP, FR © 2012 JVC KENWOOD Corporation...
  • Page 36 × × × × × × × × × × × × × × × × × ×...
  • Page 37 USB-1 USB-2 Junte los cables del mismo color. Joignez les fils de même couleur ensemble.
  • Page 44 • The countries where you may use the Bluetooth® function • Die Lander, in denen Sie die Bluetooth® Funktion verwenden konnen • Pays ou vous pouvez utiliser Ia fonction Bluetooth® • De Ianden waar u de Bluetooth®-functie mag gebruiken • Palses en los que se puede utilizar Ia funci6n Bluetooth® •...
  • Page 46 When it is not required to detach the front control panel from the main unit, use the provided sheets to attach the control panel to the main unit. GE40430-001A...
  • Page 49 Zip Code: Phone Number: E-Mail Address: 1) Would you like to receive the JVC Community e-mail newsletter? 2) Would you like to receive special offers from JVC? 3) Have you purchased an extended warranty for this product? Date of Purchase...
