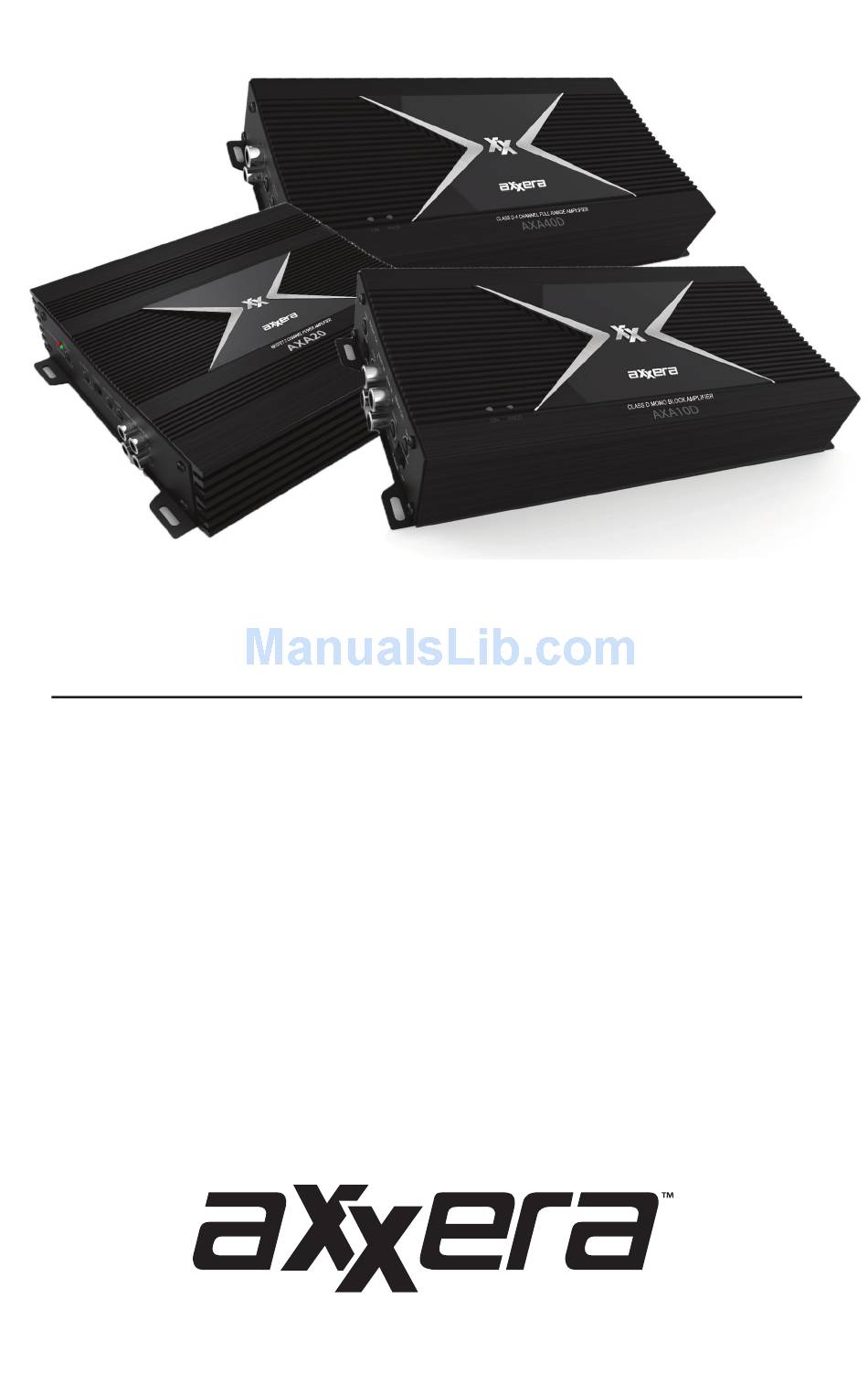

- Page 1 AXA10D AXA20 AXA40D AXA SERIES INSTALLATION / OWNER'S MANUAL Mobile Power Amplifiers...
-
Page 2: Installation
INSTALLATION Preparation Please read entire manual before installation. Due to the technical nature of amplifiers, it is highly recommended that your Axxera amplifier is installed by a professional installer or an authorized dealer. Before You Start • D isconnect negative battery terminal. (consult a qualified technician for instructions) • A void installing the amplifier where it would be subject to high temperatures, such as... -
Page 3: Connection Descriptions
INSTALLATION Connection Descriptions NOTE: Be sure to follow specific instructions included with your amplifier installation kit (not included with this amplifier). The information below should be used as a general guideline only. Power Wire (+12V) • D isconnect negative battery terminal before proceeding. Consult a qualified technician for instructions if you are unsure. • P lan wire routing before cutting any wires to length. Begin by routing the power +12V wire from the battery to the amplifier location. Use a grommet when running wires through the firewall or metal openings. Avoid running the power wire near... - Page 4 INSTALLATION Audio Inputs and Controls AXA10D AXA20 5 11 AXA40D High Level Inputs Remote Bass Control Input RCA Line Inputs Crossover Mode Gain Crossover Frequency Control Subsonic Filter Pass Through Bass Boost Power and Protection LEDs Low Pass Filter...
-
Page 5: Power And Speaker Connections
INSTALLATION Power and Speaker Connections AXA10D AXA20 AXA40D Remote Turn On Speaker Connections Ground Connection Fuse(s) Remote Turn On Output +12VDC Battery Connection... -
Page 6: Typical Wire Routing
FUSE 12V BATTERY 12V DC (Power) RCA CABLES SPEAKERS REM (Remote Turn On) Main Power Connections Connect +12V, GND and REM wires accordingly. A suitable fuse MUST be installed on the +12V lead within 18" of the battery for protection of the vehicle’s electrical system. Fuse Rating Power/Ground Wire Size When replacing fuses, make sure new fuse For optimum performance, use only the wire is the correct type and amperage. Using an size listed below or larger. Make sure to use incorrect fuse could damage the amplifier. the same size power and ground wire. AXA10D 25 amp ATO x 2 AXA10D 4 awg AXA20 30 amp ATO x 1 AXA20 8 awg AXA40D 40 amp ATO x 1 AXA40D 4 awg... -
Page 7: Amplifier Connections
INSTALLATION Amplifier Connections Speaker Connections 2 Speakers (stereo) Subwoofer (mono) Connect speaker wires observing polarity. The minimum impedance load for the AXA20 and AXA40D is 2 ohms stereo and 4 ohms bridged. Use of loads lower than these is not recommended and may cause amplifier damage. The AXA20 and AXA40D can be wired for stereo, bridged or stereo/ bridged simultaneous operation. Typical Stereo Wiring Typical Bridged Wiring (2 ohms minimum) (4 ohms minimum) -
Page 8: Operation
Repeat for all input level controls. Crossover Mode The crossover is used to filter out frequencies above or below a certain point. Choose LPF when using the amplifier with subwoofers, HPF when using with midrange/tweeter combinations and FLAT when using with coaxial-type speakers. Note: Choose FLAT when using the amplifier in stereo/ bridged simultaneous mode. In this mode, passive crossovers are required. Failure to use the correct passive components may damage the amplifier and/or speakers. Consult a qualified professional for recommendations. Crossover Frequency This control allows precise adjustment of the crossover Control frequency. Bass Boost This control provides additional boost @ 45Hz when used with subwoofers. Adjust this control with caution - as improper use can damage speakers! Subsonic Filter Setting this control to the desired frequency will limit (AXA10D) harmful frequencies below the setting from going to the subwoofer(s), preventing possible damage from frequencies that subwoofers are not designed to handle. LED Indicators The green LED indicator illuminates during normal operation (POWER) and the red LED indicator is visible when the amplifier detects a fault (PROTECT). -
Page 9: Troubleshooting
OPERATION Troubleshooting Problem Cause Action +12V wire not connected or incorrect Check connections for proper voltage voltage Unit will not turn on (11~16VDC) REM wire not connected or incorrect voltage (no power LED indicator) GND wire not connected Check connection to ground Fuse(s) blown Replace fuse(s) Speaker wires not connected Check connections at speakers Volume turned all the way down Increase volume level at head unit One or more speaker wires touching each Insulate all bare speaker wires from each Unit has power - LED is other or touching chassis ground other and chassis ground green (but no sound) Speaker(s) defective or damaged... -
Page 10: Specifications
OPERATION Specifications CEA-2006 Power Standard Specifications (reference: 14.4VDC, 20Hz~20kHz) Power Output (14.4VDC, 20Hz ~ 20kHz): AXA10D 350 Watts x 1 channel @ 4 ohms and ≤ 1% THD+N 650 Watts x 1 channel @ 2 ohms and ≤ 1% THD+N Peak Music Power Output: 1750 Watts Signal to noise ratio:... -
Page 11: Limited One-Year Warranty
WARRANTY Limited One-Year Warranty This warranty gives you specific legal rights. What to do? You may also have other rights which vary 1. Before you call for service, check the from state to state. troubleshooting guide in your owner’s manual. A slight adjustment of any Dual Electronics Corp. warrants this custom controls may save you a service product to the original purchaser to call. be free from defects in material and workmanship for a period of one year from 2. If you require service during the the date of the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our... - Page 12 Dual Electronics Corp. Toll Free: 1-866-382-5476 www.axxeraaudio.com ©2013 Dual Electronics Corp. NSA0113-V01...
