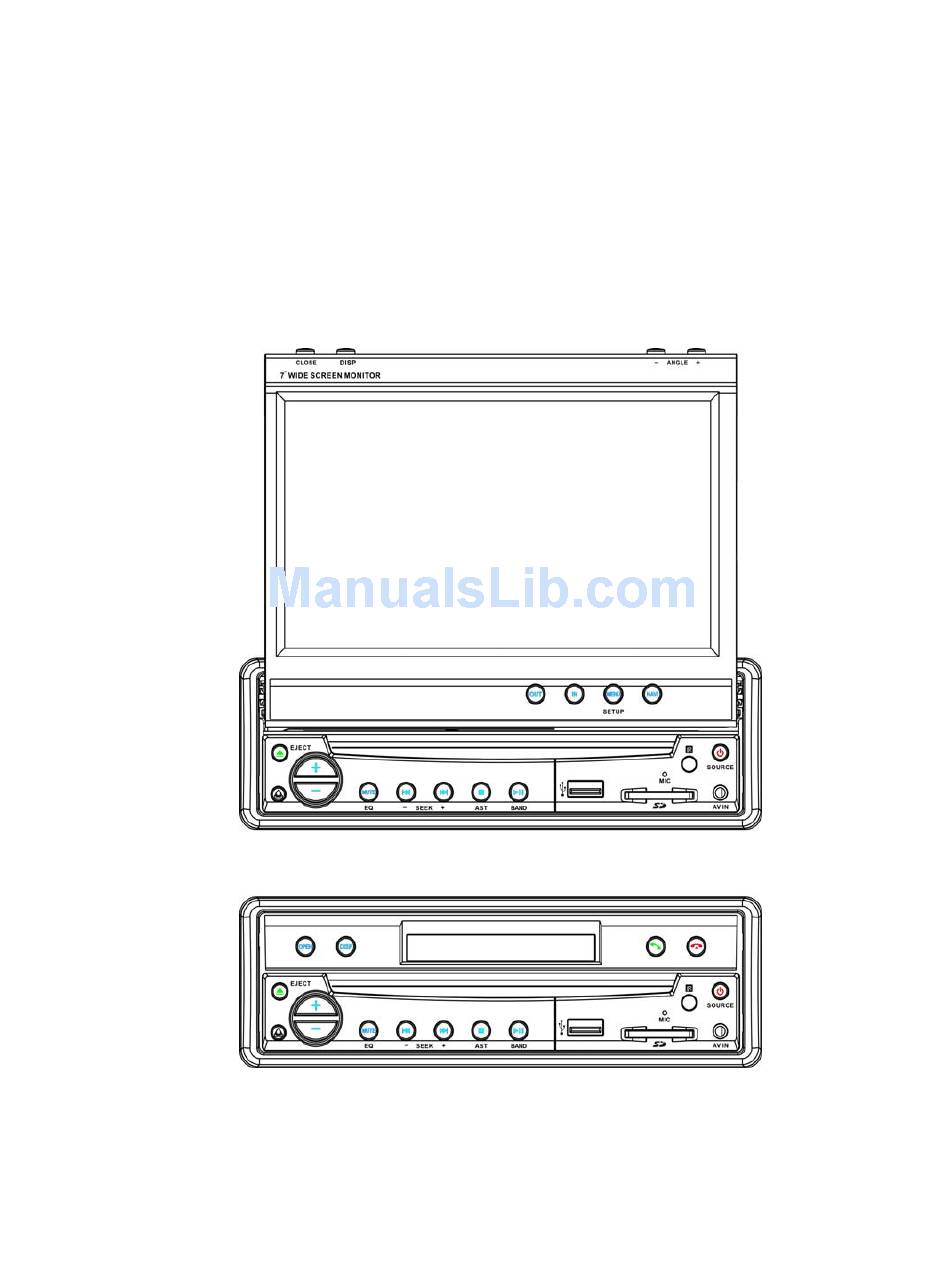

OWNER'S MANUAL
Mobile Video System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mobile Video System and is the answer not in the manual?

Questions and answers

Related Manuals for Farenheit Mobile Video System

Summary of Contents for Farenheit Mobile Video System

  • Page 1 OWNER’S MANUAL Mobile Video System...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of Contents…………………………………….…………….………………………..1 Safety Information………………………………………………….………………………2 Features…………………………………………………………….………………………3 Accessories……………………………………….…….………………………………….4 Wire Connection……………...……………………………..……………………………….5 Unit Installation and Removal………………………….….………………………………8 Front Panel………………………………………………………..…..……………………12 Remote Control……………………………………………………………………………16 Touch Screen Operations………………………………………………….……………21 Touch Screen Calibrate…………………………………….………………………21 Main Menu…………………………………………………….………………………22 Radio Operations…………………………………………………….……………….23 DVD Operations…………………………………………………….……………….24 Bluetooth Operations……………………………………………….……………….30 IPOD Operations…..…………………,,…………………………….………………..35 SD Operations……………………………………………………….………………..37 USB Operations…………………………………………………….………………..37 DIM Operations…………………………………………………….………………..37 AV IN1 Operations…………………………………………………….……………38 AV IN2 Operations…………………………………………………….……………38...

  • Page 3: Safety Information

    SAFETY INFORMATION Please read the manual carefully before operating this unit and keep it for future reference. CAUTION: This unit is a class 1 laser product. To prevent direct exposure to the laser system, do not open the unit. The laser beam may hurt your eyes. If the unit requires adjustments, contact an authorized service centre.

  • Page 4: Features

    FEATURES • Motorized TFT-LCD with 2 Pre-Set Angles & Last Angle Memory Accepts Add-On GPS Navigation Module,NAVIBOX-1 （Optional） • Accepts Add-On Digital TV Tuner Module, DTV-1 （Optional） • • Car-Spec DVD Transport for Extreme Temperature Exposure • Playback from DVDR/RW & CDR/RW Including VCD, MP3, MP4 & DivX •...
  • Page 5 - 4 -...

  • Page 6: Accessories

    ACCESSORIES Bolt x 1 Back Strap x 1 M5X5 Screws x 4 Keys x 2 Power Wire x 1 Connecter Wire x 1 Connecter Wire x 1 Operational Manual x1 （White） （Black） Trim Bezel x 1 IPod Cable x 1 USB Cable x 1 NUT M5X 1 （Optional）...

  • Page 7: Wire Connection

    WIRE CONNECTION 1. POWER WIRE 2. EXTERNAL NAVIGATION ADAPTOR (OPTIONAL) DIGITAL TV ADAPTOR (OPTIONAL) 3. AUDIO/VIDEO OUTPUT&INPUTS IPOD ADAPTOR (OPTIONAL) 4. RADIO ANTENNA ADAPTER ANALOG TV ANTENNA (OPTIONAL) - 6 -...
  • Page 8 Brake Control Connect the brake control wire AUTO_ANT (see Wiring Diagram). It is necessary to connect the Brake Control wire to the Hand-brake switch of the car. While driving, the TFT monitor will display the alarm picture (see as follows) in order to ensure the safety.
  • Page 9 Wiring Diagram - 8 -...

  • Page 10: Unit Installation And Removal

    UNIT INSTALLATION AND REMOVEL Installation Method 1: 1 Install the mounting sleeve into 2 Bend the claws into place to the dashboard. secure the sleeve. 3 Slide the units into the mounting sleeve. 4 Install the trim bezel onto the unit. 5 Sketch map when installation finished.
  • Page 11 Removal Method 1: 1 Detach the trim bezel. 2 Insert the keys into the aperture between the unit and the mounting. 3 Pull the unit out of the mounting sleeve. 4 Sketch map when removal finished. - 10 -...
  • Page 12 Installation Method 2: 1 Tighten the bolt onto the rear 2 Tighten the back strap onto your panel of the unit. car inside the dashboard. 3 Place the unit into the dashboard; 4 Screw the unit on the car on the make the bolt bar across back strap;...
  • Page 13 Removal Method 2: 1 Detach the trim bezel. 2 Unscrew the unit off the car on the two sides. 3 Unscrew the Nut M5 screw on the rear 4 Sketch map when removal finished. side of the unit and pull out the unit. - 12 -...

  • Page 14: Front Panel

    FRONT PANEL 1. POWER/SOURCE 2. EJECT 3. REL 4. VOL+ 5. VOL- 6. MUTE/EQ 7. PREV 8. NEXT 9. AST 10. BAND 11. USB 12. SD CARD 13. MIC 14. REMOTE 15. AV IN 16. ANGLE+/END CALL 17. ANGLE-/CALL 18. DISP 19.
  • Page 15 1. Power When ACC is on, press to turn the unit on; hold on pressing the button to turn off the unit. When the unit is on, press to switch between different modes. 2. Eject Press to eject / load a disc. 3.
  • Page 16 16. ANGLE+/END CALL/ 17. ANGLE-/CALL Adjust the view angle of the monitor to choose the best displaying effect. 1- Continual angle adjustment Hold on pressing the [ANGLE +] / [ANGLE -] buttons to adjust the angle of TFT monitor upward / downward by continual increasing / decreasing. 2- Single step angle adjustment Press the [ANGLE +] / [ANGLE -] buttons to adjust the angle of TFT monitor upward / downward by singly increasing / decreasing.
  • Page 17 Press the [OPEN] Shut down the Halt Self-protection button ACC and restart While extending Retraction Extending Retraction Stop at the halt place While retraction and retract after 3 Extending Retraction seconds While turning Turning downward and Turning downward Extending upward retraction and retract ion While turning...

  • Page 18: Remote Control

    REMOTE CONTROL 1. POWER/SOURCE 13. PREVIOUS 25. SYSTEM / NAVI 2. MUTE 14. SLOW / END CALL 26. F.FWD 3. NUMBER BUTTONS 15. TITLE / PBN 27. RIGHT(Seek up) 4. MENU / * 16. ZOOM / CALL 28. STOP 5. AUDIO / # 17.
  • Page 19 1. [POWER/SOURCE] When ACC is on, press the button to turn the unit on; hold on pressing the button to turn off the unit. When the unit is on, press to switch between different modes. 2. [MUTE] Press to switch off the sound; press it again to resume to the previous volume level. 3.
  • Page 20 9. [BAND/ENTER] DVD Mode, press to confirm the selection. Radio Mode, press to switch the wave band as following: FM1 – FM2 - FM3 - AM1- AM2 - FM1 TV Mode, press to switch the TV audio as following: NTSC – PAL/BG – PAL/I – PAL/DK – NTSC Hold on pressing to switch the TV system area as following: USA –...
  • Page 21 22. [DISPLAY] Under main menu, press to set the background by default picture. DVD Mode, press to display current playback information. Bluetooth Mode, press to return to the previous page. 23. [PBC/AST/CLEAR] DVD Mode, press to select the PBC function on / off when playing VCD disc. Radio Mode, press to review stored stations;...
  • Page 22 Bluetooth Mode, press to enter into AUDIO PAIRING. 35. [STEREO/ MUSIC PAIR] Radio Mode, press to turn the stereo on / off under. Bluetooth Mode, press to break off or connect the music storage medium with the unit. REPLACING THE BATTERIES If the remote control has no function or if the operating range reduced, replace the old battery with new one.

  • Page 23: Touch Screen Operations

    TOUCH SCREEN OPERATIONS TOUCH SCREEN CALIBRATION When “Power Off”, press the buttons 2, [BAND] of remote control to enter the CALIBRATION page: To touch the points from 1 to 5 until the points change to next cross by using a ballpoint pen or pencil.

  • Page 24: Main Menu

    MAIN MENU (3 Selectable User Interface) 1, Touch to access the DVD mode. 2, Touch to access the RADIO mode. 3, Touch to access the NAVI mode. (Optional) 4, Touch to access the IPOD mode. 5, Touch to access the DIGITAL TV mode. (Optional) 6, Touch to access the SD CARD mode.

  • Page 25: Radio Operations

    RADIO OPERATIONS Touch the [RADIO] icon to access to Radio Mode. 1. Current Source Indicator Display the source currently playing, touch to return the main menu. 2. Mute Touch to switch off the sound; touch it again to resume to the previous volume level. 3.

  • Page 26: Dvd Operations

    DVD PLAYER OPERATIONS 1, Touch the [DVD] icon to access to DVD Mode if disc inside. 2, The unit will be switched to DVD Mode automatically when inserting the disc. 3, The unit will switch to RADIO Mode automatically if disc ejected. 1.
  • Page 27 Touch to capture the current playing image and store into memory for background or screen saver. 3. Display Touch to display the current playback information on the screen. 4. Repeat Touch to repeat as CHAPTER-TITLE-ALL-REPEAT OFF when DVD playback. Touch to repeat as TRACK-ALL-REPEAT OFF when VCD/CD playback. Touch to repeat as REPEAT ONE-REPEAT ALL-REPEAT OFF when MP3 playback.
  • Page 28 2. Setup Touch to access the DVD SETUP menu. Touch the [<] / [>] icons to switch the main menus as following: SYSTEM – LANGUAGE – VIDEO – SPEAKER – DIGITAL ∧ ∨ Touch the [ ] / [ ] icons to access the submenus from main menus. ∧...
  • Page 29 RATING Following options are available for the Parental Ratings: 1 KID SAFE 3 PG 4 PG 13 5 PG - R 7 NC - 17 8 ADULT The Parental Ratings could be changed after the correct password input. DEFAULT The unit will restore all default settings by selecting this option. LANGUAGE SETUP OSD LANGUAGE Following options are available for the OSD LANGUAGE:...
  • Page 30 VIDEO SETUP BRIGHTNESS Following options are available for the BRIGHTNESS: CONTRAST Following options are available for the CONTRAST: Following options are available for the HUE: SATURATION Following options are available for the SATURATION: SHARPNESS Following options are available for the SHARPNESS： SPEAKER SETUP DOWNMIX Following options are available for the DOWNMIX:...
  • Page 31 DIGITAL SETUP OP MODE Following options are available for the OP MODE LINE OUT RF REMOD DYNAMIC RANGE Following options are available for the DYNAMIC RANGE: FULL 6 / 8 4/ 8 2 /8 DUAL MONO Following options are available for the DUAL MONO: STEREO MONO L MONO R...

  • Page 32: Bluetooth Operations

    BLUETOOTH OPERATIONS (Optional) Touch the [BLUETOOTH] icon to access the Bluetooth Mode: 1. Current Source Indicator Displays the source currently playing, touch to return the main menu. 2. Mute Touch to switch off the sound; touch it again to resume to the previous volume level. 3.
  • Page 33 3. Phone Pairing Touch the icon and the below words on information display: Then set the phone to pair with unit. When paring finished, set the phone connect with unit, then you can see the phone name on information display. Touch the icon again to cancel the pairing and the below words on information display: 4.
  • Page 34 PHONE CALL 1. Call Touch to call a number or receive a cell phone call. Touch to call the last number if no number input. 2. Clear Touch to cancel or clear the numbers you have input. 3. End Call Touch to reject or hang up a call.
  • Page 35 When end the call, you will see the below image: PHONEBOOK 1. My Phonebook The phone numbers are stored in phone. 2. SIM Phonebook The phone numbers are stored in SIM card. 3. Dialed Call The phone numbers are dialed in phone. 4.
  • Page 36 8. End Call Touch to reject or hang up a call. 9. / 10. Previous Page / Next Page There are 5 numbers in each page, touch to see the previous / next page. Phone Number List Touch the icon 1~5, when item is changed to yellow color, the item is selected. And touch it again and the item is changed to green color, the operation is active and you will see the below image: 1, Information Display...

  • Page 37: Ipod Operations

    IPOD OPERATIONS （Optional） 1, Touch the [IPOD] icon to switch IPOD Mode when IPOD connected. 2, The unit will switch to IPOD Mode automatically when IPOD connected. 3, The unit will switch to RADIO Mode automatically when IPOD disconnected. Music Page Under the Music Page, it is not effective for the controller of IPOD itself, use the keys of unit to control the operation and all operations are same as DVD Mode.
  • Page 38 8.Repeat Touch to repeat current song, touch it again to repeat songs as ALL. 9.Random Touch to play songs randomly. 10. Video Touch to access the video page. Video Pae Under the Video Page, use the controller of iPod itself to control all operations of iPod including play music, videos and view pictures.

  • Page 39: Sd Operations

    SD CARD OPERATIONS Under the SD CARD Mode, all operations are same as DVD Mode. 1. Touch the [SD CARD] icon to access to SD CARD Mode if SD / MMC Card inserted. 2. The unit will switch to SD CARD Mode automatically and enter into track playing when SD CARD connected.

  • Page 40: Av In1 Operations

    AV IN 1 OPERATIONS Touch the icon “AV IN 1” to enter the AV IN 1 Mode: 1. Current Source Indicator Display the source currently playing, touch to return the main menu. 2. Mute Touch to switch off the sound; touch it again to resume to the previous volume level. NOTE: There are 2 RCA Audio Inputs &...
  • Page 41 Touch Screen Calibration When 1 time to enter NAVI mode, you will see the calibration screen. Please touch the points from 1 to 5 by using a ballpoint pen or pencil. To verify the calibration, please touch the points from 1 to 5 again. Then the following screen is displayed: The Touch Screen is restored to their default positions.
  • Page 42 Read information and touch “I agree” button at the bottom of the screen, then enter the NAVI mode. NOTE: If change the NAVIbox to connect another unit, please take out the SD card from the NAVIbox and connect with computer, the following screen is displayed on computer: Delete the file “calib.ifo”...
  • Page 43 Go to NAVI mode Touch the icon “NAVI” to enter the NAVI Mode if NAVIBOX connected: Following screen will be displayed: Read information and touch “I agree” button at the bottom of the screen. Enter the NAVI mode by main menu, the NAVI operations are effective only, all other processes are disable such as Radio, CD etc.
  • Page 44 Quick Access Key [NAVI] Under any working mode, press the [NAVI] button to switch to NAVI mode; press the [NAVI] button again to return the previous working mode. For example, under Radio mode, press the [NAVI] button to switch to NAVI mode; press the [NAVI] button again to quit the NAVI mode and return back the Radio mode.

  • Page 45: Tv Operations

    TV OPERATIONS (Optional) Touch the icon “TV” to enter the TV Mode: 1. Current Source Indicator Display the source currently playing, touch to return the main menu. 2. Mute Touch to switch off the sound; touch it again to resume to the previous volume level. 3.

  • Page 46: Digital Tv Operations

    DIGITAL TV OPERATIONS (Optional) 1. Current Source Indicator Display the source currently playing, touch to return the main menu. 2. Mute Touch to switch off the sound; touch it again to resume to the previous volume level. 3. Return Touch to return submenu to menu. 4.

  • Page 47: System Parameters Setup

    SYSTEM PARAMETERS SETUP Touch the [SYSTEM] icon to enter the System Parameters Setup. SCREEN SETUP 1. Contrast Touch [UP] / [DOWN] icons to adjust the CONTRAST parameters (Range: -9 to 9); 2. Tint Touch [UP] / [DOWN] icons to adjust the TINT parameters (Range: -9 to 9); 3.
  • Page 48 5. Buzzer Touch to turn Buzzer on or off; 6. Balance / Fader Touch [LEFT] / [RIGHT] icons to adjust the BALANCE parameters (Range: -9 to 9); Touch [FRONT] / [REAR] icons to adjust FADER parameters (Range: -9 to 9); 7.
  • Page 49 4. Del Touch to delete the selected image of screen saver images list. 5. Add Touch to add the selected image of captured images list as screen saver. 6. Screen Saver Time Touch to adjust the screen saver time as following: 3MIN - 5MIN - NEVER - 10S - 20S - 30S - 60S - 3MIN SYSTEM SETUP 1.

  • Page 50: Specifications

    SPECIFICATIONS GENERAL Supply Voltage : 14.4V DC (11-16V allowed) Load Impedance : 4Ω per channel Max Power Output : 50W x 4 Bass 100Hz : ≥ 10dB Treble 10KHz : ≥ 10dB Dimensions (approx.) : 178 x 188 x 60 mm (d/w/h) Mounting (approx.) : 160 x 178 x 50 mm (d/w/h) FM TUNER...

  • Page 51: Troubleshooting

    TROUBLE SHOOTING If any of problem persists after checking the below list, Please consult your nearest service dealer. Never attempt to disassemble and repair unit personally. Problem Cause Action GENERAL Yellow wire not connected or incorrect Check connections for proper voltage Re wire not connected voltage(11-16vdc) or incorrect...
  • Page 52 Problem Cause Action TFT MONITOR No video display Reverse circuit not connected Check connections at reverse lamp (when in Vehicle is not in reverse Select reverse gear reverse) Front panel will Remove the obstruct and press Front panel obstructed OPEN to resume the monitor open/close open/close sequence Flashing image...

  • Page 53: Disc Notes

    DISC NOTES Handling and Cleaning ● Dirty, dusty, scratched or warped discs will cause misoperation. ● Do not place stickers or make scratches on discs. ● Do not warp discs. ● A disc should always be kept in its case when not in use to prevent from damage. ●...
