Replacement Parts - Seaward PRINCESS SERIES Owner's Manual

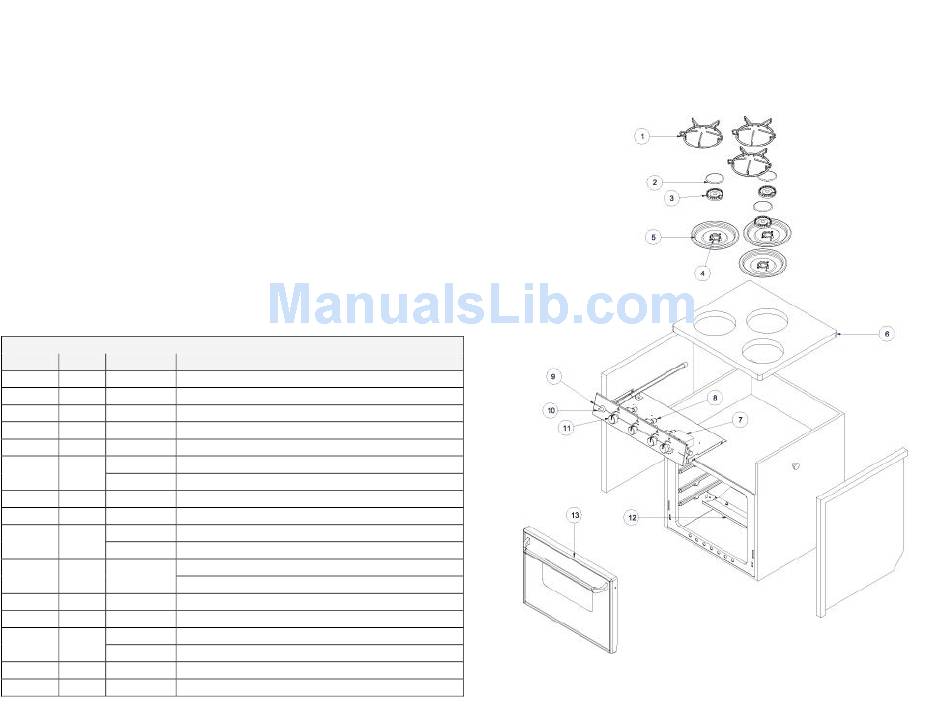

EXPLODED VIEW AND PARTS LIST OF ALL GAS RANGES WITH OVENS

Replacement Parts

Replacement parts listed herein may be ordered through Seaward
Products, Seaward Distributors and Dealers, or Dealer's Authorized
Service Centers. All parts will be shipped at prevailing prices. When
ordering repair parts, please give the following information:
(1) Model number
(2) Serial number
(3) Part number
(4) Part description
The model number and serial number of the range can be found on the
rating plate located on the back panel. For the Authorized Service
Center nearest you, please contact Seaward Products.
PARTS LIST FOR 2-BR AND 3-BR MODELS
ITEM # QTY PART #
1 2/3 73420
2 2/3 75710
3 2/3 75711
4 2/3 75712
5 2/3 80777
72257
6 1
72251
7 1 75703
8 2/3 75717
75735
9 1
75736
10 1 75659
11 2/3 73594
12 1 80781
80010
13 1
80011
1 73514
1 73515
MODELS: 2174, 3174, 2374, 3374 & 2175, 3175, 2375, 3375
DESCRIPTION
GRATE, BLACK PORCELAIN "xx75" ONLY
BURNER CAP
BURNER BASE
BURNER BODY
SPILL BOWL
2-BR MAIN TOP, STAINLESS STEEL
3-BR MAIN TOP, STAINLESS STEEL
THERMOSTAT
TOP BURNER VALVE
2-BR FACEPLATE
3-BR FACEPLATE
2-BR PUSH BUTTON IGNITION
3-BR PUSH BUTTON IGNITION
KNOBS
OVEN BURNER ASSEMBLY
BLACK GLASS OVEN DOOR
STAINLESS STEEL OVEN DOOR
GRATE, 3-BR FULL "xx74" ONLY
GRATE, 2-BR FULL "xx74" ONLY
Rev. 20110629
