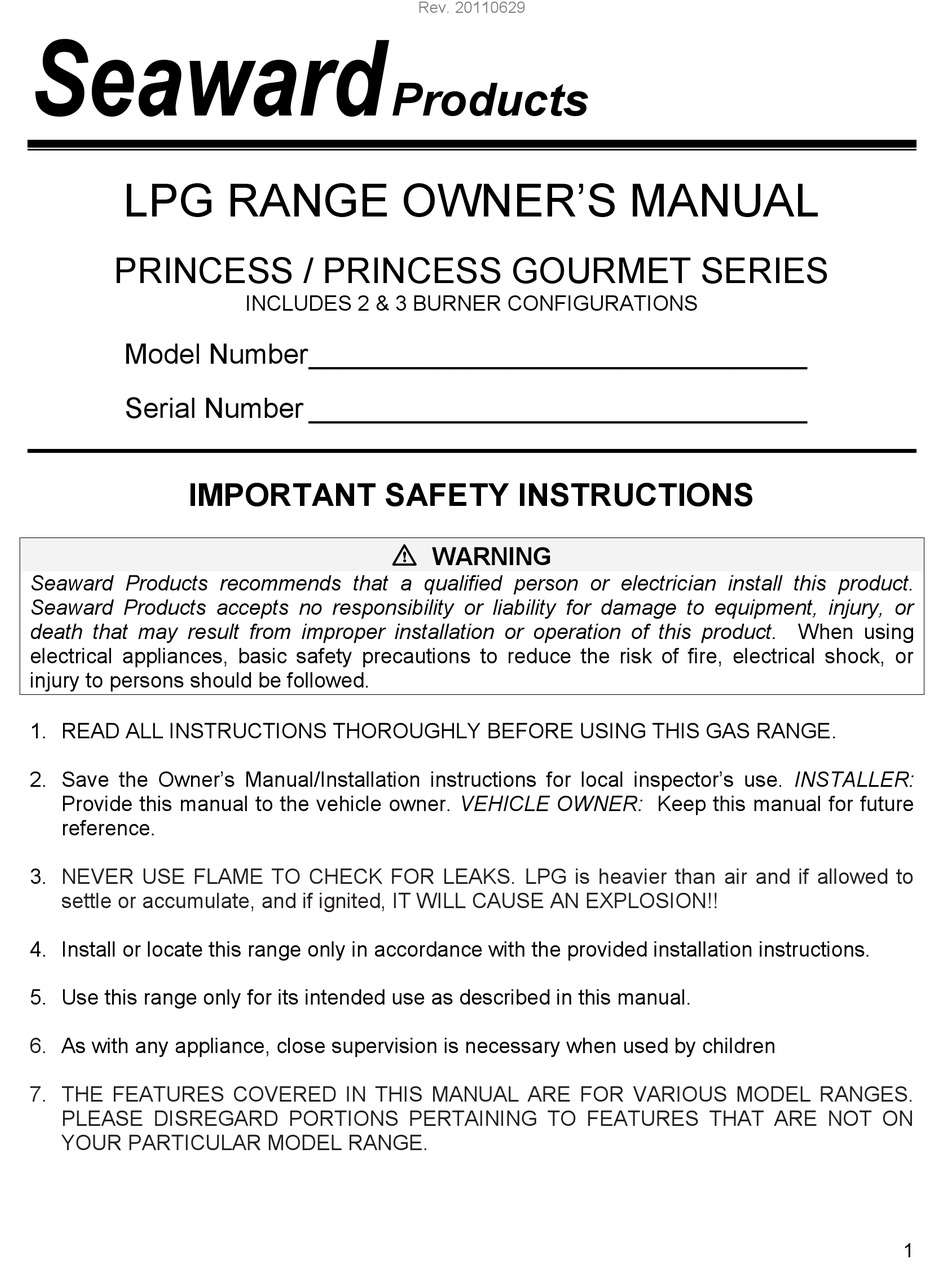

Seaward
LPG RANGE OWNER'S MANUAL
PRINCESS / PRINCESS GOURMET SERIES
Model Number________________________________
Serial Number ________________________________
IMPORTANT SAFETY INSTRUCTIONS
Seaward Products recommends that a qualified person or electrician install this product.
Seaward Products accepts no responsibility or liability for damage to equipment, injury, or
death that may result from improper installation or operation of this product. When using
electrical appliances, basic safety precautions to reduce the risk of fire, electrical shock, or
injury to persons should be followed.
1. READ ALL INSTRUCTIONS THOROUGHLY BEFORE USING THIS GAS RANGE.
2. Save the Owner's Manual/Installation instructions for local inspector's use. INSTALLER:
Provide this manual to the vehicle owner. VEHICLE OWNER: Keep this manual for future
reference.
3.
NEVER USE FLAME TO CHECK FOR LEAKS. LPG is heavier than air and if allowed to
settle or accumulate, and if ignited, IT WILL CAUSE AN EXPLOSION!!
4. Install or locate this range only in accordance with the provided installation instructions.
5. Use this range only for its intended use as described in this manual.
6.
As with any appliance, close supervision is necessary when used by children
7. THE FEATURES COVERED IN THIS MANUAL ARE FOR VARIOUS MODEL RANGES.
PLEASE DISREGARD PORTIONS PERTAINING TO FEATURES THAT ARE NOT ON
YOUR PARTICULAR MODEL RANGE.
Rev. 20110629
Products
INCLUDES 2 & 3 BURNER CONFIGURATIONS
I
WARNING
1
Advertisement
Table of Contents
Related Manuals for Seaward PRINCESS SERIES
Summary of Contents for Seaward PRINCESS SERIES
-
Page 1: Model Number
WARNING Seaward Products recommends that a qualified person or electrician install this product. Seaward Products accepts no responsibility or liability for damage to equipment, injury, or death that may result from improper installation or operation of this product. When using electrical appliances, basic safety precautions to reduce the risk of fire, electrical shock, or injury to persons should be followed. -
Page 2: Lpg Tank With Regulation System
Rev. 20110629 LPG FUEL TANK INSTALLATION REFERENCE: STANDARD #A-1 AMERICAN BOAT & YACHT COUNCIL 3069 SOLOMON’S ISLAND ROAD EDGEWATER, MD 21037 LPG TANK WITH REGULATION SYSTEM 1. Locate the tank and regulator on deck, cabin top or in a vapor tight compartment, insulated from the hull interior and protected from climatic extremes by a housing vented to the open air. -
Page 3: Checking Lpg System/Appliance
SPECIAL NOTE ABOUT YOUR LPG REGULATOR: It is recommended that only a high quality LPG regulator be used with any of Seaward Products LPG appliances. It is imperative that the regulator be set at 11-inch water column so that the oven operates correctly, and the... -
Page 4: Summary For Lpg System/Range With Igniter
Rev. 20110629 flame height on the top burners cooks efficiently. If the regulator pressure is greater than 11- inch water column, the flame can impinge on the top burner bowl causing discoloration on stainless bowls and may chip the porcelain on the porcelain bowls. OPERATING INSTRUCTIONS SUMMARY FOR A LPG SYSTEM 1. -
Page 5: Gimbaled Models: 2/3 Burners
3. Locate the companion pieces to the gimbals and install the appliance. 4. For safety, Seaward Products gimbaled appliances are designed with a sliding bolt type lock. The sliding bolt should lock into an adjacent cabinet or bulkhead to prevent the appliance from swinging in rough weather. - Page 6 Rev. 20110629 6. Check all gas connections for possible leaks. Turn the valves on your range to their “OFF” position. Open valve on gas supply tank. Using a strong soap and water solution (1 part liquid soap and 1 part water), check each gas connection one at a time by brushing the soap and water solution over the connection.
-
Page 7: Built-In Installations
Rev. 20110629... -
Page 8: Gimbal Installation
Rev. 20110629 GIMBAL INSTALLATION 2-BURNER RANGE 3-BURNER RANGE... -
Page 9: Replacement Parts
The model number and serial number of the range can be found on the rating plate located on the back panel. For the Authorized Service Center nearest you, please contact Seaward Products. PARTS LIST FOR 2-BR AND 3-BR MODELS ITEM # QTY... -
Page 10: Care And Cleaning
Rev. 20110629 CARE AND CLEANING Regular cleaning with a soft cloth and a warm detergent solution is generally enough to keep your oven clean and beautiful. This is done when the range is cool. Use a dry cloth or paper towel to clean splatters and spills when surfaces are warm. -
Page 11: Limited Two-Year Warranty
Rev. 20110629 LIMITED TWO YEAR WARRANTY SEAWARD PRODUCTS warrants the products delivered will be: A. Free from (1) encumbrances and (2) defects in material and workmanship under the normal use and service. B. Will meet applicable specifications and descriptions at time of delivery to BUYER.
Need help?
Do you have a question about the PRINCESS SERIES and is the answer not in the manual?
Questions and answers
how do we calibrate oven temperature
To calibrate the oven temperature for Seaward SERIES, follow these steps:
1. Turn the oven control knob to the "Pilot On" position and light the constant pilot in the oven.
2. Set the oven temperature control knob to the desired temperature (e.g., 350°F).
3. The constant pilot will grow in size, becoming the heater pilot, which heats the sensing bulb of the mercury control valve.
4. After 30–60 seconds, once the sensing bulb reaches the required temperature, the mercury control valve opens, allowing gas to flow to the main burner, which then ignites.
5. When the oven reaches the set temperature, the thermostat stops gas to the heater pilot, returning it to a constant pilot. The sensing bulb cools, the mercury valve closes, and the main burner turns off.
6. The cycle repeats when more heat is needed.
This process ensures the oven cycles to maintain the selected temperature.
